Description
The Shure ULXD4Q Quad-Channel Digital Wireless Receiver delivers enterprise-grade wireless audio performance with exceptional scalability, security, and reliability. Designed for demanding live sound, corporate, and large-scale AV environments, this receiver supports four independent channels within a single rack unit, maximizing efficiency while minimizing rack space.
Engineered with advanced digital RF technology, the ULXD4Q ensures stable signal transmission, low latency, and pristine 24-bit / 48 kHz audio quality. Its wide tuning range enables flexible frequency coordination across complex RF environments, while AES 256-bit encryption safeguards sensitive audio content.
Each channel features dedicated RF and audio metering, gain control, and flexible output routing options, allowing direct or summed signal configurations. Integrated Dante networking support enables seamless digital audio distribution over IP-based systems, making it ideal for modern AV infrastructures.
With robust metal construction, advanced networking capabilities, and intelligent spectrum management, the ULXD4Q is a powerful and scalable solution for professional wireless audio systems.
| Specification | Details |
|---|---|
| Receiver Type | Quad-channel digital wireless receiver |
| Frequency Band | G57 (470–608 MHz) |
| Audio Quality | 24-bit / 48 kHz digital audio |
| Channels | 4 independent channels |
| RF Stability | Advanced digital RF performance with high signal reliability |
| Encryption | AES 256-bit secure transmission |
| Tuning Range | Wide tuning bandwidth (region dependent) |

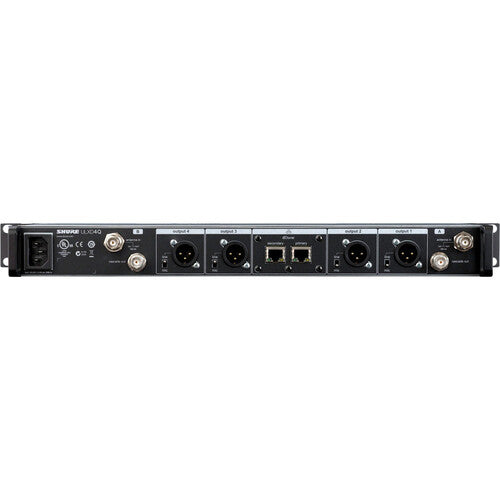

| Audio Outputs | XLR balanced outputs per channel |
| Gain Adjustment Range | -18 to +42 dB (1 dB steps with mute option) |
| Output Levels | Line: +18 dBV, Mic: -12 dBV |
| Networking | Dual Ethernet ports (10/100/1000 Mbps) with Dante support |
| Network Configuration | DHCP or manual IP addressing |
| RF Input Connectors | BNC |
| Antenna Bias Voltage | 12–13 V DC, switchable |
| Cascade Output | BNC for linking additional receivers |
| Latency | <2.9 ms |
| Dynamic Range | Up to 130 dB (Dante output) |
| Power Requirement | 100–240 V AC, 50/60 Hz |
| Construction | Steel and extruded aluminum chassis |
| Dimensions | 44 x 482 x 274 mm |
| Weight | Approx. 3.45 kg |
| Operating Range | Up to 100 m (environment dependent) |
| Mounting | Standard 19-inch rackmount |
