Description
The Shure ULXD4Q Quad-Channel Digital Wireless Receiver delivers enterprise-grade wireless audio performance for demanding A/V environments, large venues, and mission-critical installations. Designed to house four independent receivers in a single rack unit, this system provides exceptional spectrum efficiency, scalability, and reliability.
Operating within the G57 frequency band (470 to 608 MHz), the ULXD4Q features an ultrawide 138 MHz tuning range, enabling deployment of up to 60 channels in a single location. With Digital Predictive Switching Diversity, the system ensures stable RF performance and minimizes dropouts even in congested environments.
Dual Ethernet ports support Dante digital audio networking for seamless integration into modern AV-over-IP workflows, while RF cascade ports allow efficient antenna distribution across multiple units. Built-in AES-256 encryption secures transmissions, making it ideal for corporate, government, and high-security applications.
With pristine 24-bit/48 kHz audio, wide dynamic range, and low latency, the ULXD4Q delivers clear, natural sound reproduction. Intelligent features such as automatic frequency scanning, gain optimization, and remote control via ShurePlus Channels simplify deployment and system management at scale.
| Specification | Details |
|---|---|
| Wireless Technology | Digital UHF |
| RF Frequency Band | G57: 470 to 608 MHz |
| Tuning Range | 138 MHz |
| Number of Channels | 4 Independent Channels |
| Max System Channels | Up to 60 Channels |
| Diversity | Digital Predictive Switching Diversity |
| Operating Range | Up to 100 m (328 ft) |
| Dynamic Range | Greater than 120 dB |
| Latency | Less than 2.9 ms |
| Encryption | AES 256-bit |
| Receiver Type | 19-inch Rackmount (1U) |

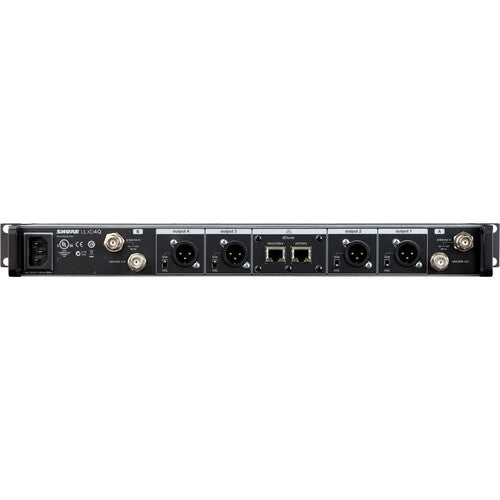

| Audio Outputs | 4 x XLR Balanced Outputs |
| Network Connectivity | 2 x RJ45 Ethernet (Dante, DHCP, Manual IP) |
| RF Cascade Ports | 2 x RF Cascade for Antenna Distribution |
| Antenna | 2 x Removable External BNC Antennas |
| Gain Range | -18 to +42 dB (1 dB Steps) |
| Frequency Response | 30 Hz to 20 kHz |
| Display | Backlit LCD |
| Mobile App Support | ShurePlus Channels (iOS and Android) |
| Power Requirements | 100 to 240 VAC, 50 to 60 Hz |
| Construction | Aluminum and Steel Housing |
| Dimensions | 19 x 10.8 x 1.7 inches |
| Weight | 7.6 lb |
