Description

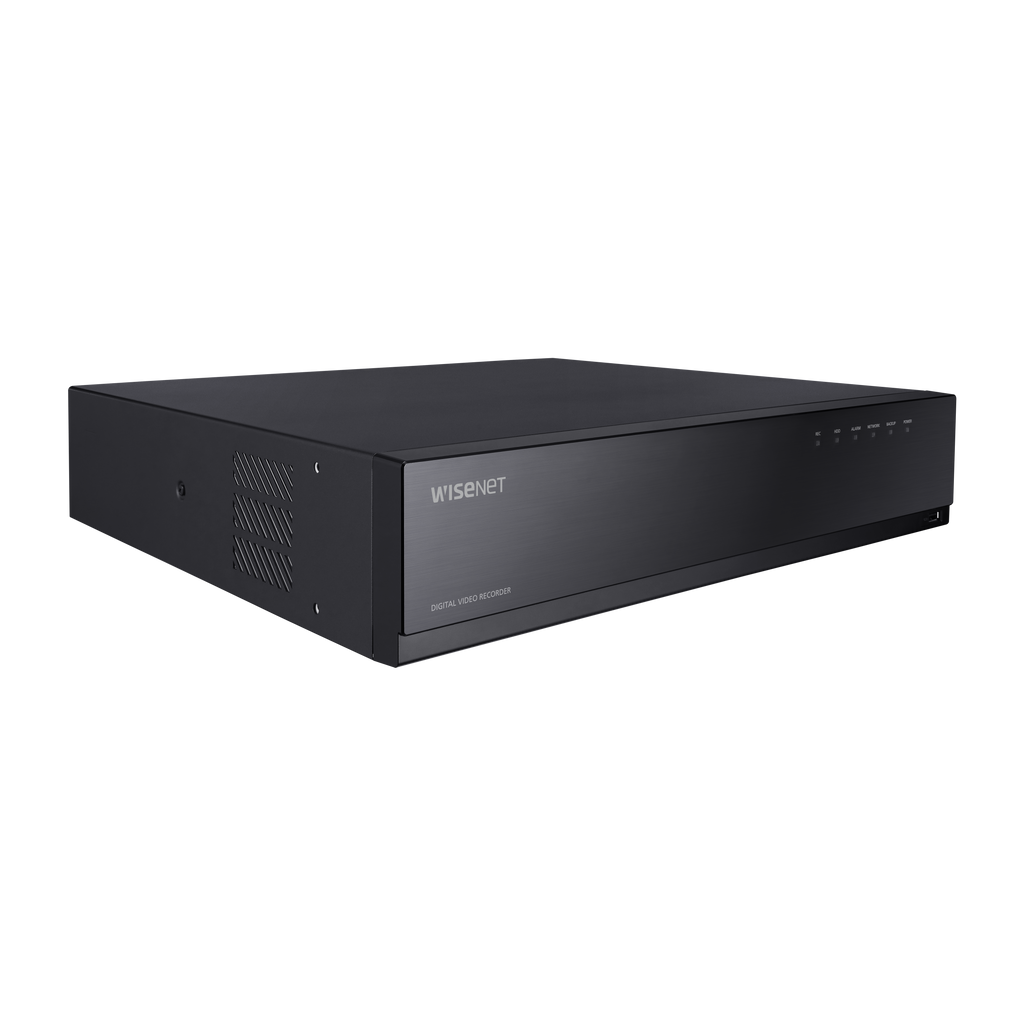

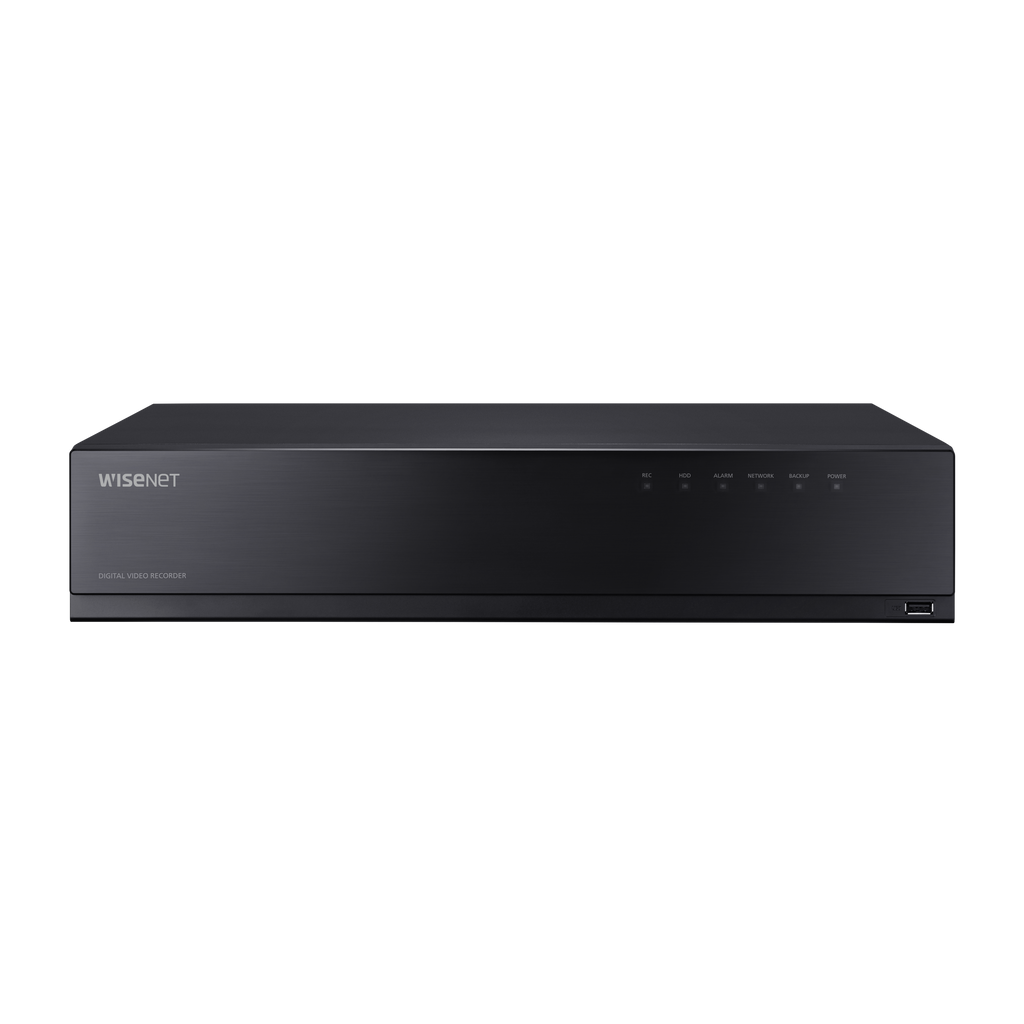

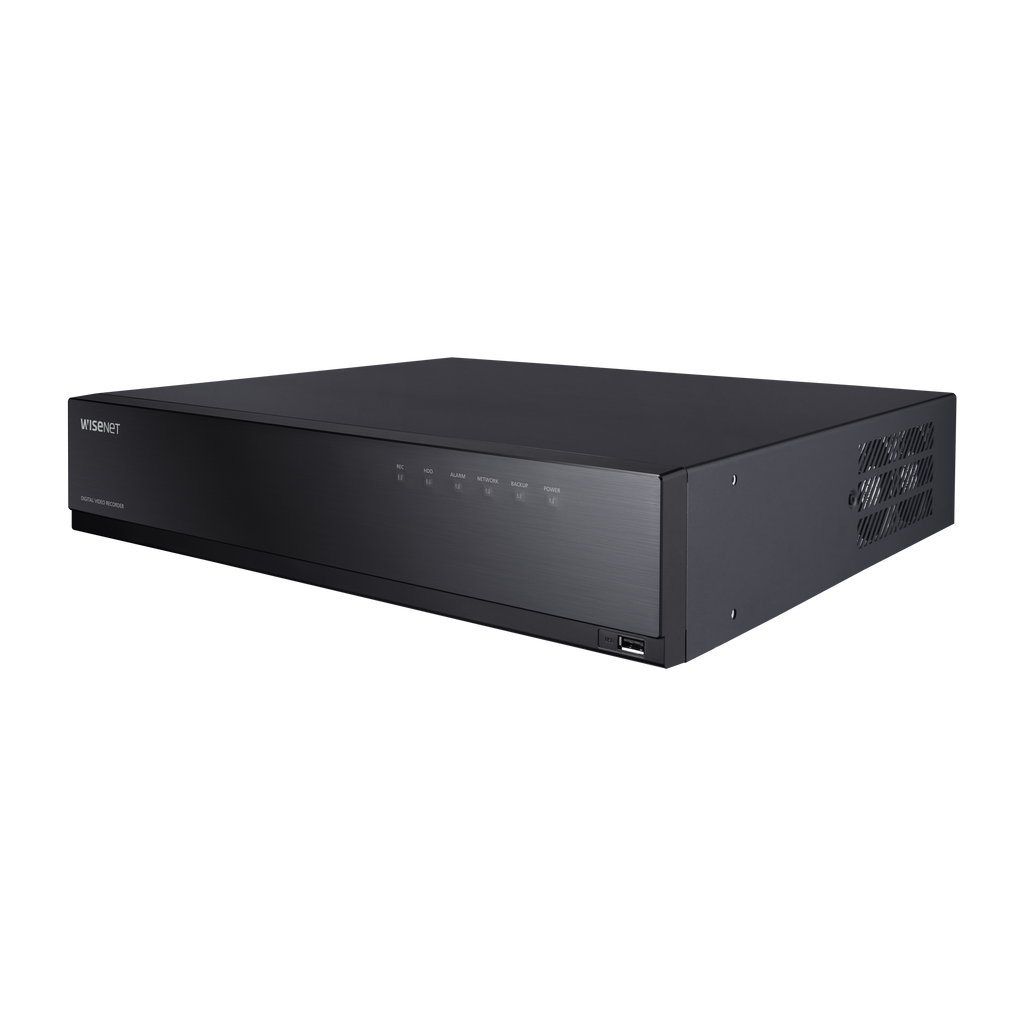

The Wisenet HRX-1635-4TB is a high-performance 16-channel Pentabrid DVR designed for professional surveillance environments requiring multi-format camera compatibility and robust recording capabilities. Supporting AHD, HDTVI, HDCVI, CVBS, and IP inputs, the HRX-1635 offers a total of up to 18 channels, enabling seamless integration of both analog and network cameras up to 8MP resolution.
Equipped with H.265/H.264/MJPEG compression, dual-monitor output, smart search functionality, and coaxial control, this DVR delivers efficient recording and streamlined playback management. With support for up to eight SATA drives and expandable storage up to 48TB, the HRX-1635-4TB is ideal for scalable and demanding security installations.
| Category | Details |
|---|---|
| Channels | 16 analog inputs + 2 IP channels (max 18CH) |
| Camera Types | AHD / HDTVI / HDCVI / CVBS / IP |
| Max Resolution | Up to 8MP (analog), up to 2MP (IP 30fps per CH) |
| Video Compression | H.265, H.264, MJPEG |
| Recording Performance | 8MP(15/12fps), 5MP(20/12fps), 4MP(30/25fps), 2MP(30/25fps), 1MP(30/25fps), 960H(30/25fps) |
| Recording Bandwidth | Max. 128 Mbps |
| Playback Bandwidth | Max. 32 Mbps |

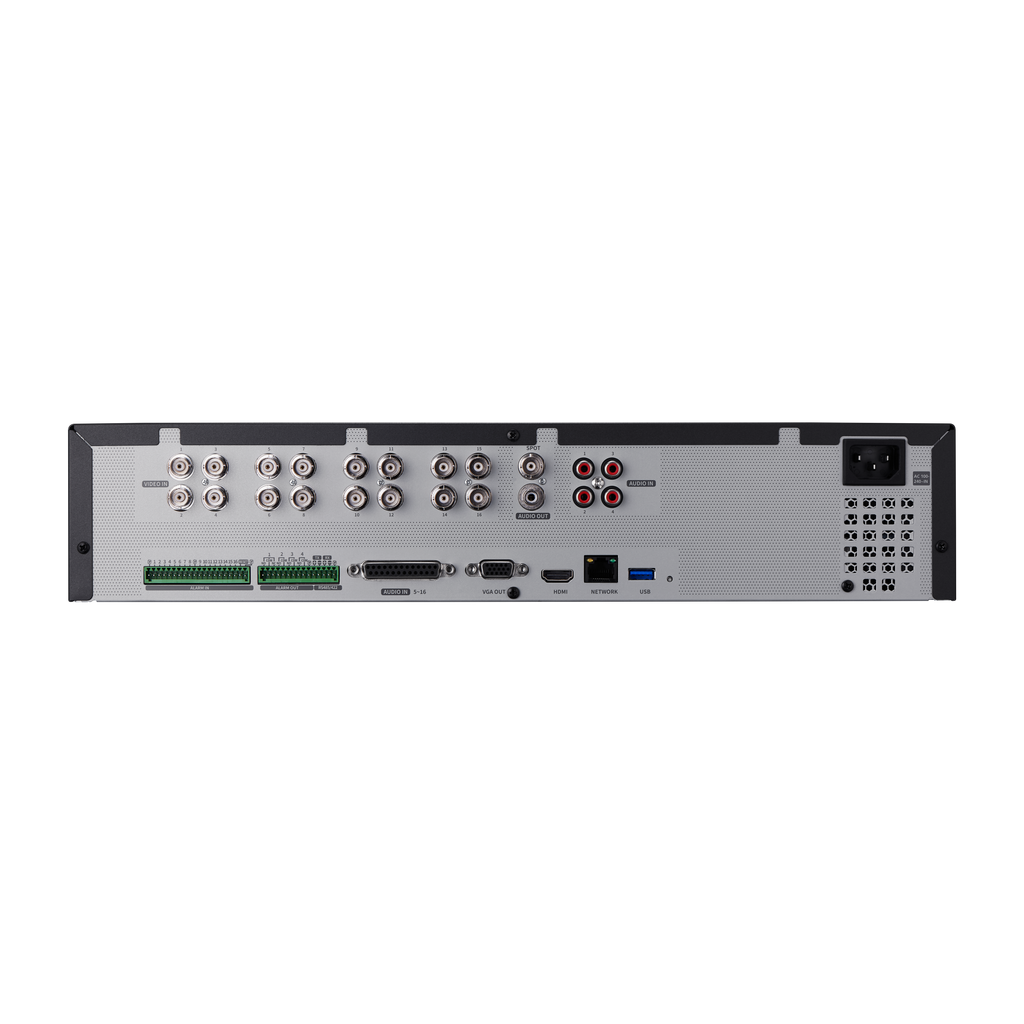

| Display Outputs | HDMI (3840×2160 max), VGA (1920×1080 max), dual monitor |
| Audio | 4 input / 1 output (RCA) |
| Alarms | 16 alarm inputs, 4 relay outputs |
| Control | Coaxial control; PTZ via RS-485 |
| Storage | 4TB HDD installed; supports up to 8 × SATA HDD (6TB each, 48TB max) |
| Backup Options | Recorder, SEC, AVI; USB 2.0 (front), USB 3.0 (rear) |
| Network Interface | 1 × RJ-45 (10/100/1000BASE-T) |
| Network Protocols | TCP/IP, UDP/IP, RTP, RTSP, NTP, HTTP, DHCP, PPPoE, SMTP, IGMP, HTTPS, SNMP, ONVIF, SUNAPI |
| Mobile Support | iOS, Android |
| Certifications | UL, CE, FCC, KC, UKCA |
| Operating Conditions | 0°C to +40°C; 20%–85% RH |
| Power Input | 100–240VAC, 50/60Hz; Max. 200W (with 8 × 6TB HDD) |
| Dimensions | 440 × 88 × 384.8 mm |
| Weight | Approx. 6.10 kg (with 4TB HDD) |
| Color / Material | Black / Metal |
