Description

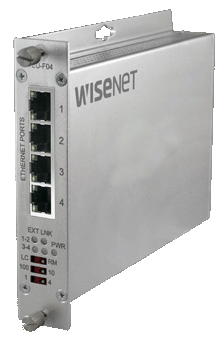

The Wisenet TEU-F04 is a 4-channel Ethernet-over-UTP extender designed to extend network connectivity and deliver pass-through PoE over long copper runs. It supports 10/100Mbps Ethernet transmission across UTP cabling and provides flexible deployment options for IP cameras and remote network devices.
With configurable DIP switches for data rate, wire-pair selection, and Local/Remote operation, the TEU-F04 is engineered for reliable long-distance networking in professional surveillance environments. Operating on 9–15V DC power, the unit can be used as a standalone module, installed in a card cage, or mounted on DIN-rail with an optional bracket.
| Category | Details |
|---|---|
| Model | Wisenet TEU-F04 |
| Type | 4-Channel Ethernet-over-UTP Extender |
| Transmission Medium | UTP (Twisted-Pair) Cable |
| Supported Data Rates | 10Mbps / 100Mbps (Selectable via DIP switch) |
| Channels | 4 Ethernet channels (Each with EXT Distance + Ethernet ports) |
| PoE Support | Pass-Through PoE (in 4-pair mode only; IEEE 802.3af devices) |
| Extended Distance Capability | Up to 3,000 ft depending on data rate, cable, and PoE load |
| Wire-Pair Mode | 1-pair or 4-pair selectable |
| Local/Remote Configuration | DIP switch selectable |
| Power Requirement | 9–15 VDC |
| Power Consumption | 5W |
| Mounting Options | Stand-alone, Card-mount compatible, DIN-rail mount (with SBP-UDR) |
| Indicators | Power, Ethernet Link, Ethernet Activity, Extended Link LEDs |
| Applications | Long-distance IP camera deployment, PoE/Non-PoE device extension, Multi-camera installations |
