Description

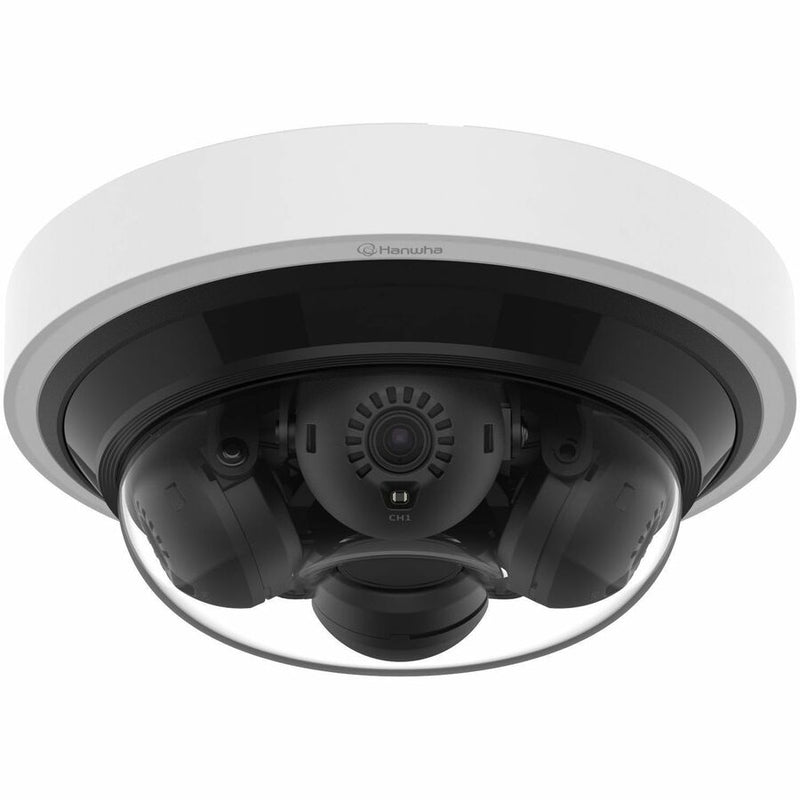

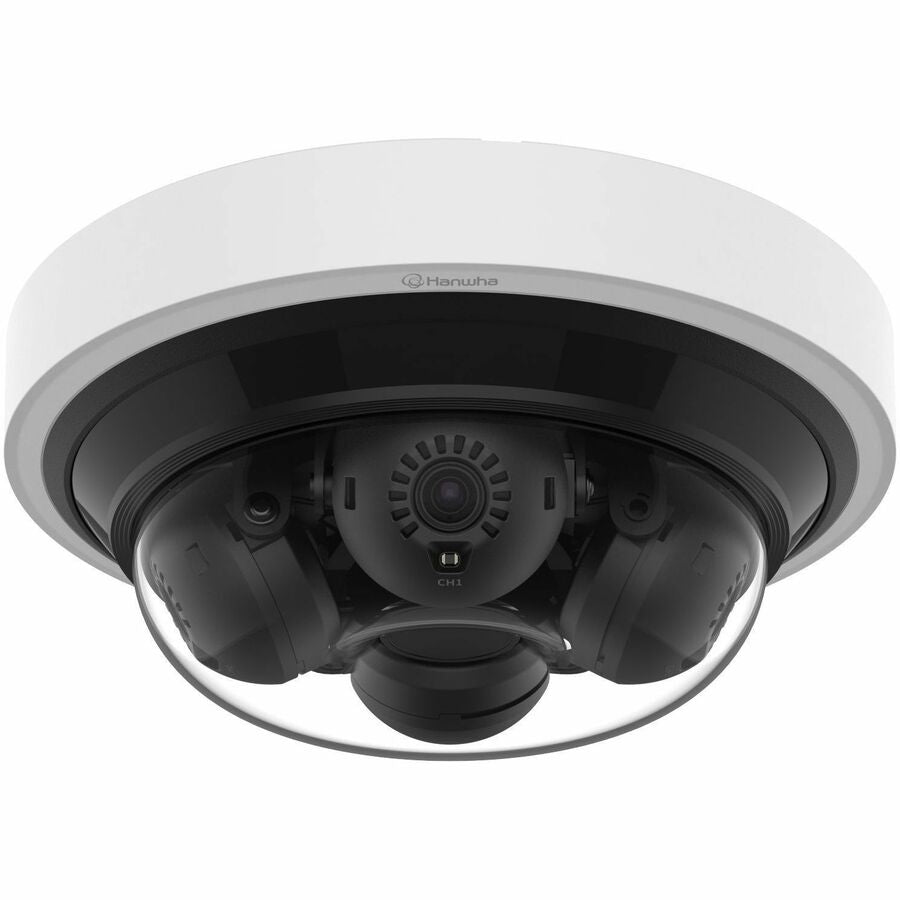

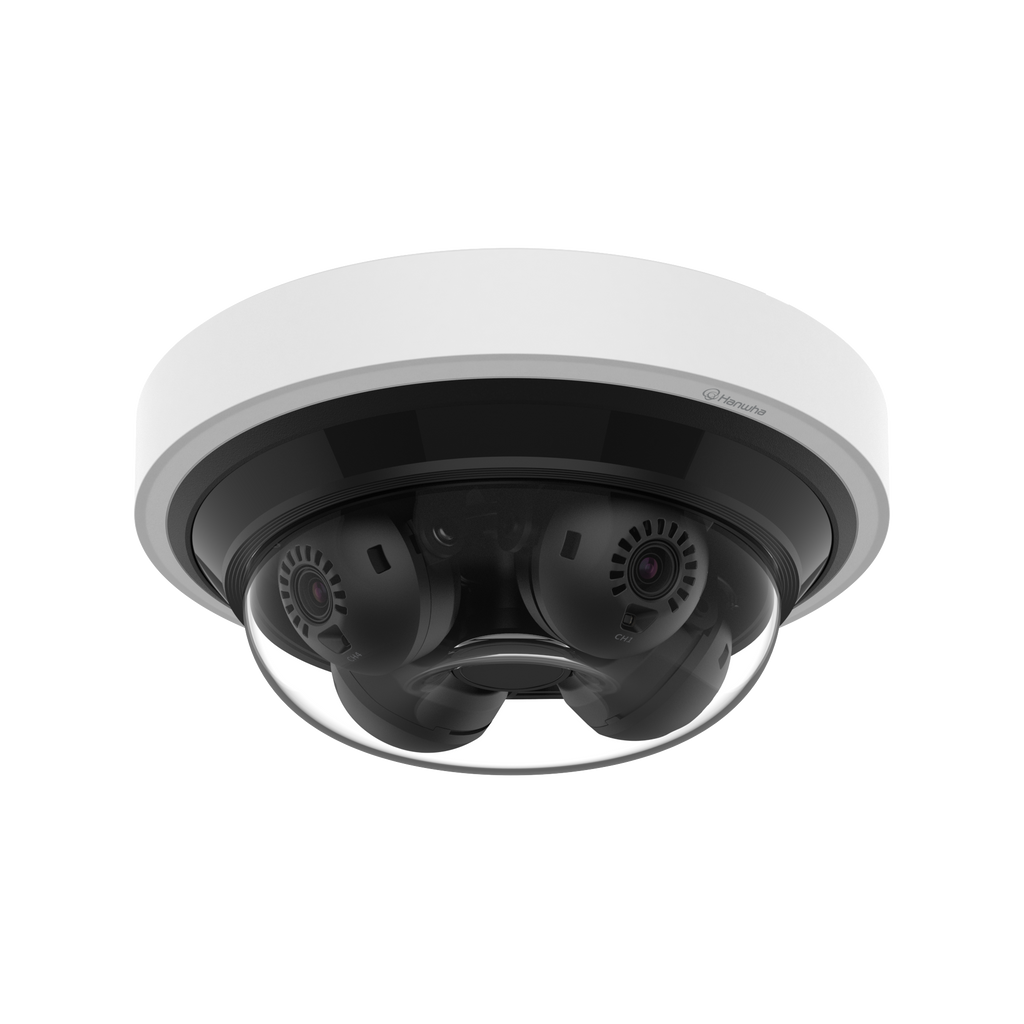

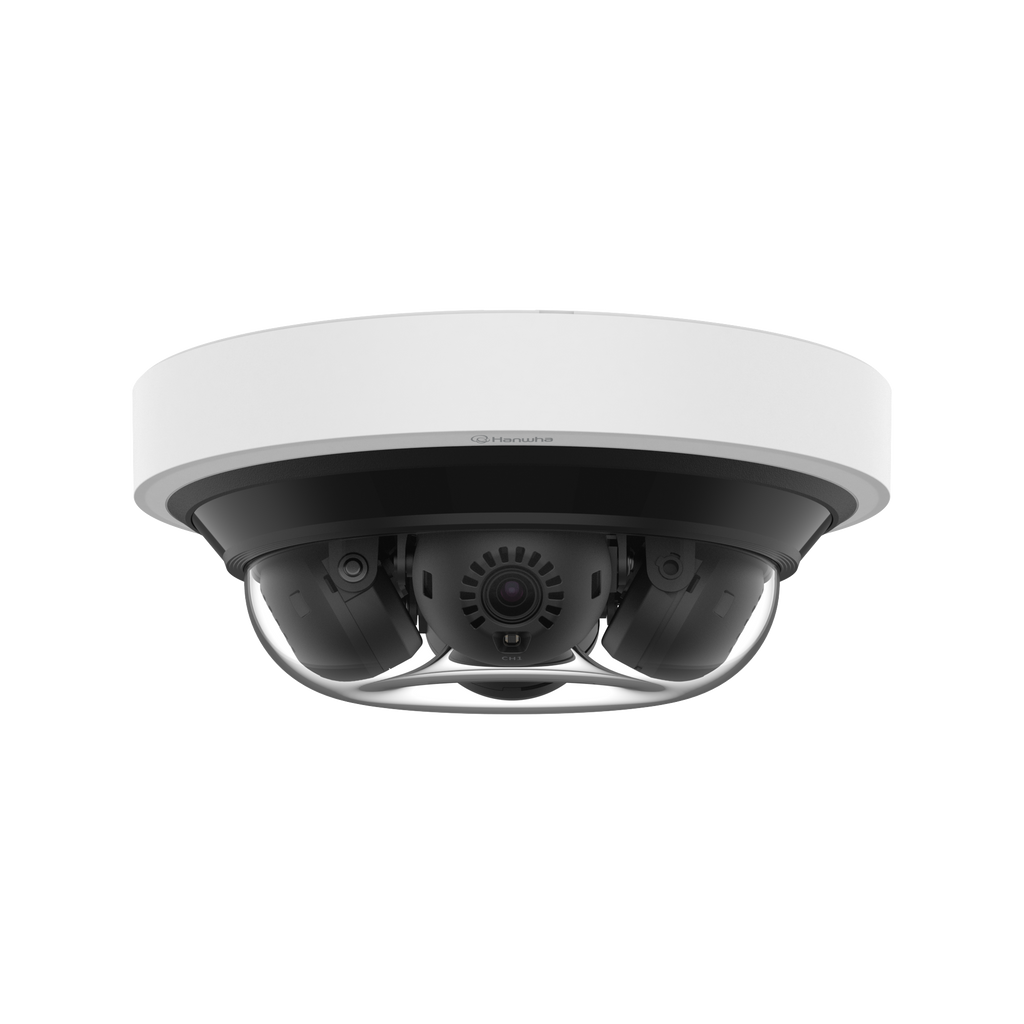

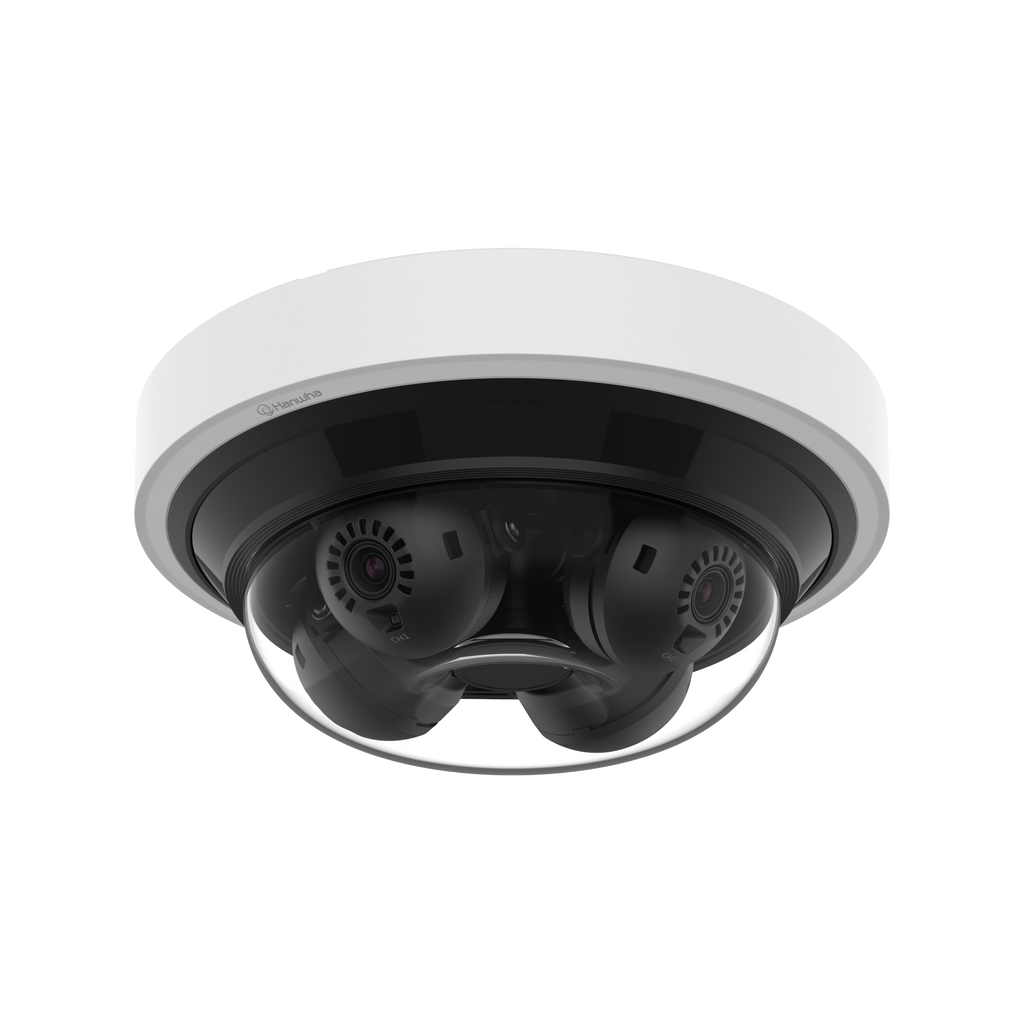

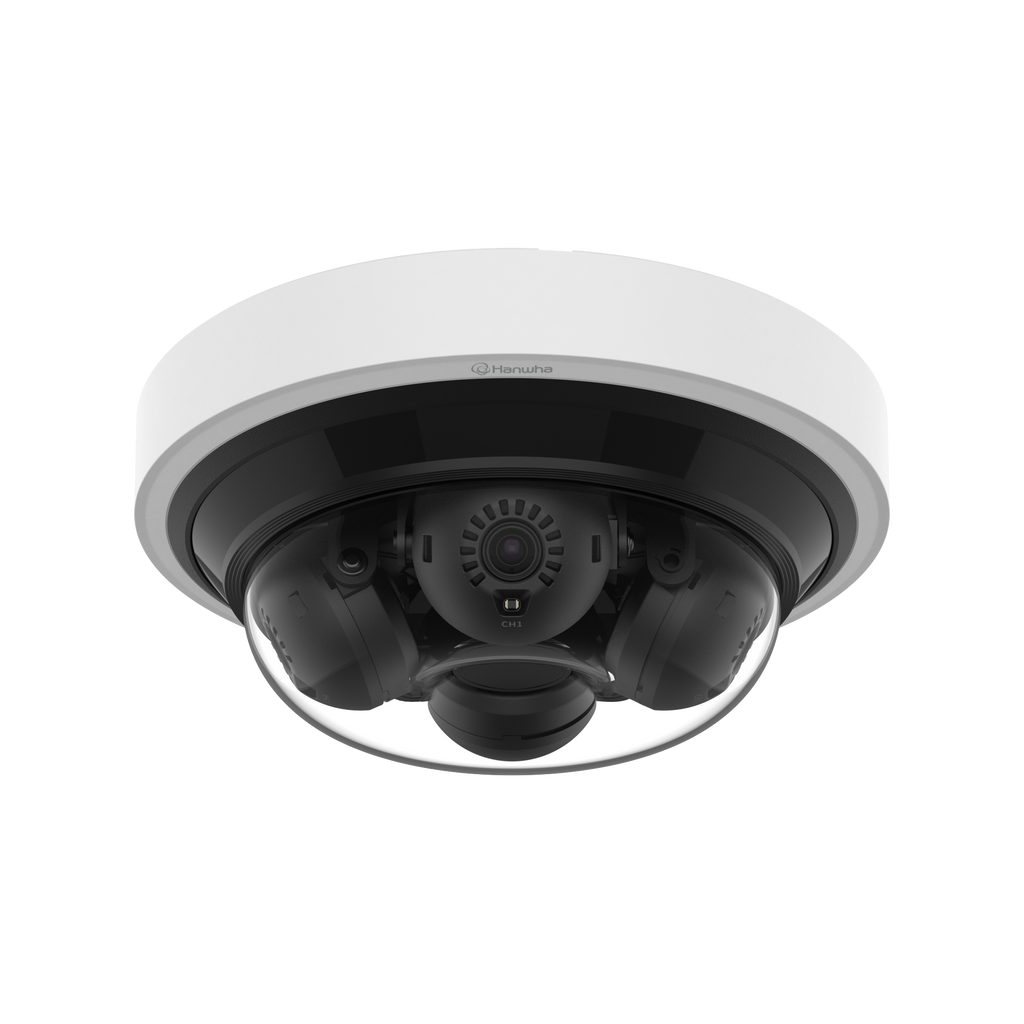

The Wisenet PNM-C16013RVQ is a compact 4-channel mini AI multi-sensor camera engineered for advanced analytics and high-accuracy detection in professional security deployments. Each channel features 4MP resolution, AI-based object classification (person, face, vehicle, license plate), virtual line and area detection, and WiseNR II noise reduction powered by an AI engine.
Equipped with 3.19mm fixed lenses and a 20m IR range, this camera delivers sharp imaging in both day and night environments. It supports hallway mode, 120dB WDR, secure boot, TPM 2.0 hardware security, FIPS 140-2 Level 2 certification, and encrypted data handling for enterprise-grade cybersecurity.
Designed for durability and flexible installations, the PNM-C16013RVQ features an IP66, NEMA 4X, and IK09-rated housing and is powered via PoE+. With multi-profile streaming, WiseStream III compression, edge storage up to 1TB (OnCloud up to 2TB), and ONVIF S/T/M compatibility, it is ideal for commercial, retail, transportation, and critical infrastructure applications.
| Category | Specification |
|---|---|
| Imaging | 1/2.8" CMOS, 4MP per channel (2592×1520), 15fps H.265/H.264 |
| Minimum Illumination | Color: 0.05 Lux (30IRE), B/W: 0.005 Lux (30IRE) |
| Lens | 3.19mm fixed, F1.2, H: 97°, V: 54°, D: 116° |
| IR Illumination | 20m (65.6 ft) IR range, 850nm |
| Pan/Tilt/Rotate | Pan 0°–360° (100°/CH), Tilt 0°–75°, Rotate 0°–90° |
| AI Analytics | Person, Face, Vehicle, License Plate; Loitering, Intrusion, Enter/Exit, Virtual Line |
| Additional Detection | Motion, Tampering, Audio Detection, Sound Classification |
| Video Enhancements | 120dB WDR, WiseNR II, SSNR V, LDC support |
| Video Compression | H.265/H.264 (CBR/VBR), MJPEG (VBR), WiseStream III |
| Streaming | Up to 4 profiles; up to 10 users (unicast); multicast supported |
| Network Protocols | IPv4/IPv6, TCP/IP, UDP/IP, RTP/RTSP, HTTPS, QoS, SNMPv1/v2c/v3, MQTT |
| Cybersecurity | Secure boot, encrypted firmware, TPM 2.0, FIPS 140-2 Level 2, HTTPS/SRTP |
| Edge Storage | Dual microSD slots up to 1TB total; OnCloud up to 2TB |
| Operating Conditions | –40°C to +55°C (–40°F to +131°F), 0–95% RH |
| Power | PoE+ (IEEE 802.3at), max 23.5W |
| Housing | IP66, NEMA 4X, IK09-rated; Aluminum with hard-coated dome |
| Dimensions / Weight | Ø200 × 80 mm (7.87 × 3.15"), 1.38 kg (3.04 lb) |
| Compatible Mounting | Single/Double/4" Octagon/Square, conduit via optional adaptor |
| Certifications | FCC, CE, UL 62368-1, IEC 62471, IK09, IP66 |
