Description

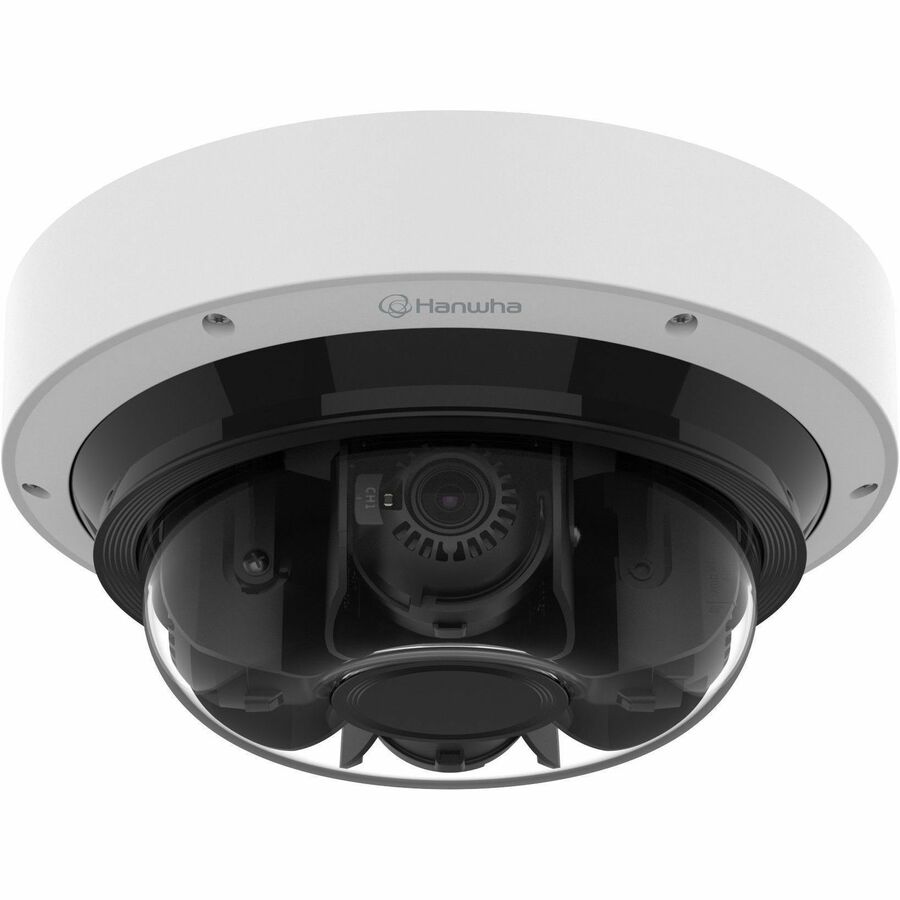

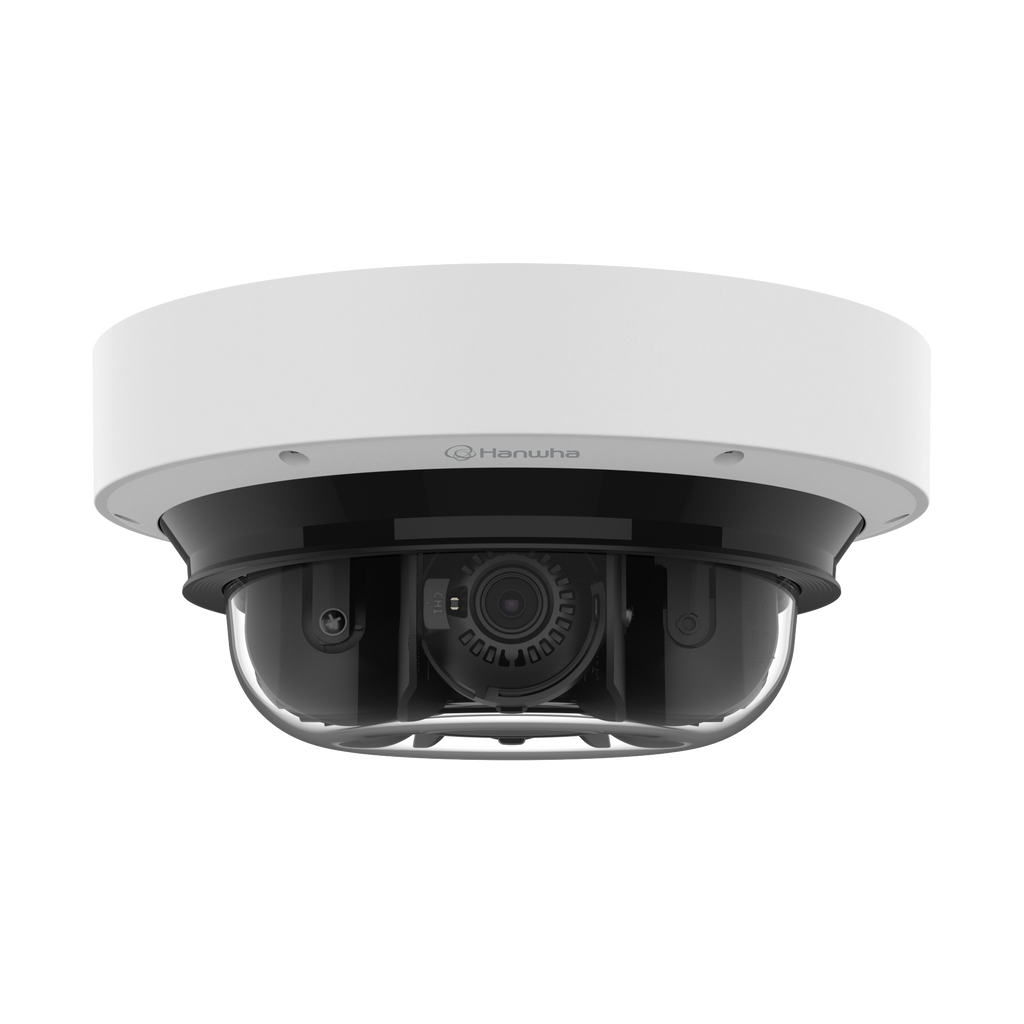

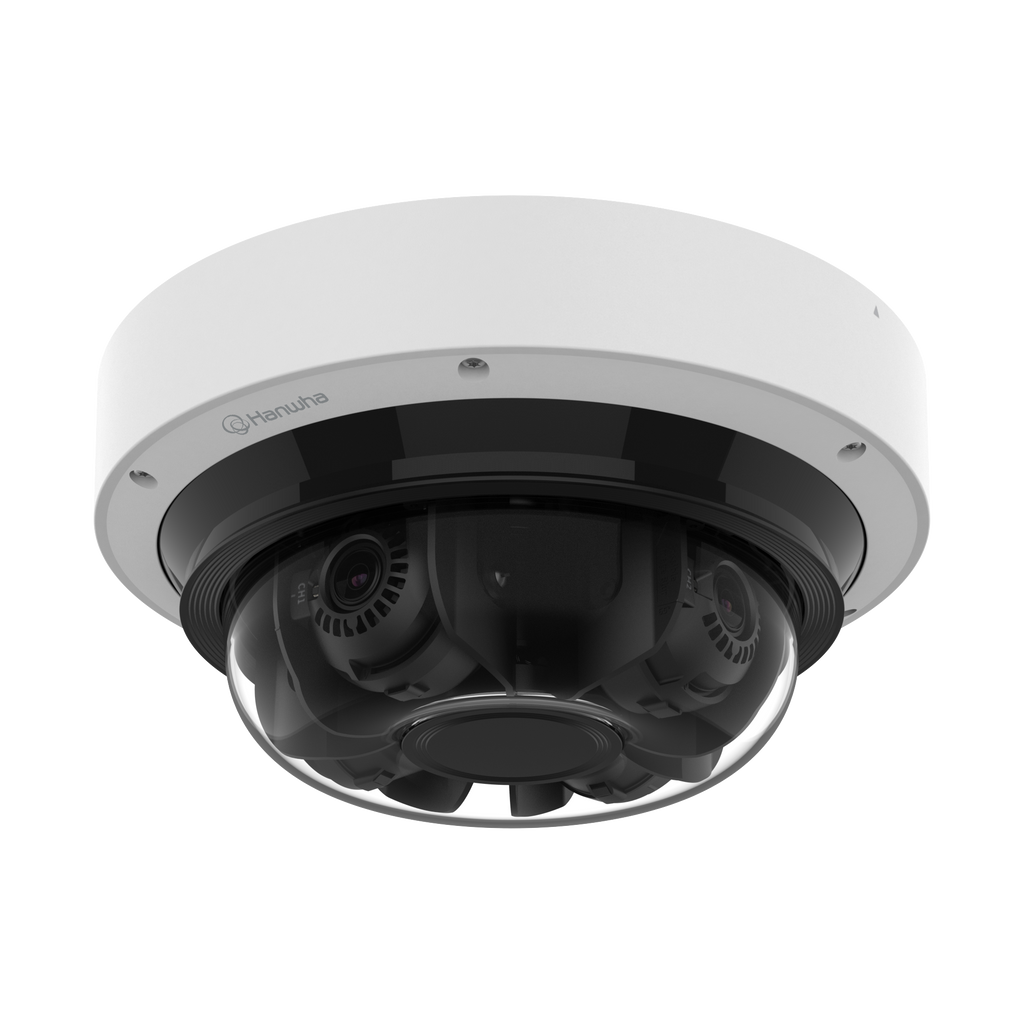

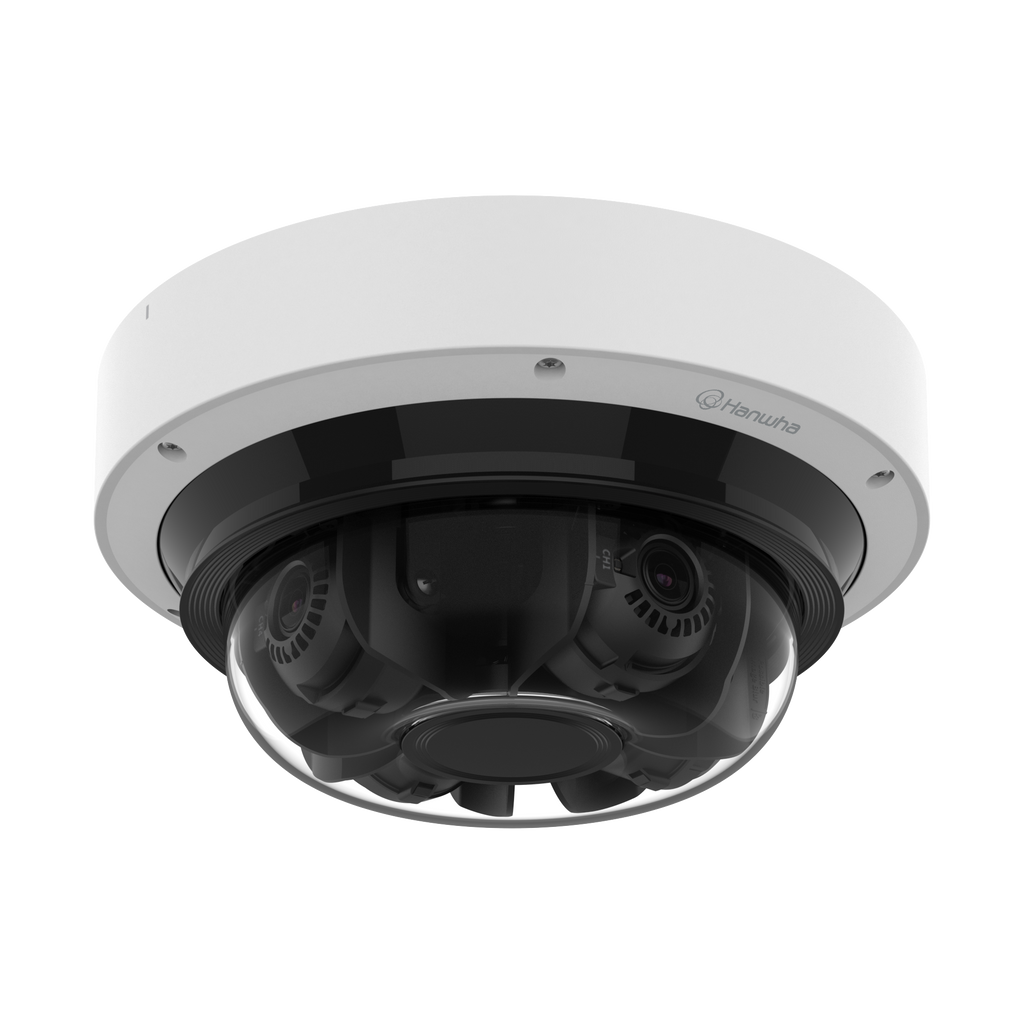

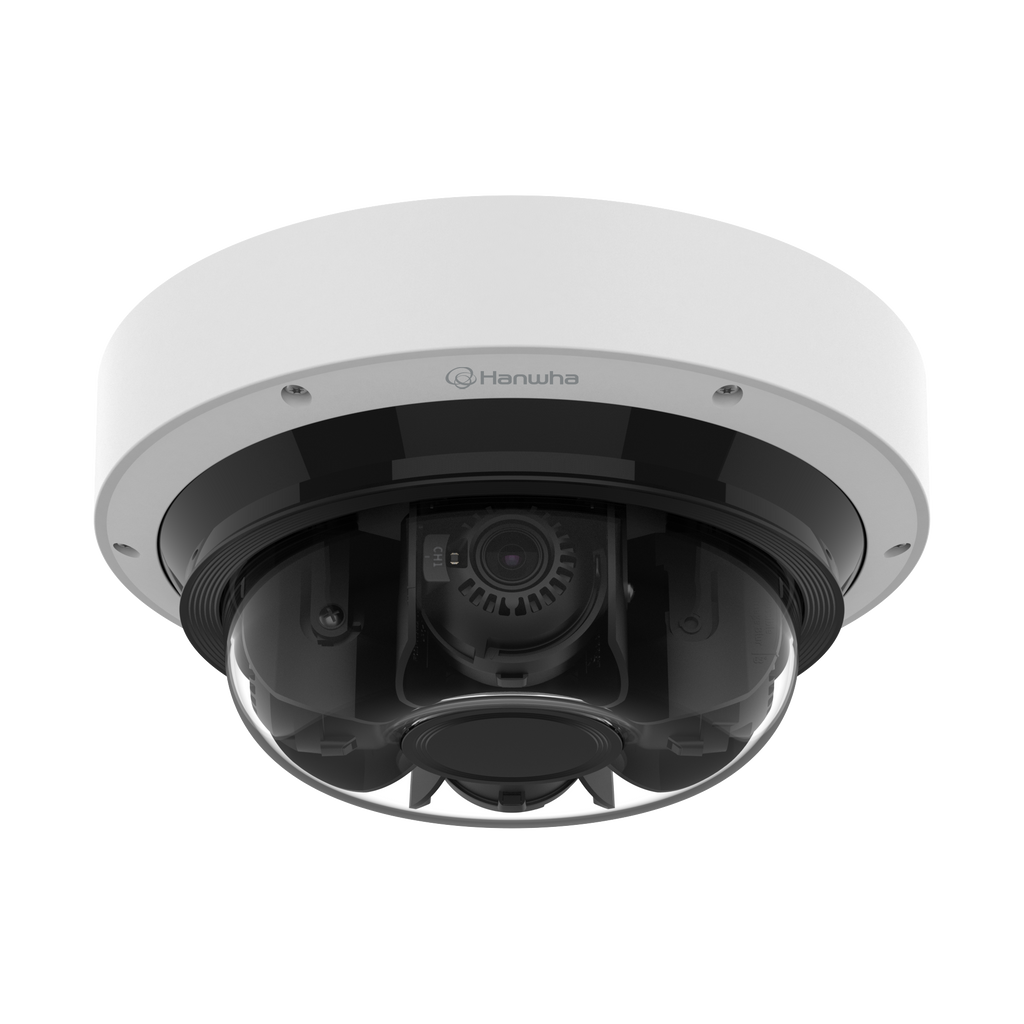

The Hanwha Vision PNM-C32083RVQ is a compact, semi-modular 4-channel 4K multi-sensor AI camera engineered for wide-area coverage, advanced object analytics, and superior environmental durability. Each of its four 8MP sensors delivers precise imaging with AI-powered object classification (person, face, vehicle, and license plate) and attribute-based searching—including vehicle type and clothing color.
Optimized for demanding outdoor applications, the camera supports 360° analytics, AI-based loitering and line-crossing detection, WiseNR II noise reduction, Auto Shutter Control, and WiseStream III for efficient bandwidth management. Its rugged design is built to withstand harsh conditions, featuring IP66, IK10, and NEMA 4X ratings, making it ideal for perimeter surveillance, transportation hubs, campuses, and large commercial sites.
With enhanced cybersecurity through TPM 2.0, encrypted firmware, and IEEE 802.1X authentication, the PNM-C32083RVQ ensures secure deployment. It supports PoE+/PoE++, dual microSD card slots up to 1TB each, flexible alarm I/O, multiple streaming profiles, and ONVIF S/G/T/M compatibility.
| Category | Specification |
|---|---|
| SKU | PNM-C32083RVQ |
| Camera Type | 4-channel 4K AI multi-directional camera |
| Image Sensor | 1/2.8" CMOS |
| Resolution Options | Up to 3840×2160 (4K) per channel |
| Max Framerate | 15fps (H.265/H.264), up to 20fps when AI off |
| Min. Illumination | Color: 0.1 Lux; B/W: 0.01 Lux |
| Lens | 3.3–5.7mm motorized (1.7x optical) |
| Field of View | H: 109°–56°, V: 55°–31°, D: 136°–65° |
| Day/Night | Auto (ICR) |
| WDR | 120 dB |
| Noise Reduction | WiseNR II (AI-based), SSNR V |
| Video Features | BLC, SSDR, flip/mirror, hallway view |
| AI Analytics | Object classification (person/face/vehicle/plate), virtual line, intrusion, loitering, enter/exit, attributes search |
| Standard Analytics | Motion detection, tampering, audio detection, sound classification |
| IR Illumination | 15m (PoE+), 20m (PoE++), 850nm |
| Compression | H.265/H.264 (Main/High), MJPEG |
| Smart Codec | WiseStream III |
| Audio | Audio in (mic/line selectable), line out |
| Network | RJ-45 (10/100/1000), ONVIF S/G/T/M |
| Protocols | IPv4/IPv6, TCP/IP, UDP, RTP, RTSP, HTTPS, QoS, IGMP, SNMP, MQTT, UPnP, Bonjour |
| Cybersecurity | TPM 2.0, secure boot, encrypted firmware, IEEE 802.1X |
| Edge Storage | Dual microSD/SDHC/SDXC slots up to 1TB each (2TB total supported) |
| Operating Temperature | –40°C to +55°C (–40°F to +131°F) |
| Ingress/Impact Rating | IP66, IK10, NEMA 4X |
| Power Input | PoE+ (Class 4) / PoE++ (Class 6) |
| Power Consumption | Up to 25.5W (PoE+), up to 33W (PoE++) |
| Material/Color | Aluminum, white (RAL 9003) |
| Dimensions | Ø250 × 114.2 mm (9.84 × 4.50") |
| Weight | 2.82 kg (6.22 lb) |
| Certifications | FCC, CE/UKCA, UL 62368-1, IEC 62471, IEC 60529 IP66, IEC 62262 IK10 |
