Description

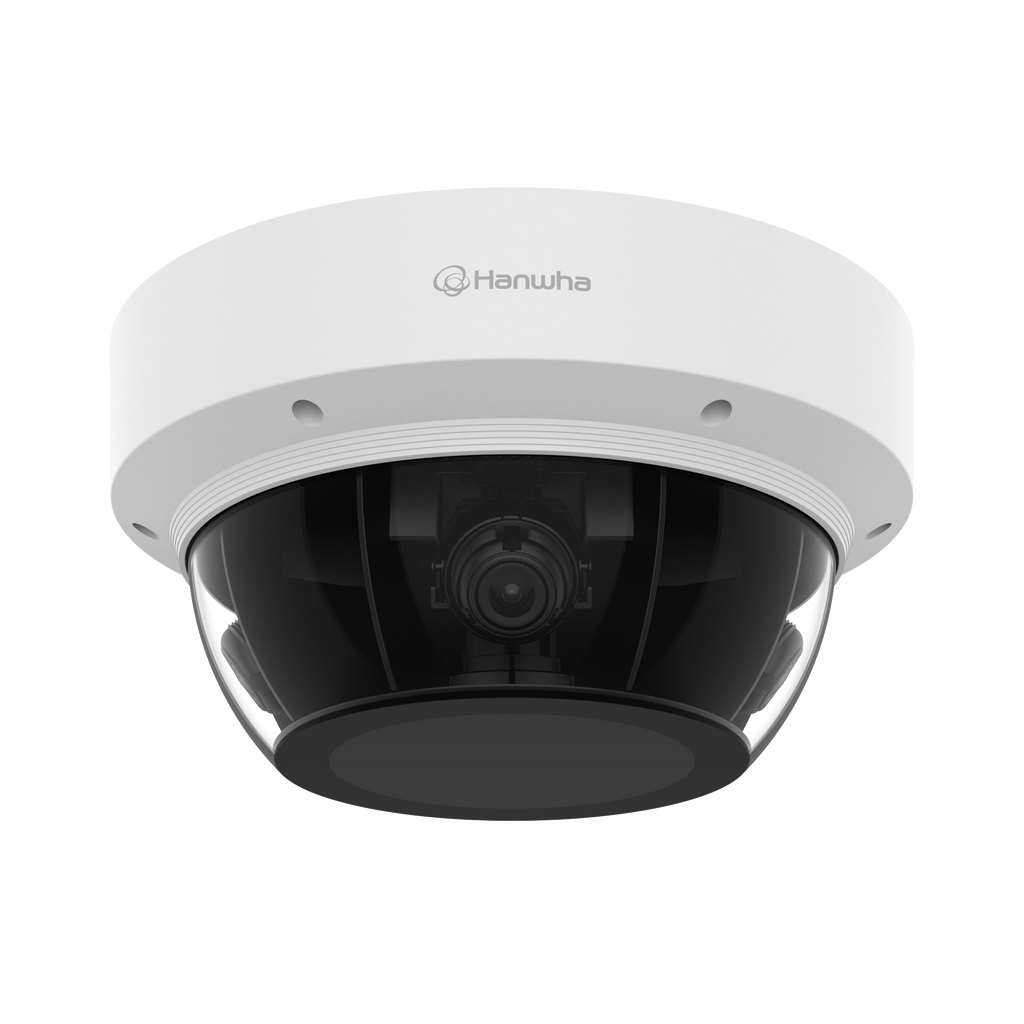

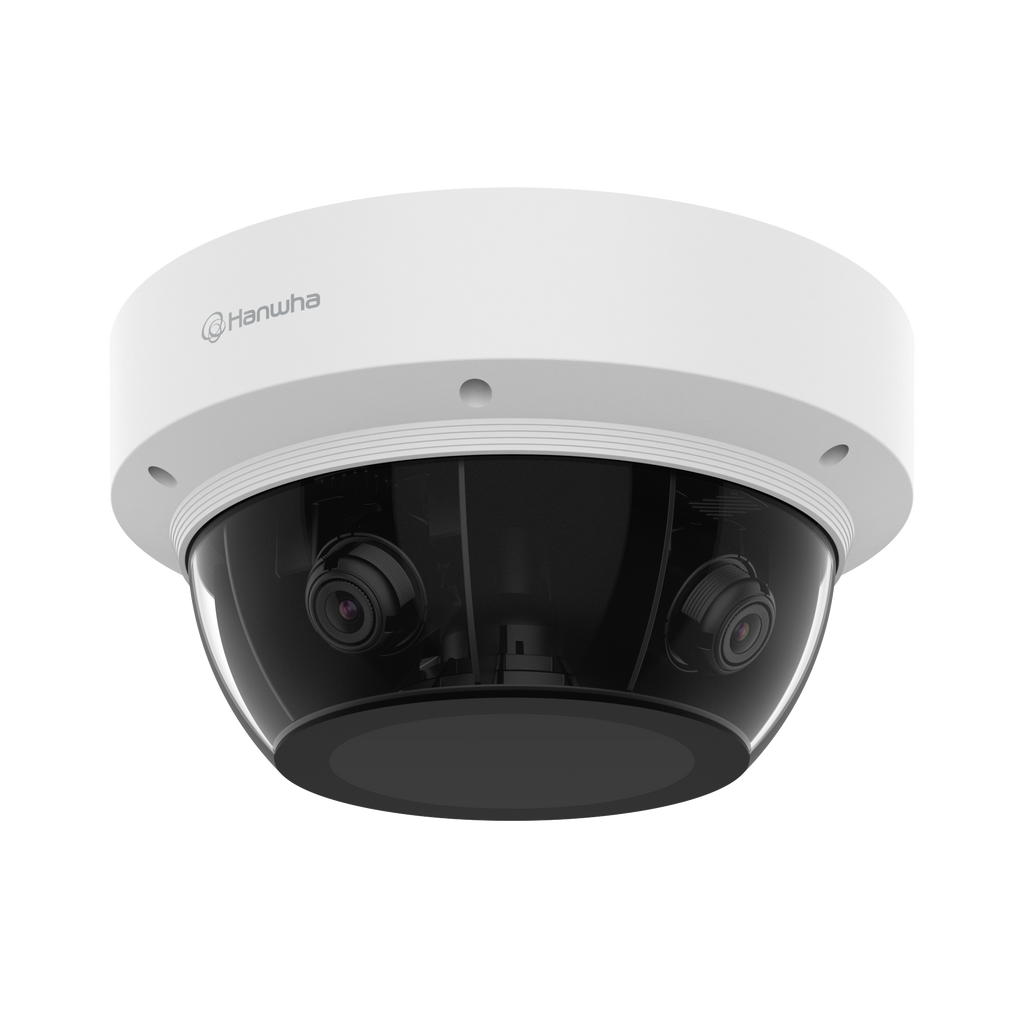

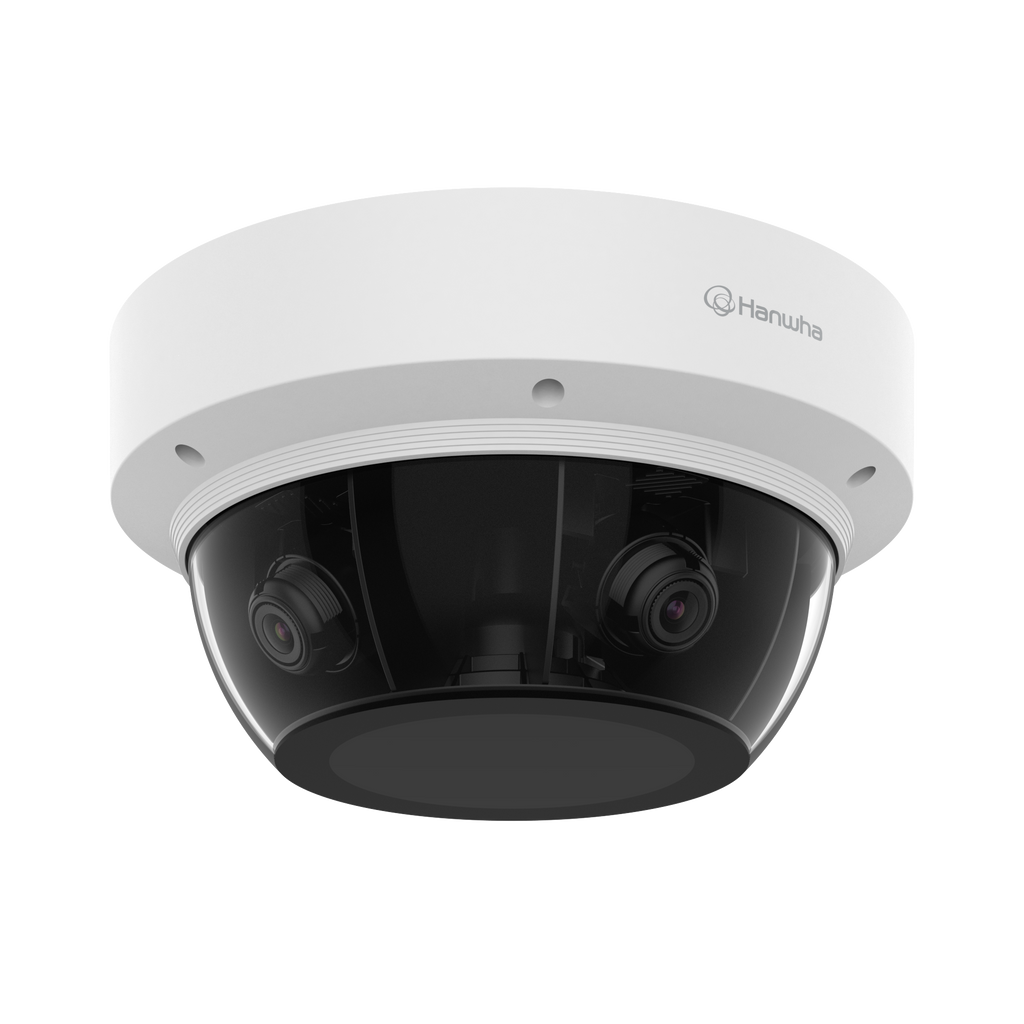

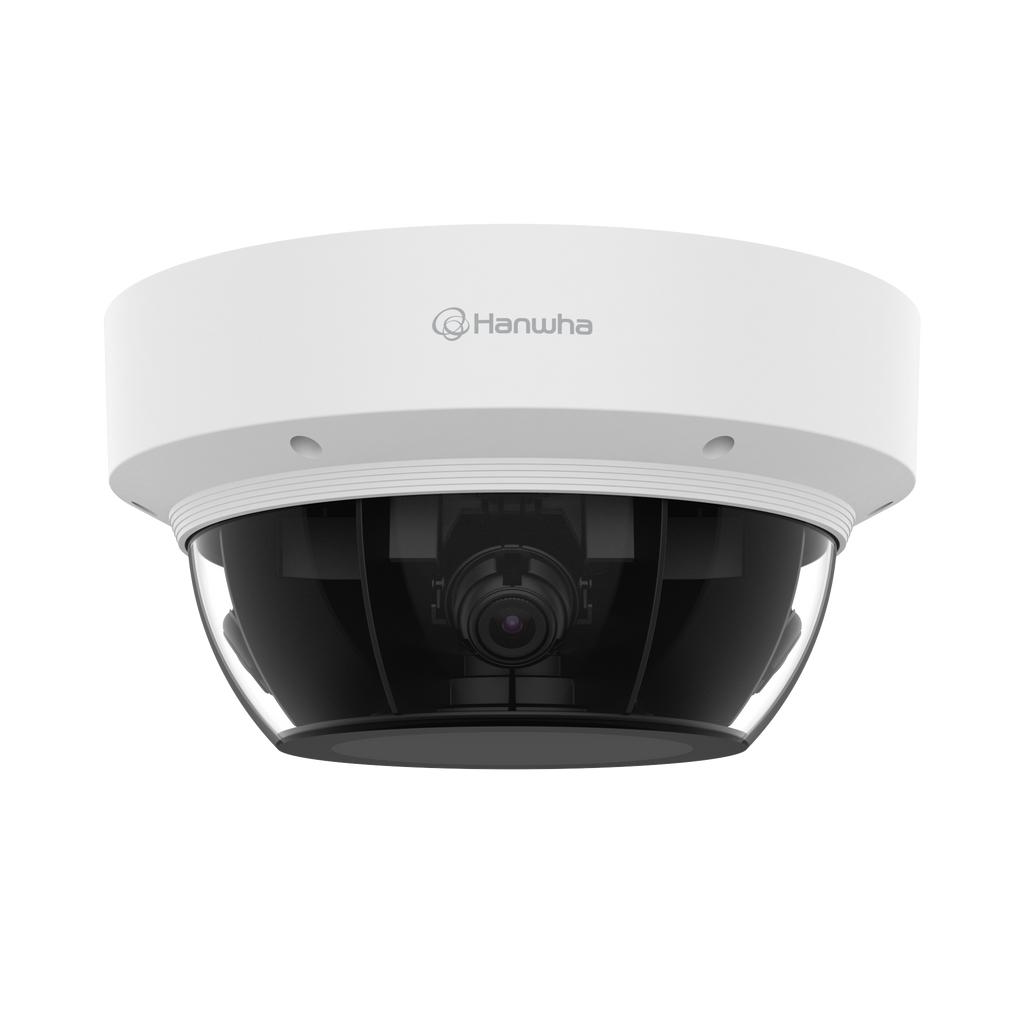

The Hanwha Vision PNM-9002VQ is a flexible 4-channel multi-directional network camera designed for professional surveillance environments requiring wide coverage, high resolution, and modular configuration. It supports four interchangeable 2MP or 5MP lens modules, allowing custom combinations from 8MP to 20MP total resolution. Featuring advanced image processing like 150dB WDR, SSNRⅤ noise reduction, hallway view rotation, and built-in video analytics, the PNM-9002VQ delivers exceptional clarity in diverse lighting conditions.
The camera supports H.265/H.264/MJPEG with WiseStream II compression for optimized bandwidth and storage efficiency. Built for durability and outdoor performance, it carries IP66 and IK10 ratings with an aluminum housing. With PoE+ power, up to four microSD slots totaling 1TB local storage, and ONVIF S/T support, the PNM-9002VQ integrates seamlessly into modern security infrastructures.
| Category | Details |
|---|---|
| SKU | PNM-9002VQ/KUS |
| Camera Type | 4-Channel Multi-Directional Network Camera |
| Total Resolution | 8MP to 20MP depending on lens module combination |
| Supported Lens Modules | 2MP: 2.4mm, 2.8mm, 3.6mm, 6mm / 5MP: 3.7mm, 4.6mm, 7mm |
| Max Frame Rate | 60fps (H.265/H.264 @ 2MP) |
| Wide Dynamic Range | 150dB (2MP), 120dB (5MP) |
| Image Enhancements | SSNRⅤ, Defog, DIS, BLC, HLC, SSDR |
| Video Compression | H.265/H.264 (Main/Baseline/High), MJPEG |
| Smart Codec | WiseStream II |
| Video Outputs | CVBS for installation |
| Day/Night | Auto (Electrical) |
| Analytics | Motion, Tampering, Defocus, Face Detection, Virtual Area & Line Analytics (Intrusion, Crossing, Appear/Disappear, etc.) |
| Privacy Masking | Up to 32 polygonal zones |
| Edge Storage | 4× microSD/SDHC/SDXC (up to 256GB each, total 1TB, encrypted) |
| Network Interface | RJ-45 10/100BASE-T |
| Protocols | IPv4/IPv6, TCP/IP, RTP/RTSP, NTP, HTTP/HTTPS, DHCP, SMTP, SNMPv1/v2c/v3, QoS, UPnP, Bonjour, LLDP & more |
| Security | HTTPS, 802.1X, Digest Authentication, IP Access Control, Encrypted Credentials |
| Operating Temperature | −40°C to +55°C (−40°F to +131°F) |
| Humidity | 0–90% RH (non-condensing) |
| Power | PoE+ (IEEE 802.3at Class 4), Max 25.5W |
| Ingress/Impact Rating | IP66, IK10 |
| Housing Material | Aluminum (White, RAL9003) |
| Dimensions | Ø253 × 130 mm (9.96 × 5.12 in) |
| Weight | 3,000g (6.61 lb) |
| Compatible Mounts | SBP-300 series, SBP-276HMW, SHD-3000F5 |
