Description

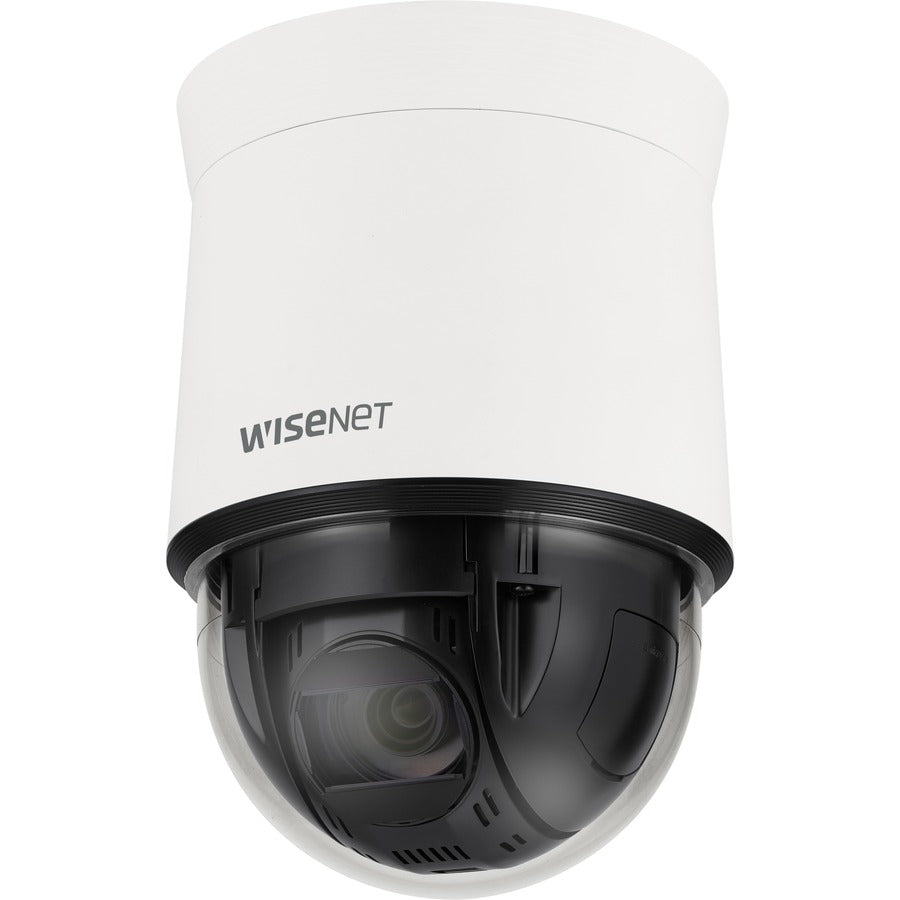

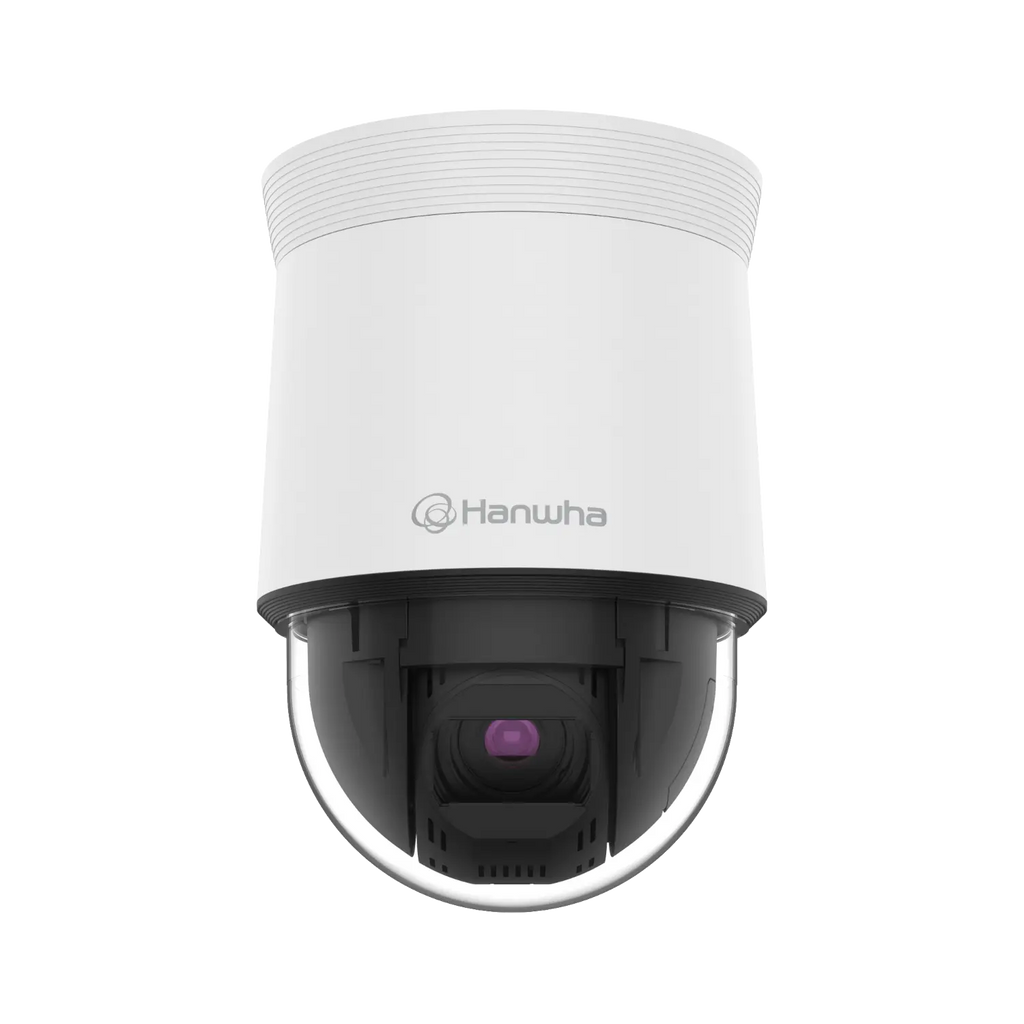

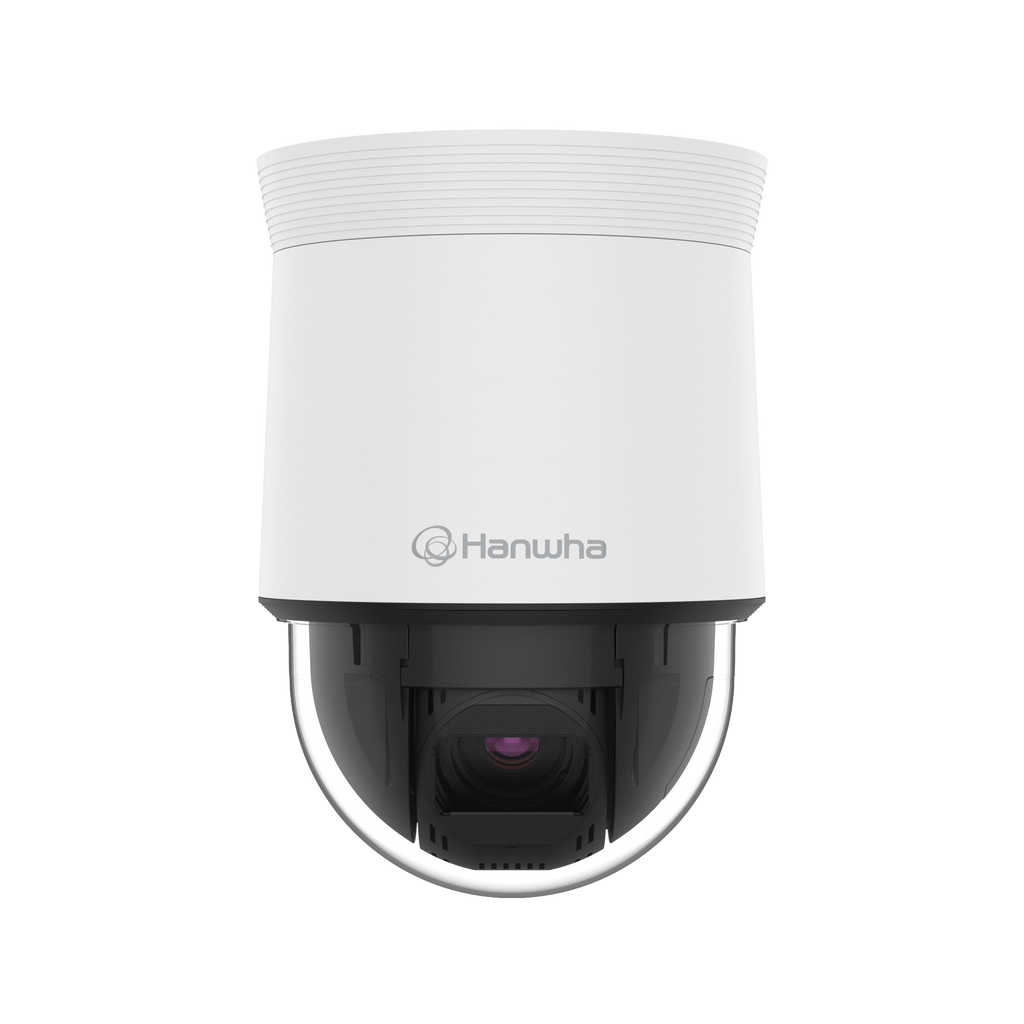

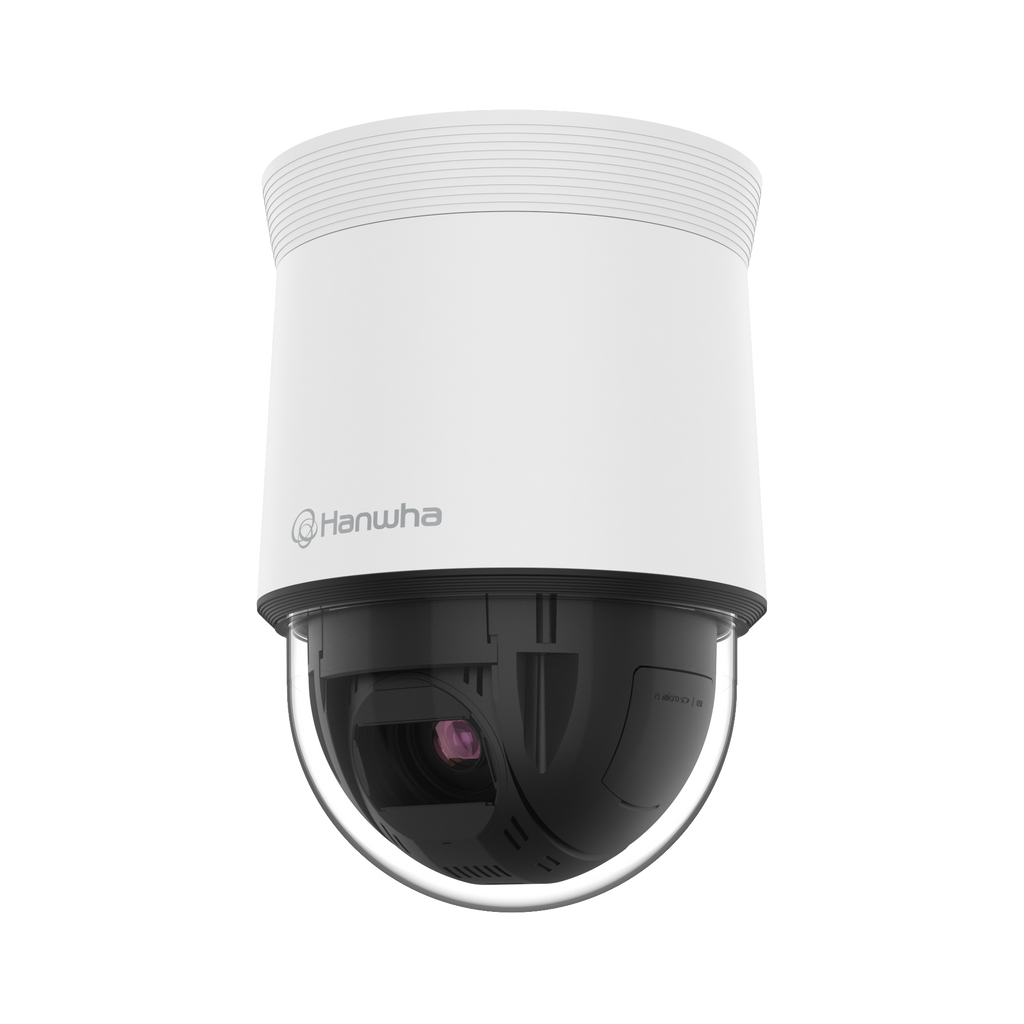

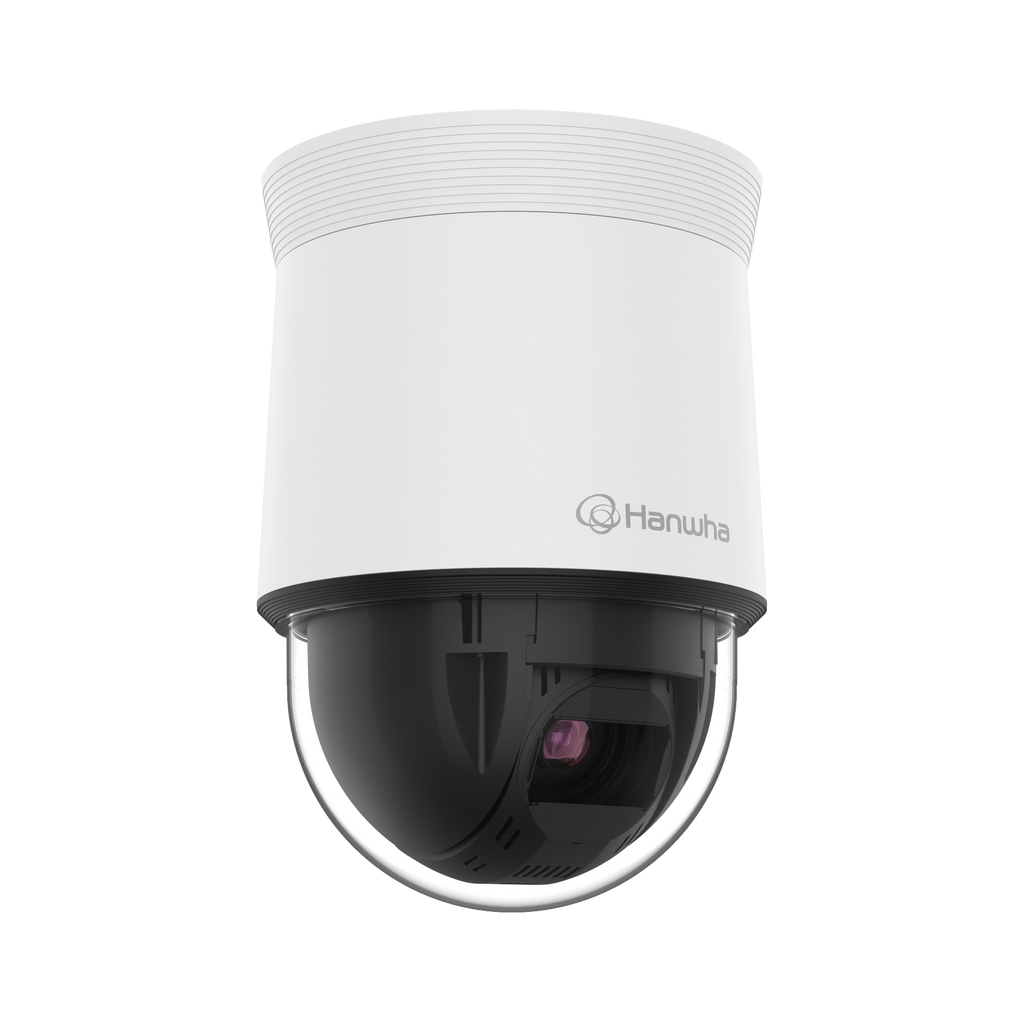

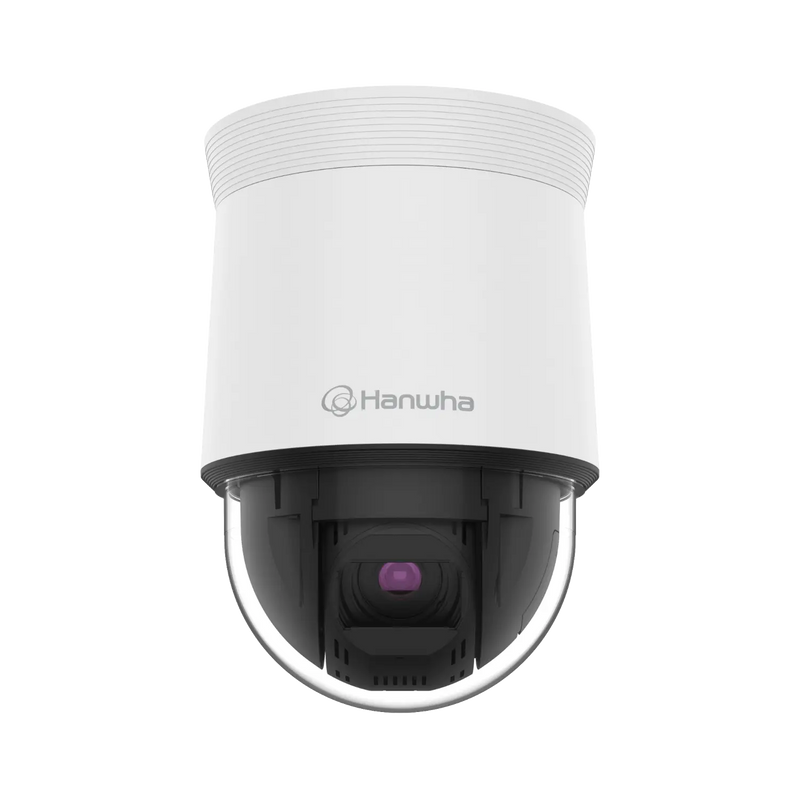

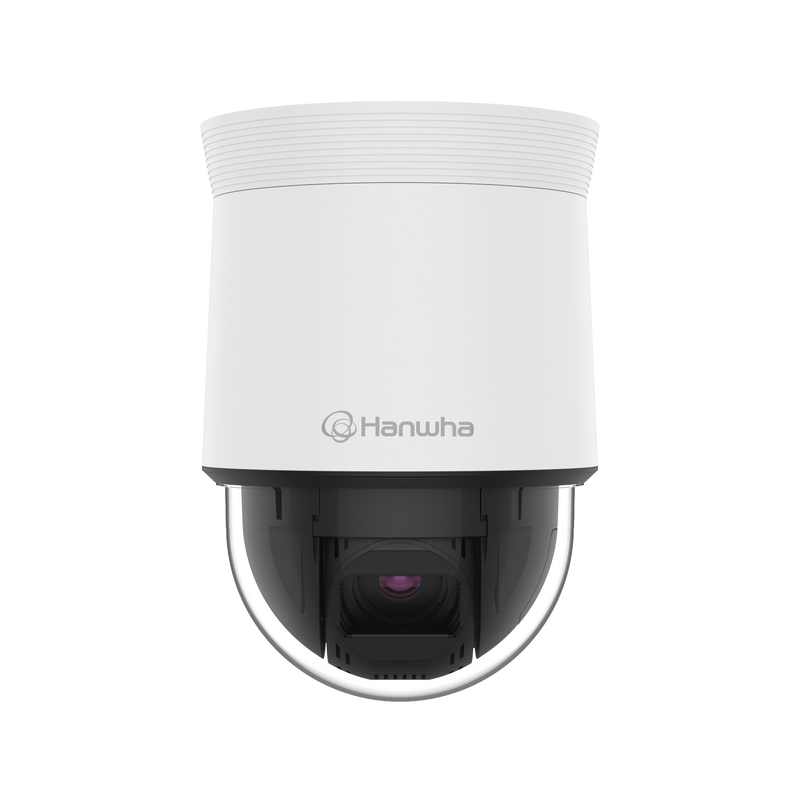

The Hanwha Vision QNP-6320 is a high-performance 2MP PTZ network camera engineered for precise monitoring, smooth PTZ control, and reliable operation in demanding indoor security environments. Powered by a 32x optical zoom, the camera delivers detailed imaging from wide coverage to long-range views, supported by a fast 60fps framerate for clear tracking of moving subjects.
Built with a 1/2.8" CMOS sensor, Wide Dynamic Range (120dB), and advanced low-light performance down to 0.05 lux (color), the QNP-6320 ensures clarity in diverse lighting conditions. Intelligent analytics—including motion detection, tampering, intrusion detection, line crossing, shock detection, and virtual area monitoring—enable proactive and automated surveillance workflows.
The camera supports H.265/H.264/MJPEG, WiseStream II smart compression, multiple streaming profiles, and edge storage via 256GB microSD. With fast PTZ speeds of up to 700°/sec (pan) and 300°/sec (tilt), auto-tracking, and precise preset accuracy, the QNP-6320 is ideal for retail, transportation hubs, office buildings, casinos, and mission-critical indoor monitoring.
| Category | Specification |
|---|---|
| Image Sensor | 1/2.8" CMOS |
| Maximum Resolution | 1920×1080 (2MP) |
| Supported Resolutions | 1920×1080, 1280×1024, 1280×960, 1280×720, 1024×768, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360, 320×240 |
| Max Framerate | 60fps (H.265/H.264), 30fps (MJPEG) |
| Minimum Illumination | Color: 0.05 lux (30IRE, 1/30s) / B/W: 0.005 lux |
| Lens | 4.44–142.6mm, 32x optical zoom, 32x digital zoom |
| Aperture | F1.6 (wide) / F4.4 (tele) |
| Field of View | H: 64.66°–2.29° / V: 38.08°–1.30° |
| Min. Object Distance | 1.5m (4.92 ft) |
| Focus Control | One-shot AF, Focus Save |
| Pan Range / Speed | 360° Endless / Up to 700°/sec (preset) |
| Tilt Range / Speed | 90° to –15° / Up to 300°/sec (preset) |
| Presets / Functions | 300 presets, Swing, Group (6), Trace, Tour, Scheduler, Auto-Run |
| WDR | 120dB |
| Image Enhancements | BLC, HLC, SSDR, SSNRⅤ, Defog, DIS (gyro) |
| Privacy Masking | 32 zones, quadrangle |
| Motion Detection | 8 polygonal zones |
| Analytics | Motion, Tampering, Audio detection, Shock, Virtual Area (Intrusion, Loitering, Enter/Exit), Virtual Line (Crossing, Direction), Appear/Disappear |
| Audio | Audio In (mic/line), Audio Out |
| Video Compression | H.265, H.264 (Main/High), MJPEG |
| Audio Compression | G.711, G.726, AAC-LC |
| Network Interface | RJ-45 (10/100BASE-T) |
| Protocols | IPv4/IPv6, TCP/IP, UDP/IP, RTP, RTSP, NTP, HTTP/HTTPS, SSL/TLS, DHCP, FTP, SMTP, IGMP, SNMP, ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP, NTCIP 1205 |
| API Support | ONVIF S/G/T, SUNAPI, Open Platform |
| Edge Storage | microSD/SDHC/SDXC (up to 256GB) |
| Operating Temperature | –10°C to +55°C (+14°F to +131°F) |
| Power | PoE+ (IEEE 802.3at Class 4) |
| Power Consumption | Max 14.5W (typical 12W) |
| Material / Color | Plastic / White (RAL9003) |
| Dimensions | Ø152 × 218mm (Ø5.98 × 8.58") |
| Weight | 1700g (3.75 lb) |
| Certifications | FCC, CE/UKCA, UL62368-1, RCM, VCCI, ICES-003, IEC/EN63000 |
