Description

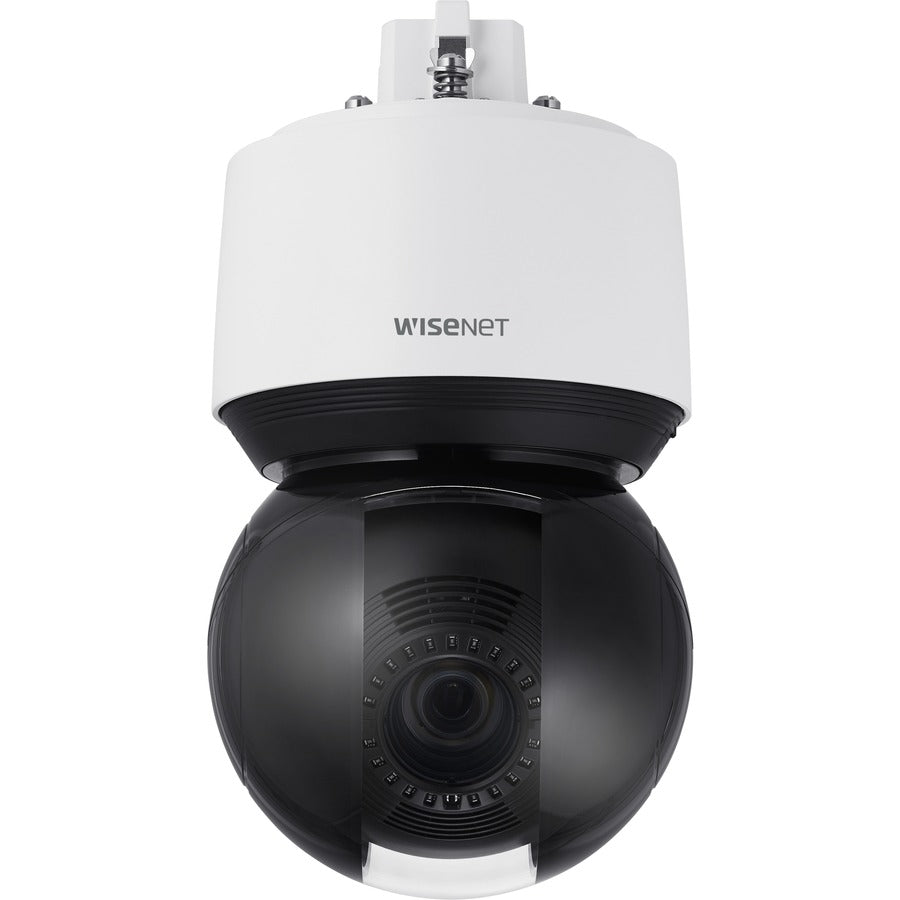

The Hanwha Vision QNP-6320R is a high-performance 2MP PTZ network camera engineered for demanding indoor and outdoor surveillance environments. Featuring a powerful 32x optical zoom lens, this PTZ delivers exceptional clarity across wide-area monitoring applications such as city surveillance, campuses, industrial sites, and critical infrastructure.
Equipped with long-range 100m IR illumination, the camera provides reliable visibility even in complete darkness. Its advanced video enhancements—including 120dB WDR, gyro-based digital image stabilization, intelligent analytics, and auto-tracking—ensure clear, actionable footage in all lighting and motion conditions.
Designed for durability, the QNP-6320R carries IP66, IK10, and NEMA 4X ratings for harsh weather and impact resistance. With flexible streaming, H.265/H.264/MJPEG codecs, WiseStream II compression, ONVIF support, and edge storage up to 256GB, this camera integrates seamlessly into modern security infrastructures.
| Category | Specification |
|---|---|
| Image Sensor | 1/2.8" CMOS |
| Maximum Resolution | 1920×1080 (2MP) |
| Supported Resolutions | 1920×1080 to 320×240 |
| Framerate | H.265/H.264: 60fps (60Hz) / 50fps (50Hz); MJPEG: 30fps |
| Minimum Illumination | Color: 0.05 Lux; B/W: 0.005 Lux (30IRE) |
| Lens | 4.44–142.6 mm (32x optical zoom) |
| Digital Zoom | 32x |
| Aperture | F1.6 (Wide) to F4.4 (Tele) |
| Field of View | H: 64.66°–2.29° / V: 38.08°–1.30° |
| Minimum Focus Distance | 1.5m |
| Pan/Tilt Range | Pan: 360° endless / Tilt: 90° to –20° |
| Pan/Tilt Speed | Pan: up to 700°/sec; Tilt: up to 300°/sec |
| Presets / Tours | 300 presets, swing, group (6), trace, tour, schedule, auto-run |
| WDR | 120dB |
| Image Enhancements | BLC, HLC, SSDR, SSNRⅤ, Defog, DIS (gyro) |
| Privacy Masking | 32 zones |
| Motion Detection | 8 polygonal zones |
| IR Illumination | 100m range, 850nm |
| Intelligent Analytics | Motion, tampering, virtual area/line, intrusion, loitering, appear/disappear, direction, crossing |
| Auto-Tracking | Supported |
| Network Interface | RJ-45 (10/100BASE-T) |
| Video Compression | H.265/H.264 (Main/High), MJPEG; WiseStream II |
| Streaming | Up to 10 profiles, unicast/multicast |
| Protocols | IPv4/IPv6, RTP/RTSP, HTTP/HTTPS, NTP, DHCP, QoS, SNMP, SRTP, ONVIF S/G/T, SUNAPI |
| Edge Storage | 1× MicroSD/SDHC/SDXC (max 256GB) |
| Operating Temp | –35°C to +55°C |
| Humidity | 0–100% RH (condensing) |
| Power | PoE+ (IEEE 802.3at), Max 25.5W |
| Durability | IP66, IK10, NEMA 4X |
| Housing Material | Aluminum, PC dome |
| Color | White (RAL 9003) |
| Dimensions | Ø158 × 293.3 mm |
| Weight | 3,100 g (6.83 lb) |
