Description

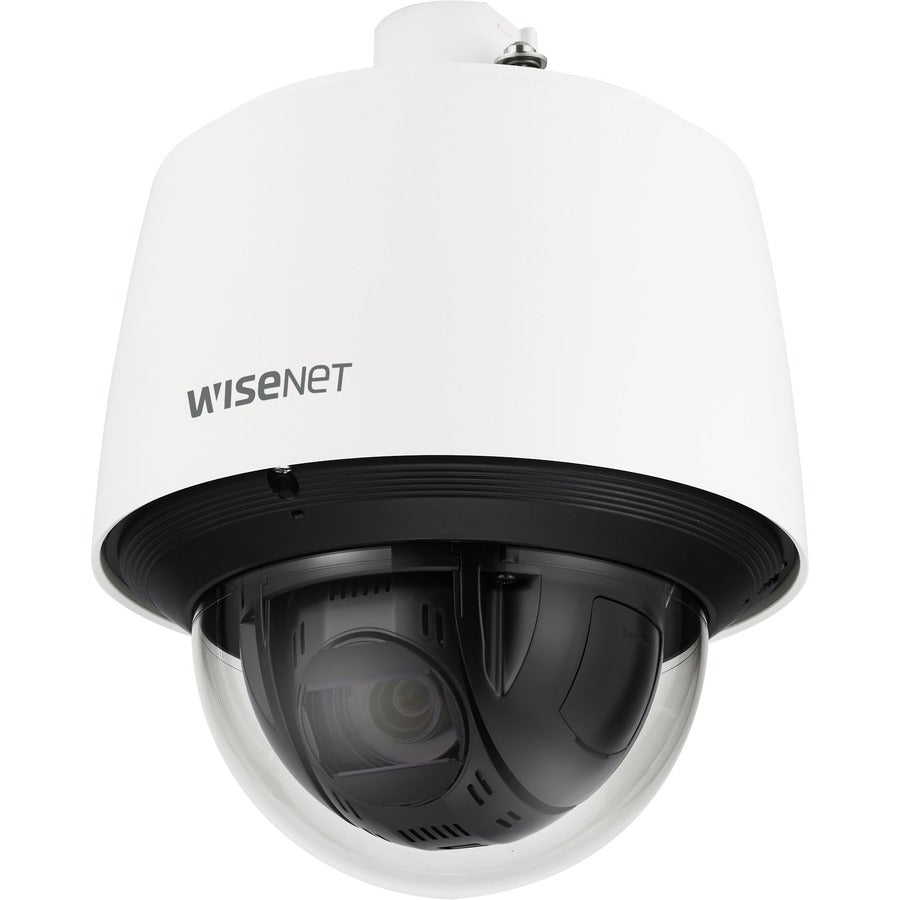

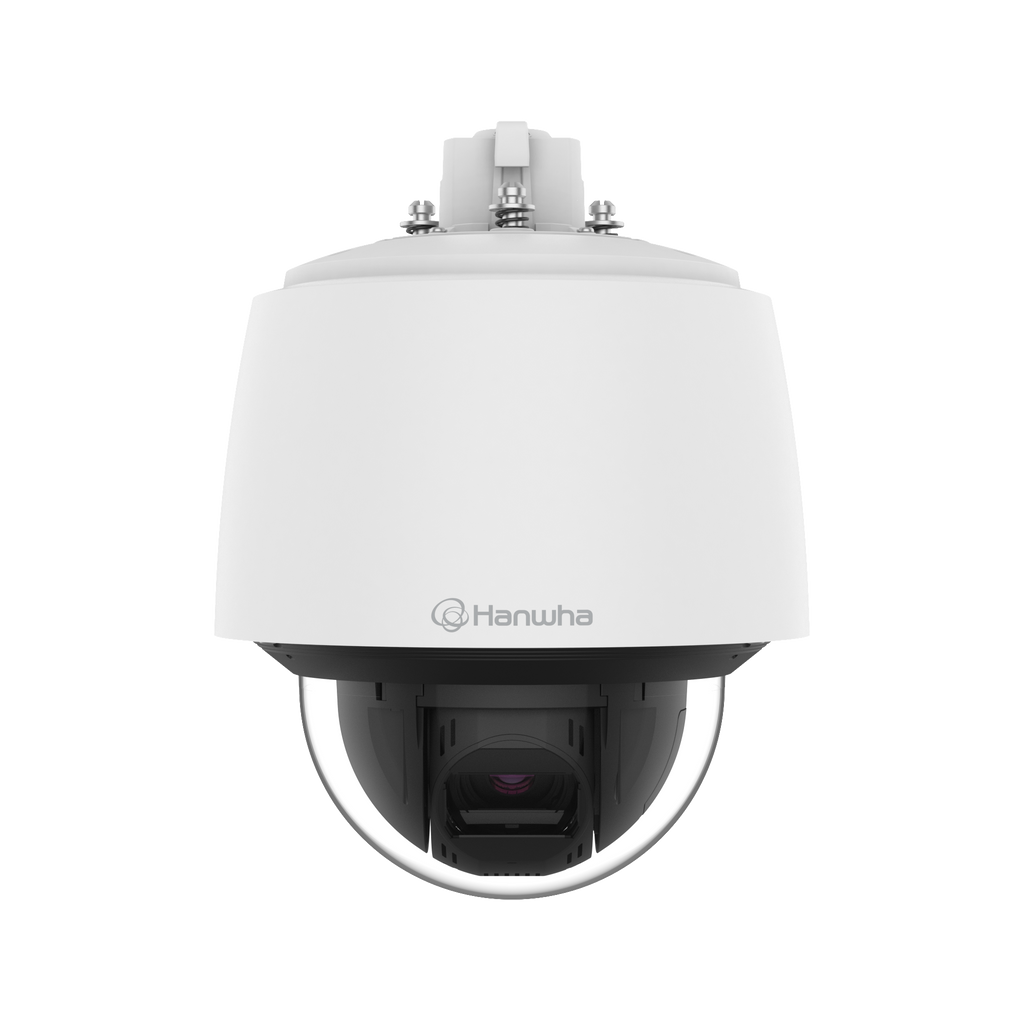

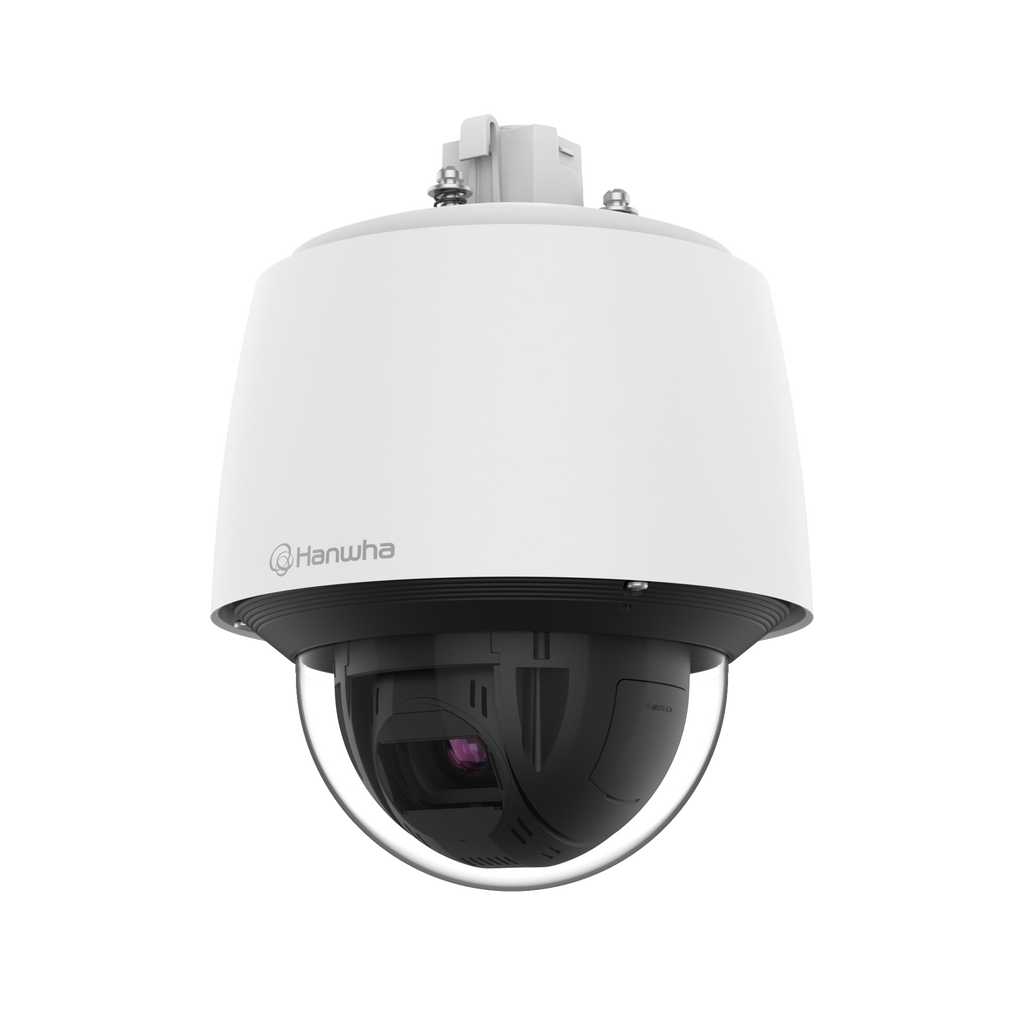

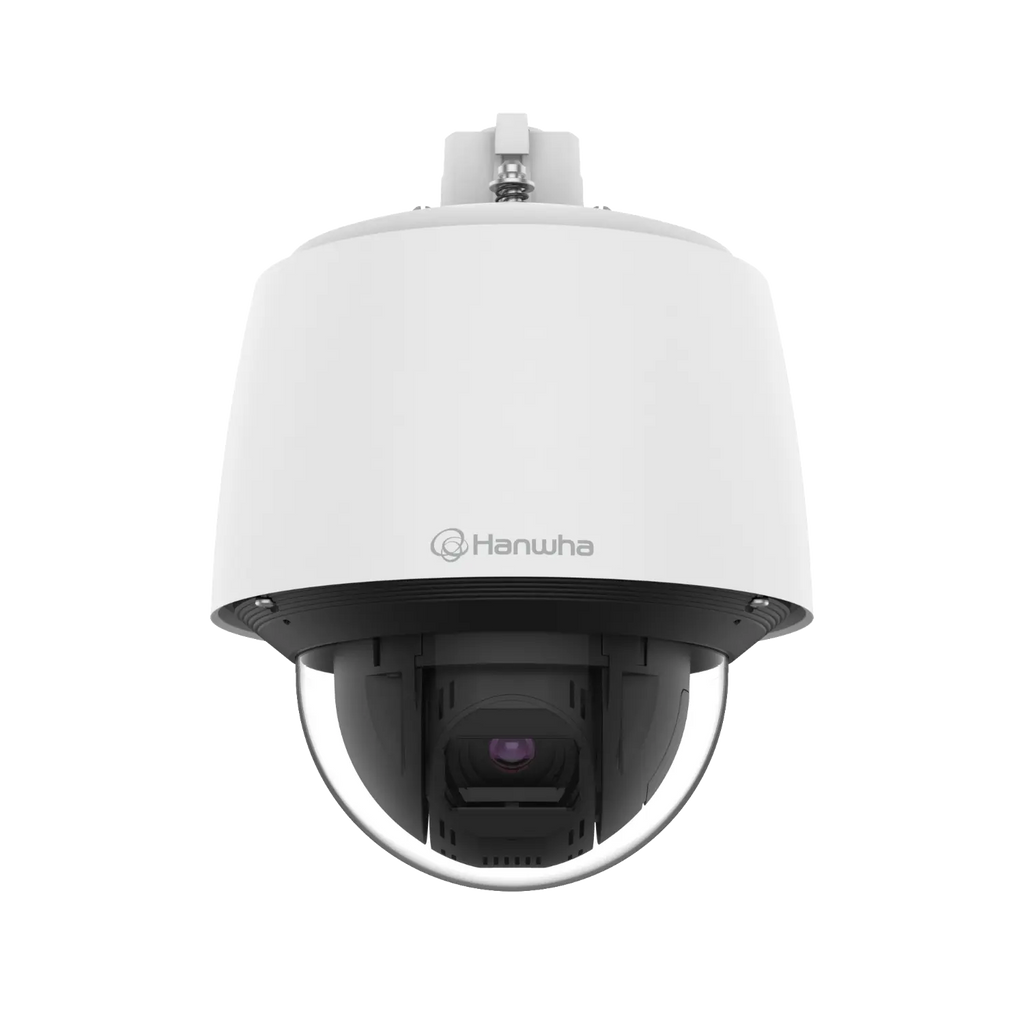

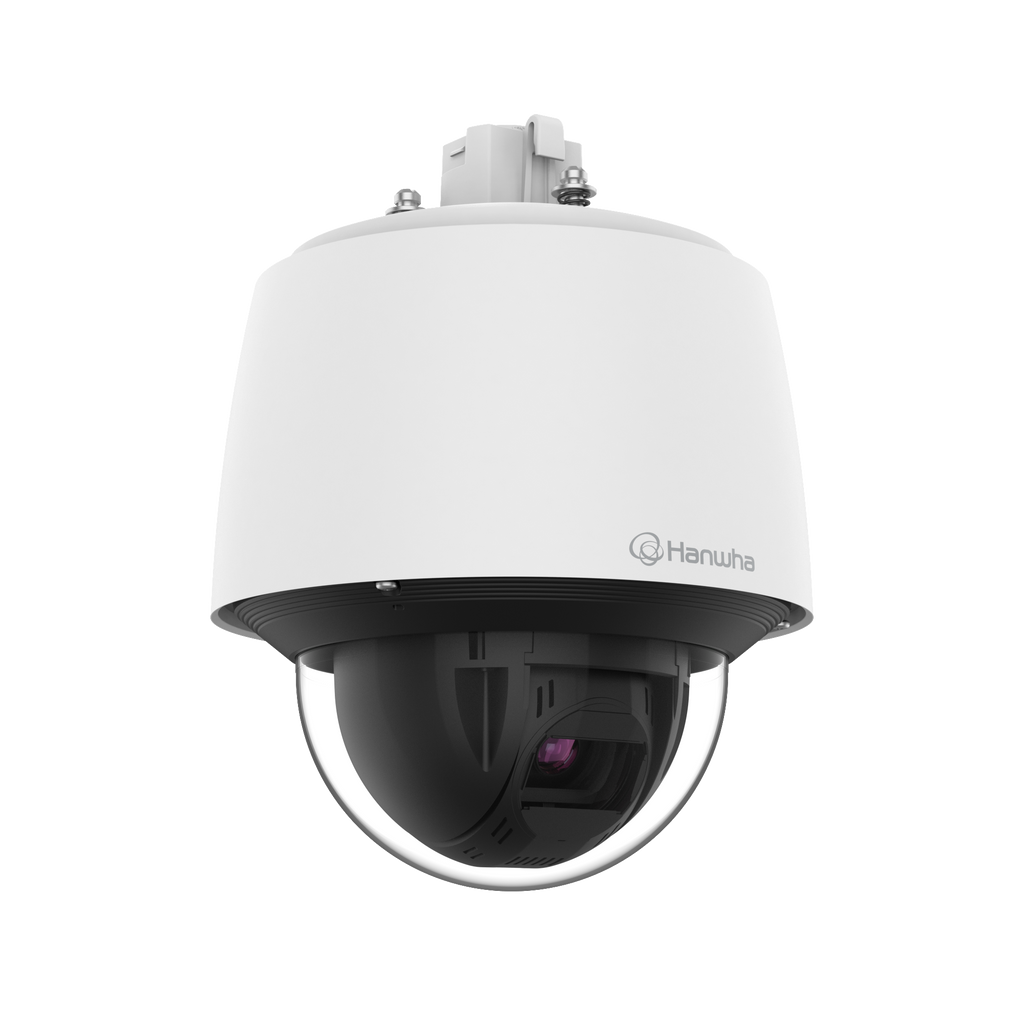

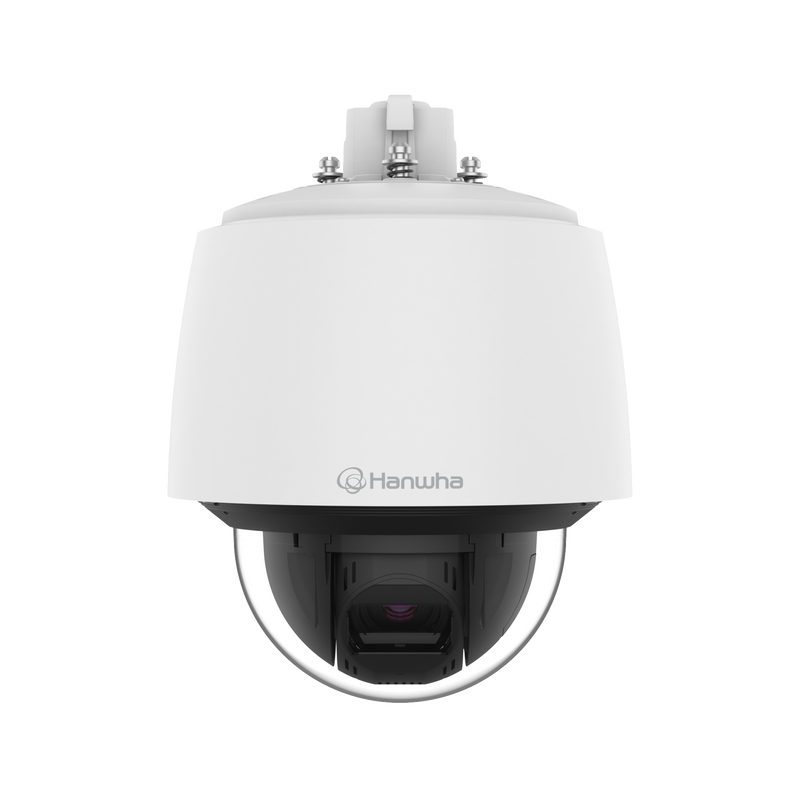

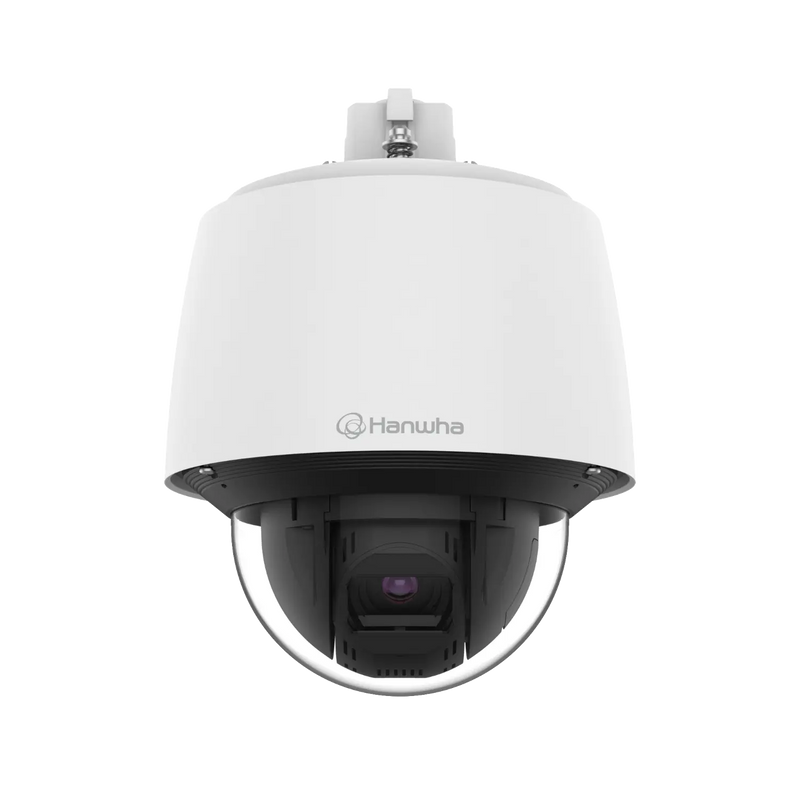

The Hanwha Vision QNP-6320H is a high-performance 2MP PTZ network camera built for demanding outdoor surveillance environments. Featuring a powerful 32x optical zoom lens and full 360° endless pan, it delivers exceptional long-range clarity and rapid target tracking. Its robust design includes IP66, IK10, and NEMA4X protection, ensuring reliable operation in harsh weather and high-impact areas.
Equipped with WDR (120dB), low-light imaging down to 0.05 lux (color), and built-in gyro-based DIS, the QNP-6320H maintains stable, clear video in challenging lighting and high-vibration installations. Intelligent video analytics—including motion detection, intrusion, line-crossing, tampering, and auto-tracking—enhance situational awareness and event response.
With H.265/H.264/MJPEG, WiseStream II, microSDXC edge storage up to 256GB, and strong cybersecurity features such as encrypted firmware and SRTP, this PTZ camera is engineered for performance, efficiency, and security. Ideal for perimeter monitoring, city surveillance, high-security facilities, and large outdoor areas.
| Category | Details |
|---|---|
| Imaging | 1/2.8" CMOS, 2MP (1920×1080) |
| Minimum Illumination | Color: 0.05 lux (30IRE, 1/30s)BW: 0.005 lux (30IRE, 1/30s) |
| Lens | 4.44–142.6mm, 32x optical zoom, 32x digital zoom |
| Aperture | F1.6 (wide) / F4.4 (tele) |
| Field of View | H: 64.66°–2.29°V: 38.08°–1.30° |
| Pan/Tilt Range | Pan: 360° endlessTilt: 90° to –15° |
| Pan/Tilt Speed | Pan: up to 700°/s (preset)Tilt: up to 300°/s (preset) |
| Presets & Tours | 300 presets, swing, group (6), trace, tour, auto-run, scheduling |
| WDR | 120dB |
| Image Enhancements | BLC, HLC, WDR, SSDR, DIS (gyro), Defog |
| Day/Night | Auto ICR |
| Privacy Masking | 32 zones, quadrangle |
| Motion Detection | 8 polygonal zones |
| Video Compression | H.265/H.264 (Main/High), MJPEG |
| Smart Codec | WiseStream II |
| Streaming | Up to 10 profiles; up to 20 users |
| Protocols | IPv4/IPv6, TCP/IP, UDP, RTP, RTSP, HTTPS, SNMPv1/v2c/v3, ONVIF S/G/T, SUNAPI |
| Edge Storage | microSD/SDHC/SDXC up to 256GB |
| Operating Temperature | –35°C to +55°C (startup above –30°C) |
| Ingress/Impact Protection | IP66, IK10, NEMA4X |
| Power | PoE+ (IEEE 802.3at), Max 23W |
| Material/Color | Aluminum, White (RAL9003) |
| Dimensions | Ø204.3 × 265mm (Ø8.04 × 10.43 in) |
| Weight | 2700g (5.95 lb) |
