Description

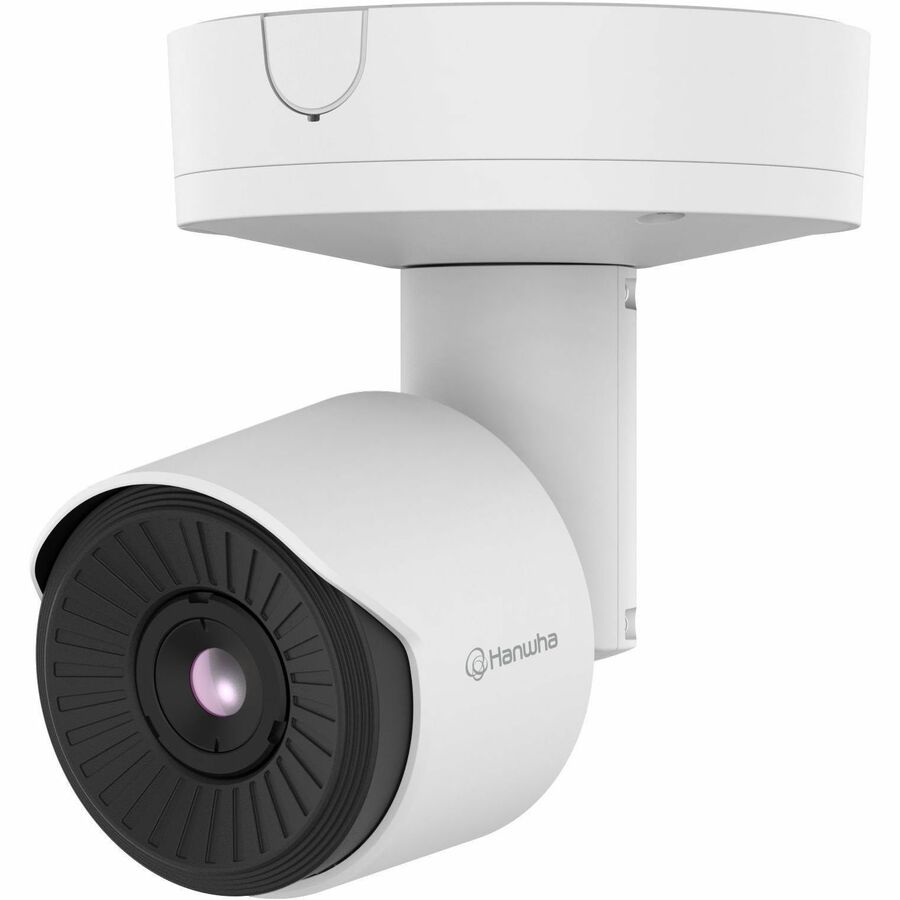

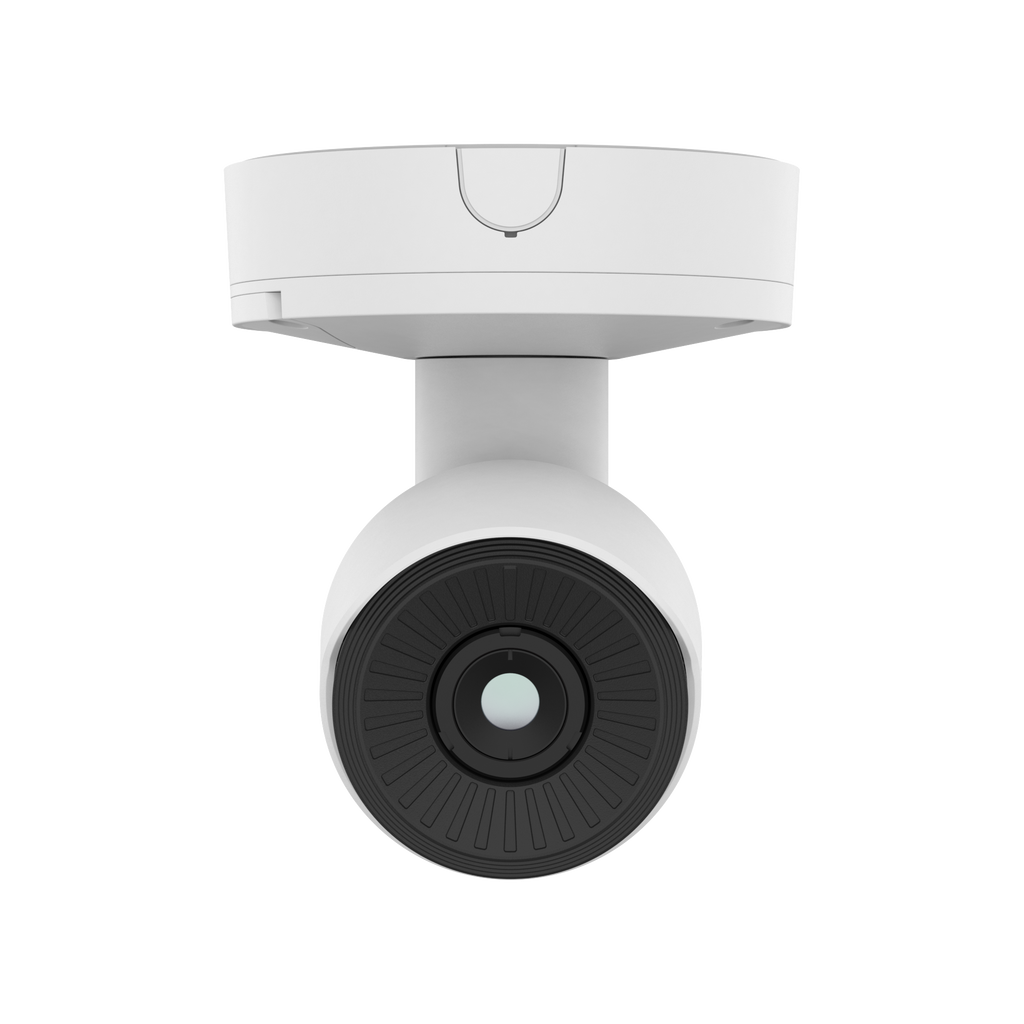

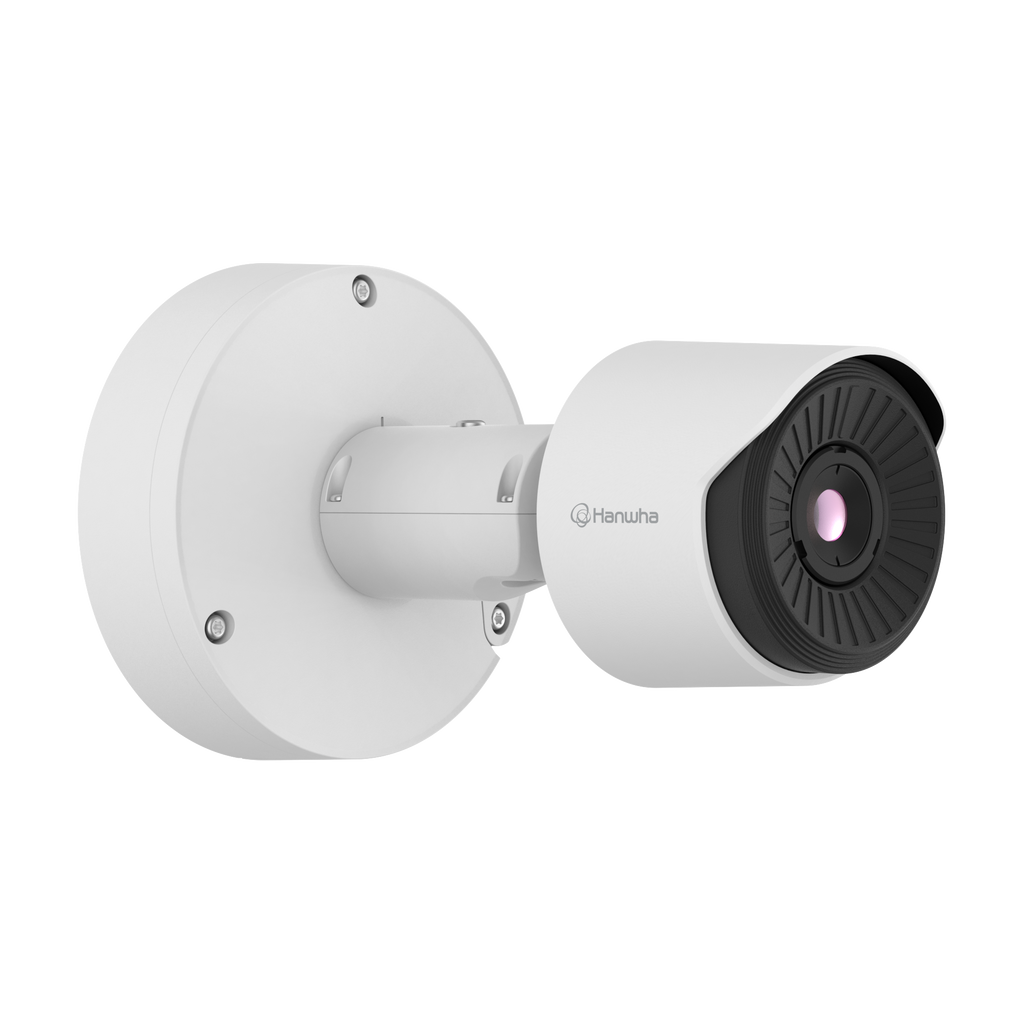

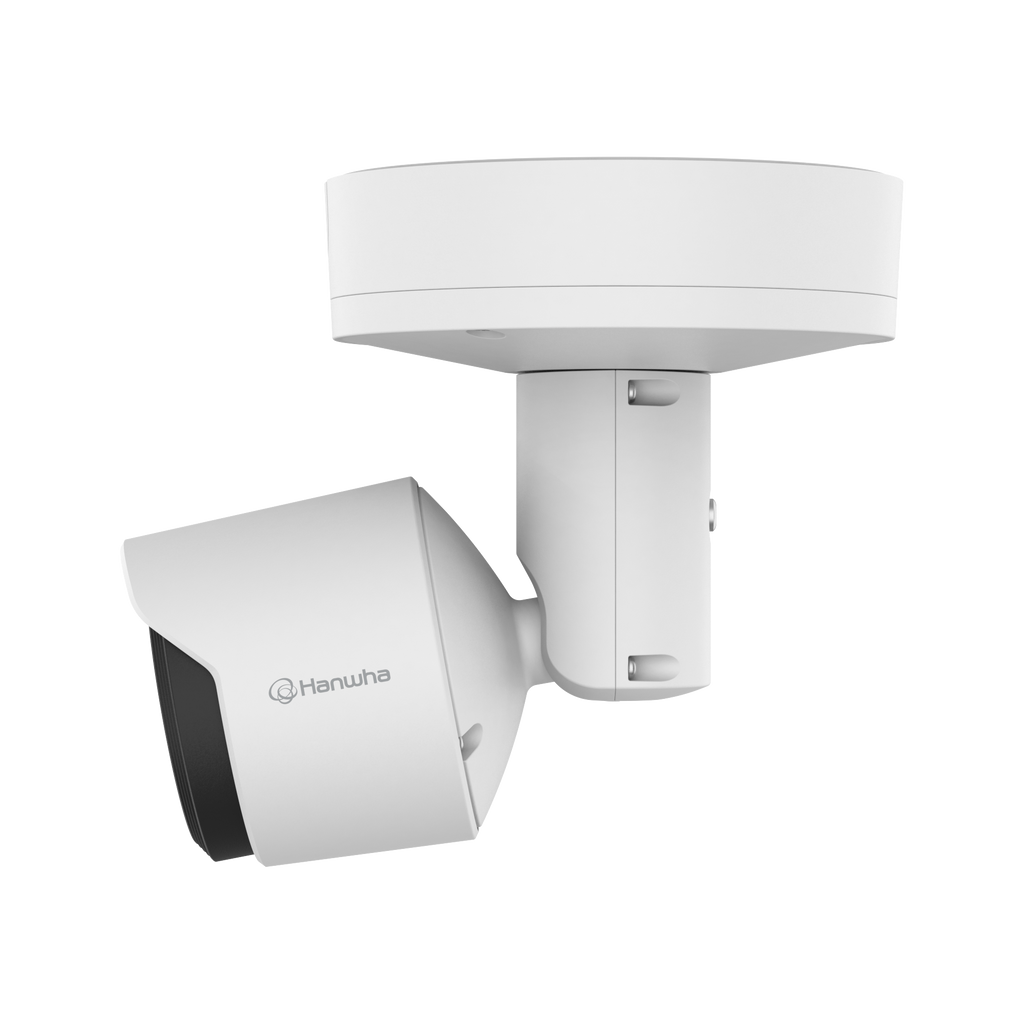

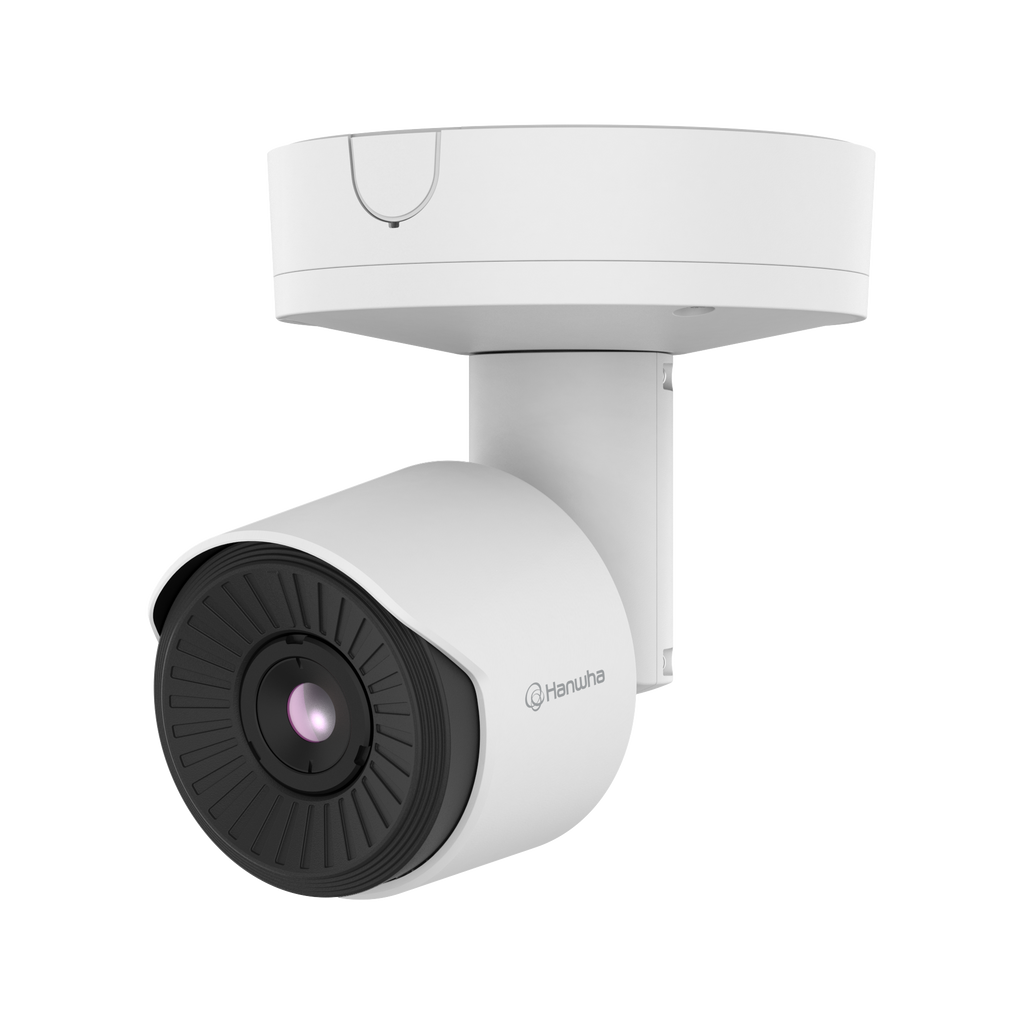

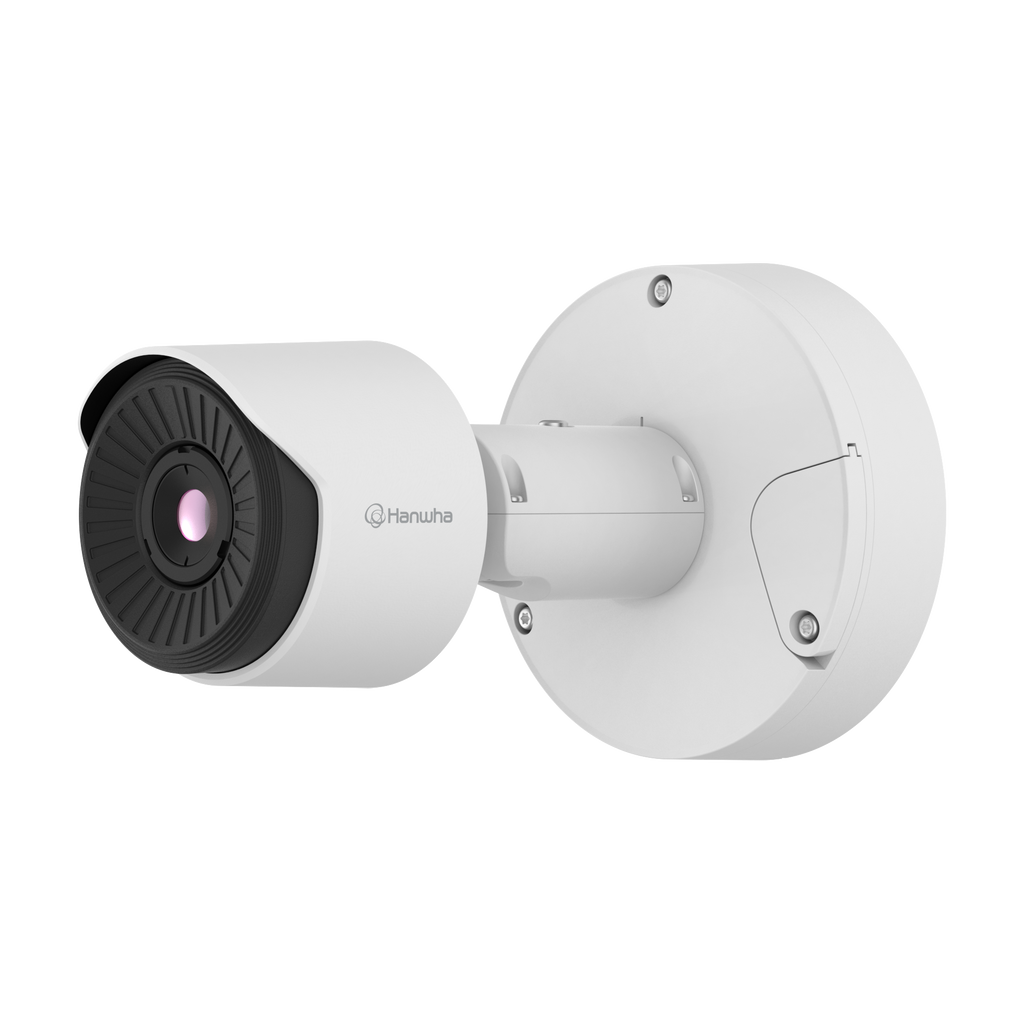

The Hanwha Vision TNO-C3012TRA is a high-performance QVGA radiometric AI thermal camera designed for precise temperature monitoring and intelligent object detection. Built with an advanced uncooled microbolometer sensor, it delivers exceptional thermal clarity with a NETD of ≤30mK and a wide 90° horizontal field of view. Its compact, lightweight construction supports fast, simple installation across industrial, perimeter, and safety applications.
Equipped with AI-powered analytics, the camera accurately classifies people and vehicles, minimizes false alarms, and enhances situational awareness. It includes a broad radiometric temperature detection range from –40°C to 550°C, making it ideal for industrial early-warning systems, equipment monitoring, and high-risk environmental zones.
Designed for reliable operation in harsh conditions, the TNO-C3012TRA features IP66 and IK10 ratings, multiple color palettes, spot measurement, and up to 10 temperature ROI zones. With support for H.265/H.264/MJPEG, ONVIF compatibility, edge storage, secure boot, TPM 2.0, and encrypted firmware, it provides dependable performance and modern cybersecurity protection.
| Category | Specification |
|---|---|
| Imaging | Uncooled microbolometer (384×288), NETD ≤30mK, Spectral range 8–14µm |
| Resolutions | 768×576; 384×288 |
| Max Framerate | 8fps (H.265/H.264/MJPEG) |
| Pixel Size | 17µm |
| Lens | 4.4mm fixed, F1.0 |
| Field of View | H: 90°, V: 65°, D: 119° |
| Min Object Distance | 0.6m (1.97 ft) |
| Pan/Tilt/Rotate Range | Pan 0°–350°, Tilt 0°–90°, Rotate 0°–350° |
| Motion Detection | 8 polygonal zones |
| Privacy Masking | 6 rectangular zones |
| Video Options | Flip, Mirror, Hallway View (90°/270°) |
| Analytics (AI-based) | Object detection (person, vehicle), virtual line, virtual area |
| Normal Analytics | Motion, tampering, audio detection, sound classification, shock, appear/disappear |
| Radiometric Temperature Range | –40°C to 550°C |
| Temperature Accuracy | ±2°C (≤150°C), ±15% (>150°C) |
| Temperature ROI Zones | 10 polygonal zones, hybrid palettes, spot temperature |
| Network | RJ-45 (10/100/1000BASE-T), H.265/H.264/MJPEG, WiseStream II/III |
| Protocols | IPv4/IPv6, RTP/RTSP/HTTP/HTTPS, SNMP, ONVIF S/G/T/M |
| Audio | In (mic/line selectable), Out (line) |
| Alarm I/O | 2 configurable ports; supports email/FTP upload, NAS recording, MQTT |
| Edge Storage | MicroSD/SDHC/SDXC up to 1TB |
| Security | Secure boot, signed firmware, TPM 2.0 (FIPS 140-2 Level 2), 802.1X, HTTPS, SRTP |
| Operating Temperature | –40°C to +60°C (–40°F to +140°F) |
| Humidity | 0–95% RH (non-condensing) |
| Power Input | PoE (IEEE 802.3af Class 3) or 12VDC |
| Power Consumption | PoE: Typical 9W / Max 10.8W; 12VDC: Typical 7.7W / Max 9.4W |
| Material / Color | Aluminum + PC; White (RAL9003) |
| Dimensions | Ø93.8 × 233.5mm (Ø3.69 × 9.19") |
| Weight | 1,700g (3.75 lb) |
| Durability Ratings | IP66, IK10, NEMA 4X |
| Certifications | FCC, CE/UKCA, EN50130-4, VCCI, RCM, KS C 9832/9835, UL 62368-1 |
