Description

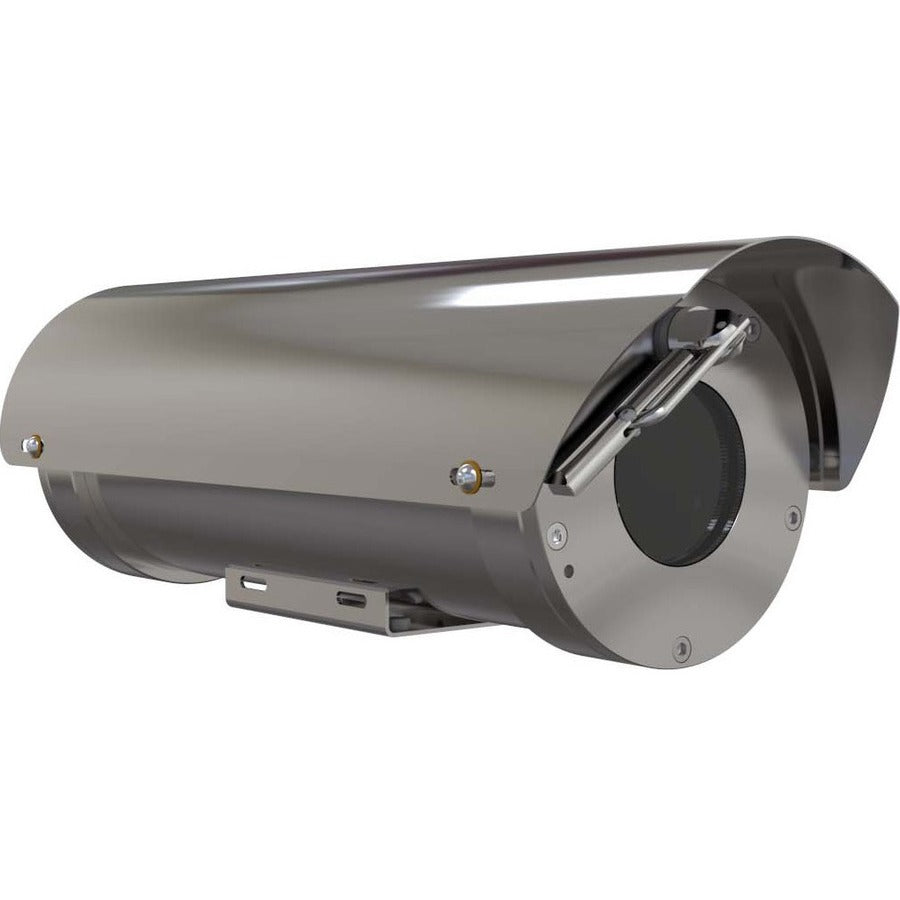

The Hanwha Wisenet TNO-X6320E1WT1-C is a rugged 2MP explosion-proof stainless-steel network camera engineered for hazardous industrial, marine, and high-risk environments. Built with electro-polished 316L stainless steel, toughened glass, and an integrated wiper, it delivers reliable operation in extreme temperatures down to -60°C.
Featuring a powerful 32x optical zoom lens, 60fps full HD performance, and advanced imaging technologies—including 150dB WDR, gyro-based DIS, intelligent video analytics, and WiseStream II compression—this camera ensures high-clarity monitoring in the most demanding surveillance applications.
With certifications including cLCus C1/D1, INMETRO, and cLC CSA, along with a dual microSDXC slot and comprehensive network security features, the TNO-X6320E1WT1-C offers unmatched durability, clarity, and compliance for mission-critical deployments.
| Category | Specification |
|---|---|
| Imaging | 1/2.8" 2.4MP CMOS sensor; 1920×1080 resolution |
| Frame Rate | Up to 60fps at all resolutions (H.264/H.265) |
| Minimum Illumination | Color: 0.05 Lux; B/W: 0.005 Lux |
| Lens | 4.44–142.6mm (32x optical), 16x digital zoom |
| Field of View | 61.8°–2.19° (H) / 36.2°–1.24° (V) |
| Video Codecs | H.265, H.264, MJPEG; WiseStream II support |
| Streaming | Multiple streaming up to 10 profiles |
| Image Enhancements | 150dB WDR, SSNR5, Defog, HLC, BLC, SSDR |
| Analytics | Tampering, loitering, directional, line crossing, enter/exit, fog detection, face detection, motion, shock |
| Stabilization | Gyro-based DIS |
| Day/Night | True Day & Night (ICR) |
| Network Interface | RJ-45 10/100BASE-T |
| Protocols | TCP/IP, UDP/IP, RTP, RTSP, HTTP/HTTPS, SNMP, DHCP, FTP, SMTP, DDNS, QoS |
| Security | SSL/TLS, HTTPS, digest authentication, IP filtering, 802.1X |
| Edge Storage | Dual SD/SDHC/SDXC slots (up to 512GB total) |
| Construction | Electro-polished 316L stainless steel; toughened glass |
| Wiper | Integrated silicone wiper |
| Certifications | cLCus C1/D1, INMETRO, cLC CSA |
| Ingress Protection | IP66/67, IP68 (1.5m for 24 hours) |
| Operating Temperature | T1: -40°C to +60°C; T2: -60°C to +60°C |
| Power Input | 24 VAC |
| Power Consumption | Max 37W |
| Weight | Up to 15kg (33.1 lb) |
| Cable Entry | Three M20 entries |
