Description

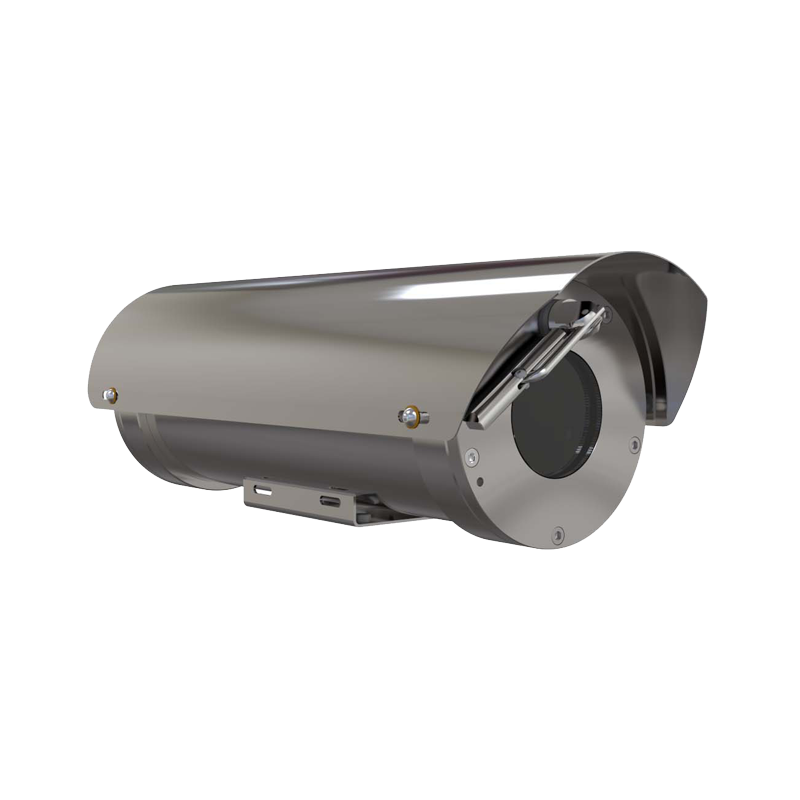

The Hanwha TNO-X6320E1WT1-M is a rugged, explosion-proof 2MP network camera engineered for hazardous and extreme industrial environments. Built with electro-polished 316L stainless steel, this camera delivers long-term corrosion resistance, making it ideal for offshore, chemical, mining, marine, and high-risk industrial facilities.
Equipped with a powerful 32x optical zoom lens, 150dB WDR, gyro-based DIS, and advanced intelligent video analytics, it provides clear and stable video in harsh conditions including fog, smoke, vibration, and complete darkness. The integrated wiper ensures a clean viewing window for consistent image quality, while dual SD card slots support reliable edge recording.
Certified for Class I Division 1 hazardous locations, the TNO-X6320E1WT1-M supports H.265/H.264/MJPEG streaming with WiseStream II compression to optimize bandwidth and storage. With a wide operating temperature range down to –60°C (T2 rating), IP66/67 and IP68 protection, and 24VAC power support, this camera is built for maximum durability and dependable operation in mission-critical applications.
| Category | Details |
|---|---|
| Image Sensor | 1/2.8" 2.4MP CMOS |
| Effective Pixels | 1944(H) × 1212(V), 2.35MP |
| Resolution | 1920×1080 to 320×180, up to 60fps (H.265/H.264) |
| Lens | 4.44–142.6mm, 32x optical zoom, 16x digital zoom |
| Field of View | H: 61.8° ~ 2.19° / V: 36.2° ~ 1.24° |
| Minimum Illumination | Color: 0.05 Lux / B&W: 0.005 Lux (F1.6, 1/30s) |
| Video Compression | H.265, H.264, MJPEG; WiseStream II |
| Streaming | Multiple streaming, up to 10 profiles |
| WDR | 150dB |
| Video Analytics | Tampering, loitering, line/direction detection, fog, enter/exit, appear/disappear, face detection, motion, shock |
| Image Enhancements | DIS (gyro), Defog, SSNR5, SSDR, BLC/HLC |
| Network Interface | RJ-45 (10/100BASE-T) |
| Protocols | TCP/IP, UDP, RTP/RTSP, HTTP/HTTPS, DHCP, FTP, SMTP, SNMP, IPv4/IPv6, QoS, UPnP, Bonjour |
| Security | HTTPS, digest authentication, IP filtering, 802.1X |
| Edge Storage | Dual microSD/SDHC/SDXC (up to 512GB total) + NAS support |
| Certifications | cLCus C1/D1, INMETRO, cLC CSA |
| Body Material | 316L stainless steel |
| Wiper | Integrated, silicone blade |
| Environment Rating | IP66/67, IP68 (1.5m for 24 hrs) |
| Temperature Rating | T1: –40°C to +60°C / T2: –60°C to +60°C |
| Power | 24VAC, max 37W |
| Weight | Up to 15kg (33.1 lb) |
| Mounting | Bullet-style with multiple M20 entries |
