Description

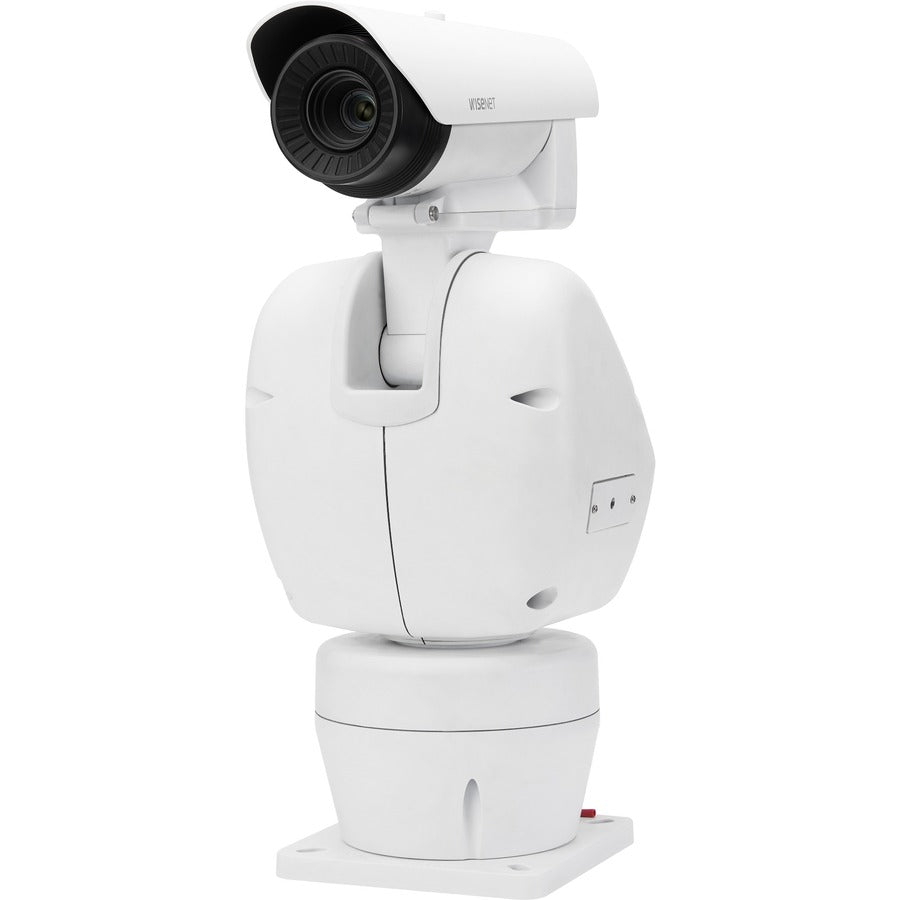

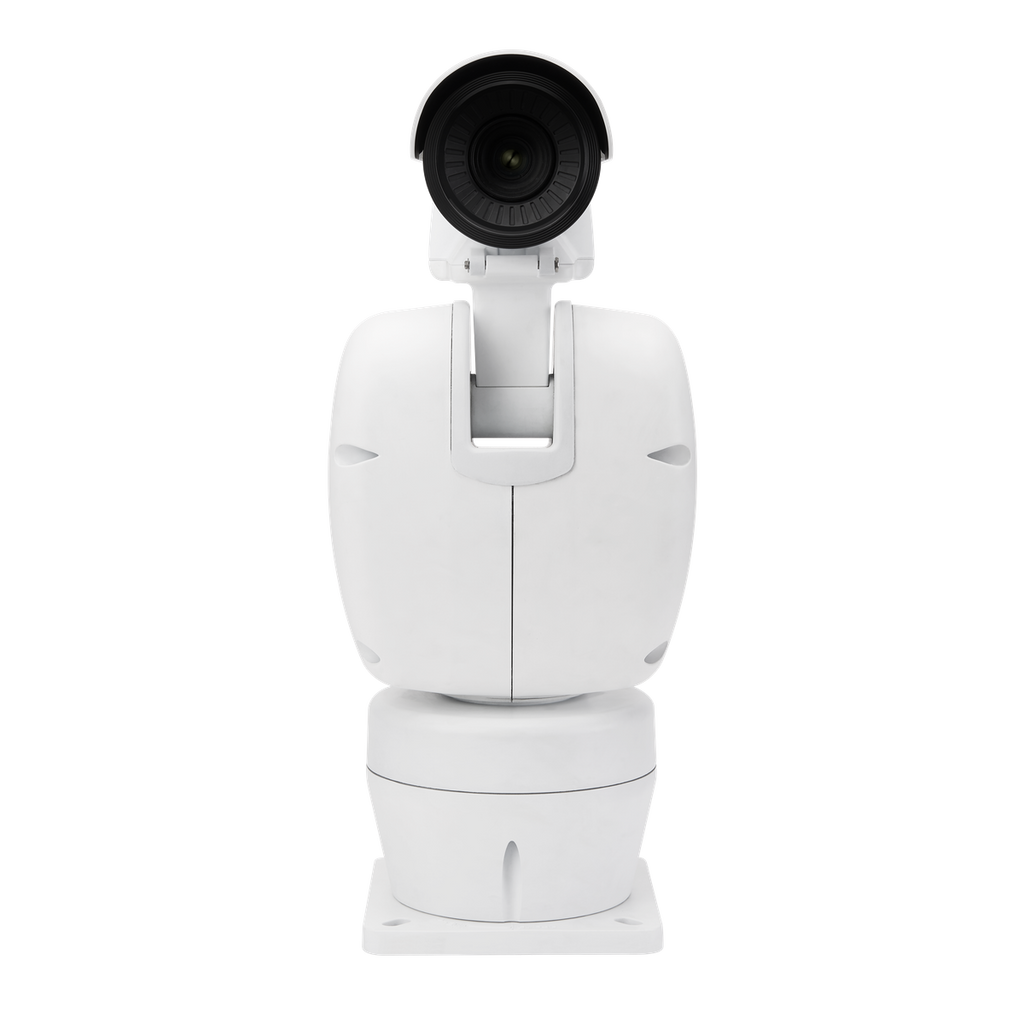

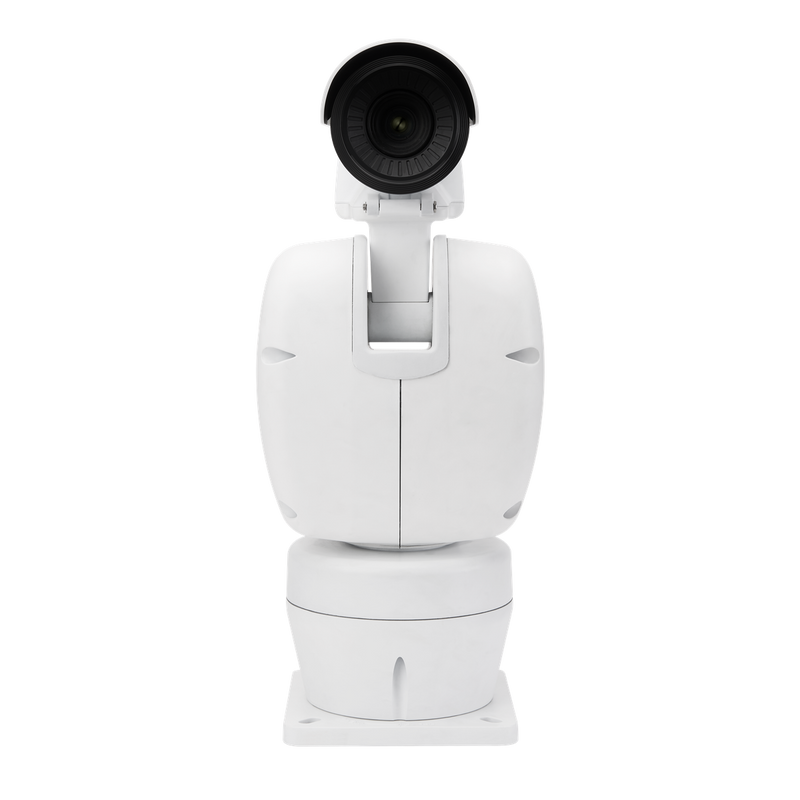

The Hanwha Vision TNU-4041T is a high-performance VGA thermal positioning camera engineered for long-range detection and 24/7 monitoring in challenging environments. Built with an uncooled microbolometer sensor delivering up to 640×480 thermal resolution, it captures high-contrast thermal imagery regardless of lighting, fog, smoke, or complete darkness. The integrated 19mm fixed lens provides a 32° × 24.3° field of view, making it ideal for perimeter protection, critical infrastructure, border security, and industrial facilities.
Designed for precision and reliability, the TNU-4041T supports 360° endless pan, –90° to +40° tilt, and high-speed positioning for rapid event response. With advanced analytics—including motion detection, tampering, intrusion, virtual line crossing, loitering, shock detection, sound classification, and temperature change detection—the camera enhances situational awareness and automated threat detection.
Built for harsh outdoor conditions, the unit features a rugged IP66, IK10, and NEMA 4X aluminum housing, wide operating temperature range, and a built-in heater. Flexible connectivity includes H.265/H.264/MJPEG, WiseStream II smart codec, ONVIF compatibility, and edge storage up to 256GB. The TNU-4041T delivers exceptional thermal monitoring performance with robust durability to support continuous security operations.
| Category | Specification |
|---|---|
| Imaging | Uncooled microbolometer (640×480) |
| Resolutions | 640×480, 640×360, 320×240 |
| Max Frame Rate | 30fps (H.265/H.264/MJPEG) |
| Spectral Range | 8–14 μm |
| NETD | ≤50mK |
| Lens | 19mm fixed lens, F1.0 |
| Field of View | H: 32°, V: 24.3°, D: 39.2° |
| iFoV | 0.895 mRad |
| Min Object Distance | 11m (36.09 ft) |
| Pan Range | 360° endless |
| Tilt Range | –90° to +40° |
| Pan/Tilt Speed | Pan: up to 120°/sec, Tilt: up to 40°/sec |
| Preset Positions | 300 presets, 6 groups |
| Analytics | Motion, tampering, loitering, intrusion, enter/exit, virtual line, appear/disappear, audio detection, sound classification, shock, temperature change detection |
| Storage | microSD/SDHC/SDXC up to 256GB |
| Input/Output | 1 alarm input, 1 alarm output; audio in/out |
| Video Compression | H.265, H.264, MJPEG; WiseStream II smart codec |
| Network | RJ-45 (10/100BASE-T), IPv4/IPv6, HTTPS, SNMP v1/v2c/v3, ONVIF S/G/T |
| Operating Temp | –40°C to +55°C (–40°F to +131°F) |
| Storage Temp | –50°C to +60°C (–58°F to +140°F) |
| Humidity | 0–90% RH (non-condensing) |
| Input Power | 24VAC; Max 84W (heater on) / 62W (heater off) |
| Housing | Aluminum; RAL9003 white finish |
| Protection Ratings | IP66, IK10, NEMA 4X |
| Dimensions | 219(W) × 528(H) × 335(D) mm (8.62 × 20.79 × 13.19 in) |
| Weight | 11.7 kg (25.79 lb) |
| Compatible Accessories | SBU-500WM Wall Mount |
