Description

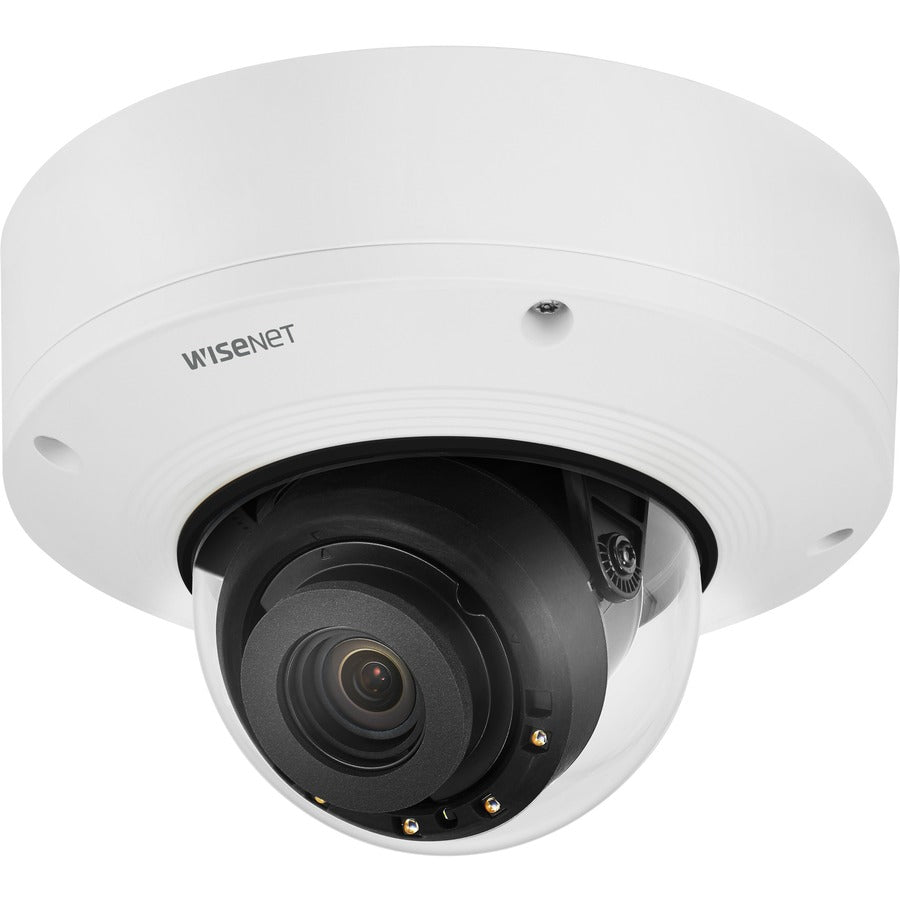

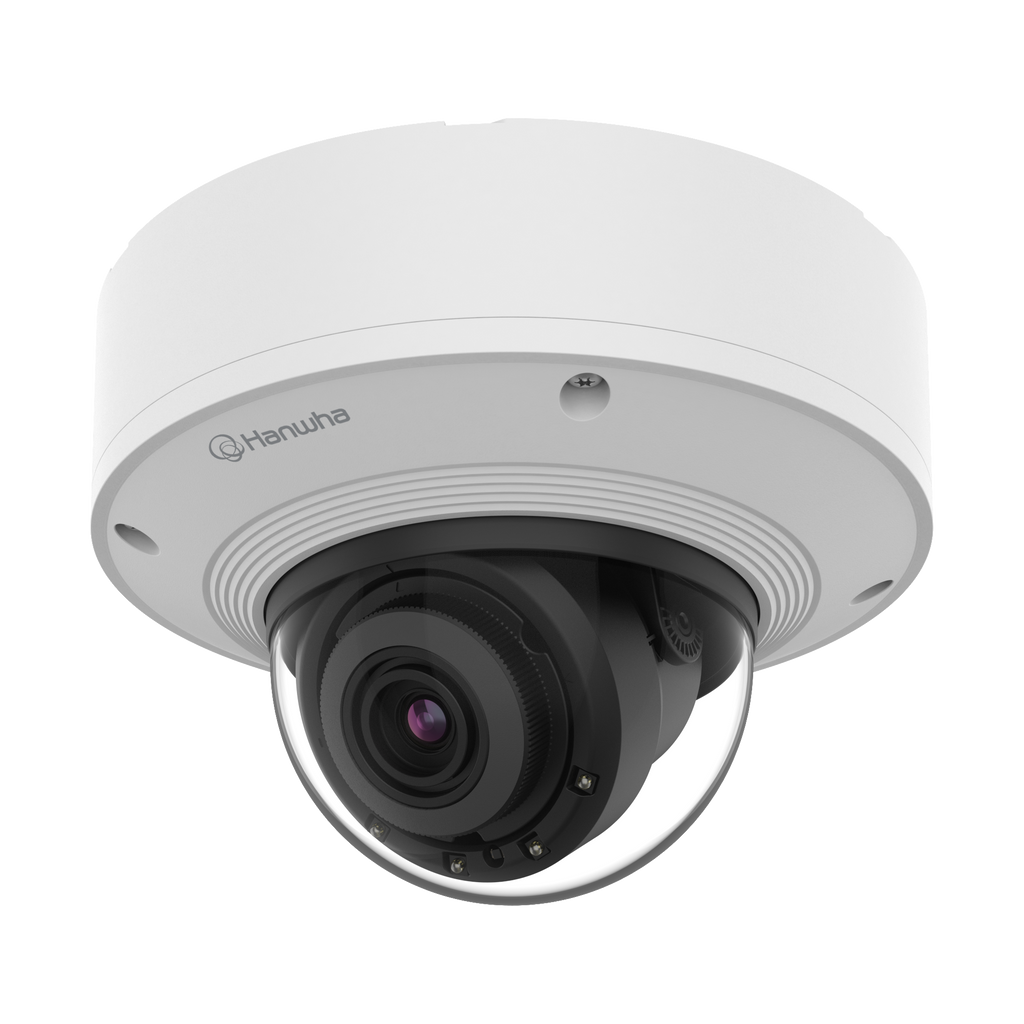

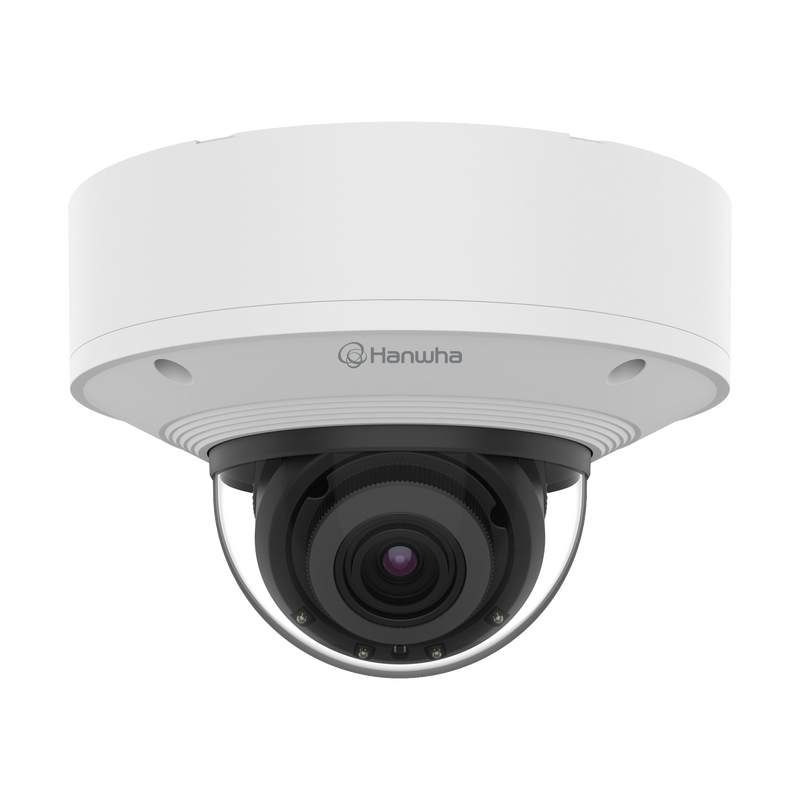

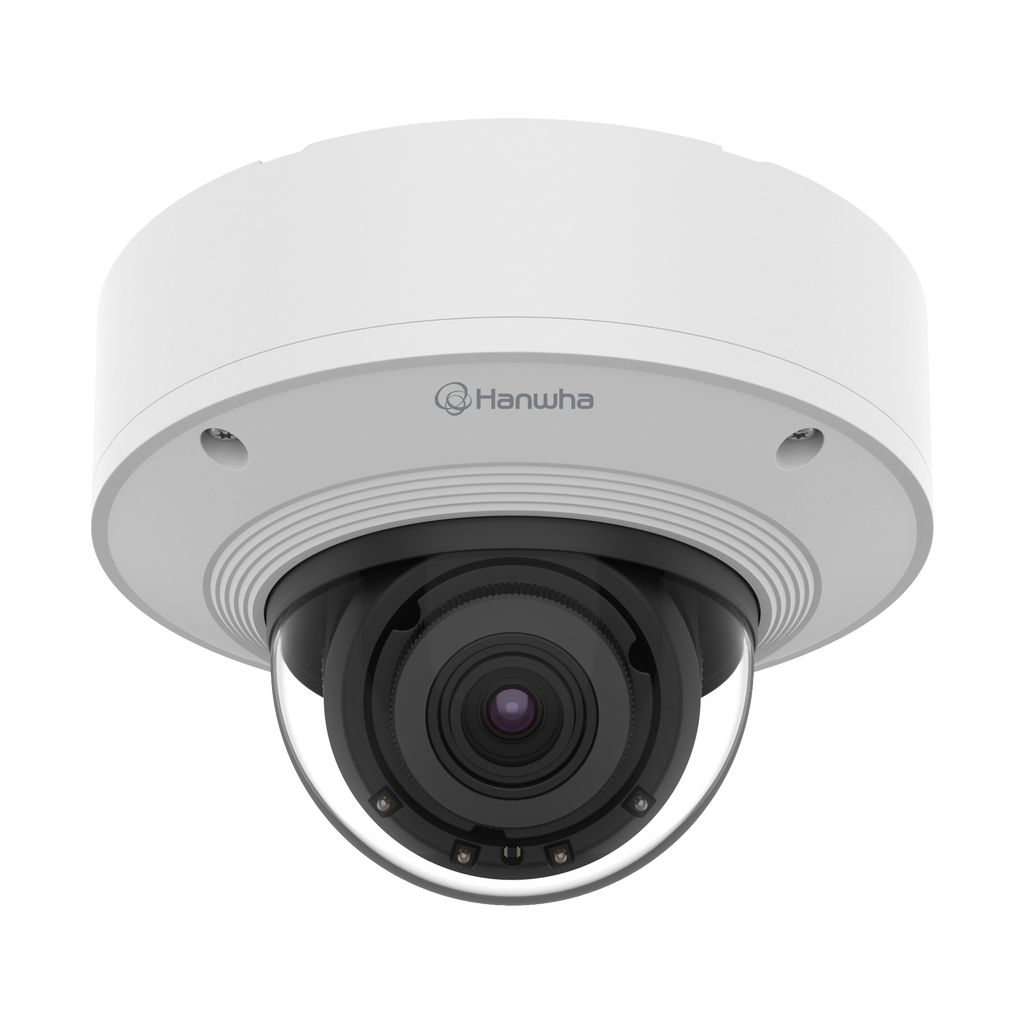

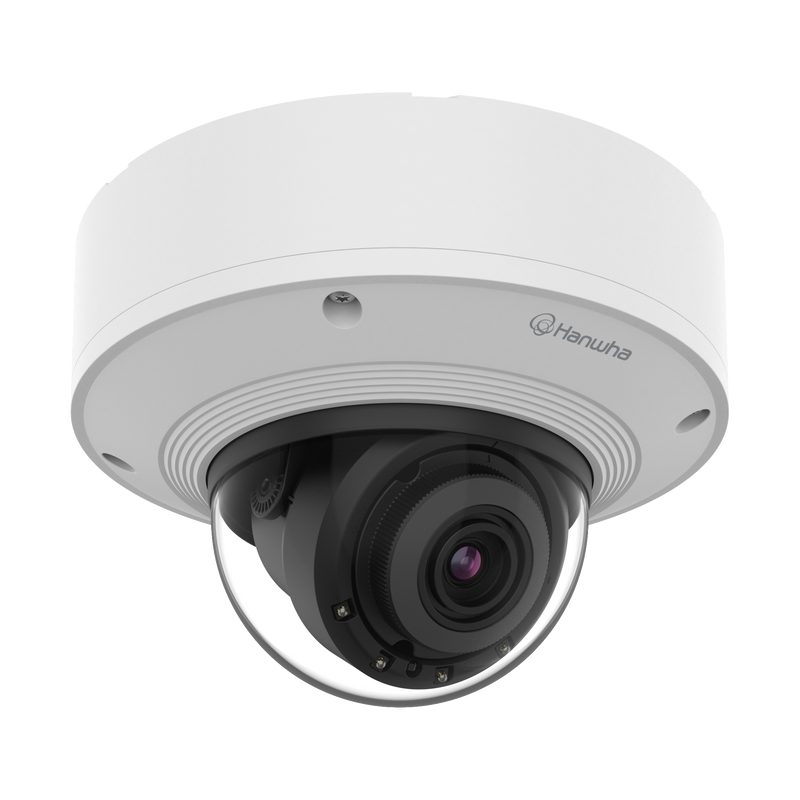

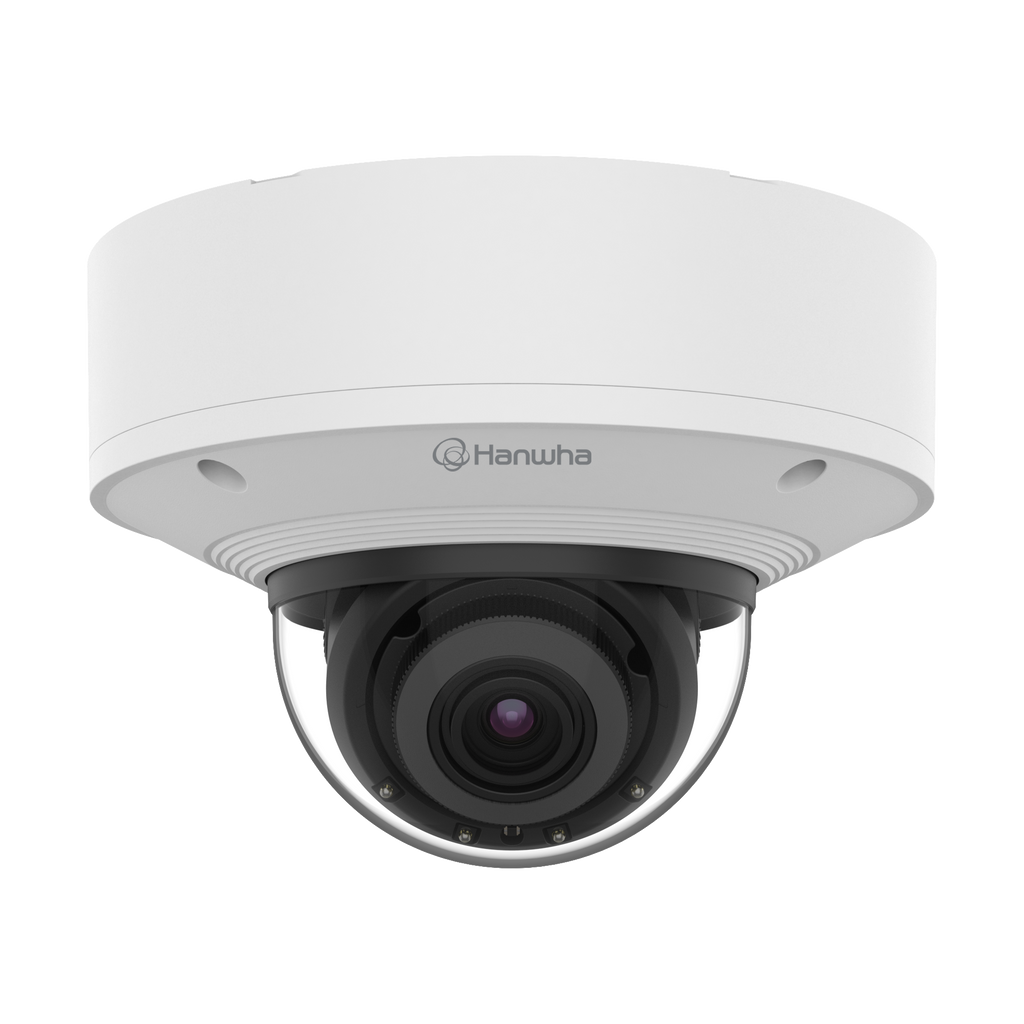

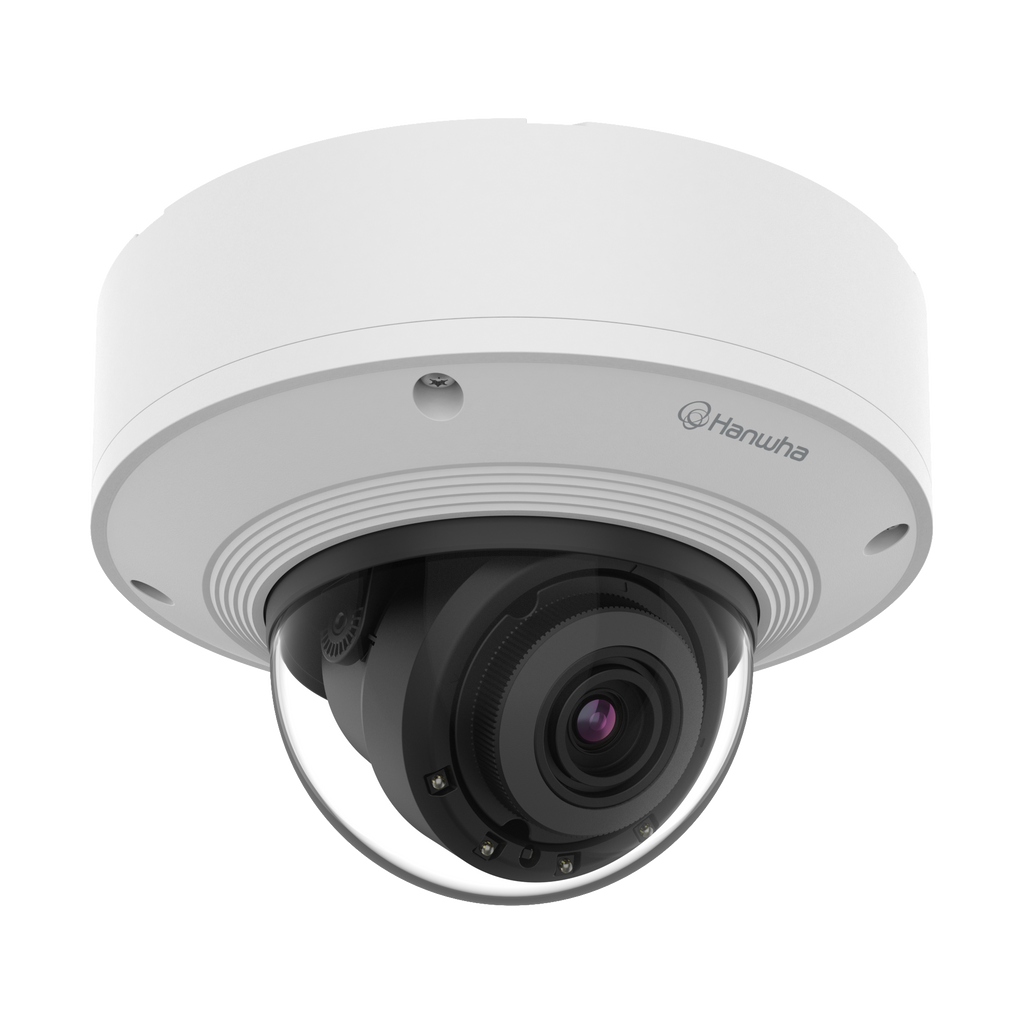

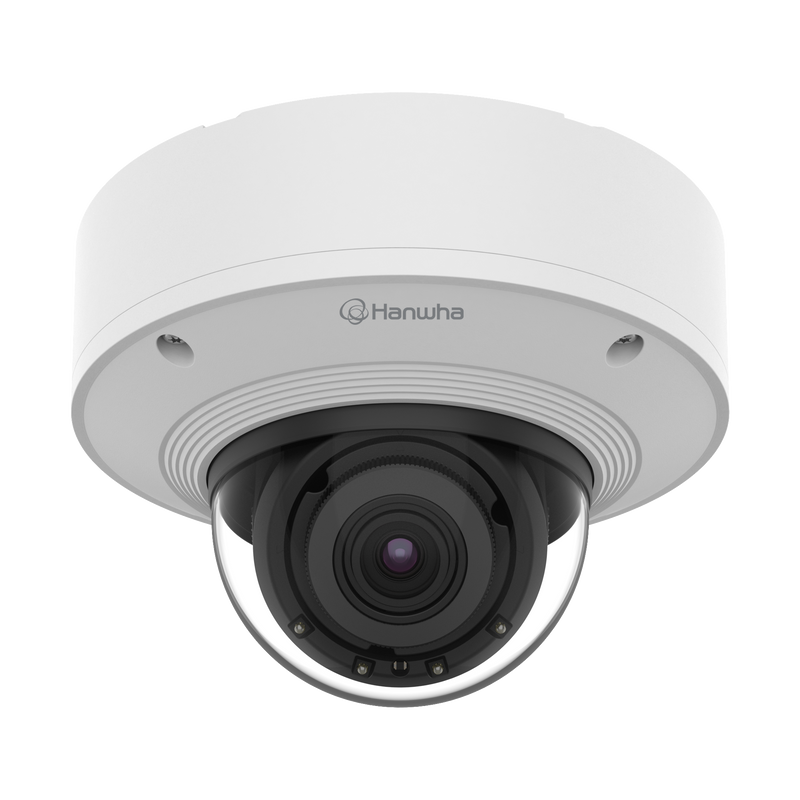

The Hanwha XNV-8081RE is a powerful 5MP outdoor vandal-resistant dome camera equipped with built-in PoE extender functionality for powering an additional network camera up to 80 meters away. Designed for demanding commercial and industrial environments, it features a robust modular structure, 2.4x motorized varifocal lens, and strong low-light performance down to 0.07 lux in color mode.
This model includes 50m IR illumination for clear imaging in total darkness, 120dB WDR for challenging lighting, and advanced onboard analytics such as people counting, heat mapping, queue management, virtual line detection, tamper detection, audio classification, and more. With IP66/IP67/IP6K9K, IK10+ impact protection, and NEMA 4X ratings, the XNV-8081RE is engineered for harsh environments requiring maximum reliability.
Its PoE+ input with PoE-out capability (up to 12.95W at 80m) makes it ideal for installations needing simplified network infrastructure while supporting an additional extension camera.
| Category | Specification |
|---|---|
| Imaging | 1/1.8" CMOS, Max 5MP (2560x1920) |
| Lens | 3.9–9.4mm motorized varifocal, 2.4x optical zoom |
| Aperture | F1.3 (wide) |
| Field of View | H: 92.1°–38.7°, V: 67.2°–29.0°, D: 119.9°–48.6° |
| Min. Illumination | 0.07 lux (Color), 0.007 lux (B/W), 0 lux with IR |
| IR Range | Up to 50m |
| Video Compression | H.265/H.264 (Main, Baseline, High), MJPEG |
| Max Frame Rate | 30fps (H.265/H.264/MJPEG) |
| WDR | 120dB |
| Audio | Audio in (mic/line), audio out (line) |
| Video Output | CVBS, Micro USB Type-B (installation) |
| Analytics | Motion, tampering, defocus, face, audio/sound classification, shock, virtual area/line, people counting, queue management, heatmap |
| Digital Enhancements | SSNRV, DIS (gyro), defog, hallway view |
| Network Interface | RJ-45 (10/100BASE-T) |
| Protocols | IPv4/IPv6, TCP/IP, UDP/IP, RTP/RTSP, HTTPS, LLDP, QoS, SNMPv1/v2c/v3, ONVIF S/G/T |
| Security | IP filtering, HTTPS, SRTP, IEEE 802.1X, authentication logs |
| Edge Storage | Dual microSD/SDHC/SDXC slots (up to 512GB total) |
| Power Input | PoE+ (IEEE 802.3at Class 4) |
| Power Usage | Max 25.5W (main + extension), 10.2W typical main cam |
| PoE Output | Up to 12.95W at 80m (CAT5/5e) |
| Operating Temperature | –50°C to +60°C (startup above –35°C) |
| Humidity | 0–90% RH (non-condensing) |
| Ingress/Impact Rating | IP66/IP67/IP6K9K, IK10+, NEMA 4X |
| Material / Color | Aluminum / White (RAL9003) |
| Dimensions | Ø180 × 125 mm (7.09 × 4.92 in) |
| Weight | 1.75 kg (3.86 lb) |
