Description

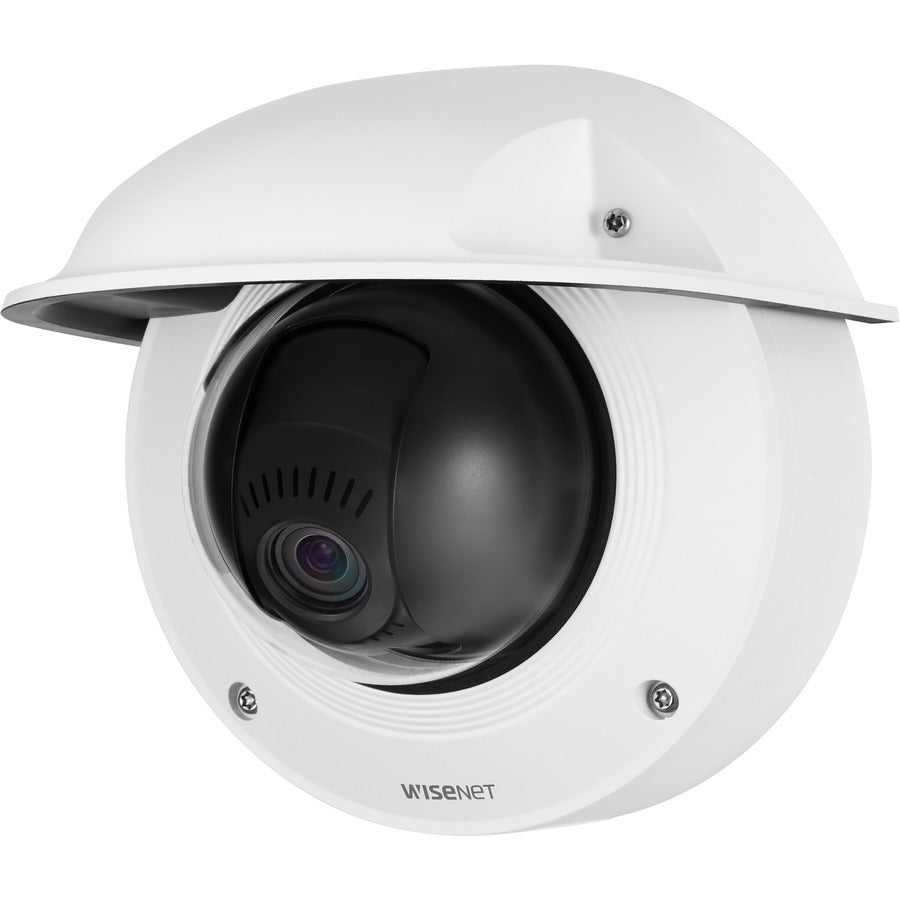

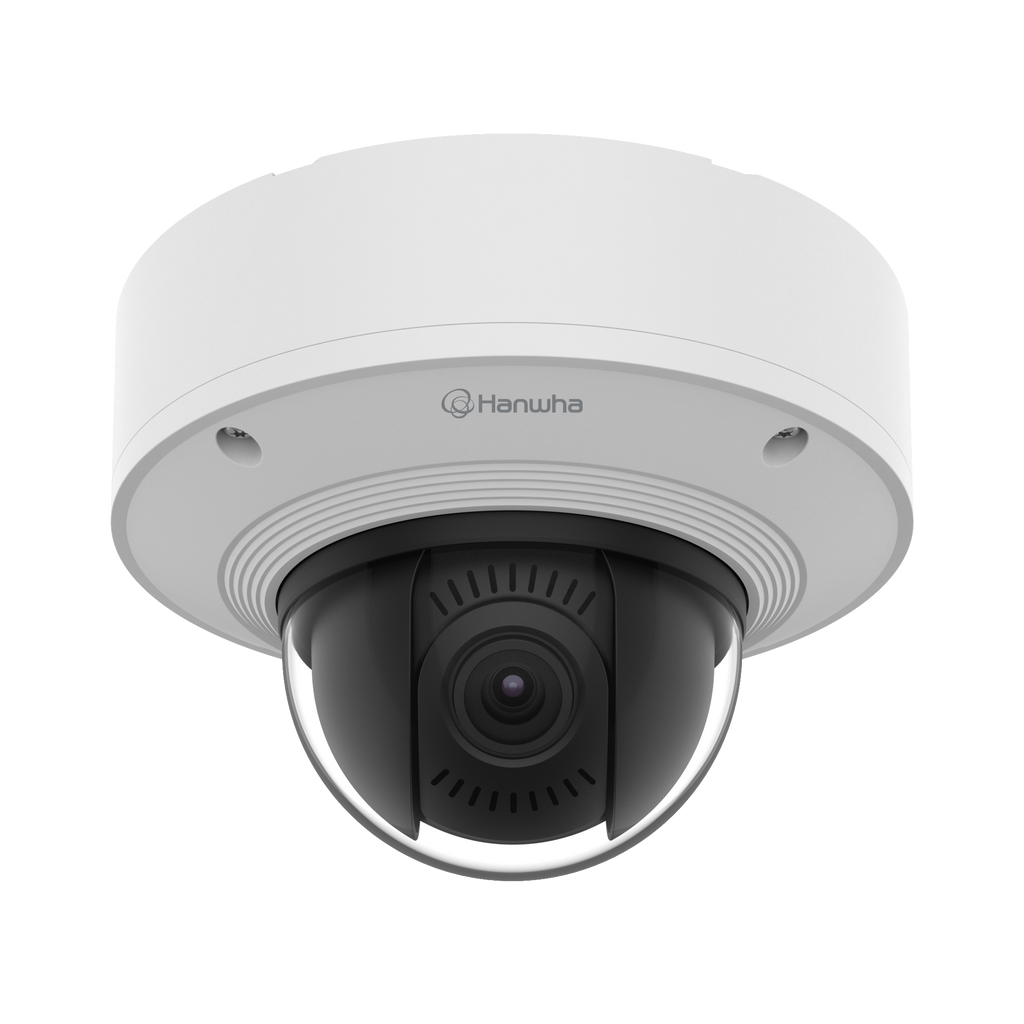

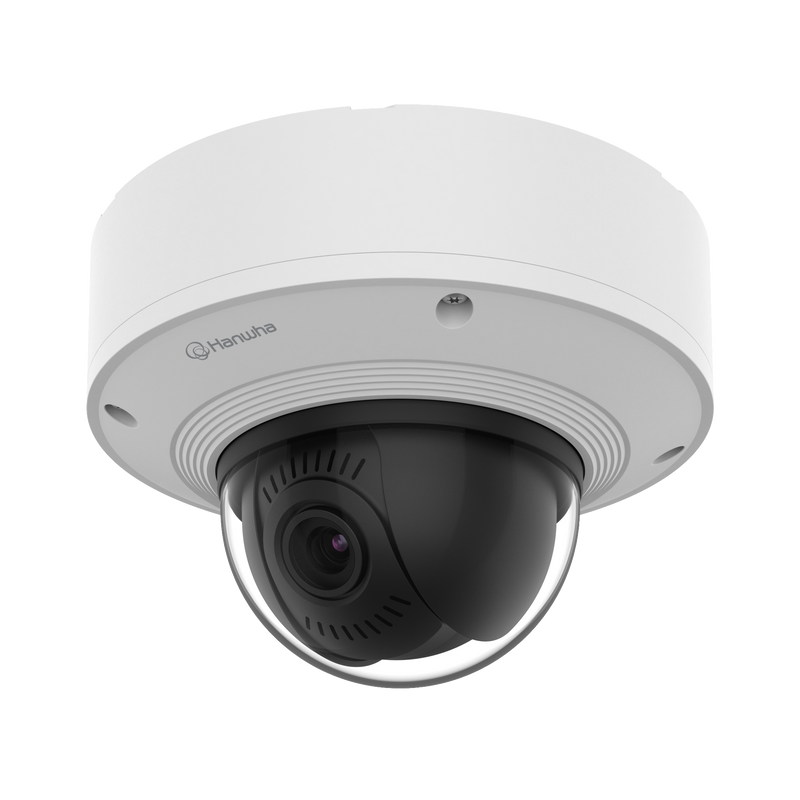

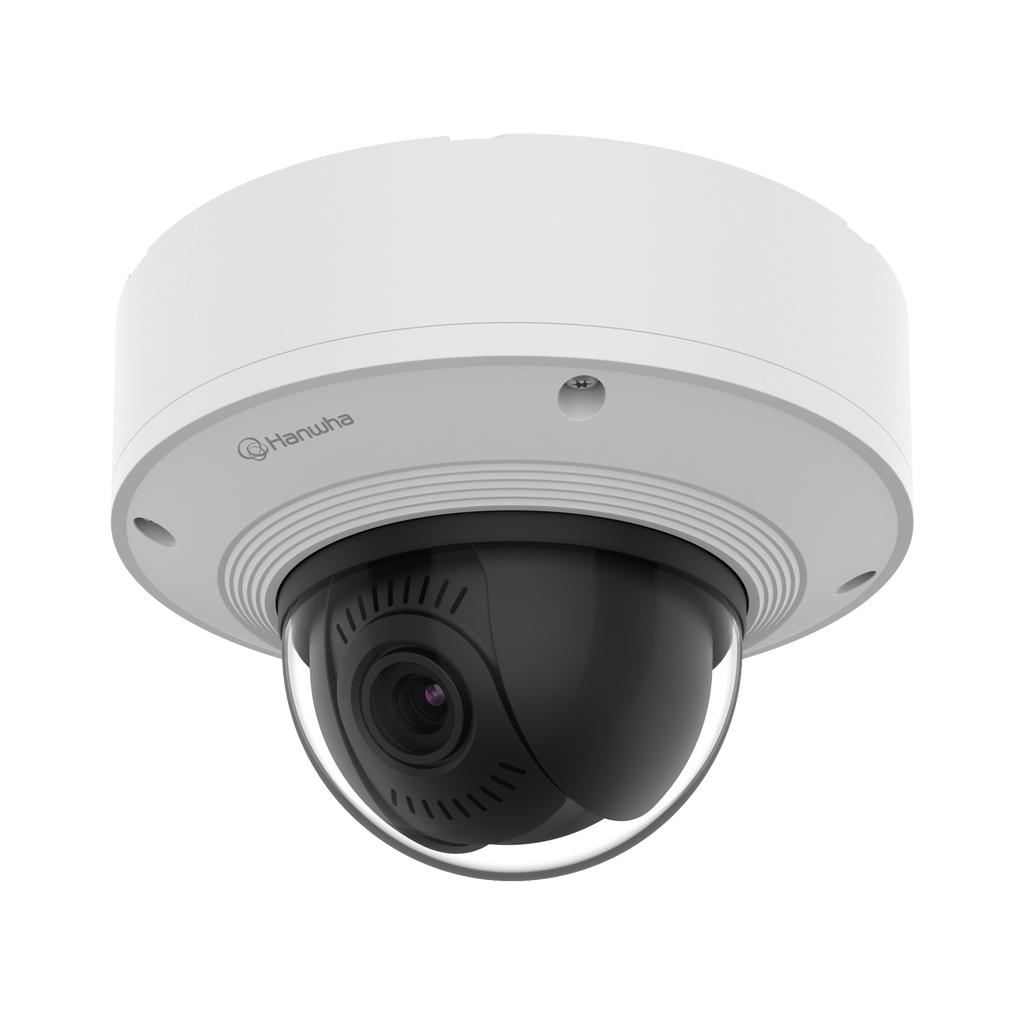

The Wisenet XNV-8081Z is a high-performance 5-megapixel outdoor network dome camera engineered with the Wisenet X Plus platform for fast installation, advanced analytics, and exceptional video clarity. Designed with a modular structure and PTRZ (Pan-Tilt-Rotate-Zoom) capability, installers can quickly position and configure the camera without physically touching the lens, reducing deployment time and effort.
Equipped with a motorized 2.6x varifocal lens (3.6–9.4mm), the camera delivers wide to narrow fields of view ranging from 102.5° to 38.7°, supporting flexible coverage for demanding surveillance environments. The XNV-8081Z captures crisp, clear images at 5MP / 30fps, even in challenging lighting, thanks to 120dB WDR, true day/night performance, and lens distortion correction.
Advanced AI-powered analytics—including sound classification, shock detection, tampering, loitering, directional detection, and fog detection—provide actionable insights and real-time event triggers. With triple codec support (H.265/H.264/MJPEG) plus WiseStream II, the camera minimizes bandwidth while maintaining maximum image quality.
Rated IK10+, IP67/IP66/IP6K9K, NEMA 4X, and designed for extreme temperatures (–50°C to +60°C), the Wisenet XNV-8081Z delivers long-term durability in harsh outdoor installations. Dual SD card slots (up to 512GB) ensure on-device edge recording for redundancy and uninterrupted surveillance.
| Category | Specification |
|---|---|
| Model | Wisenet XNV-8081Z |
| Form Factor | Outdoor vandal-resistant dome |
| Image Sensor | 5MP, 30fps |
| Lens | Motorized varifocal 3.6–9.4mm (2.6x) |
| Field of View | 102.5° – 38.7° |
| PTRZ | Yes (Pan-Tilt-Rotate-Zoom) |
| Day/Night | True Day/Night (ICR) |
| WDR | 120dB |
| Codec Support | H.265, H.264, MJPEG |
| Video Enhancements | LDC (Lens Distortion Correction), Hallway View, Defog, HLC |
| Analytics | Motion detection, Shock detection, Loitering, Tampering, Fog detection, Audio detection, Sound classification, Digital auto-tracking |
| Streaming | Multiple streams, WiseStream II support |
| Storage | Dual SD/SDHC/SDXC slots (up to 512GB) |
| Network | Ethernet, PoE; 12VDC; optional 24VAC |
| Durability Ratings | IP67/IP66/IP6K9K, IK10+, NEMA 4X |
| Operating Temperature | –50°C to +60°C (–58°F to +140°F) |
| Installation Features | Modular design, USB installation port, Easy-access module configuration |
| Color Options | White (includes ivory skin), optional black cover |
