Description

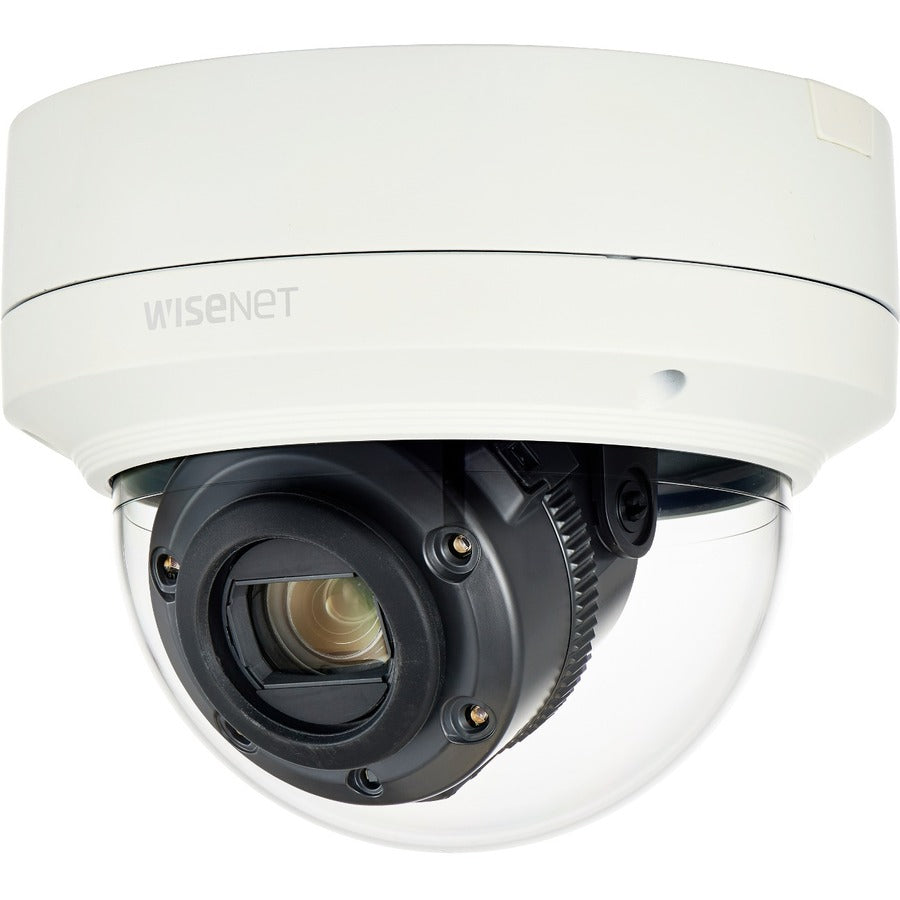

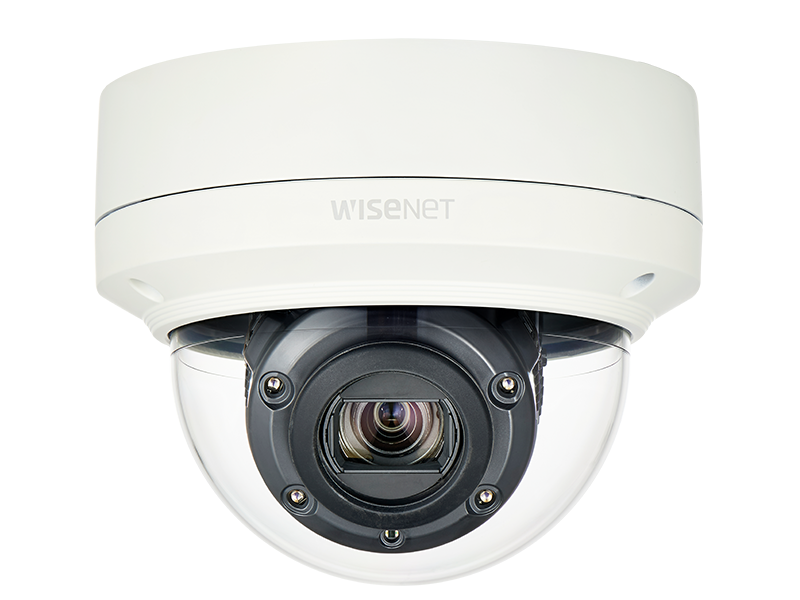

The Wisenet XNV-6120R/LPR is a purpose-built license plate recognition (LPR) network dome camera designed for low-speed and stop-and-go environments such as parking lots, drive-thrus, and controlled entry gates up to 35 MPH. Powered by the Wisenet 5 chipset, it delivers optimized accuracy with a fully embedded LPR application that runs directly on the camera—no external server required.
This 2MP Full HD dome features a 12x optical zoom lens, high-powered IR LEDs with a readable LPR distance of up to 65 ft, and advanced image enhancement technologies including 150dB WDR, Defog, HLC, DIS, and True Day/Night. Intelligent analytics such as loitering, directional detection, audio analytics, and digital auto-tracking improve situational awareness. With robust environmental protection (IP67, IK10, NEMA 4X) and a built-in heater, the XNV-6120R/LPR is engineered for reliable performance in harsh outdoor conditions.
| Specification | Details |
|---|---|
| SKU | XNV-6120R/LPR |
| Resolution | 2 Megapixel (1920 × 1080) |
| Lens | 12x optical zoom (5.2–62.4mm), 54.58°–5.30° FoV |
| LPR Capability | Embedded LPR app; no server required |
| LPR Speed Range | Designed for low-speed and stop-and-go applications up to 35 MPH |
| IR Illumination | High-power IR; readable LPR range up to 65 ft |
| Video Compression | H.265, H.264, MJPEG; WiseStream II |
| Streaming | Multiple streaming supported |
| Dynamic Range | 150dB WDR |
| Day/Night | True Day/Night (ICR) |
| Image Enhancements | Defog, HLC, DIS (Gyro), Hallway View |
| Analytics | Loitering, directional detection, fog detection, audio detection, sound classification, digital auto tracking, motion detection, tampering, handover |
| Storage | Dual SD/SDHC/SDXC slots (up to 512GB) |
| Installation Features | USB port, embedded heater |
| Power Options | 12VDC, 24VAC, PoE |
| Operating Temperature | –40°C to +55°C (–40°F to +131°F) |
| Environmental Rating | IP67, IK10, NEMA 4X |
| Housing Color | Ivory |
| Form Factor | Outdoor Vandal-Resistant Dome |
