Description

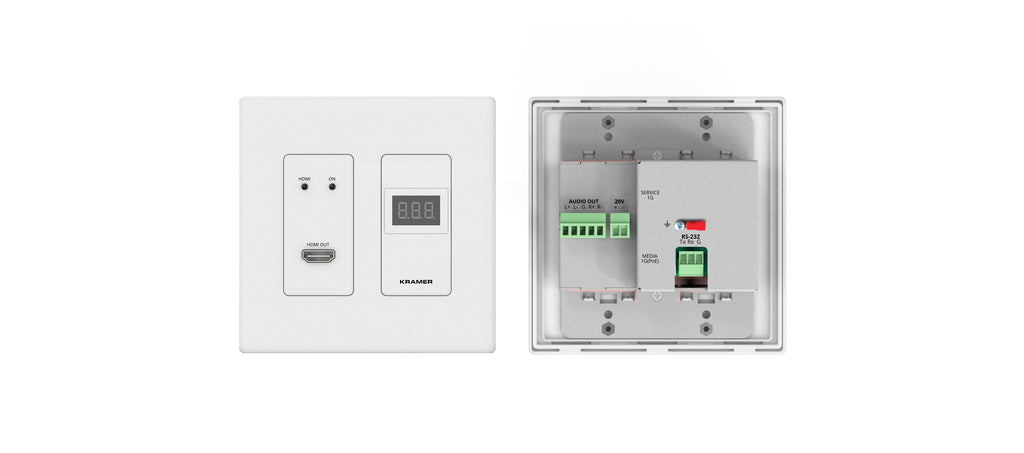

The Kramer WP-DEC7/US-D(W) is a high-performance, highly scalable AVoIP wall-plate decoder designed for modern 4K video-over-IP installations. Engineered for 1G Ethernet networks, it receives visually lossless 4K video streams with ultra-low latency, making it ideal for corporate meeting rooms, digital signage networks, control centers, and education environments.
This compact wall-plate decoder supports both unicast and multicast streaming, delivering up to 4K@60Hz (4:2:0) over standard copper infrastructure. It includes powerful signal management features such as analog audio de-embedding, a built-in scaler, and extensive format support including LPCM, Dolby, and DTS audio.
With intuitive control options—embedded web interface, front-panel LCD, RS-232, CEC, and Kramer’s P3K protocol—the WP-DEC7 ensures seamless integration into automated AV ecosystems. It also functions as a control gateway, enabling unified device management across an installation.
Supporting PoE for simplified deployment, this US-Decora-style white model blends cleanly into any professional environment.
| Category | Details |
|---|---|
| Video Streaming | Up to 4K@60Hz (4:2:0) over 1G network; unicast & multicast; visually lossless compression |
| Max Resolution | 4K@30Hz 4:4:4 end-to-end |
| Compression Standard | JPEG2000-based proprietary codec |
| Ports / Outputs | 1 HDMI (female), 2 Ethernet (RJ-45), 1 balanced audio (5-pin terminal), 1 RS-232 |
| Audio Support | LPCM up to 7.1/24-bit/192kHz; Dolby Atmos, TrueHD, Digital Plus, Digital EX, 5.1, 2.0; DTS-HD MA, DTS-ES 6.1, DTS 5.1 |
| Control Interfaces | Embedded web UI, P3K API, RS-232, CEC, front-panel LCD and buttons |
| Network Performance | Peak bitrate 850 Mbps; avg 350 Mbps (4K), 250 Mbps (1080p) |
| Latency | 33 ms end-to-end |
| Scaler | Yes |
| Switching Time | 1 second |
| Security | HTTPS, 802.1x, OWASP-10, AES-128 encrypted streaming |
| Power | PoE (37–57V); optional 20V DC supply; typical consumption 3.94W |
| Operating Temperature | 0°C to +45°C (32°F to 113°F) |
| Enclosure | 2-gang metal (SGCC), convection cooling |
| Dimensions (US) | 12.10 × 4.56 × 12.10 cm (W×D×H) |
| Weight (US) | Approx. 0.4 kg (0.9 lb) |
| Model Variant | Includes white Decora® frame set |
