Description

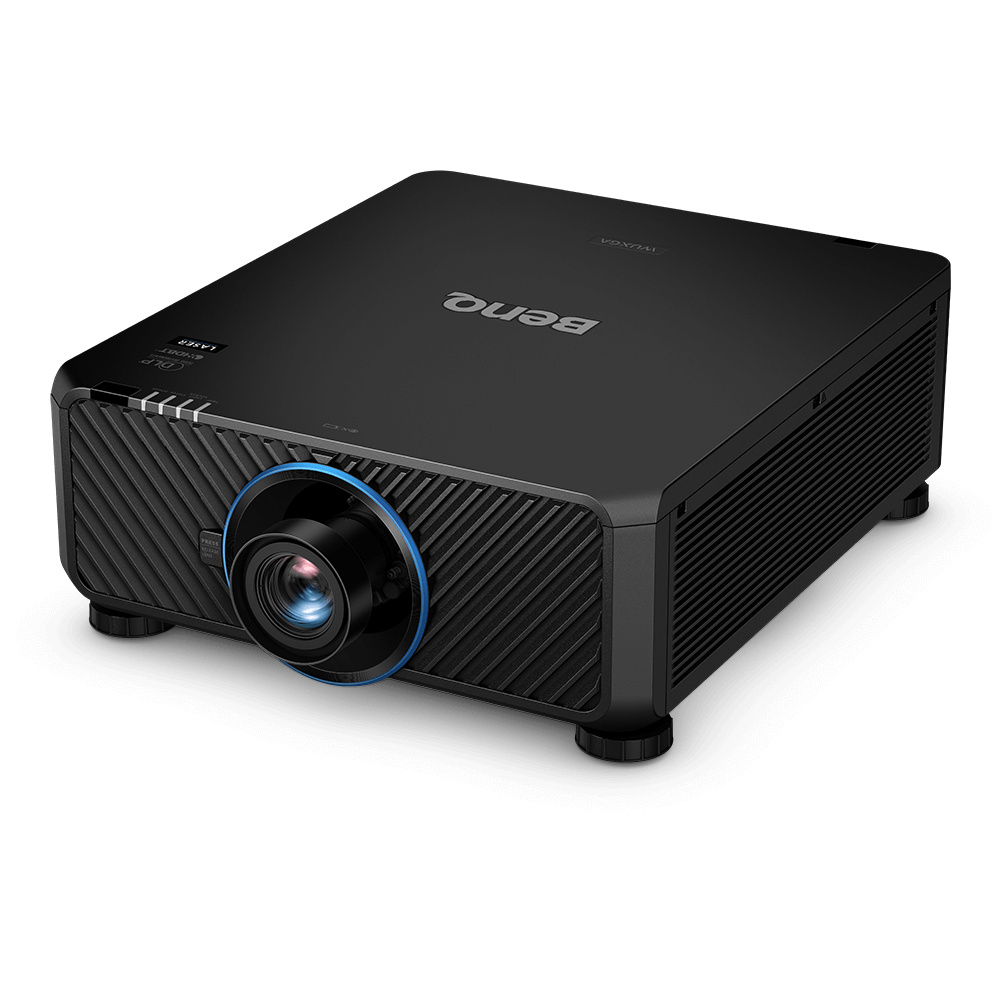

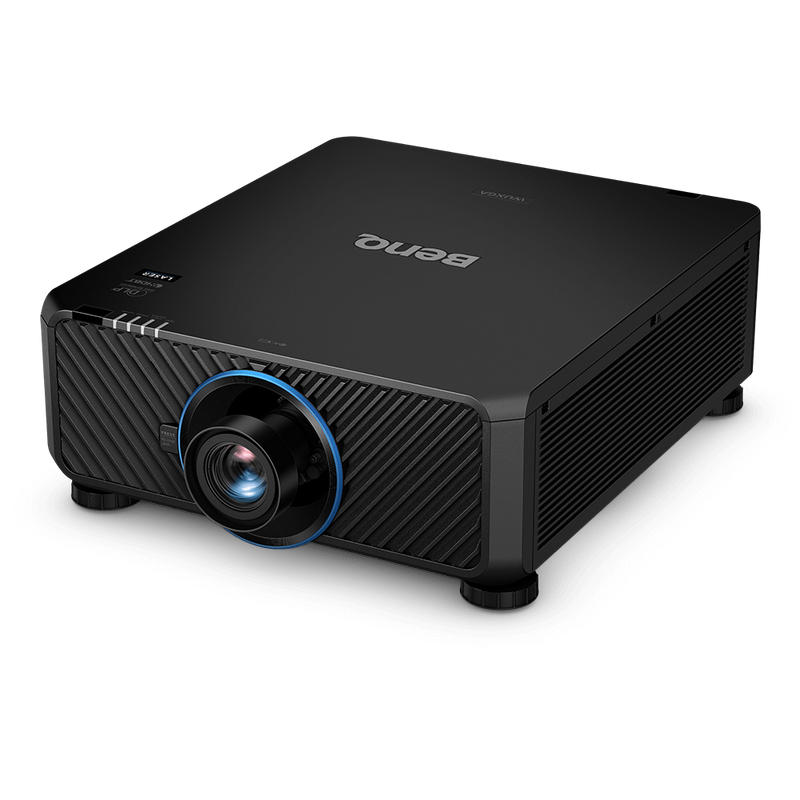

The BenQ LU9750 is a professional-grade WUXGA laser installation projector designed for large venues, auditoriums, houses of worship, simulation environments, and enterprise applications. Powered by a Single 0.67" WUXGA DLP chip and advanced laser light source technology, it delivers precise image performance with 1920 x 1200 resolution in a native 16:10 aspect ratio.
Built for flexible integration, the LU9750 supports interchangeable optional lenses, enabling short throw to long throw configurations for a wide range of projection distances. With vertical lens shift up to +55% and horizontal shift up to ±5% (lens dependent), installers can achieve accurate alignment without physically repositioning the projector.
Its robust connectivity includes HDMI, DVI-D, HDBaseT, RJ45 LAN, RS-232, VGA, 3D Sync, and 12V trigger output, ensuring seamless integration with control systems and AV infrastructures. Advanced RS-232 and PJLink network control make the LU9750 ideal for centralized management in multi-projector installations.
Designed for 24/7 professional environments, the LU9750 combines high reliability, flexible installation, and enterprise-level control for demanding projection applications.
| Specification | Details |
|---|---|
| Model | BenQ LU9750 |
| Projection System | DLP Single 0.67" WUXGA DMD Chip |
| Native Resolution | 1920 x 1200 (WUXGA) |
| Aspect Ratio | 16:10 |
| Light Source | Laser |
| Power Consumption | 792W (Typical), 0.5W (Standby) |
| Dimensions (Without Adjustable Foot) | 587.3 x 211 x 500 mm |
| Dimensions (With Adjustable Foot) | 587.3 x 216 x 500 mm |
| Weight (Without Lens) | 26.4 kg |
| Interchangeable Lenses | Yes (Optional lenses available) |
| Lens Shift (Lens Dependent) | Vertical: -15% to +55% Horizontal: ±5% |
| Supported Throw Ratios | 0.77 to 8.26 (depending on lens) |
| Inputs | HDMI x2, DVI-D, VGA (Computer In), HDBaseT |
| Control Ports | RS-232 In/Out, RJ45 LAN |
| Audio | Audio In, Audio Out (L/R) |
| 3D Support | 3D Sync In / 3D Sync Out |
| USB Power | 5V / 2A |
| 12V Trigger | Yes |
| Network Control | PJLink Class 1 Compatible |
| Installation Orientation | Any angle installation supported |
| Recommended Clearance | Minimum 50 cm exhaust clearance |
