Description
The Sharp NEC XP-A155U-B is a high-performance WUXGA (1920 × 1200) professional laser projector designed for large venues, auditoriums, and immersive installations. Delivering 14,000 lumens (center 15,000 lm) of brightness, it ensures clear and vivid images even in environments with high ambient light. Equipped with a long-life laser light source and a sealed, filter-free design, the XP-A155U-B reduces maintenance costs while providing reliable 24/7 operation.
This projector offers versatile installation flexibility, including 360° tilt-free and roll-free projection, compatibility with six optional lenses, and advanced edge blending for seamless multi-projector setups. It supports modern connectivity with HDMI, HDBaseT In/Out, SDI, LAN, and RS-232C, and integrates smoothly with control systems such as Crestron RoomView® and Extron XTP.
Designed with energy efficiency in mind, it features selectable light modes, a carbon meter for CO₂ savings, and ultra-low standby power consumption. The XP-A155U-B is an excellent choice for large-scale presentations, digital signage, events, and professional AV installations.
| Category | Specification |
|---|---|
| Model | XP-A155U-B |
| Display Type | 3-panel LCD (liquid crystal) |
| Native Resolution | WUXGA (1920 × 1200), 16:10 aspect ratio |
| Brightness | 14,000 lumens (center 15,000 lumens) |
| Light Source | Laser diode, long-life module (no lamp replacement required) |
| Contrast Ratio | Up to 3,000,000:1 (dynamic contrast with laser dimming) |
| Lens | Optional, 6 interchangeable lenses available (sold separately) |
| Lens Shift | Motorized (vertical & horizontal, dependent on lens) |
| Projection Orientation | 360° tilt-free and roll-free installation |
| Edge Blending | Yes, seamless multi-projector support |

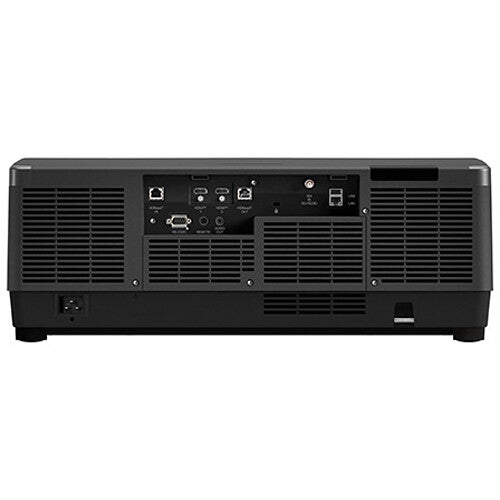

| Inputs | 2 × HDMI (Type A), 1 × HDBaseT In (RJ-45), 1 × SDI (BNC) |
| Outputs | 1 × HDBaseT Out (RJ-45), 1 × Audio Out (Stereo Mini) |
| Control Interfaces | LAN (RJ-45), RS-232C (D-sub 9-pin), USB (Type A), Remote (Stereo Mini) |
| Image Modes | Multiple light modes with adjustable output & Carbon Meter |
| Noise Level | <70 dB (per EN ISO 7779) |
| Power Requirements | 100–240 VAC, 50/60 Hz |
| Standby Power | 0.15 W (100–130 VAC), 0.20 W (200–240 VAC) |
| Dimensions | Approx. 23.6" × 8.7" × 21.4" (without lens) |
| Weight | ~55 lbs (25 kg, without lens) |
| Color | Black |
| Included Accessories | Remote control, AAA batteries (×2), 2 × power cords, power cord stopper, dust cap for lens, quick setup guide, security sticker |
