Description

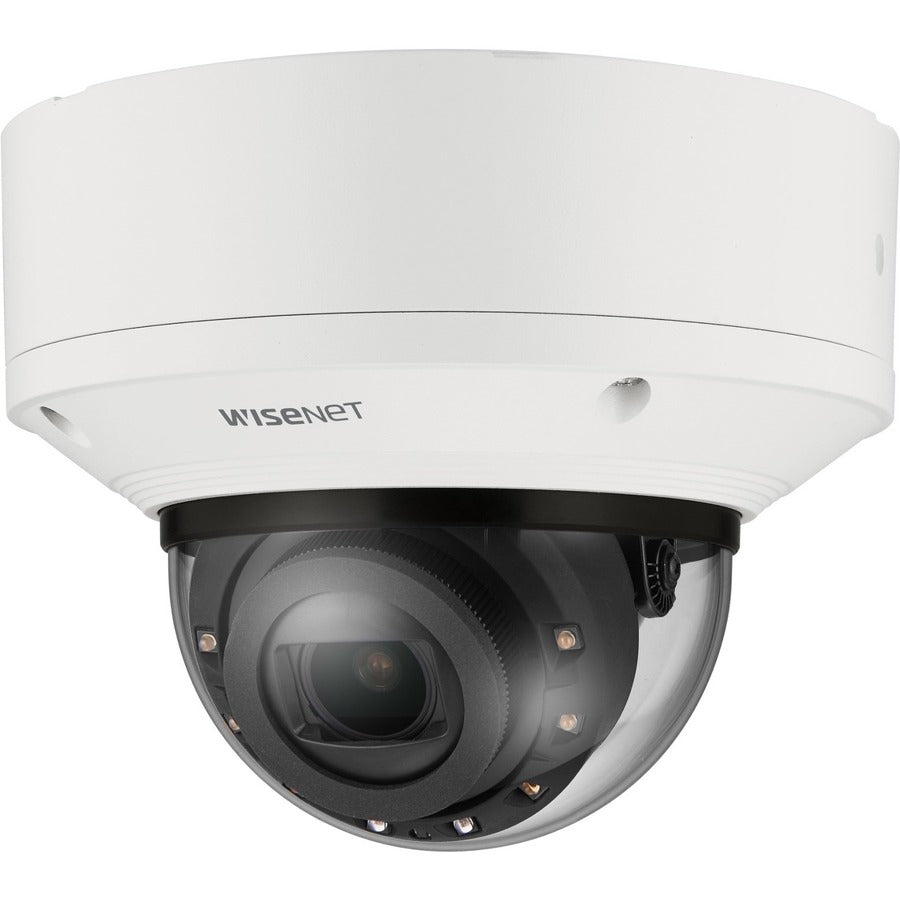

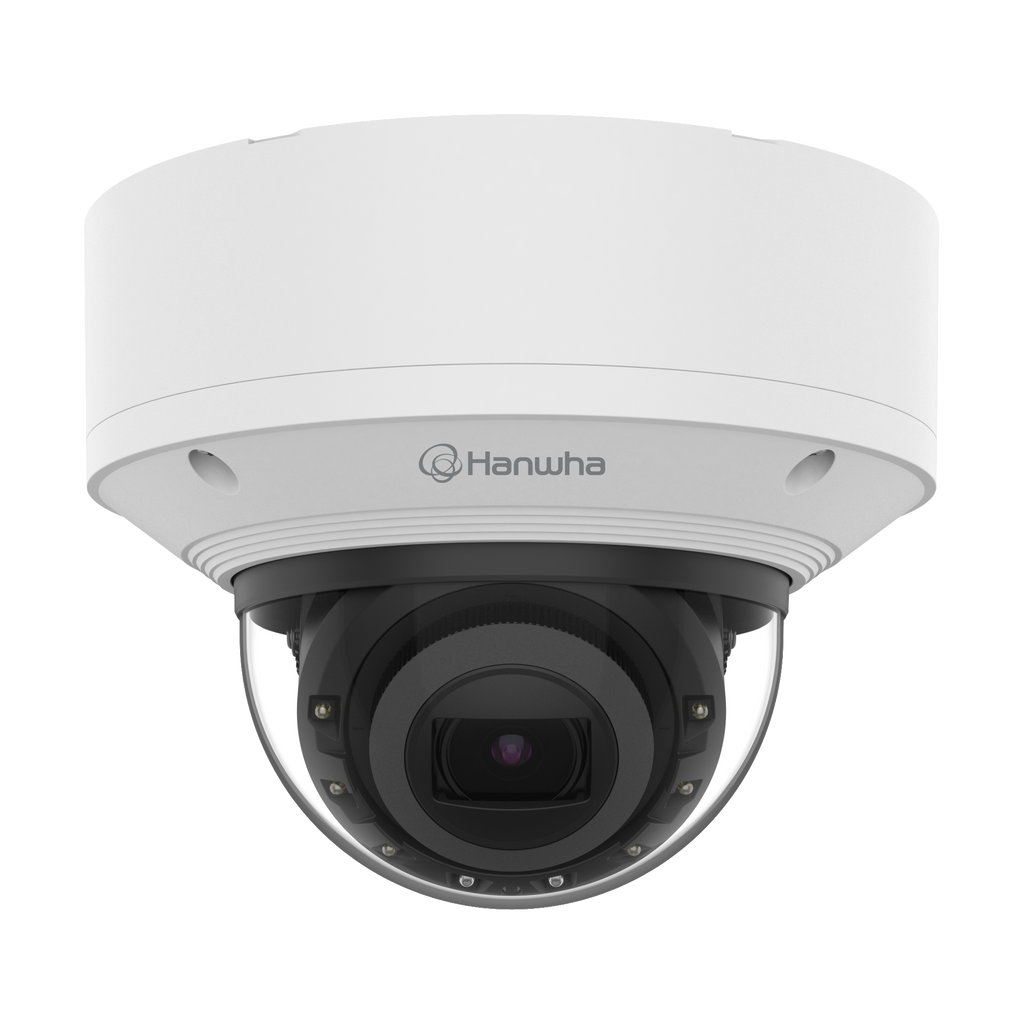

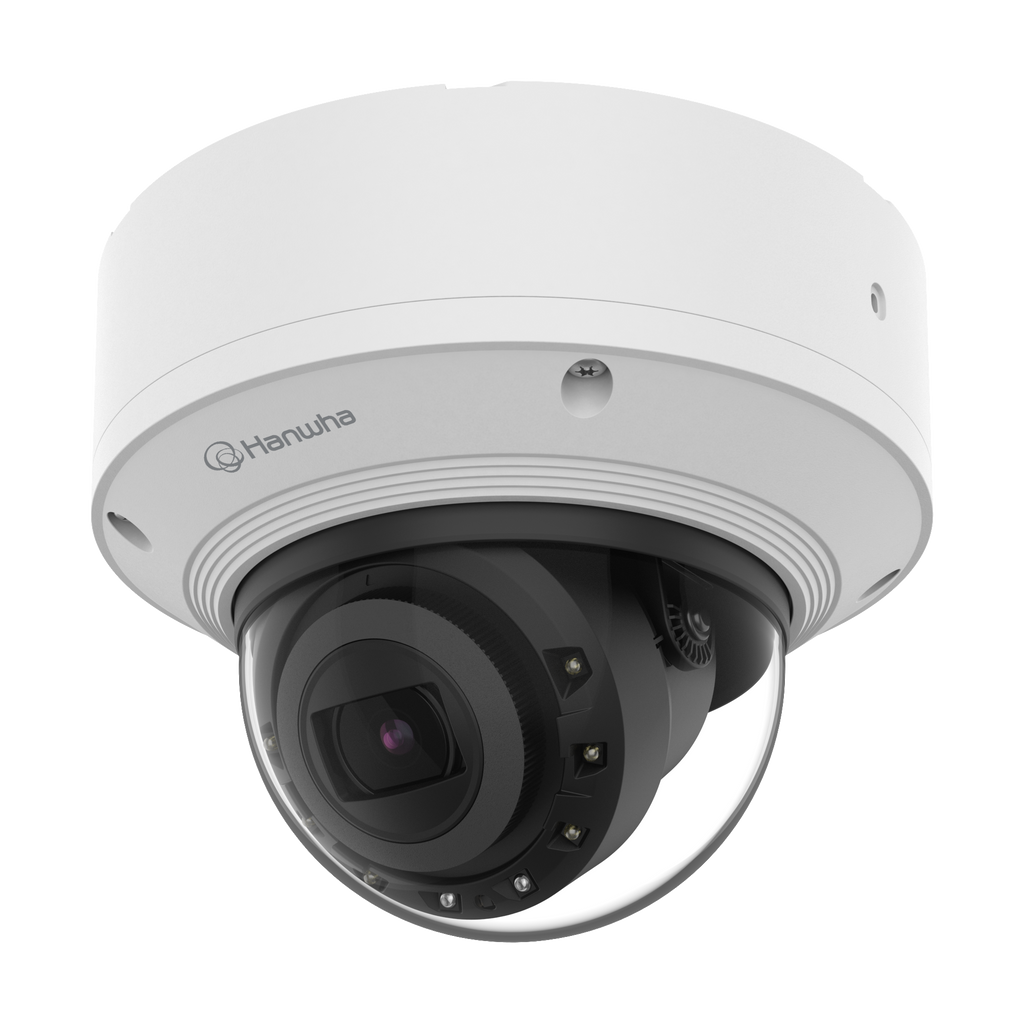

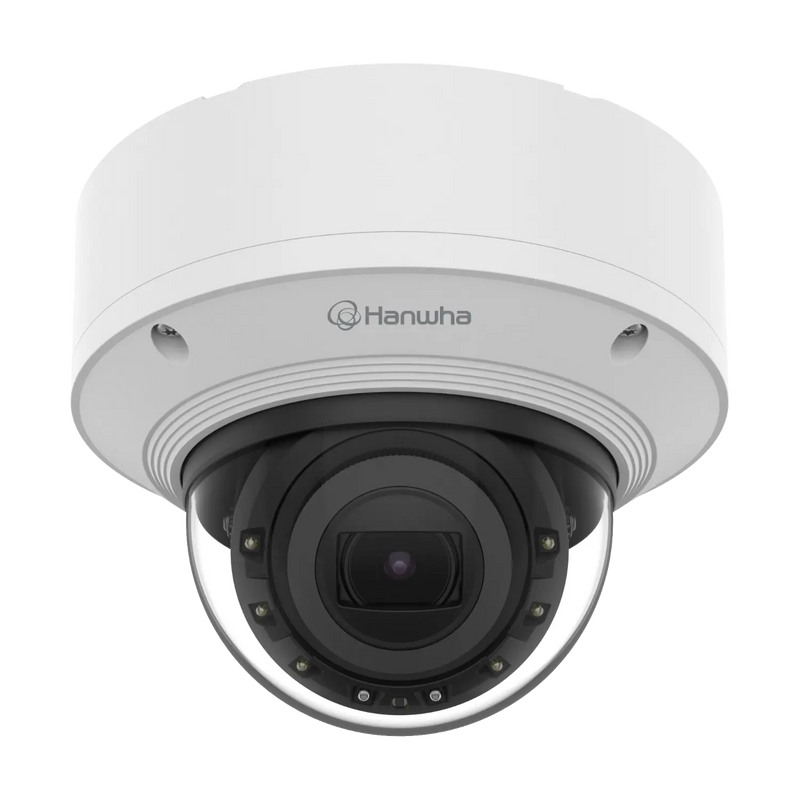

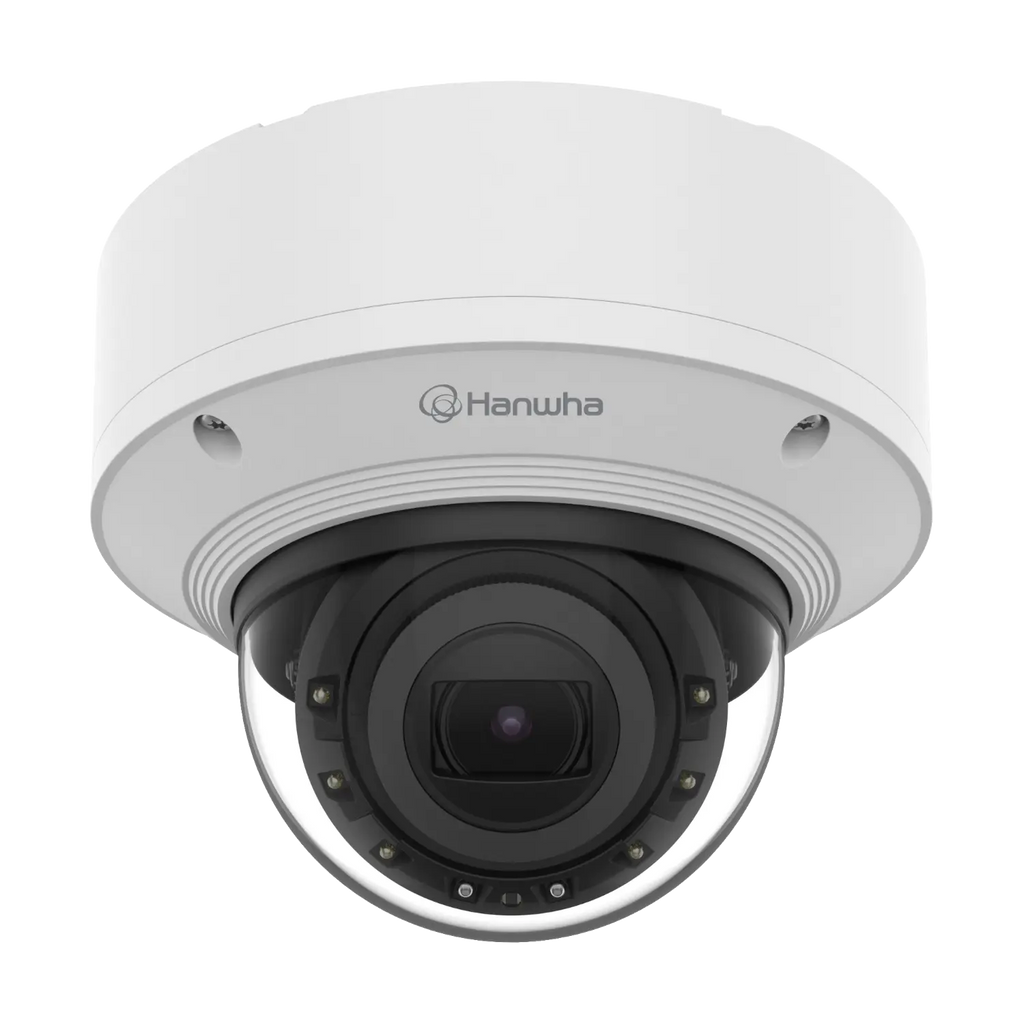

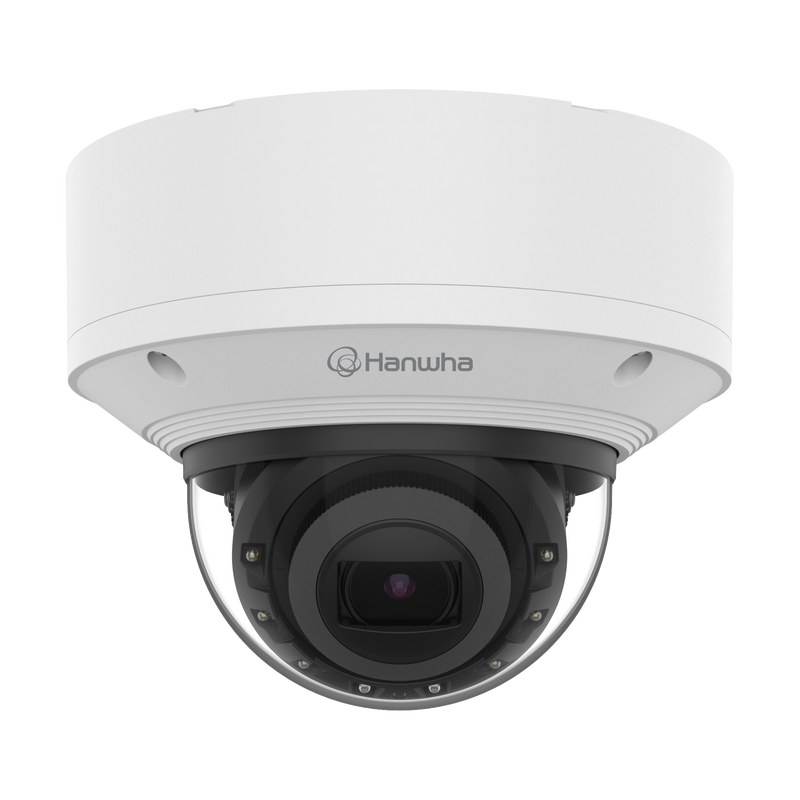

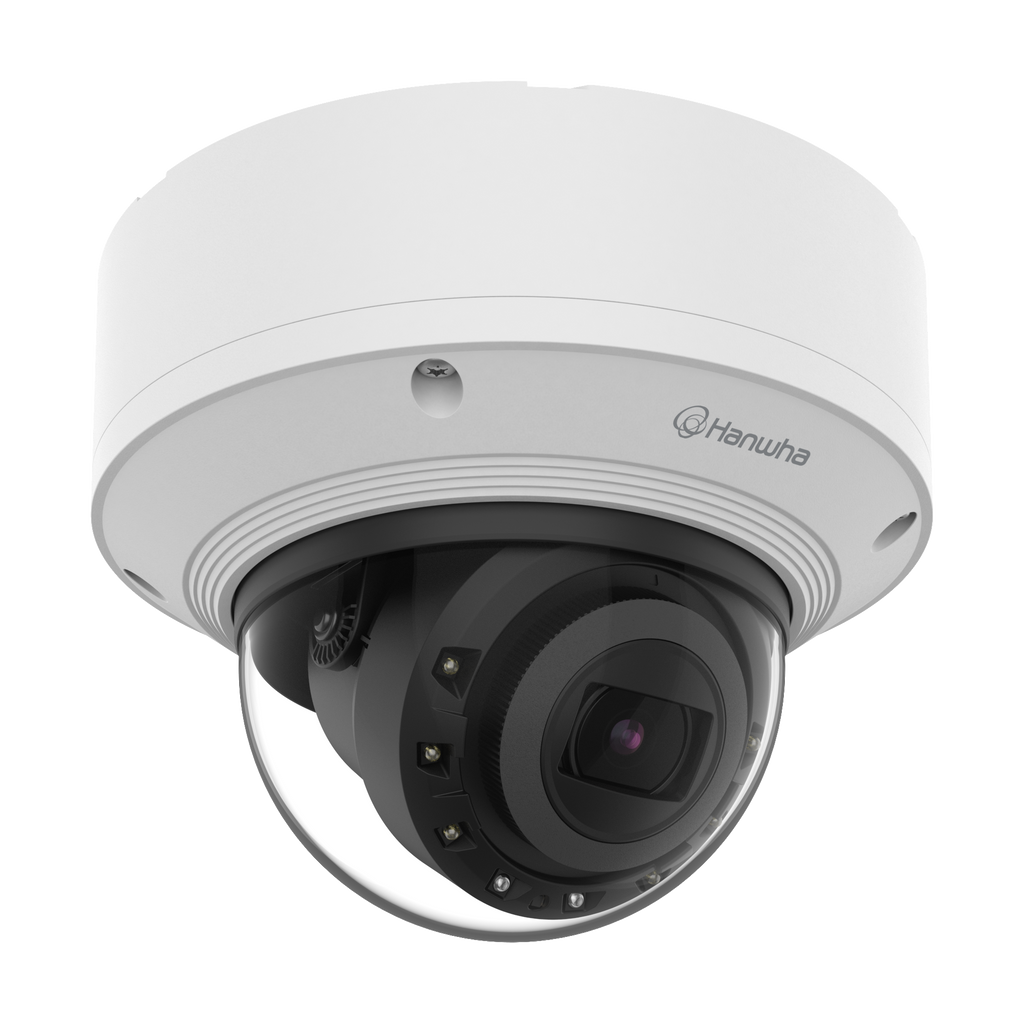

The Hanwha Vision XND-9083RV is a high-performance 4K AI dome camera designed for demanding indoor and outdoor surveillance environments. Powered by an advanced NPU-driven AI engine, it delivers accurate object detection for people, faces, vehicles, and license plates, along with intelligent analytics such as virtual line, intrusion, loitering, and queue management.
Equipped with a 4.4–9.3mm motorized varifocal P-iris lens, IR illumination up to 50m, and extreme WDR (120dB), the camera maintains clarity in complex lighting conditions. Its robust IK10, IP52-rated housing ensures durability, while secure-by-design features such as TPM 2.0, encrypted firmware, and secure boot support enterprise-grade protection.
With multi-stream support, WiseStream III compression, edge storage up to 2TB (OnCloud), and complete integration with ONVIF and Sunapi APIs, the XND-9083RV delivers a versatile, intelligent, and reliable solution for modern security systems.
| Category | Specification |
|---|---|
| Imaging | 1/1.8" CMOS, 4K UHD (3840×2160), 30fps (H.265/H.264) |
| Minimum Illumination | Color: 0.04 Lux, B/W: 0.004 Lux, 0 Lux (IR on) |
| Lens | 4.4–9.3mm motorized varifocal, P-iris |
| Optical Zoom | 2.1× |
| Field of View | H: 113°–47°, V: 58°–26°, D: 138°–54° |
| IR Illumination | 50m (WiseIR), 850nm |
| WDR | 120dB Extreme WDR |
| Image Enhancements | WiseNR II, SSNR V, Defog, Digital Image Stabilization |
| Video Compression | H.265/H.264 (Main/Baseline/High), MJPEG, WiseStream III |
| Max Streams | Up to 10 profiles |
| AI Analytics (NPU) | Object detection (person, face, vehicle, license plate), virtual line/area, intrusion, loitering, enter/exit |
| Additional Analytics | Motion, tampering, fog, shock, audio detection, sound classification |
| Business Intelligence | People counting, heatmap, queue management, vehicle counting |
| Audio | Built-in mic; selectable mic-in/line-in; line-out |
| Network | RJ-45 (10/100/1000BASE-T), IPv4/IPv6, HTTPS, MQTT, ONVIF S/G/T/M |
| Security Features | Secure boot, encrypted firmware, TPM/HTPM, AES-256 SD card encryption |
| Edge Storage | Dual microSD slots up to 1TB each (2TB total) |
| Operating Conditions | –25°C to +50°C; 0–100% RH (condensing) |
| Power | PoE+ (Class 4) or 12VDC; Max 22.5W |
| Housing | Aluminum, IK10 vandal resistant, IP52 |
| Dimensions / Weight | Ø160 × 125mm; 1,600g (3.53 lb) |
| Certifications | FCC, CE/UKCA, UL62368-1, IK10, IP52 |
