Description

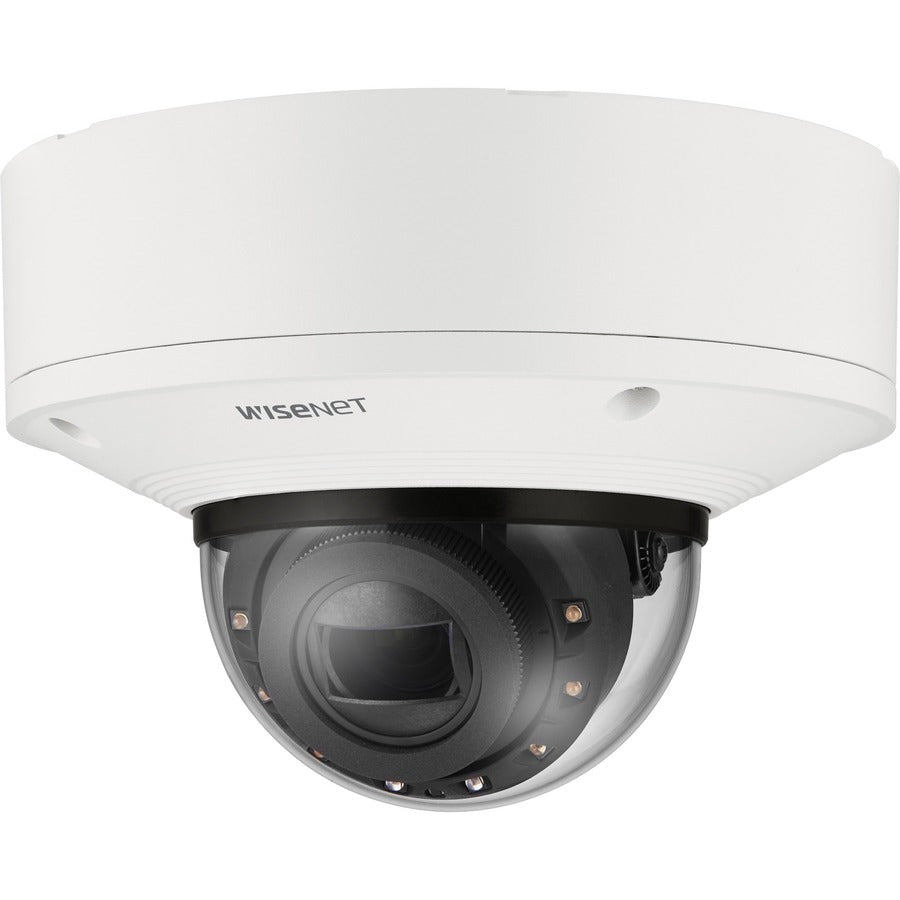

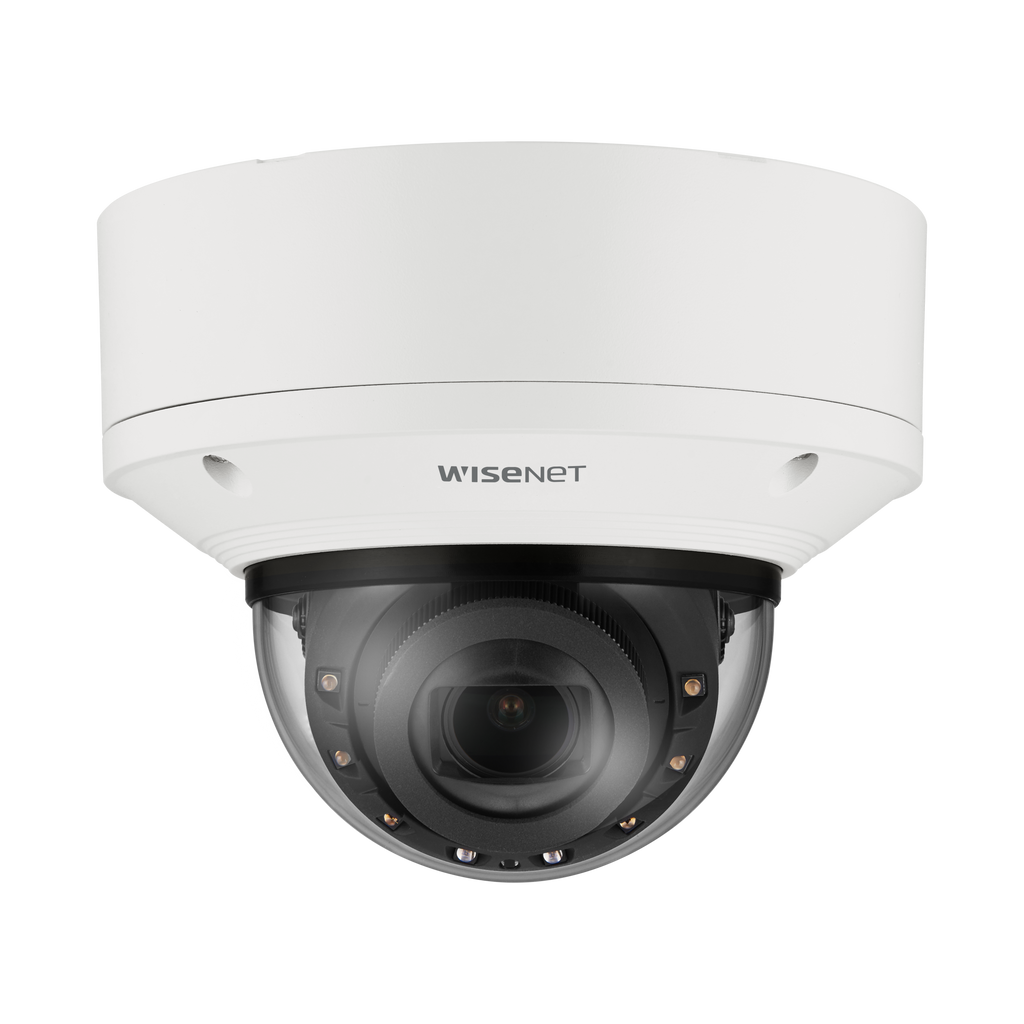

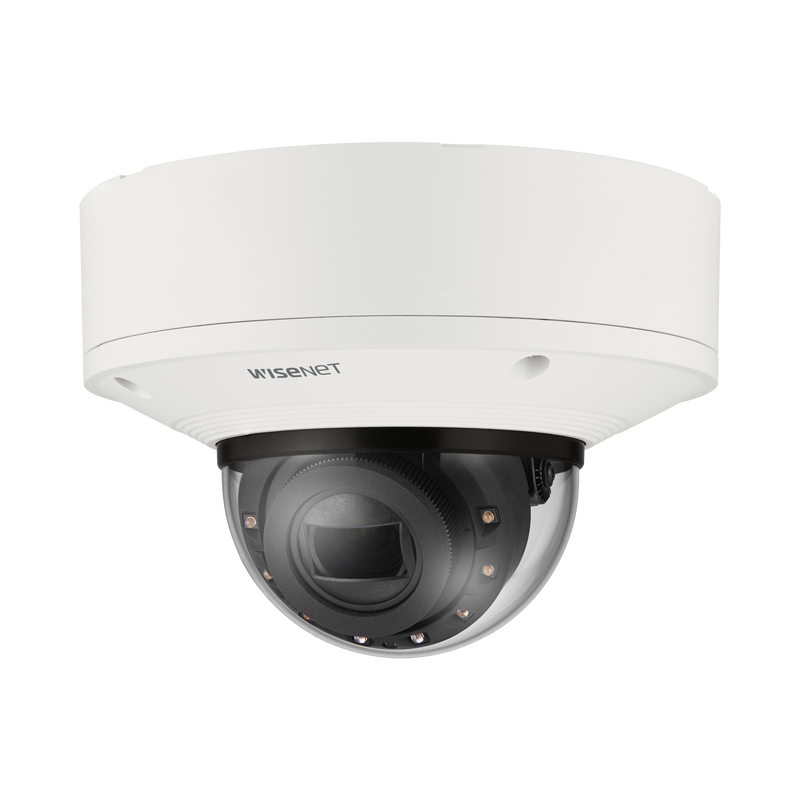

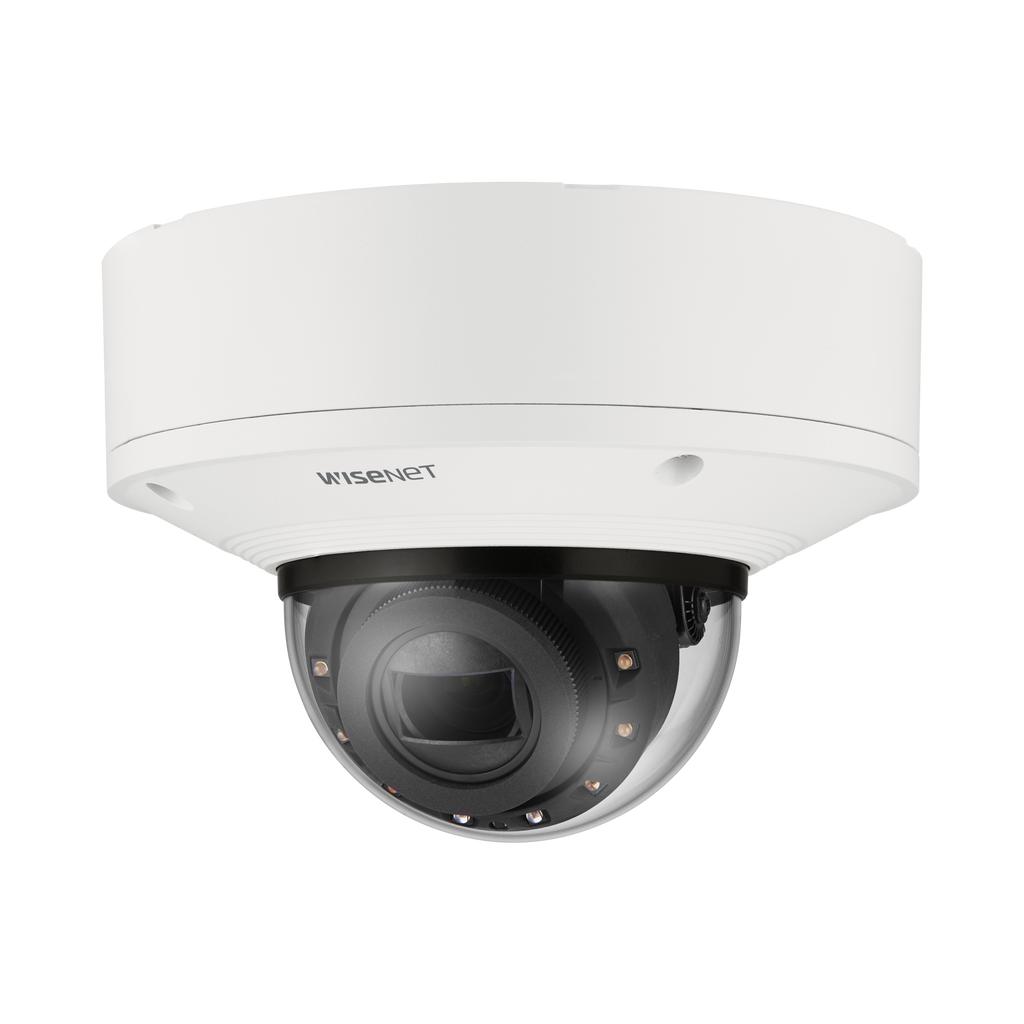

The Hanwha Vision XNV-9083R is a high-performance 4K AI-powered vandal-resistant dome camera engineered for demanding indoor and outdoor surveillance environments. Built with a large 1/1.8" CMOS sensor, advanced AI analytics, and robust environmental protection, this camera delivers exceptional image clarity, powerful object classification, and reliable monitoring day or night.
Equipped with a 4.4–9.3mm motorized varifocal P-iris lens, WiseIR illumination up to 50 meters, and extreme WDR (120 dB), the XNV-9083R ensures clear visibility in challenging lighting conditions. Its onboard NPU enables AI-driven detection of people, faces, vehicles, and license plates, as well as business-intelligence features like people counting, queue management, and heat mapping.
Designed for durability, the camera features IK10+ impact resistance and IP66/IP67/IP6K9K/NEMA4X environmental ratings, making it ideal for critical security installations in airports, campuses, retail centers, transportation hubs, and city surveillance. Dual microSD slots (up to 2TB total), secure firmware, TPM 2.0, and direct cloud connectivity complete a comprehensive, enterprise-grade security solution.
| Category | Specification |
|---|---|
| Imaging | 1/1.8" CMOS; 4K (3840×2160) max resolution; Min illumination: 0.04 Lux (color), 0.004 Lux (B/W), 0 Lux (IR on); 30fps (H.265/H.264) |
| Lens | 4.4–9.3mm motorized varifocal; Optical zoom 2.1x; F1.3 (wide) / F2.15 (tele); Horizontal FoV 113°–47° |
| IR Illumination | WiseIR; 50m (164 ft) range; 850nm wavelength |
| AI Analytics | Object detection (person, face, vehicle, license plate); Virtual line/area; Intrusion; Loitering; Direction; Enter/Exit; Motion; Defocus; Tampering; Fog; Audio detection; Sound classification; Shock detection; Appear/Disappear |
| Business Intelligence | People counting; Queue management; Heatmap; Vehicle counting |
| Operational Features | Day/Night (ICR); WDR 120 dB; WiseNR II; DIS (gyro); Privacy masking (32 zones); Motion detection (8 zones); Electronic shutter 2–1/12,000 sec |
| Audio | Audio in (mic/line selectable); Audio out (line out); G.711/G.726/AAC-LC |
| Networking | RJ-45 (10/100/1000BASE-T); H.265/H.264/MJPEG; Up to 10 streams; ONVIF S/G/T/M; HTTPS, SRTP, TLS, 802.1X; Direct cloud connection |
| Edge Storage | Dual microSD/SDHC/SDXC up to 1TB each (2TB total) |
| Electrical | PoE+ (IEEE 802.3at Class 4); 12VDC; Max 22.5W (PoE) |
| Environmental | Operating: -50°C to +60°C; Humidity 0–100% condensing; IK10+; IP66/IP67/IP6K9K; NEMA 4X |

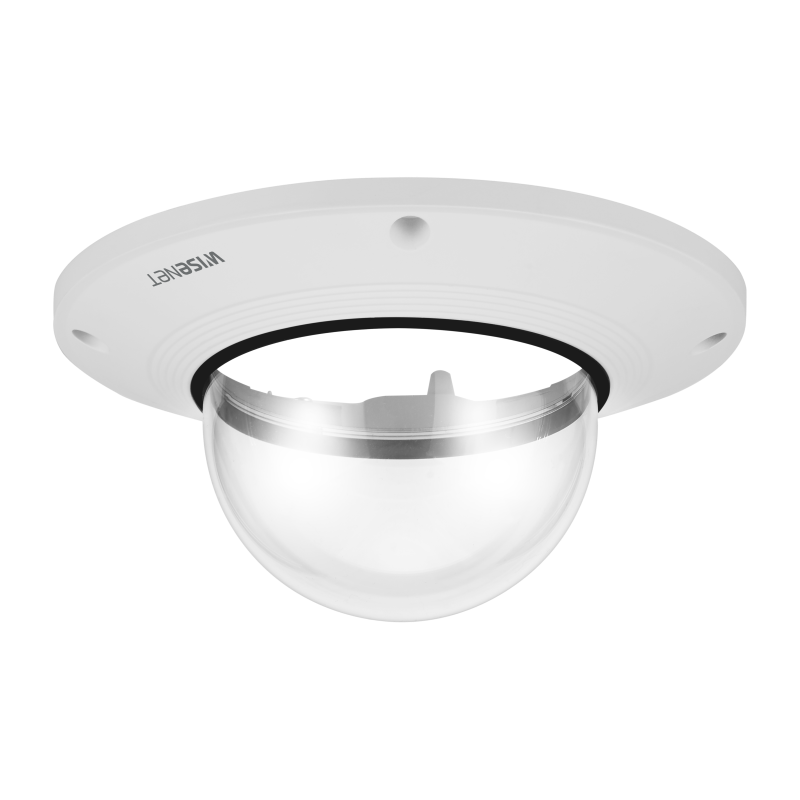

| Mechanical | Aluminum housing; Hard-coated dome; Dimensions: Ø180 × 125mm; Weight: 1.9kg (4.19 lb); Color: White (RAL9003) |
| Certifications | FCC, CE/UKCA, UL62368-1, IEC 60529, IK10+, NEMA 4X |
