Description

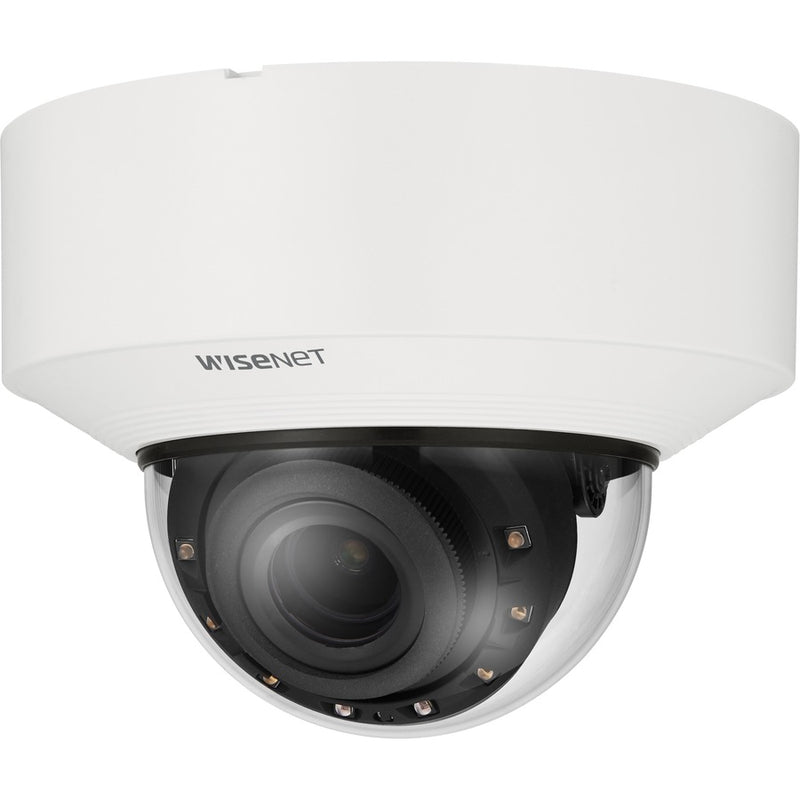

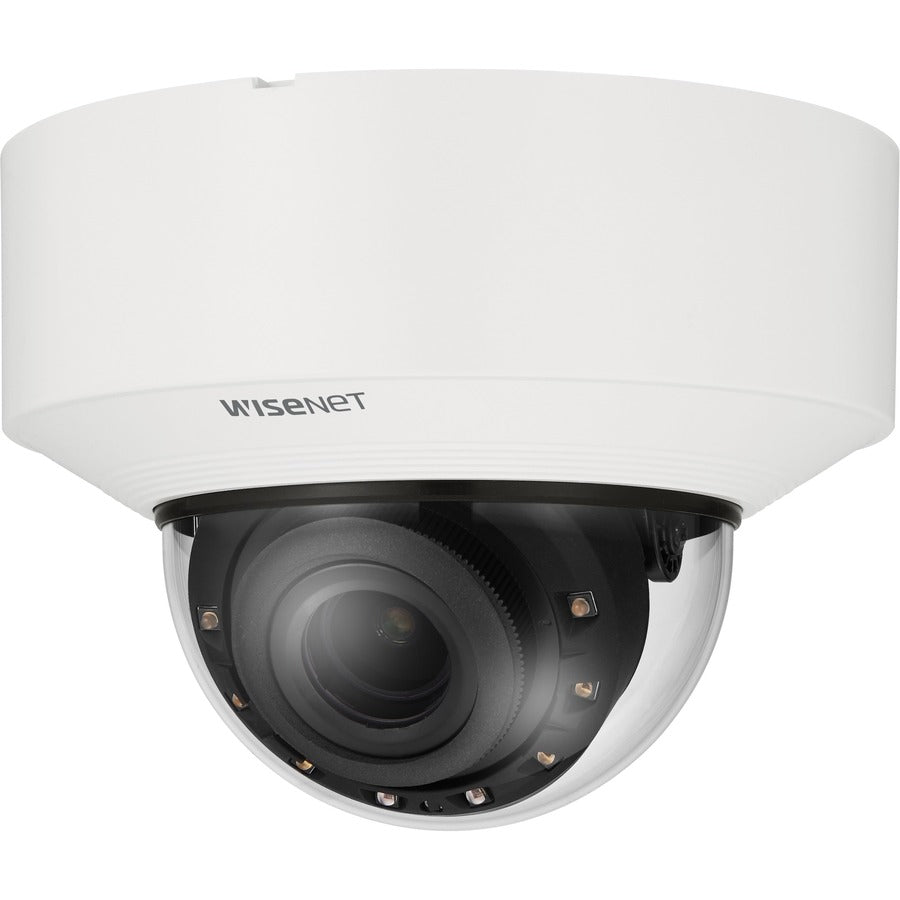

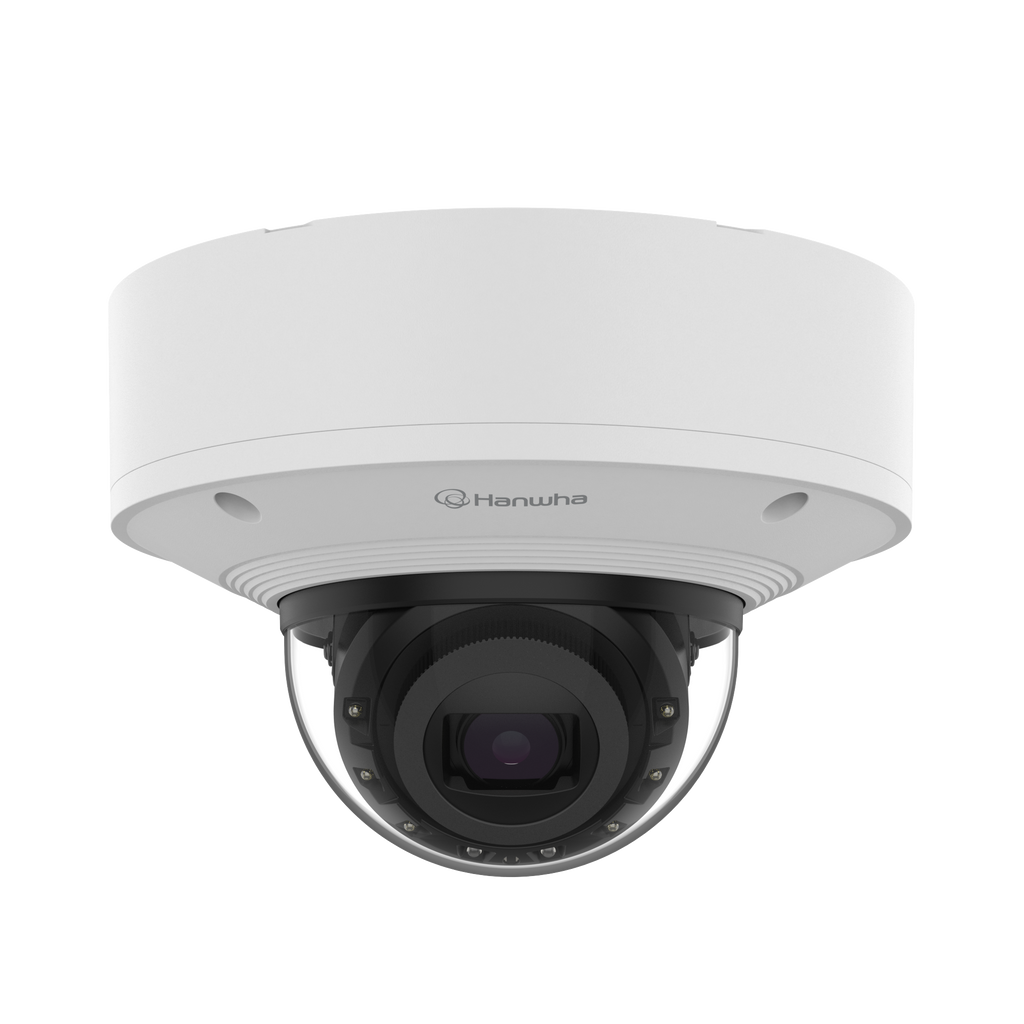

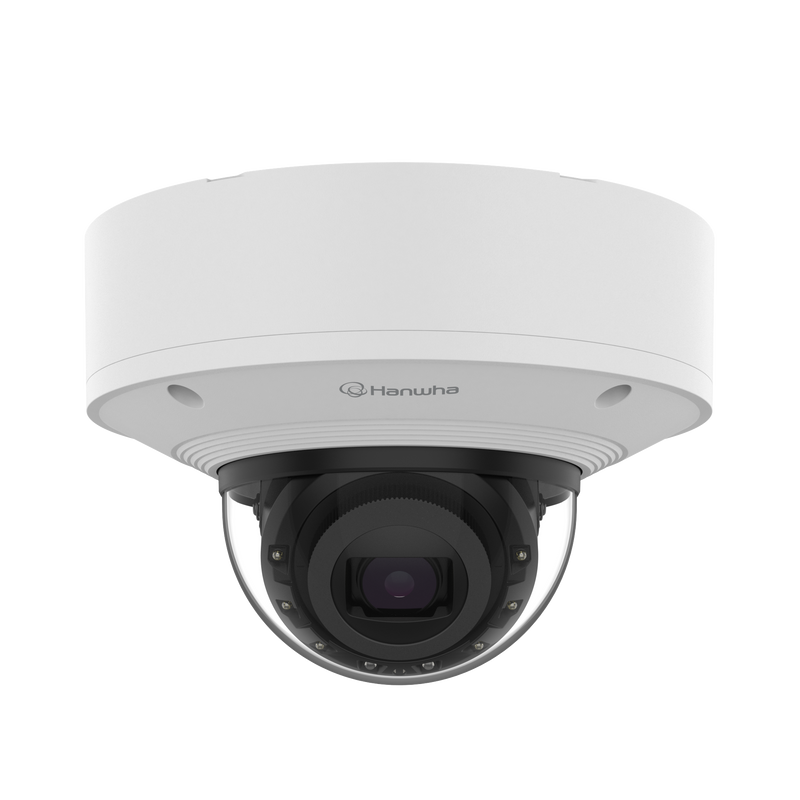

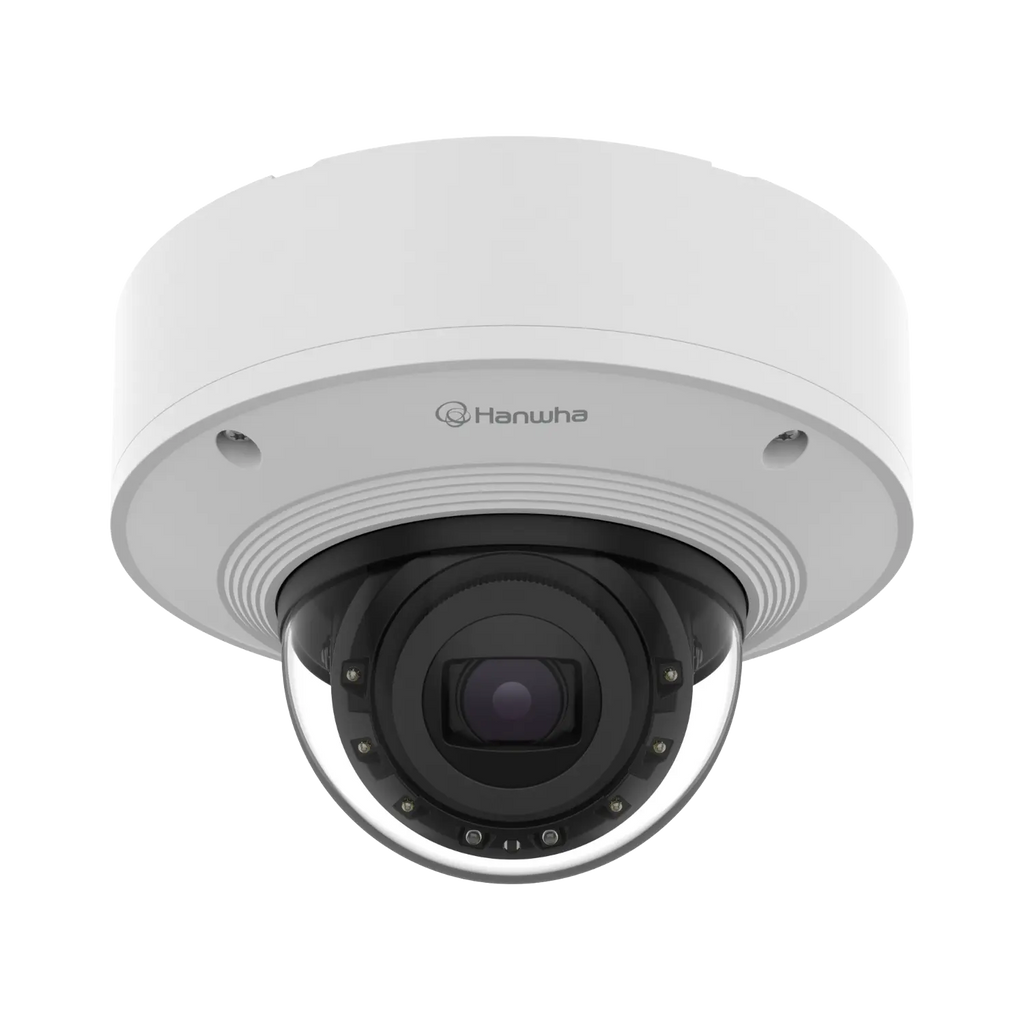

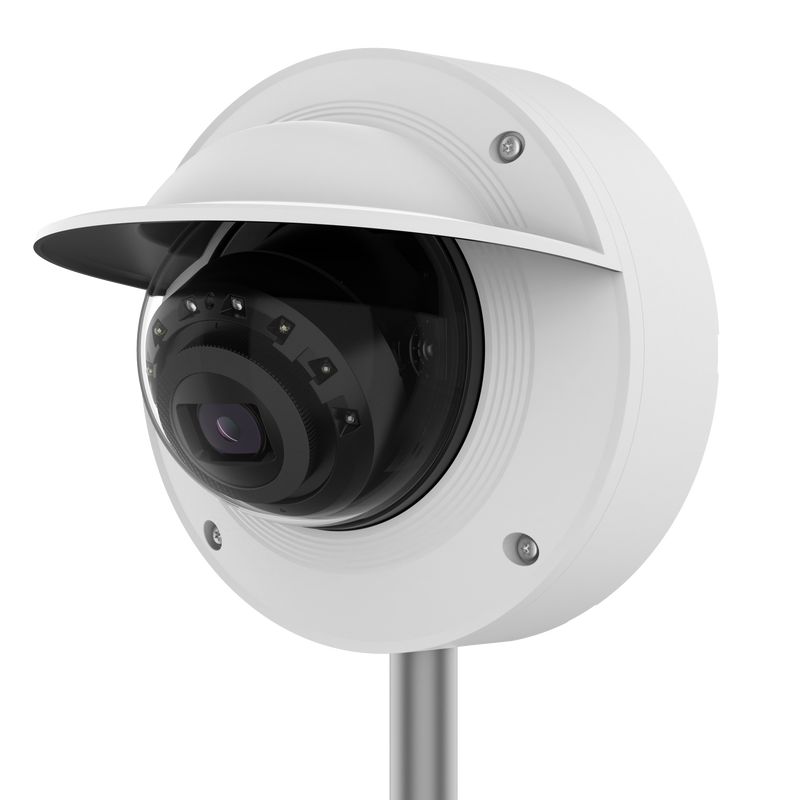

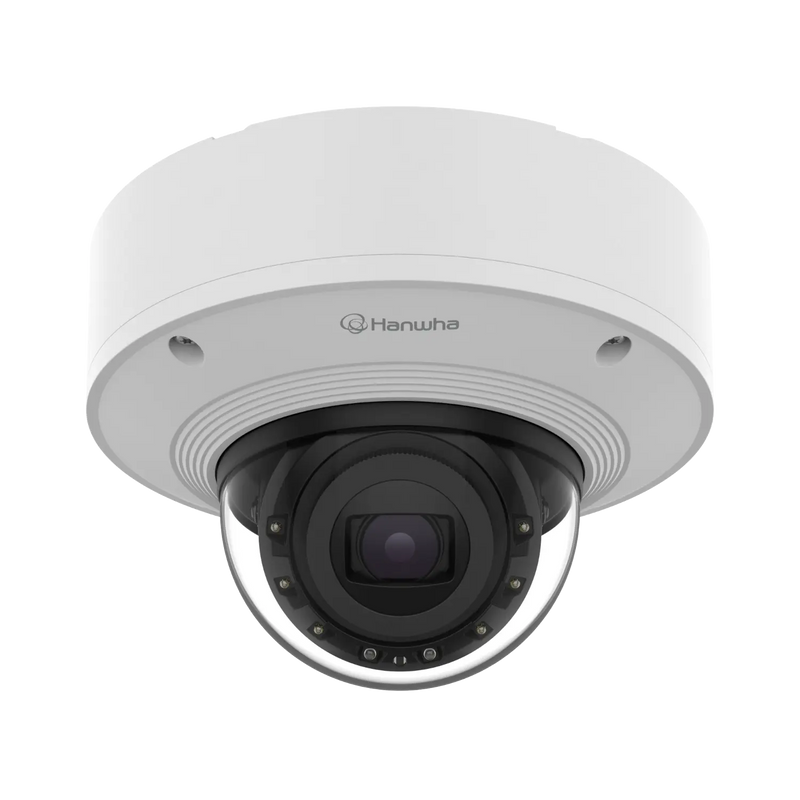

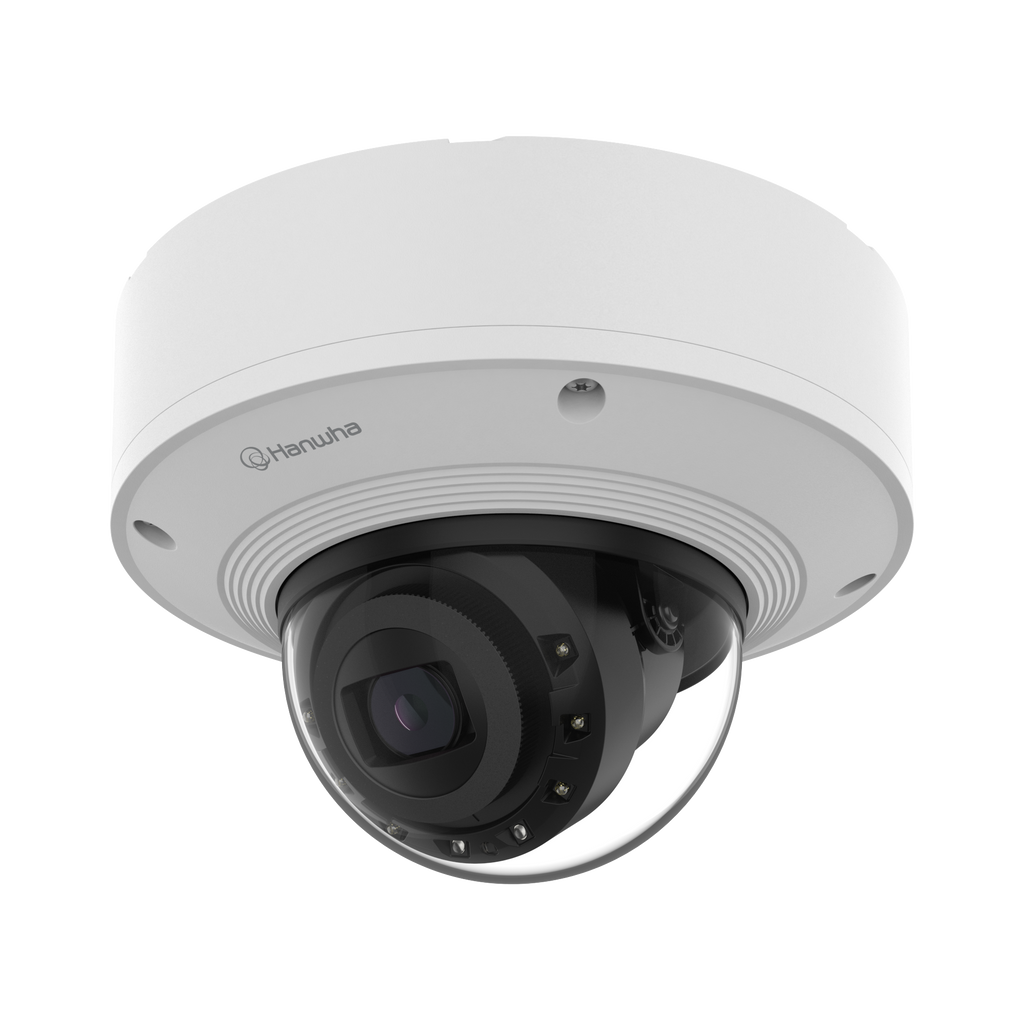

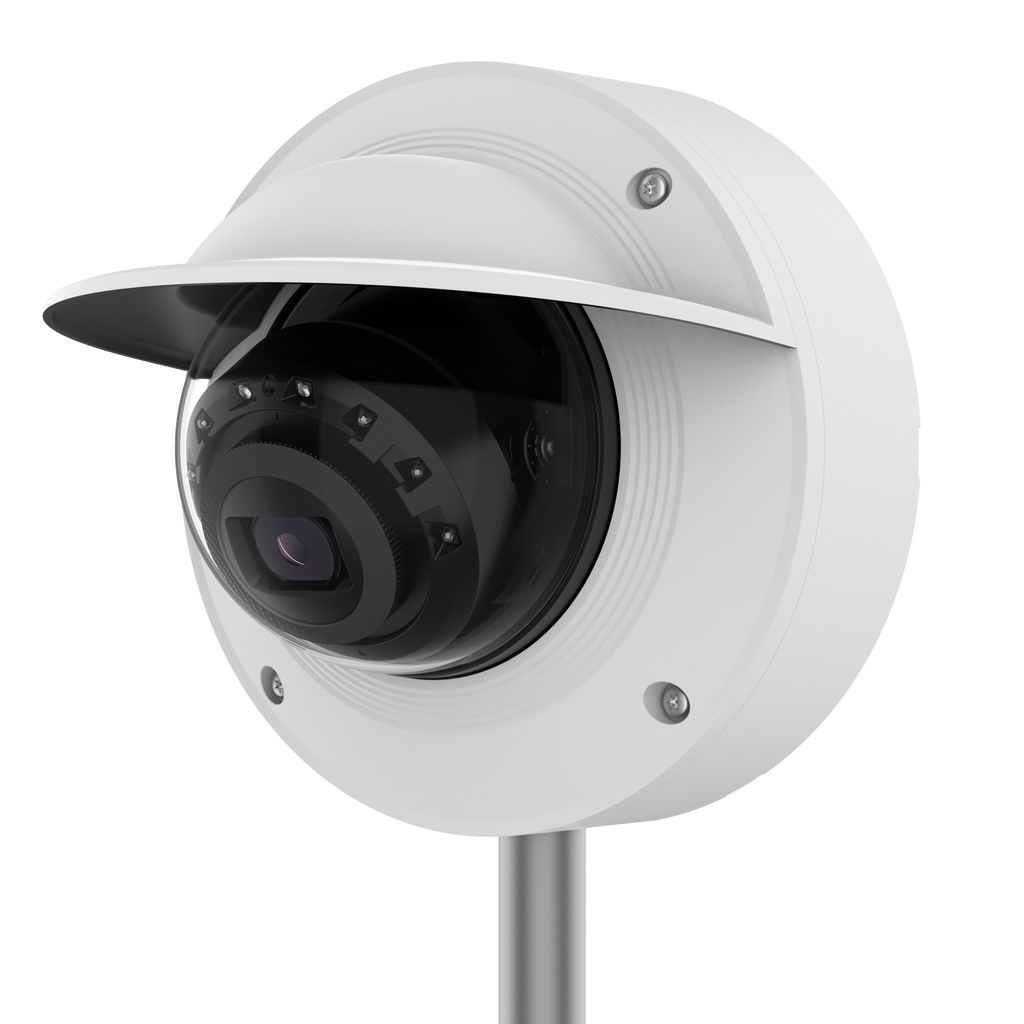

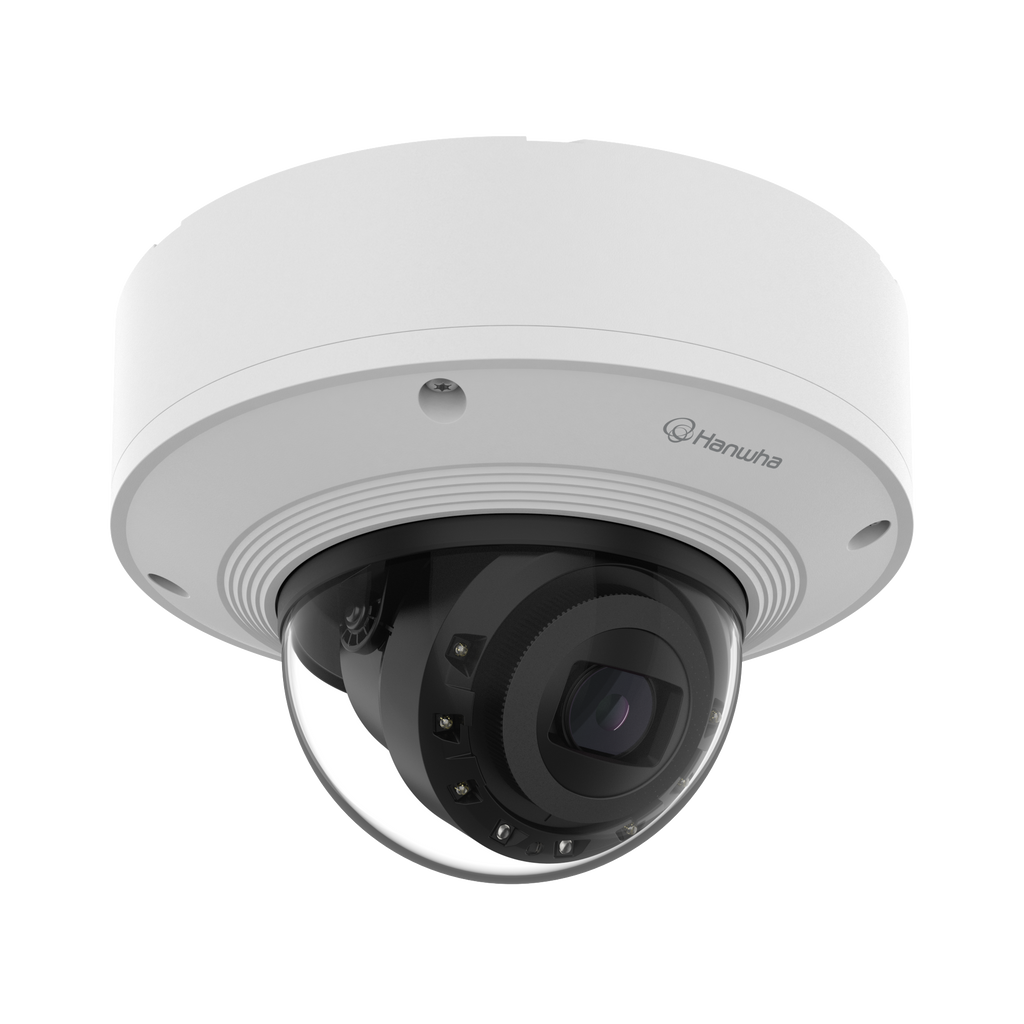

The Hanwha Vision XNV-8083R is a high-performance 6MP AI-powered vandal-resistant dome camera engineered for demanding indoor and outdoor surveillance environments. Built on a 1/1.8" CMOS sensor, it delivers exceptional image clarity with support for up to 30fps and enhanced low-light performance down to 0.04 lux (color) and 0 lux with IR.
Equipped with AI-based object detection, advanced analytics, and WiseIR technology offering a 50m IR range, the XNV-8083R ensures precise detection, reduced false alarms, and reliable monitoring in all conditions. The rugged dome housing meets IP66/IP67/IP6K9K and IK10+ standards, providing superior environmental and impact protection.
With a motorized 4.4–9.3mm varifocal P-iris lens, WDR (120dB), digital stabilization, dual microSD slots (up to 2TB total), and extensive cybersecurity features including secure boot and TPM 2.0, this camera is built for enterprise-grade surveillance deployments in critical locations such as transportation hubs, campuses, retail, and industrial sites.
| Category | Specification |
|---|---|
| Image & Video | |
| Imaging Device | 1/1.8" CMOS |
| Max Resolution | 6MP (3328×1872) |
| Framerate | 30fps (H.265/H.264) |
| Min. Illumination | 0.04 lux (color), 0.004 lux (B/W), 0 lux (IR on) |
| WDR | 120 dB |
| Video Compression | H.265/H.264 (Main/Baseline/High), MJPEG |
| Lens | |
| Focal Length | 4.4–9.3mm motorized varifocal |
| Aperture | F1.3 (Wide), F2.15 (Tele) |
| Field of View | H: 113°–47°, V: 58°–26°, D: 138°–54° |
| Lens Type | P-iris, IR-corrected |
| IR & Low Light | |
| IR Range | WiseIR up to 50m |
| IR Wavelength | 850nm |
| AI & Analytics | |
| Object Types | Person, Face, Vehicle, License Plate |
| Events | Virtual line/area, intrusion, loitering, motion, tampering, fog, shock detection |
| Business Intelligence | People counting, queue management, heatmap, vehicle counting |
| Network | |
| Ethernet | RJ-45 (10/100/1000BASE-T) |
| Protocols | IPv4/IPv6, TCP/IP, RTSP, HTTP/HTTPS, MQTT, SNMP, ONVIF S/G/T/M |
| Streaming | Up to 10 simultaneous profiles |
| Smart Codec | WiseStream III |
| Audio | |
| Audio In/Out | Mic/Line-in selectable, Line-out |
| Audio Codec | G.711, G.726, AAC-LC |
| Storage | |
| Edge Storage | Dual microSD/SDHC/SDXC up to 1TB × 2 (2TB total) |
| Physical & Environmental | |
| Operating Temperature | –50°C to +60°C |
| Ingress Rating | IP66, IP67, IP6K9K |
| Impact Rating | IK10+ |
| Housing Material | Aluminum |
| Dimensions | Ø180 × 125 mm |
| Weight | 1.9 kg (4.19 lb) |
| Electrical | |
| Power Input | PoE+ (IEEE 802.3at Class 4), 12VDC |
| Power Consumption | PoE+: max 22.5W / 12VDC: max 20W |
| Certifications | |
| Safety & EMC | UL 62368-1, FCC, CE/UKCA, NEMA 4X |
