Description
The Newline TRUTOUCH X5 55" Unified Collaboration Display is an all-in-one interactive collaboration solution designed for modern boardrooms, huddle spaces, and conference environments. With a Full HD 55-inch touchscreen and up to 10 points of touch, the X5 enables teams to collaborate naturally using fingers or stylus—no proprietary pens required.
Built for unified communications, the display integrates dual 1080p wide-angle cameras, an echo-canceling microphone array, and front-facing speakers to deliver clear video and audio for hybrid meetings. Its Android-based system allows secure network access while remaining safe for guest users, making collaboration seamless across devices and platforms.
Featuring TRUFLAT InGlass touch technology, the X5 supports object recognition for pen, marker, and eraser input, creating a smooth and intuitive whiteboarding experience. The sleek, professional design combines performance and elegance, while wireless presentation support enables effortless screen sharing and real-time collaboration. An on-board computer is not included, allowing flexible deployment with external or OPS-based PCs as needed.
| Specification | Details |
|---|---|
| Model | EPR9A88X55-000 |
| Product Type | Unified Collaboration Display |
| Screen Size | 55 inches |
| Active Screen Size | 55" |
| Resolution | 1920 × 1080 (Full HD) |
| Aspect Ratio | 16:9 |
| Brightness | 370 cd/m² |
| Contrast Ratio | 4000:1 |
| Response Time | 8 ms |
| Display Lifetime | 30,000 hours |
| Touch Technology | InGlass (TRUFLAT) |
| Touch Points | Up to 10 (Windows) |
| Writing Input | Finger or Stylus |
| Touch Accuracy | 1 mm |

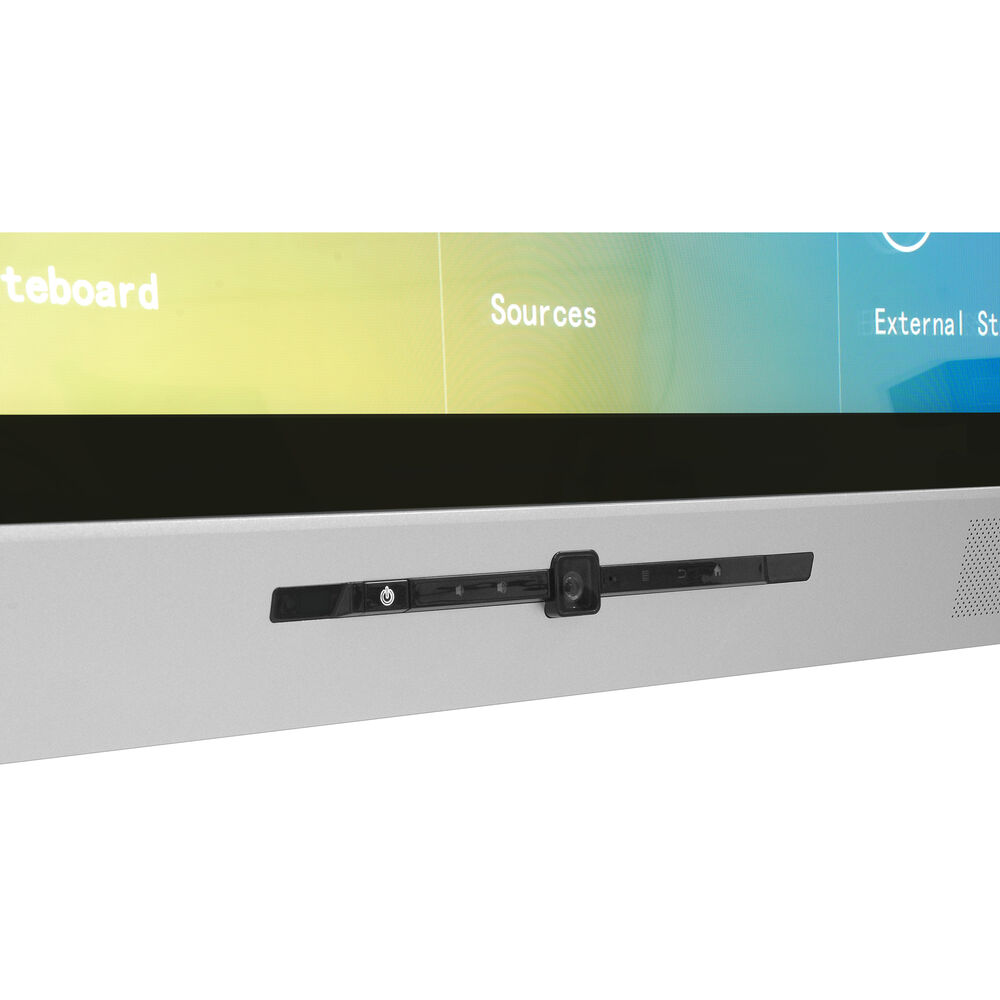

| Cameras | Dual 1080p Wide-Angle (Top & Bottom) |
| Camera Resolution | 1920 × 1080 @ 30 fps |
| Viewing Angle | 86° |
| Microphone | Integrated Array with Echo Cancellation |
| Microphone Pickup Range | Up to 8 meters |
| Speakers | 2 × 10 W, Front-Facing |
| Operating System | Android (Embedded) |
| CPU | ARM Cortex-A9 Quad-Core 1.5 GHz |
| Memory | 2 GB RAM / 8 GB ROM |
| Wireless Presentation | Supported |

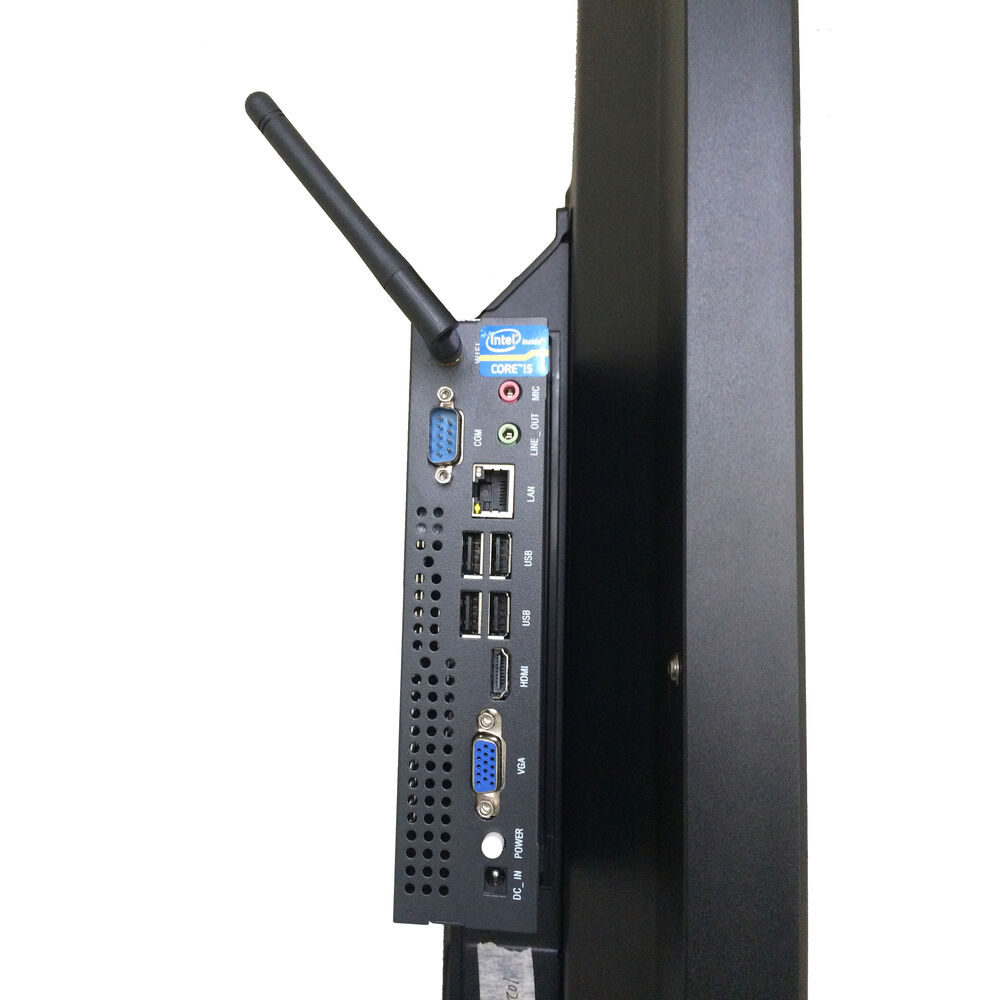

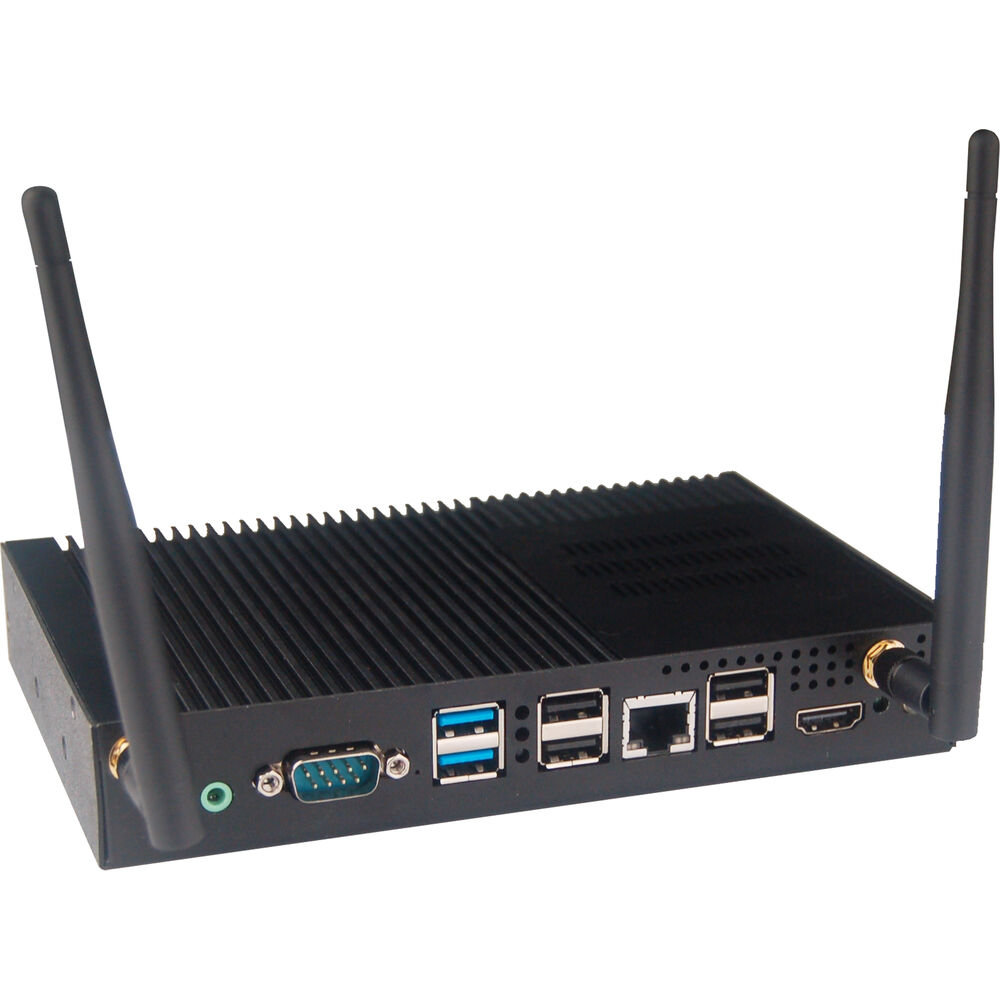

| OPS Slot | Supported (Optional PC) |

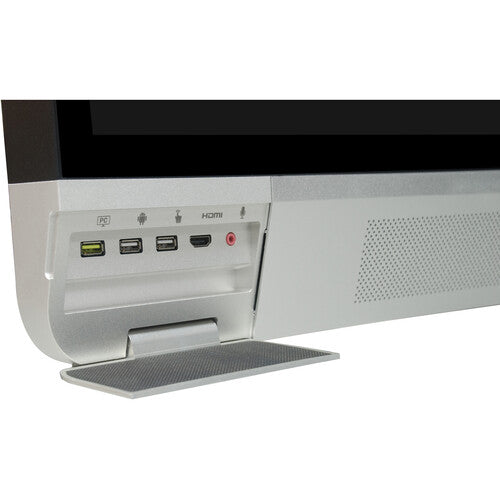

| Connectivity | HDMI, VGA, USB, USB-C, RJ45, RS-232, Audio In/Out |
| Power Consumption | <180 W (Max), ≤0.5 W Standby |
| Mounting Options | Wall Mount or Floor Stand |
| Dimensions (W × H × D) | 1320 × 886 × 87 mm |
| Net Weight | 36 kg |
| Warranty | 3-Year Limited Warranty |
