Description

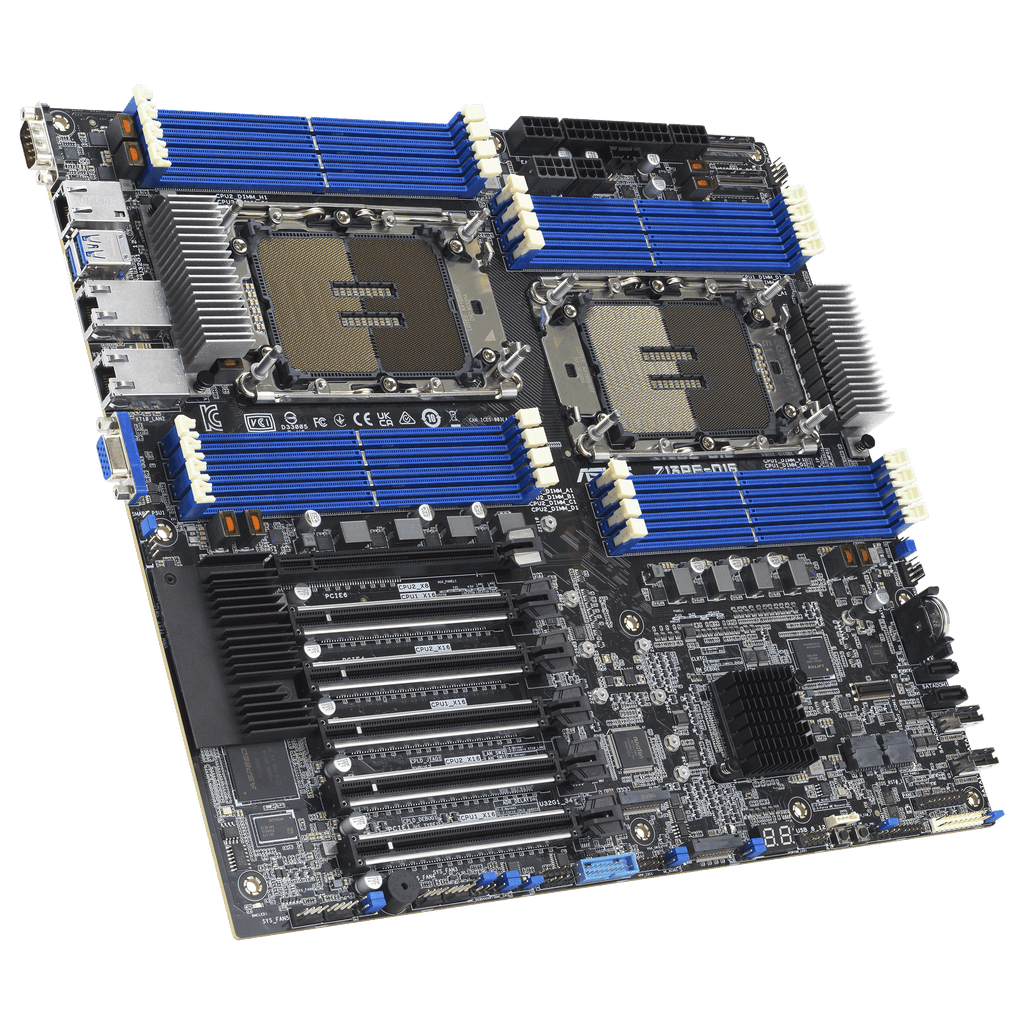

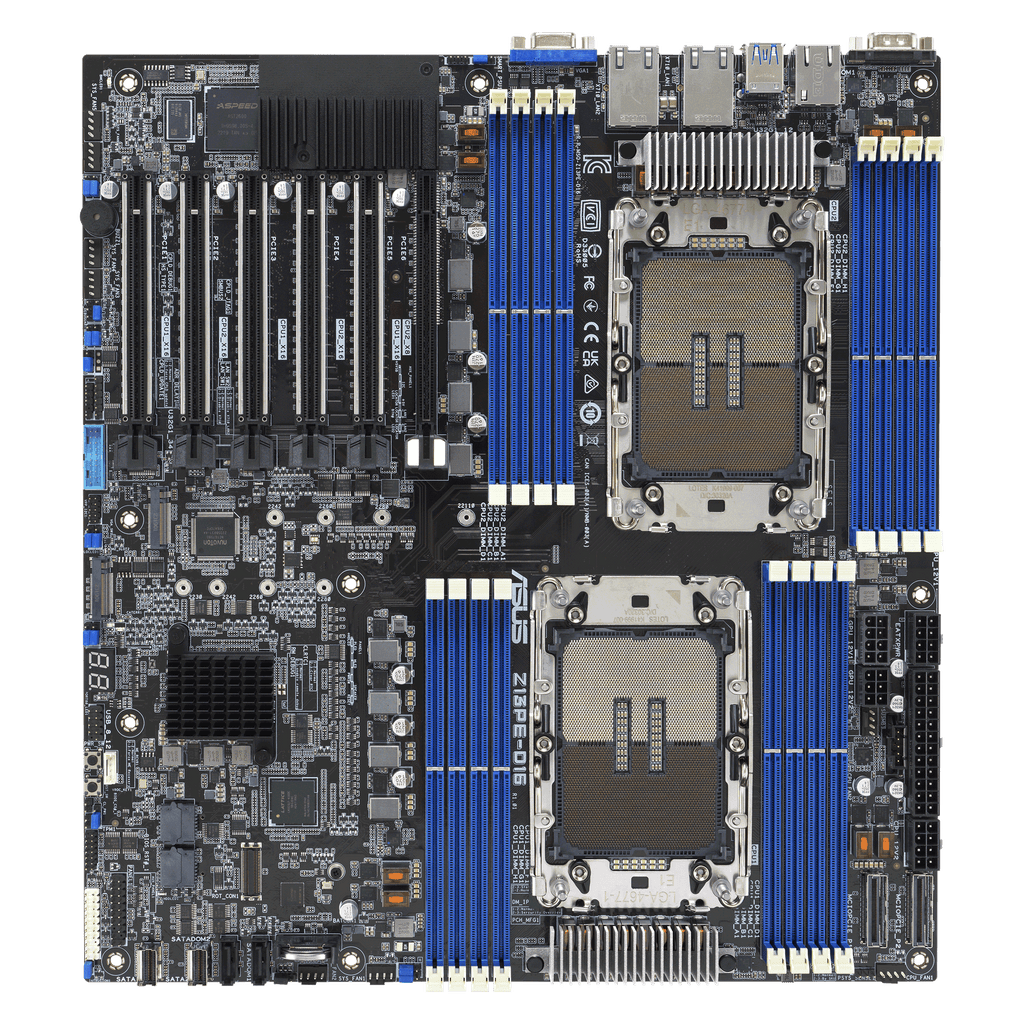

The ASUS Z13PE-D16 is a high-performance dual-socket E-ATX server motherboard built on the Intel® Eagle Stream platform, engineered for demanding data analytics, HPC, and cloud computing environments. It supports dual 5th Gen Intel® Xeon® Scalable processors, DDR5 5600/4800 RDIMM memory, and PCIe 5.0 for next-generation bandwidth and performance.
Designed for flexibility and scalability, the Z13PE-D16 features six PCIe Gen5 slots, dual M.2 slots, dual 10GbE LAN ports, and multiple storage options including MCIO, Slimline SAS, and SATADOM connectors. Integrated ASMB11-iKVM and ASUS Control Center enable robust remote management and monitoring, making it ideal for enterprise data centers and AI computing systems.
| Category | Specification |
|---|---|
| Model | ASUS Z13PE-D16 |
| Form Factor | E-ATX (12" x 13") |
| Platform | Intel® Eagle Stream |
| Processor Support | Dual Socket LGA4677 |
| Supported CPUs | 4th & 5th Gen Intel® Xeon® Scalable Processors |
| Chipset | Intel® C741 |
| Memory Slots | 16 (8-channel per CPU) |
| Memory Type | DDR5 5600/4800 RDIMM / 3DS RDIMM |
| Max Capacity | Up to 4096GB |
| Supported Sizes | 16GB, 32GB, 64GB RDIMM / 128GB, 256GB RDIMM-3DS |
| Expansion Slots | 5 × PCIe Gen5 x16 (x16 link), 1 × PCIe Gen5 x16 (x8 link) |
| Storage Interface | 2 × M.2 2280/22110, 2 × MCIO, 2 × Slimline SAS, 2 × SATA |
| SATA Controller | Intel® C741 PCH, 10 × SATA 6Gb/s ports |
| Network | 2 × 10GbE LAN (Intel® X710-AT2), 1 × Management LAN |
| Graphics | Aspeed AST2600, 64MB VRAM |

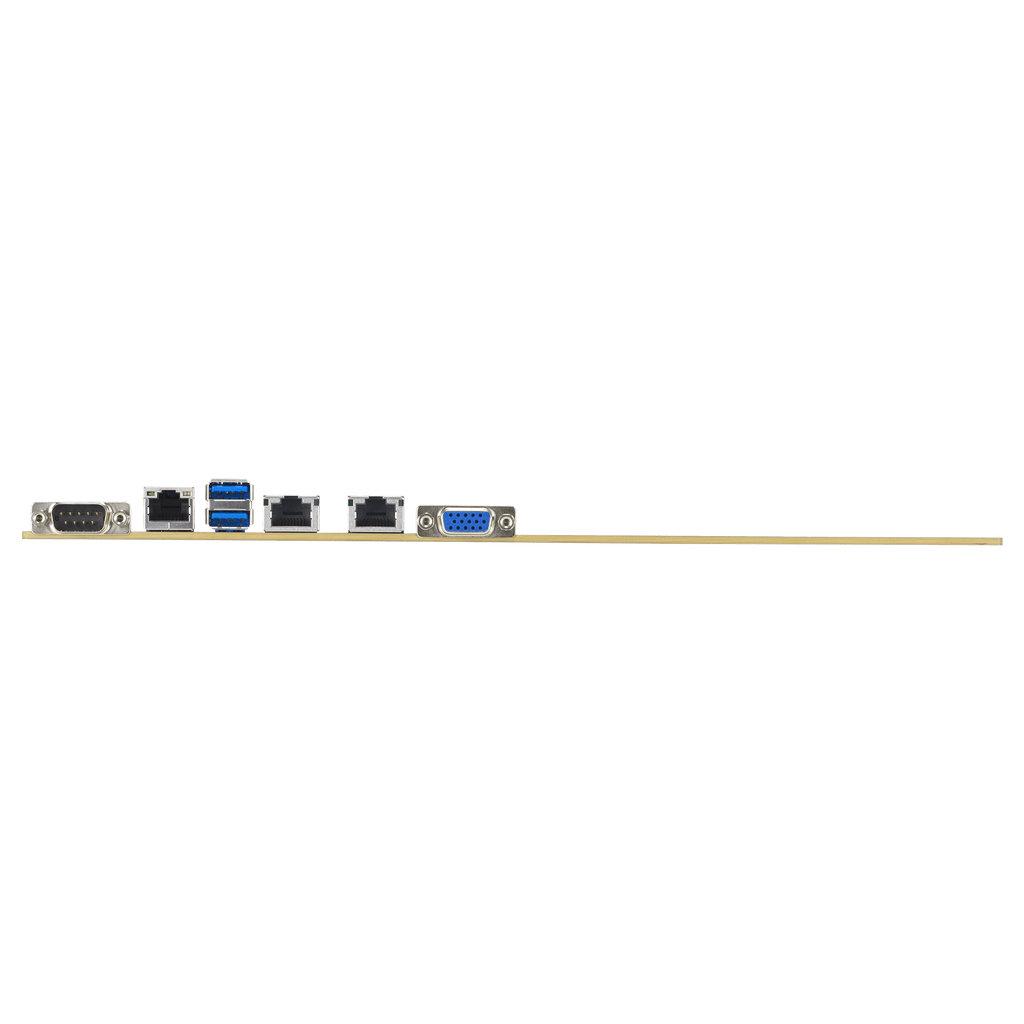

| Rear I/O Ports | 2 × USB 3.2 Gen2, 1 × VGA, 1 × COM, 2 × 10GbE LAN, 1 × Mgmt LAN |
| Internal I/O | 1 × TPM header, 1 × 24-pin SSI + 2 × 8-pin 12V power, 2 × USB3.2 headers, 1 × USB2.0 header, 8 × fan headers, 1 × SMBus, 1 × chassis intruder |
| Management | ASUS Control Center (in-band), ASMB11-iKVM (BMC AST2600) |
| Environmental | Operating: 10°C – 35°C; Storage: -40°C – 70°C; Humidity: 20–90% (non-condensing) |
| Target Applications | Data Analytics, HPC, Cloud Computing |
| Key Features | Dual Xeon support, PCIe 5.0, DDR5, high expandability, 10GbE LAN, enterprise-grade management |
