Description

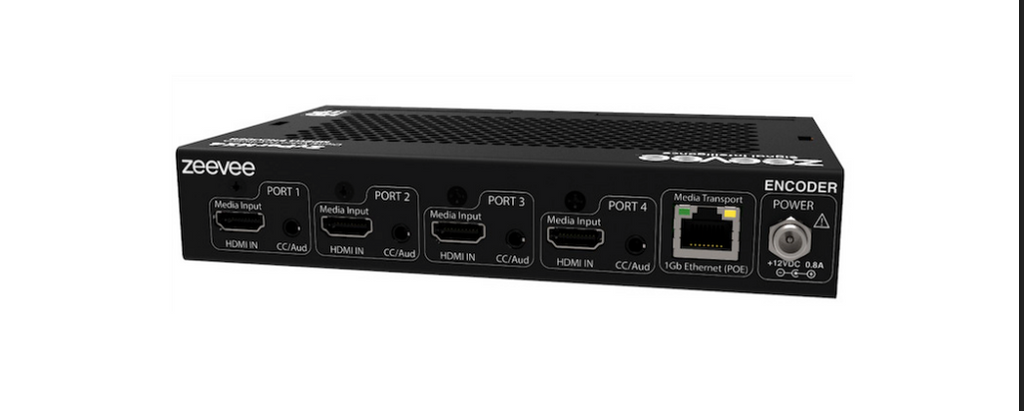

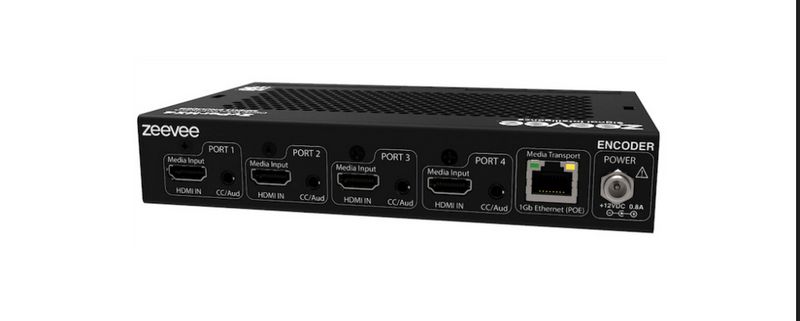

The ZeeVee ZyPerMX4 ZMXENC4-HLS is a quad-channel HDMI encoder that delivers broadcast-quality H.264/MPEG-4 AVC video streaming over IP networks. This model supports up to 100 HLS streams per port, making it ideal for large-scale content distribution across corporate, educational, hospitality, or digital signage applications.
Each of the four HDMI inputs supports full HD resolutions up to 1920x1200 @ 60Hz. The encoder outputs via a single Gigabit Ethernet port using industry-standard protocols including RTP, UDP, RTMP, and HLS. It offers selectable video bitrates from 1 to 10 Mbps and supports simultaneous high- and low-bitrate HLS streams.
Audio support includes AC3, MP2, and AAC formats, with input via HDMI or analog mini-jack. The encoder is managed through the intuitive Maestro Web UI, allowing easy configuration of network settings, stream destinations, audio formats, HLS encryption, firmware updates, and more. Compatible with third-party devices such as VLC, IP STBs, and Wowza servers, it also supports PoE for flexible deployment.
Key Features:
-
4 HDMI 1.4 inputs (1080p60 max)
-
H.264 video compression, up to 100 HLS sessions per port
-
RTP/UDP multicast & unicast, HLS & RTMP support
-
Dual-stream HLS (high and low bitrate)
-
Web-based Maestro UI for full configuration
-
Audio in AC3, MP2, AAC formats
-
Compact, fanless design with PoE support
-
Ideal for digital signage, corporate, hospitality, and broadcast
