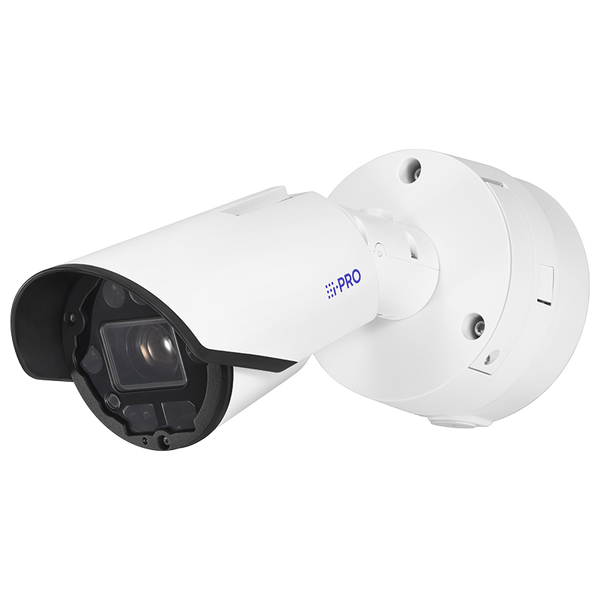

The i-PRO WV-X15302-Z1L is a 2MP AI-powered outdoor IR bullet camera designed for precise license plate recognition (LPR) and advanced video analytics. Equipped with a 10x motorized optical zoom lens, built-in IR LED up to 250m (820ft), and an embedded long-pass filter, this camera delivers sharp, high-contrast imaging even in low-light conditions or challenging weather.

With support for up to 9 Edge AI analytic applications, the WV-X15302-Z1L enables smart detection features including AI People, Vehicle, Face, and Scene Change Detection, ensuring high reliability in perimeter security and traffic monitoring. Built for durability, it meets IP66/IP67, IK10, and NEMA 4X standards and operates in extreme temperatures from -40°C to +60°C.

The camera features FIPS 140-2 Level 3 certified SecureElement (EdgeLock® SE050F) for robust cybersecurity, ensuring compliance with NDAA and protecting sensitive data. Designed for seamless integration, it supports ONVIF profiles G, M, S, and T, and offers flexible connectivity with PoE++, PoE+, or DC12V power options.

Ideal for highways, parking lots, and city surveillance, the WV-X15302-Z1L delivers high-performance AI analytics, superb image clarity, and enterprise-grade security in one compact unit.

Category	Specification
Image Sensor	1/2.8 type CMOS image sensor
Effective Pixels	2 Megapixels (1920 x 1080)
Minimum Illumination	Color: 0.011 lx (F1.6, AGC:11); B/W: 0 lx (IR On)
IR LED Distance	Up to 250 m (820 ft) with PoE++
Lens Type	Motorized 10x optical zoom (4.7–47 mm, F1.6–F3.0)
Digital Zoom	Up to 160x
Viewing Angle (16:9)	H: 6.6°–62°, V: 3.7°–37°
Dynamic Range	Max. 144 dB (Super Dynamic: On)
Image Stabilizer	Built-in gyro sensor (30/25 fps mode)
Analytics	AI Motion Detection, Privacy Guard, Face/People/Vehicle/Occupancy Detection, LPR (Vaxtor)
Max. AI Apps	Up to 9 Edge AI analytic applications
License Plate Recognition	Up to 130 km/h (81 mph), 20–55 m detection range
Network Interface	10BASE-T / 100BASE-TX, RJ45 connector
Video Compression	H.265 / H.264 / JPEG
Resolution Options	1920×1080, 1280×720, 640×360, 320×180
Audio Compression	G.711, G.726, AAC-LC
Power Supply	DC12V / PoE+ (IEEE802.3at) / PoE++ (IEEE802.3bt)
Power Consumption	DC12V: 15.6W / PoE+: 24.8W / PoE++: 32.4W
Operating Temperature	-40°C to +60°C (PoE++)
Ingress Protection	IP66 / IP67 / NEMA 4X
Impact Resistance	IK10
Certifications	UL, CE, FCC, NDAA Compliant
Security Features	FIPS 140-2 Level 3, HTTPS, 802.1X, Signed Firmware
Dimensions	Ø168 × 403 mm (up to 456 mm with sunshade)
Weight	Approx. 3.6 kg (8.0 lbs)
Body Material	Aluminum die-cast, i-PRO white finish
Optional Accessories	WV-QPL500-W, WV-QCN500-W, WV-QCL101-W, WV-QCL100-W, WV-Q105A, WV-SDB series SD cards, WV-QCA501A, WV-PM500, WJ-PU201
