Description

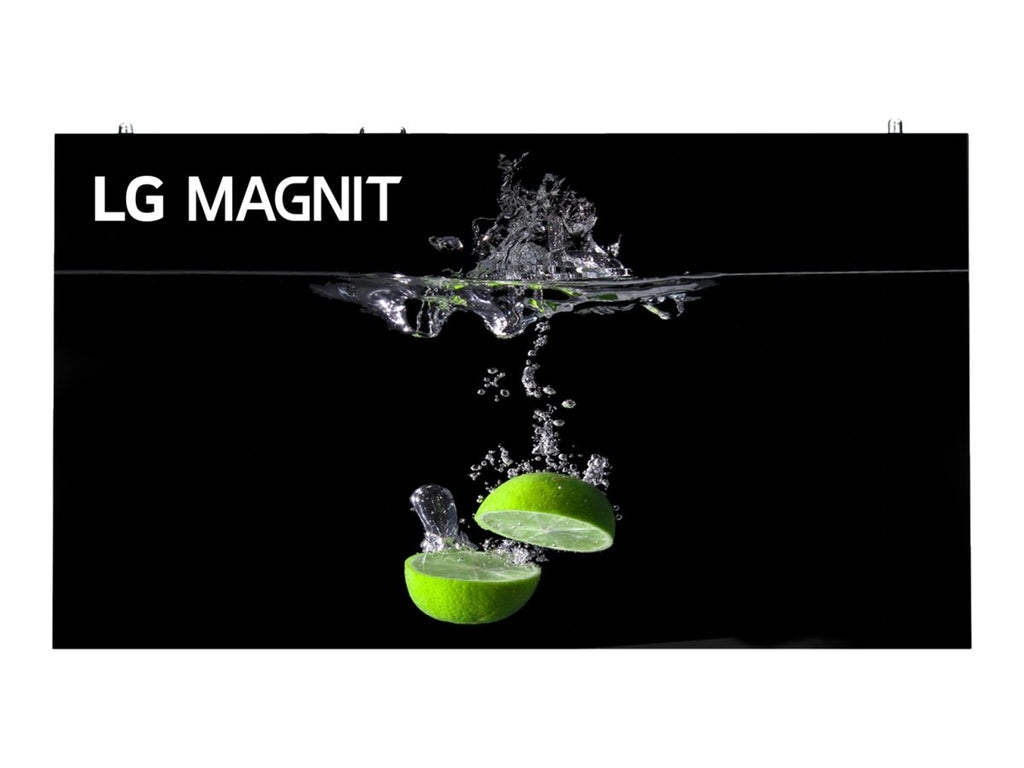

The LG LSAB009-M1 is a main cabinet in LG's MAGNIT MicroLED signage platform, designed for high-end, fixed-installation video wall applications. Built with Chip-on-Board (COB) MicroLED technology, the cabinet features a 0.94 mm pixel pitch within a compact 600 × 337.5 × 44.9 mm chassis.
The LSAB009-M1 delivers up to 1,200 nits peak brightness and 600 nits typical brightness, together with a rated 100,000:1 contrast ratio at 10 lux. Image processing is handled by LG's Alpha 7 Intelligent Processor, which analyzes and optimizes source content in real time. Support for HDR10 and HDR10 Pro further enhances brightness, contrast, and color reproduction for detailed, high-impact imagery.
MAGNIT's cable-less signal transmission and power docking design allows adjacent cabinets to connect without separate signal and power cabling between modules. This helps simplify installation, reduce rear-wall complexity, and create a cleaner serviceable structure.
For professional AV integration, the LSAB009-M1 supports Crestron Connected and works with LG's webOS 4.1 platform and SuperSign CMS for content management. Optional LG ConnectedCare provides remote monitoring and diagnostic capabilities.
The cabinet is TAA compliant and rated IP50 on the front and IP20 on the rear for dust protection. Its color consistency and wide viewing performance have also received TÜV Rheinland certification.
As part of LG's modular MAGNIT architecture, the LSAB009-M1 can be combined with additional Main and Secondary cabinets to create large-format MicroLED video walls in a wide range of sizes and configurations. The system is designed for use with the LG CSAB-009 controller.
