Description

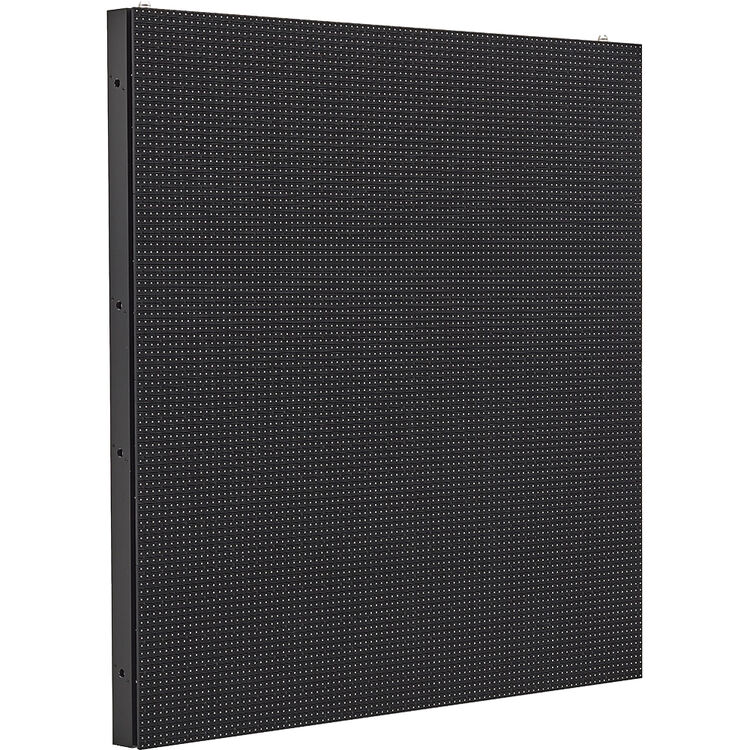

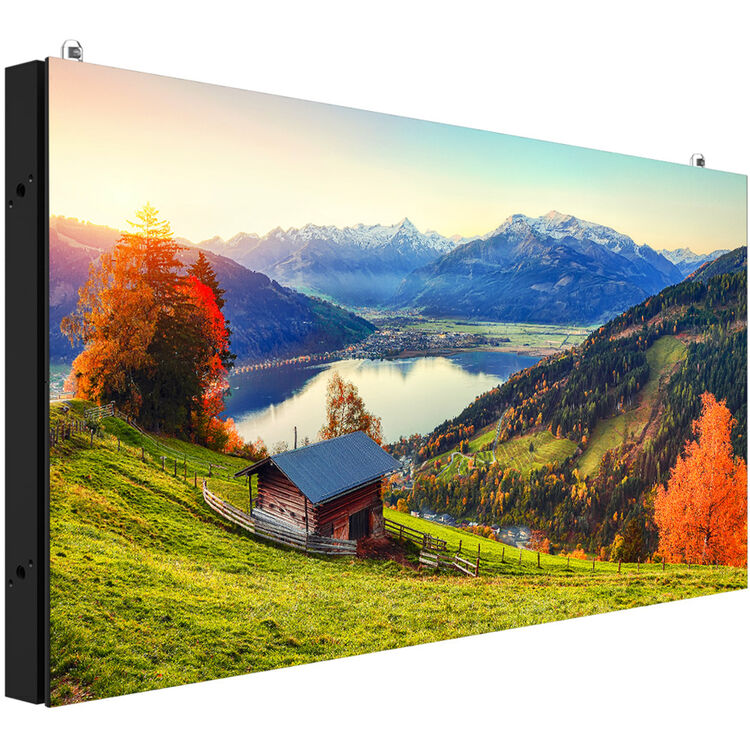

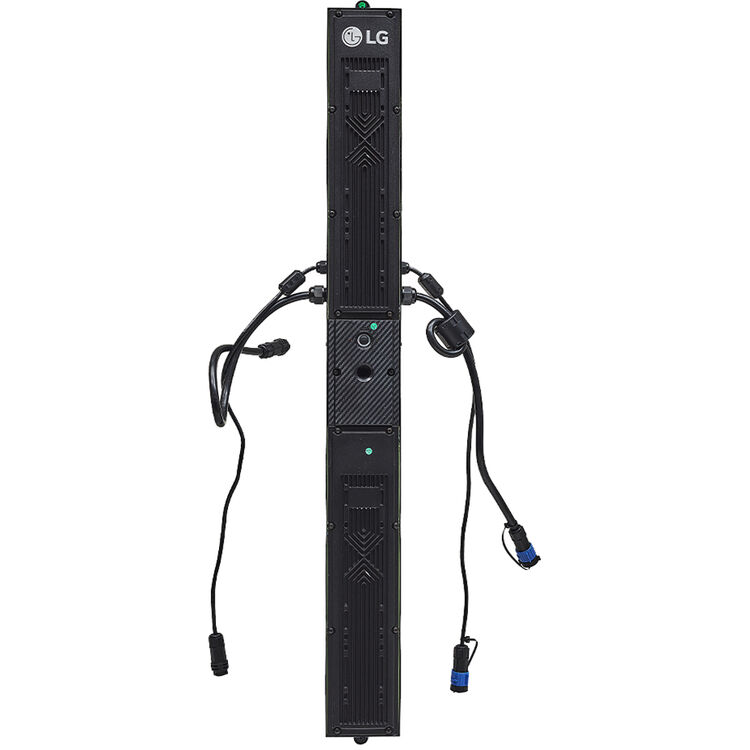

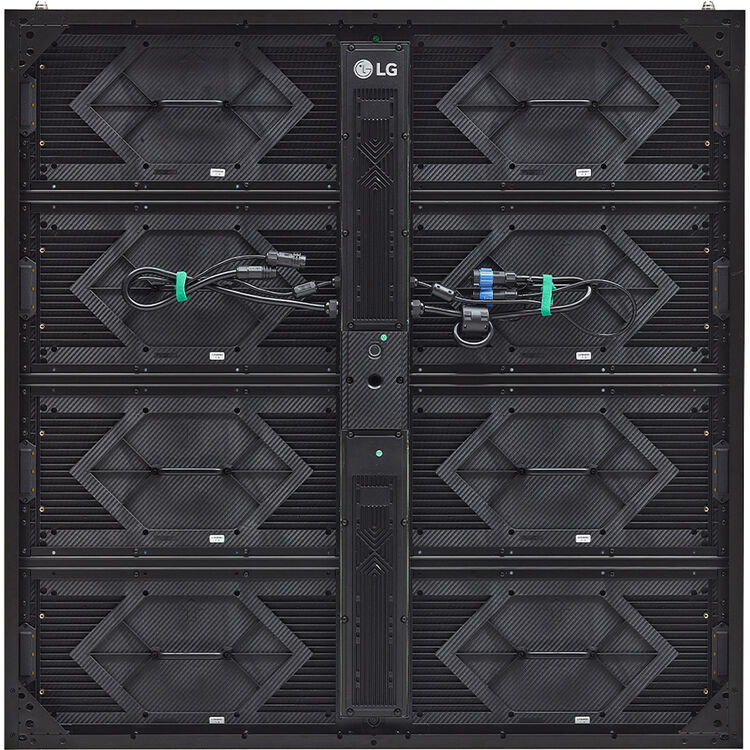

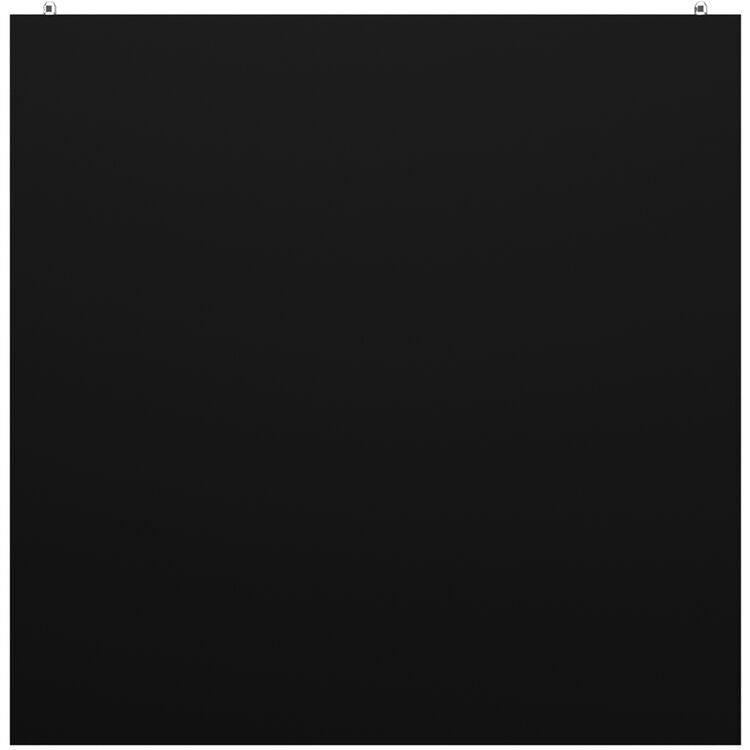

The LG GSCD100-GN2 is an outdoor LED signage cabinet from the GSCD Ultra Light Series, with a 10.41 mm pixel pitch and single SMD pixels. Each 1,000 x 500 mm cabinet holds four 500 x 250 mm modules (2 x 2) for a cabinet resolution of 96 x 48. Its lightweight extruded aluminum cabinet weighs 23.4 lbs (10.6 kg), which reduces the load on the structure it is mounted to. It delivers up to 5,000 nits of brightness after calibration, a 10,000:1 contrast ratio, 16-bit processing with HDR10 and HDR10 Pro, and a 3,840 Hz refresh rate. The cabinet is IP65 rated on both front and rear, operates from -30°C to +50°C, and can be ordered for either front or rear service access. The power and control units can be removed for easier maintenance, and a 90° corner cut option is available.
Technical Specifications:
| Specification | Details |
|---|---|
| Brand | LG |
| MPN | GSCD100-GN2 |
| Series | GSCD Ultra Light Series (Outdoor) |
| Pixel Configuration | Single SMD |
| Pixel Pitch | 10.41 mm |
| Module Resolution (W x H) | 48 x 24 |

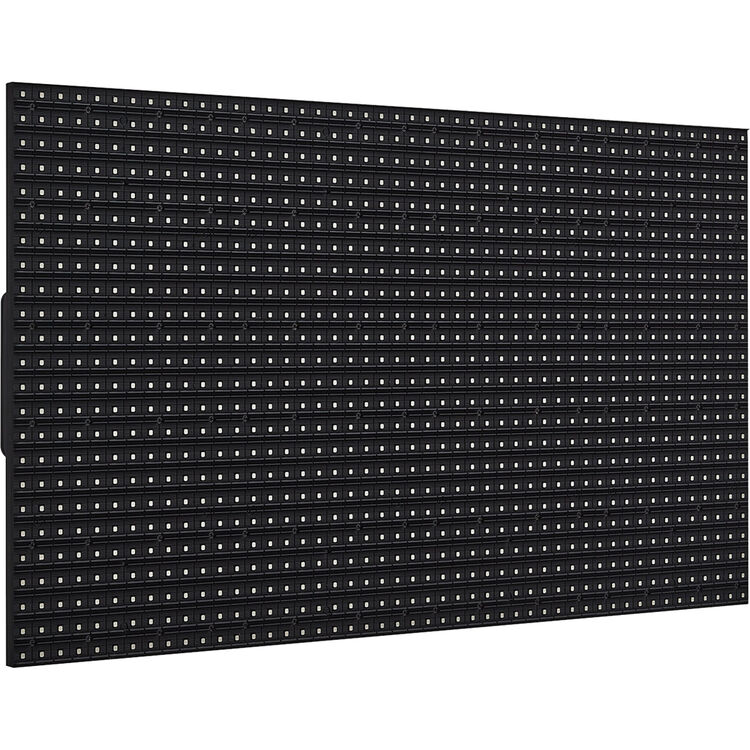

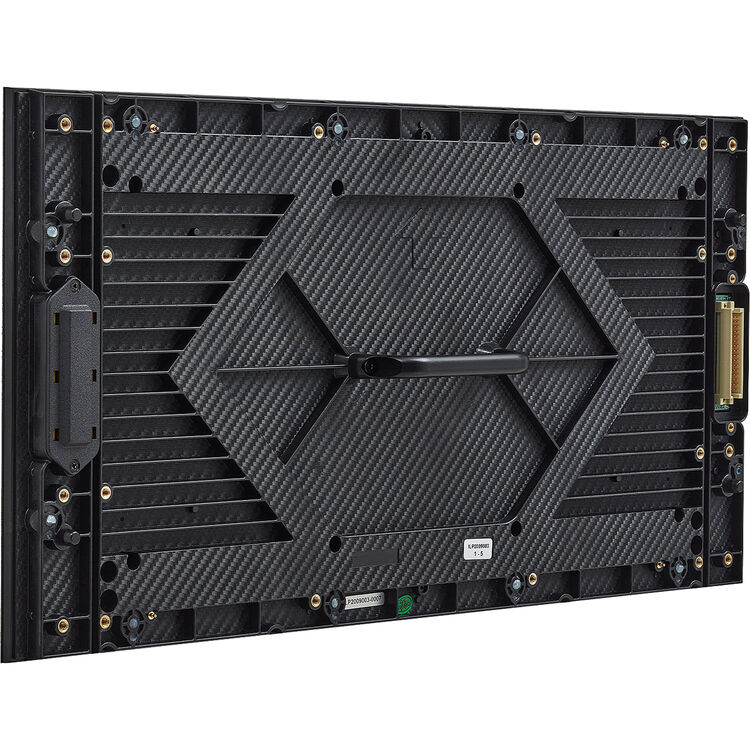

| Module Dimensions (W x H) | 500 x 250 mm (19.7 x 9.8 in) |
| Weight per Module | 1.3 kg (2.9 lbs) |
| Modules per Cabinet (W x H) | 2 x 2 |
| Cabinet Resolution (W x H) | 96 x 48 |

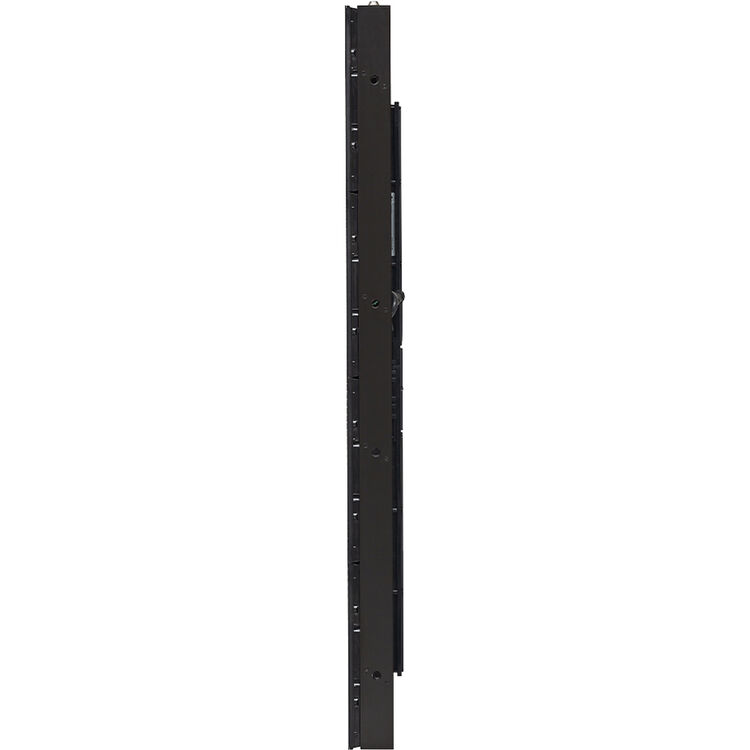

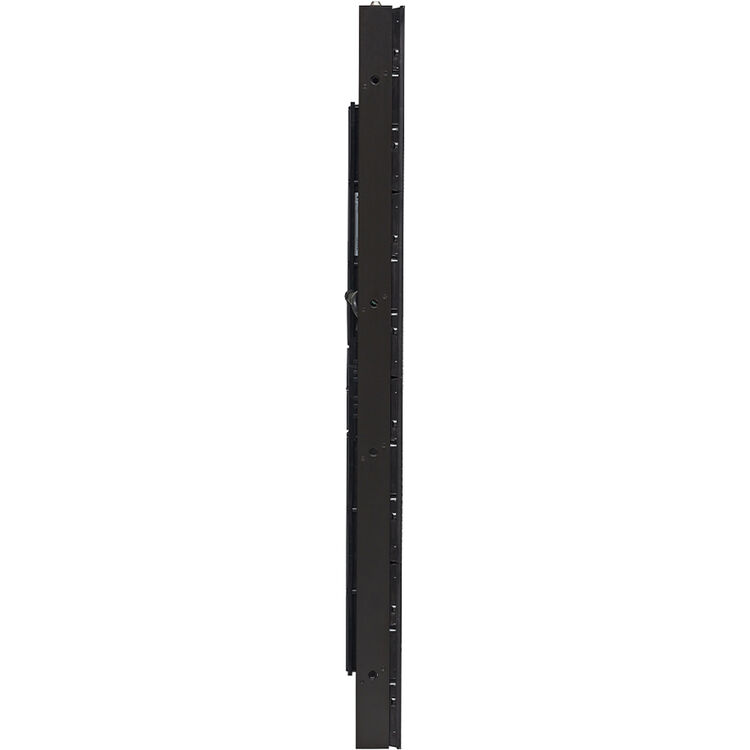

| Cabinet Dimensions (W x H x D) | 1,000 x 500 x 85.1 mm (39.4 x 19.7 x 3.4 in) |
| Cabinet Surface Area | 0.5 m² (5.4 ft²) |
| Weight per Cabinet | 10.6 kg (23.4 lbs) |
| Weight per Unit Area | 21.2 kg/m² (4.3 lbs/ft²) |
| Physical Pixel Density | 9,216 pixels/m² |
| Cabinet Flatness | ±0.5 mm |
| Cabinet Material | Extruded aluminum |

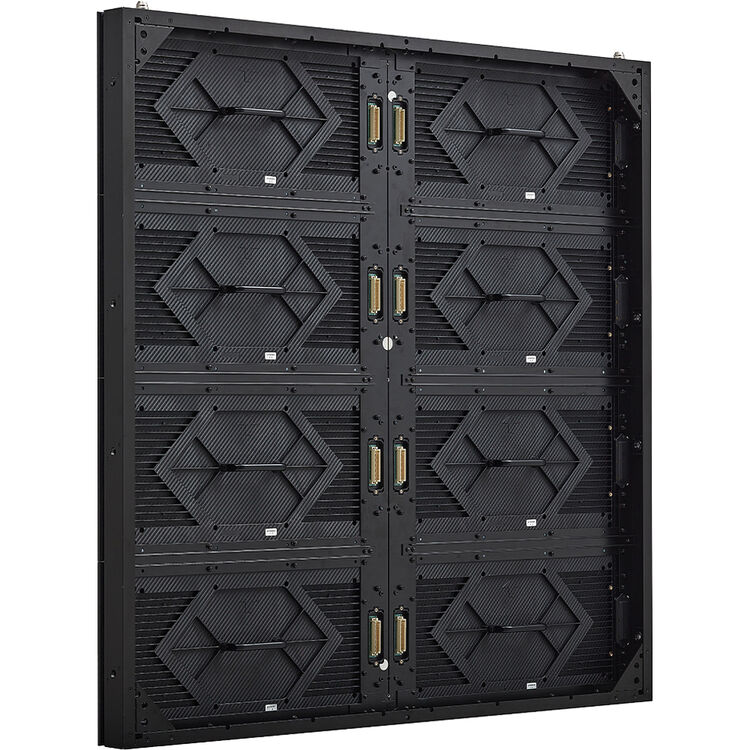

| Service Access | Front or rear (select one) |
| Max Brightness (After Calibration) | 5,000 nits |
| Color Temperature | 3,200 to 9,300 K |
| Viewing Angle (H / V) | 160° / 136° |
| Brightness Uniformity | 0.97 |
| Color Uniformity | ±0.003 Cx, Cy |
| Contrast Ratio | 10,000:1 |
| Processing Depth | 16-bit (HDR10, HDR10 Pro) |
| Max Power Consumption per Cabinet | 330 W |
| Avg. Power Consumption per Cabinet | 110 W |
| Max Power Consumption per m² | 660 W/m² |
| Max Heat Dissipation per Cabinet | 1,126 BTU/hr |
| Avg. Heat Dissipation per Cabinet | 375 BTU/hr |
| Power Supply | 100 to 240 VAC |
| Frame Rate | 50 / 60 Hz |
| Refresh Rate | 3,840 Hz |
| LED Lifetime (Half Brightness) | 100,000 hours |
| Operating Temperature | -30°C to +50°C (-22°F to +122°F) |
| Operating Humidity | 10% to 99% RH |
| IP Rating (Front / Rear) | IP65 / IP65 |
| Certifications | CE, FCC, ETL, EMC Class A |
| Fire Protection Certifications | BS476 Part 7 Class 1, EN13501-1 |
| Environmental | RoHS |
| Controller | CVCA |
| 90° Corner Cut | Yes |
| Warranty | 3-year limited; up to 5 years with optional ExtendedCare |
