Description

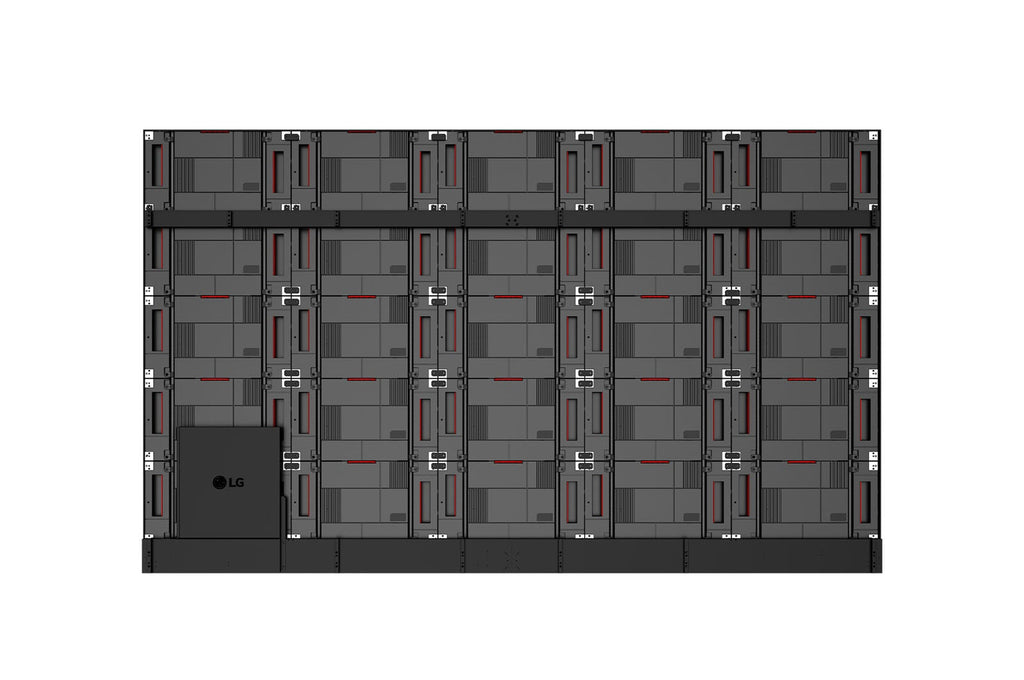

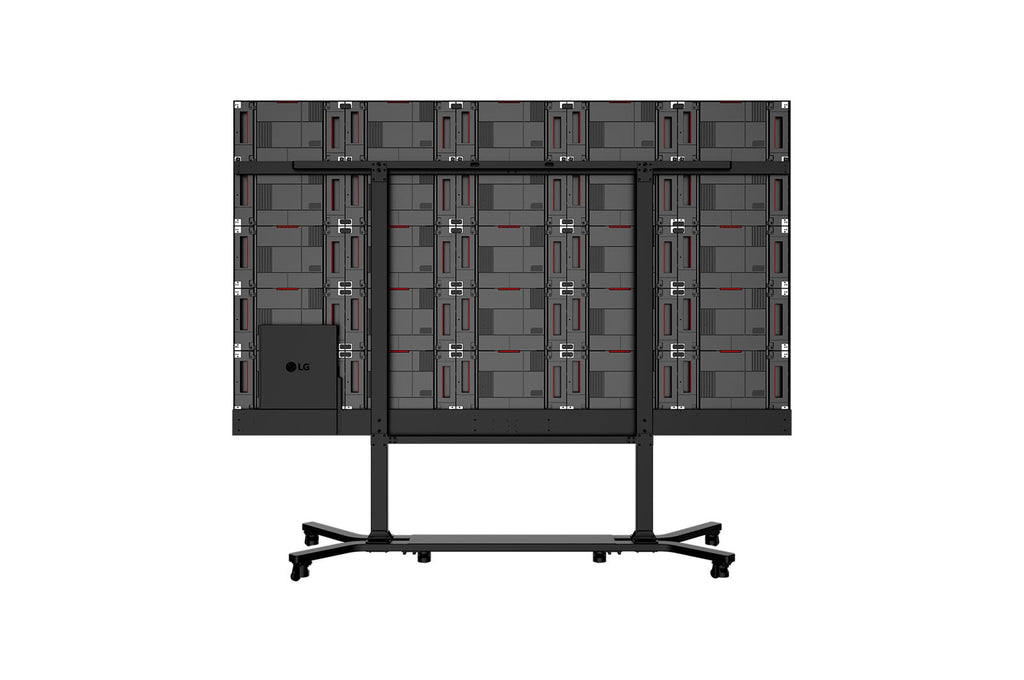

The LG LABA015-GD is an All-in-One Smart LED cabinet with a 1.58 mm pixel pitch and single SMD pixels. Twenty-five LABA015-GD units in a 5 x 5 layout form a 1920 x 1080 Full HD screen measuring 3,035 x 1,821.5 mm. That screen has built-in 8 W + 8 W speakers and a CABA-015D webOS control box, so no separate controller connections or module configuration are needed. Five cabinets come pre-assembled on carbon fiber tubes, and each unit locks to the next with lock catches for fast installation. A landscape wall mount and installation tools are included, and a dedicated stand is available separately. The screen delivers 500 nits of brightness, an 8,000:1 contrast ratio, 16-bit processing with HDR10 and HDR10 Pro, and a 3,840 Hz refresh rate, with front service access. It also offers Office Meeting Mode, Crestron Connected support (sold separately), Display Power Management and optional LG ConnectedCare.
Technical Specifications:
| Specification | Details |
|---|---|
| Brand | LG |
| MPN | LABA015-GD |
| Series | LABA All-in-One Smart LED |
| Pixel Configuration | Single SMD |
| Pixel Pitch | 1.58 mm |
| Module Resolution (W x H) | 96 x 216 |
| Module Dimensions (W x H) | 151.2 x 340.2 mm |
| FHD Configuration | 5 x 5 LABA015-GD |
| Modules per Screen (W x H) | 20 x 5 (100 total) |
| Screen Resolution (W x H) | 1,920 x 1,080 |
| Screen Dimensions (W x H x D) | 3,035 x 1,821.5 x 45.5 mm (thickest 83.5 mm) |
| Screen Surface Area | 5.14 m² |
| Screen Weight | 154 kg |
| Physical Pixel Density | 403,124 pixels/m² |
| Cabinet Flatness | ≤0.15 mm |
| Cabinet Material | Die-cast aluminum |
| Service Access | Front |
| Max Brightness (After Calibration) | 500 nits |
| Color Temperature | 3,200 to 9,300 K |
| Viewing Angle (H x V) | 160° x 140° |
| Brightness Uniformity | 97% |
| Color Uniformity | ±0.003 Cx, Cy |
| Contrast Ratio | 8,000:1 |
| Processing Depth | 16-bit (HDR10, HDR10 Pro) |
| Max Power Consumption (Screen) | 1,600 W |
| Avg. Power Consumption (Screen) | 950 W |
| Max Power Consumption per m² | 300 W/m² |
| Max Heat Dissipation (Screen) | 5,456 BTU/h |
| Avg. Heat Dissipation (Screen) | 3,240 BTU/h |
| Max Heat Dissipation per m² | 1,023 BTU/h/m² |
| Power Supply | 100 to 240 V |
| Frame Rate | 50 / 60 Hz |
| Refresh Rate | 3,840 Hz |
| Lifetime (Half Brightness) | 100,000 hours |
| Operating Temperature | 0°C to +40°C |
| Operating Humidity | 10% to 80% RH |
| IP Rating (Front / Rear) | IP50 / IP50 |
| Speakers | Built-in (8 W + 8 W) |
| Controller | CABA-015D (control box, webOS) |
| I/O Ports | HDMI (3), DP (1), USB 2.0, LAN, RS-232C In/Out, IR, Optical Digital Audio Out |
| Certifications | CE, FCC, cTUVus, CB, EMC Class A |
| Environmental | RoHS, REACH |
| Included Accessories | Landscape wall mount, installation tools |
| Optional Accessory | Dedicated stand (sold separately) |
