Description

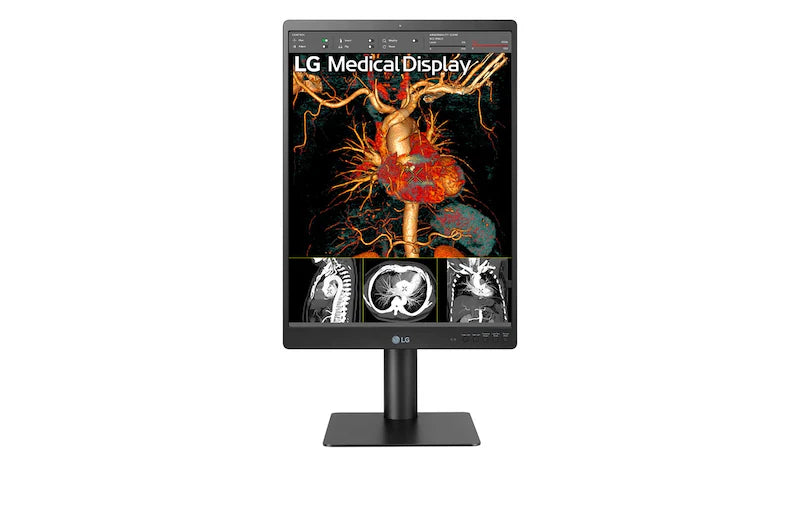

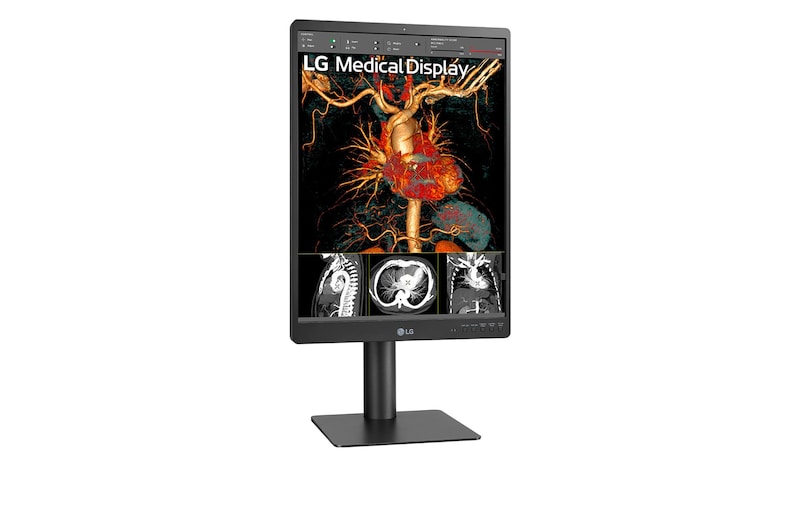

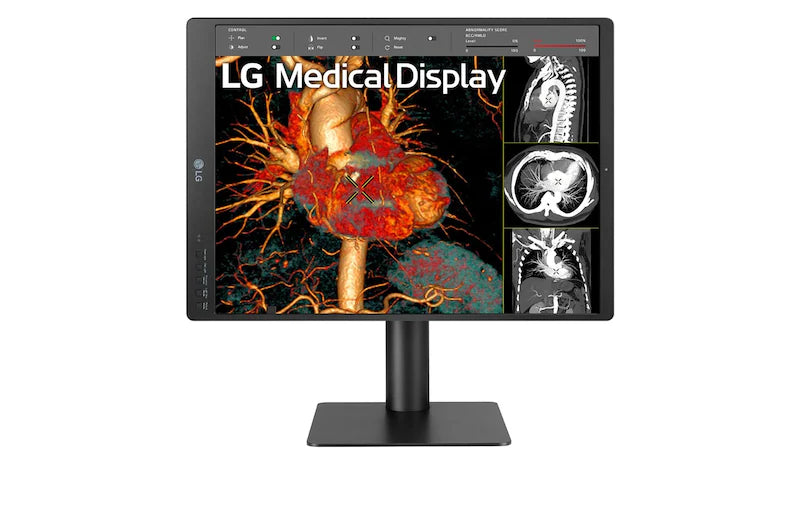

The LG 21HQ513D-S is a 21.3-inch 3MP (1536 x 2048) IPS diagnostic monitor. Its 1,100 cd/m² typical brightness and 1,800:1 contrast ratio help medical professionals review CT and angiography images precisely. Multi-resolution mode switches between 2MP and 3MP for different modalities. Focus View magnifies a selected area while darkening the rest, and Pathology Mode shows colors similar to those seen under a microscope. Built-in backlight, front and auto luminance sensors stabilize brightness, enable automatic hardware calibration without extra equipment, and adapt to ambient light. Five hot keys give quick access to Down/Wall Light, the presence sensor, Light Box mode and picture mode. The presence sensor turns the display off when no motion is detected. The lightweight body sits on a one-click stand that adjusts in height, tilt and pivot, and the narrow side bezel suits multi-display setups.
Technical Specifications:
| Specification | Details |
|---|---|
| Brand | LG |
| MPN | 21HQ513D-S |
| Product Type | Diagnostic medical monitor |
| Panel Type | IPS |
| Screen Size (Aspect Ratio) | 21.3" (3:4) |
| Resolution | 3MP (1536 x 2048) |
| Surface Treatment | Anti-glare, 3H |
| Color Gamut (Typ.) | NTSC 72% |
| Viewing Angle | 178° (R/L), 178° (U/D) |
| Brightness (Typ.) | 1,100 cd/m² |
| Contrast Ratio (Typ.) | 1,800:1 |
| Response Time (GtG) | 5 ms |
| DICOM Compliant | Yes |
| Hardware Calibration | Yes (PerfectLum) with internal front sensor |
| Display Modes | Multi-resolution (3MP / 2MP), Focus View, Light Box, Pathology |
| Super Resolution+ | Yes |
| Input Terminals | DisplayPort x2, DVI x1 |
| Output Terminals | DisplayPort x1 (daisy chain, 3MP @ 60 Hz) |
| USB | 2 upstream, 2 downstream |
| Sensors | Backlight sensor, front sensor, auto luminance sensor, presence sensor |
| Hot Keys | 5 (Down Light, Wall Light, Presence Sensor, Light Box Mode, Picture Mode) |
| Lighting | Down / Wall light |
| Dual Controller | Yes |
| Text Mode / Flicker Safe | Yes / Yes |
| Power Supply | 100 to 240 VAC, 50/60 Hz |
| Power Consumption (Max / DC Off) | 120 W / less than 0.3 W |
| Stand Adjustment | Tilt -5° to 20°, pivot 90°, height range 110 mm |
| Weight with Stand | 7.0 kg (15.4 lbs) |
| Weight without Stand | 5.0 kg (11.0 lbs) |
| Certifications & Standards | IEC 60601-1 / 60601-1-2, EN 60601-1 / 60601-1-2, IEC 60950-1 / 55032 / 55024, EN 60950-1 / 55032 / 55024, cUL (ANSI/AAMI ES 60601-1, CSA C22.2 No. 60601-1), FCC Part 15 Class A, FDA 510(k) Class II, RoHS, REACH, WEEE |
