Description

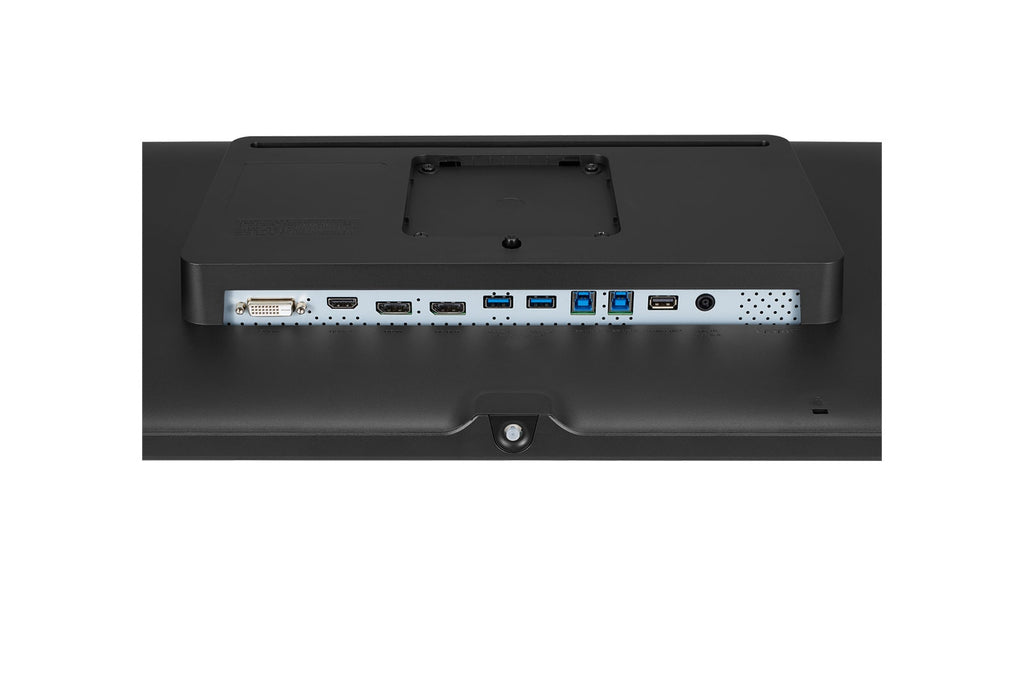

The LG 24HR513C-B is a 24-inch IPS medical monitor for general radiology viewing. An internal front calibration sensor helps keep the display consistent, and Focus View Mode and Pathology Mode support clinical work. It can be managed with LCS Medical. It delivers 600 cd/m² typical brightness, a 1,000:1 contrast ratio, a 5 ms response time and 178° viewing angles in a 16:10 aspect ratio, with anti-glare and flicker-free technology. Connectivity includes HDMI, DisplayPort and DVI-D inputs plus a built-in USB hub, and it supports daisy chain. The stand adjusts in height (up to 15 cm), tilt, swivel and pivot, with bi-directional auto pivot support.
Technical Specifications:
| Specification | Details |
|---|---|
| Brand | LG |
| MPN | 24HR513C-B |
| Product Type | Medical monitor |
| Application | General radiology viewing |
| Screen Size | 24" |
| Aspect Ratio | 16:10 |
| Panel Type | IPS |
| Brightness (Typical) | 600 cd/m² |
| Contrast Ratio (Typical) | 1,000:1 |
| Response Time | 5 ms |
| Viewing Angle (H / V) | 178° / 178° |
| Anti-Glare | Yes |
| Flicker-Free | Yes |
| Calibration | Internal front calibration sensor |
| Modes | Focus View Mode, Pathology Mode |
| Management | LCS Medical |
| HDMI | 1 |
| DisplayPort | 2 |
| DVI-D | 1 |
| USB Hub | Built-in (2 upstream, 2 Type-A downstream) |
| Daisy Chain | Supported |
| Height Adjustment | Up to 15 cm |
| Tilt | -5° to 25° |
| Swivel | -45° to 45° |
| Pivot | Yes (bi-directional auto pivot support) |
| Power Consumption (Max / Off) | 65 W / 0.3 W |
| Power Supply | 100 to 240 V AC, 50/60 Hz |
| Weight with Stand | 7.1 kg |
| Weight without Stand | 4.35 kg |
| Other Technologies | Super+ Resolution |
| Color | Black |
