Description

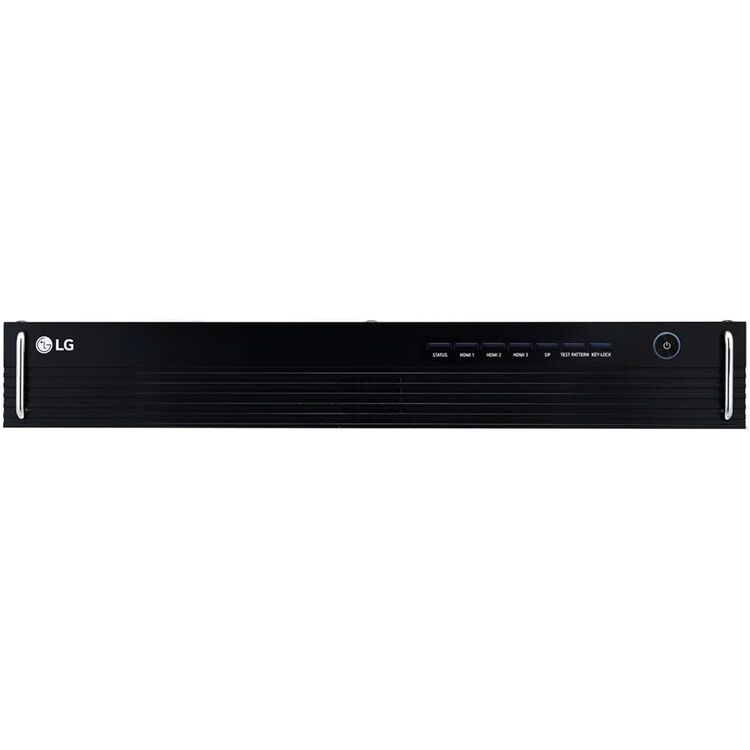

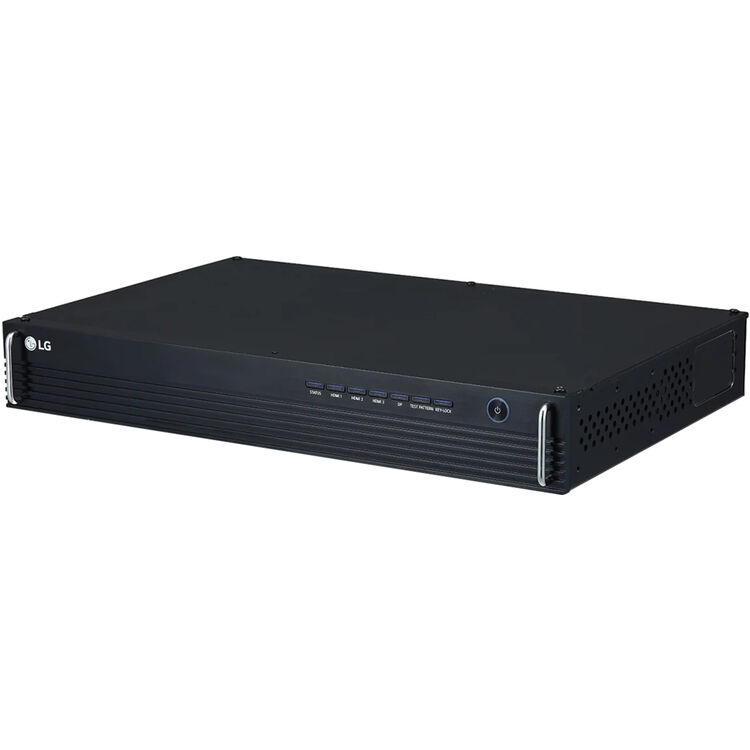

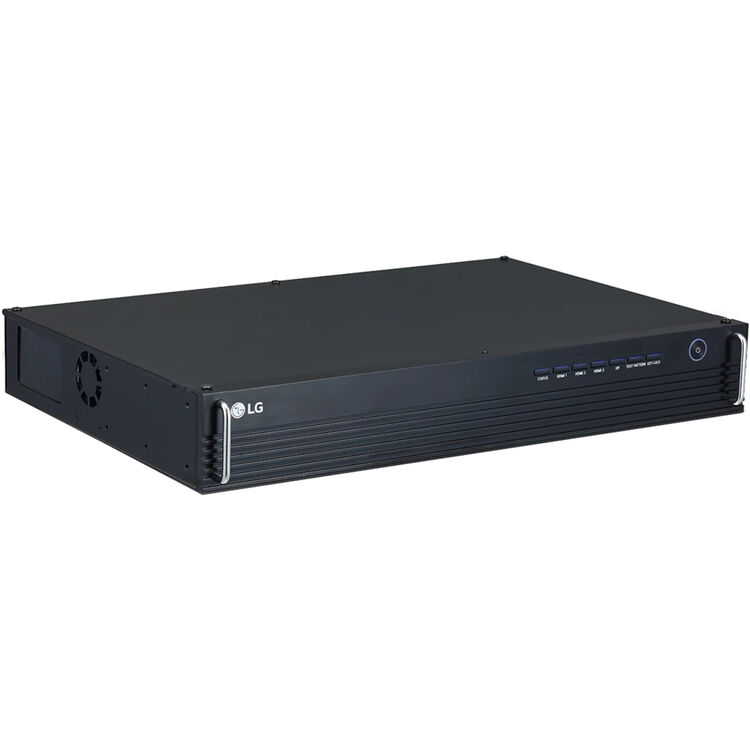

The LG LCLY006HD is an LED display controller that drives LG direct-view LED signage. It has a loading capacity of 1920 x 1200 at 60 Hz, or 2.304 million pixels, and supports output widths up to 4,096 pixels and heights up to 2,560 pixels. Inputs are HDMI 1.4 with HDCP 1.4 and DVI, with an HDMI loop output. Four Ethernet channels carry the signal to the LED screen. It supports brightness and chroma adjustment, improved grayscale at low brightness, and custom EDID. A USB port handles control, and an ambient light sensor supports automatic brightness management. Configuration is done with Leadshow 5G Control Manager 4k software. The controller measures 482.6 x 44 x 262 mm (19.0 x 1.7 x 10.3 in) and weighs 2.5 kg (5.5 lbs).
Technical Specifications:
| Specification | Details |
|---|---|
| Brand | LG |
| MPN | LCLY006HD |
| Product Type | LED display controller |
| Compatible Series | LG LAS Series LED |
| Loading Capacity | 1920 x 1200 @ 60 Hz |
| Max Output Width | 4,096 pixels |
| Max Output Height | 2,560 pixels |
| Output Resolution | 2.304 million pixels |
| HDMI Input | HDMI 1.4 |
| HDCP | HDCP 1.4 |
| DVI Input | Yes |
| DisplayPort Input | No |
| OPS | No |
| HDMI Output | Yes (loop) |
| Ethernet Output (to LED Screen) | Yes (4-channel) |
| LAN | No |
| USB Control | Yes |
| RS-232C | No |
| Ambient Light Sensor | Yes |
| Temperature Sensor | No |
| Brightness Adjustment | Yes |
| Chroma Adjustment | Yes |
| Improved Grayscale at Low Brightness | Yes |
| Scaling | No |
| HDR | No |
| EDID Custom | Yes |
| CMS | No |
| webOS API | No |
| LG ConnectedCare | No |
| Configuration Software | Leadshow 5G Control Manager 4k |
| Dimensions (W x H x D) | 482.6 x 44 x 262 mm (19.0 x 1.7 x 10.3 in) |
| Weight | 2.5 kg (5.5 lbs) |
