Description

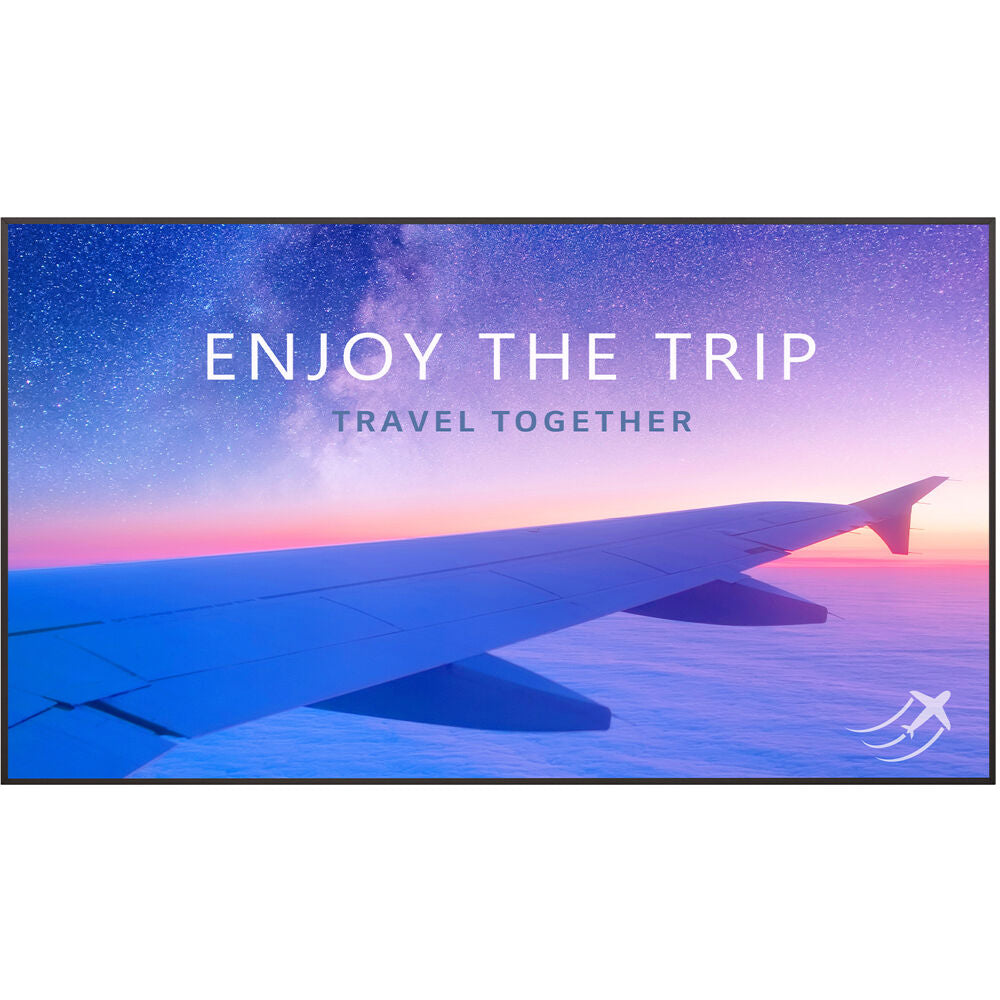

The LG 86UH7N-M is a premium 86-inch UHD large-format commercial display engineered for high-visibility business environments. With a powerful 700-nit brightness level, it delivers vivid, legible content even in brightly lit retail spaces, airports, and public venues. The expansive 86-inch screen supports 120Hz refresh rate, ensuring ultra-smooth motion and seamless playback for dynamic signage and video content.
Featuring 4K UHD resolution (3840 × 2160)—four times sharper than Full HD—and an anti-glare, high-haze coating, the UH7N-M enhances visibility while minimizing reflections. A built-in high-performance SoC eliminates the need for an external media player, enabling smooth multitasking and reliable standalone operation.
Powered by LG webOS, the display offers an intuitive user interface, app development tools, and easy integration with external sensors and partner applications—making it ideal for system integrators. Designed for durability, the UH7N-M includes conformal coating on the power board, IP5x dust resistance, 30-degree tilting support, and shock monitoring for dependable performance in demanding environments.
Advanced security features such as LG Enhanced Kernel Protection (EKP) and Common Criteria EAL2 certification help safeguard sensitive data. With slim bezels, simple cable management, and robust connectivity, the LG 86UH7N-M delivers a secure, high-impact digital signage solution optimized for professional use.
| Specification | Details |
|---|---|
| Screen Size | 86 inches |
| Display Type | LED-backlit LCD |
| Resolution | 3840 × 2160 (UHD 4K) |
| Brightness | 700 nits (typical) |
| Refresh Rate | 120Hz |
| Panel Coating | Anti-glare, high-haze |
| Operating System | LG webOS |
| Built-in Media Player | Yes (High-performance SoC) |
| USB Ports | 2 × USB 2.0 |
| Video Inputs | HDMI (x2), DisplayPort |
| Data / Control | USB-C, RS-232C (In/Out), LAN |
| Audio Output | Yes |
| Sensors | IR & Light Sensor |
| Durability Features | Conformal coating, IP5x, shock monitoring |
| Tilt Support | Up to 30° |
| Security | Enhanced Kernel Protection (EKP), EAL2 |
| Bezel Design | Slim bezel |
| Orientation | Landscape / Portrait |
| Use Case | Retail, corporate, transportation, public venues |
