Description

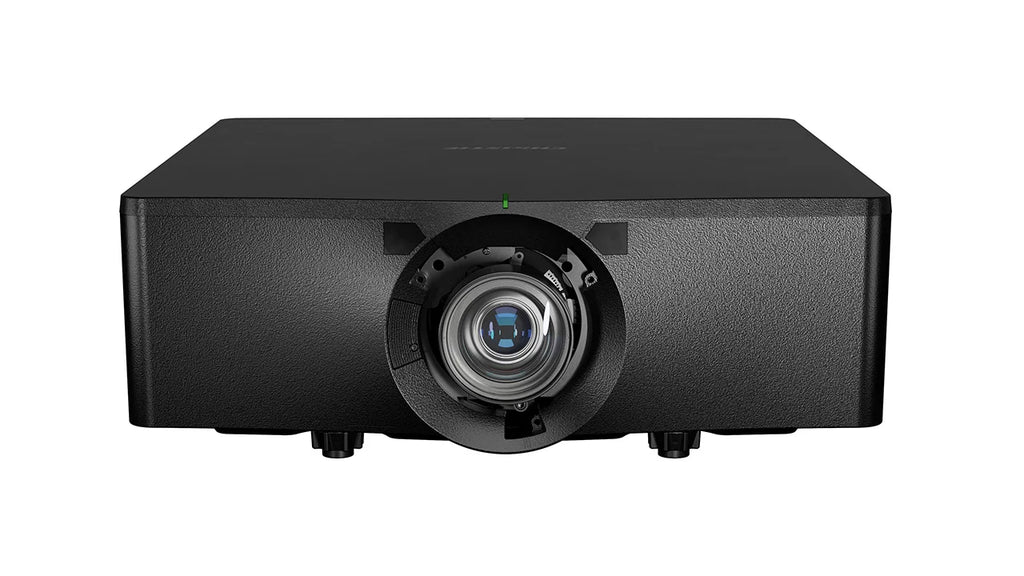

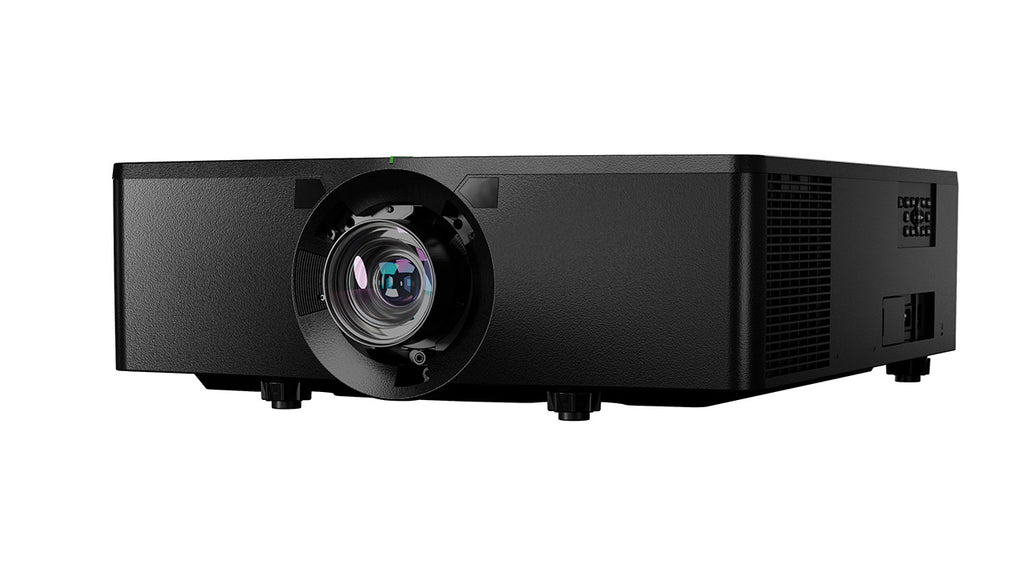

Deliver brilliant, large-scale 4K UHD visuals with the Christie 4K13A-HS. This TAA-compliant 1DLP laser projector produces 14,800 ISO lumens (12,500 ANSI lumens) and uses Christie BoldColor+ technology for rich color, deeper blacks, and compelling image quality in demanding professional environments.
Built for high-impact installations, the 4K13A-HS supports 4K UHD projection via pixel shifting, flexible interchangeable lenses (sold separately), and motorized lens adjustments. Onboard Christie Twist enables warping and blending for multi-projector displays, with support for Christie Mystique automated alignment workflows.
Comprehensive connectivity—including HDMI 2.0b, 12G-SDI, DisplayPort, and HDBaseT—makes integration straightforward for live events, museums, corporate venues, hospitality, worship, and rental/staging applications. Its solid-state laser illumination is rated for up to 20,000 hours to half brightness, helping reduce maintenance requirements.
Technical specifications
| Specification | Details |
|---|---|
| Brand / Model | Christie 4K13A-HS |
| SKU | 171-070108-01 |
| Projector Technology | 1DLP, 0.95" DMD |
| Resolution | 4K UHD 3840 × 2160 via pixel shifting; 1920 × 1080 native |
| Brightness | 14,800 ISO lumens; 12,500 ANSI lumens |
| Light Source | Laser phosphor with Christie BoldColor+ |
| Light Source Life | Up to 20,000 hours to 50% brightness |
| Contrast | Up to 4,000,000:1 with Christie RealBlack enabled; 6,000:1 dynamic |

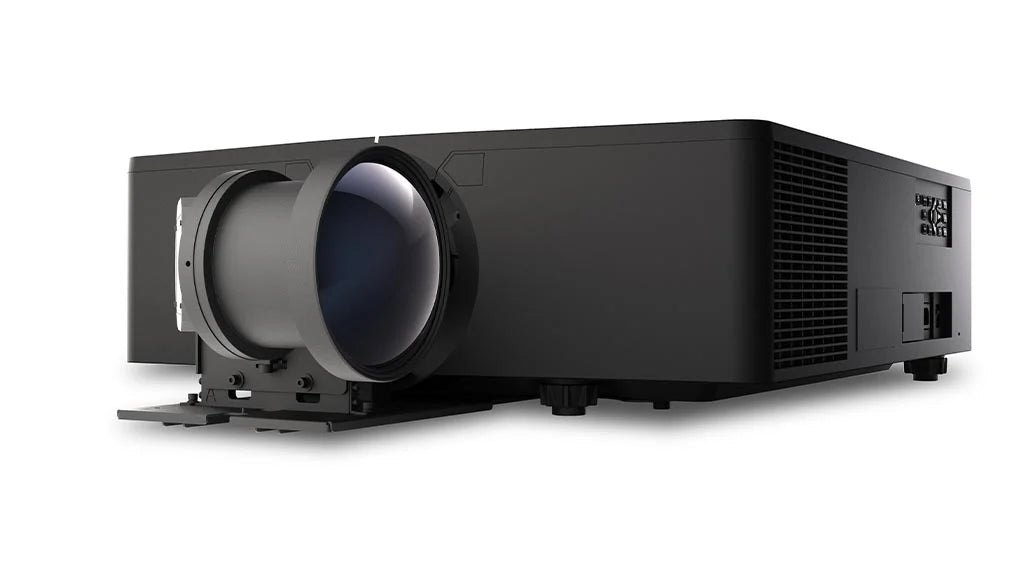

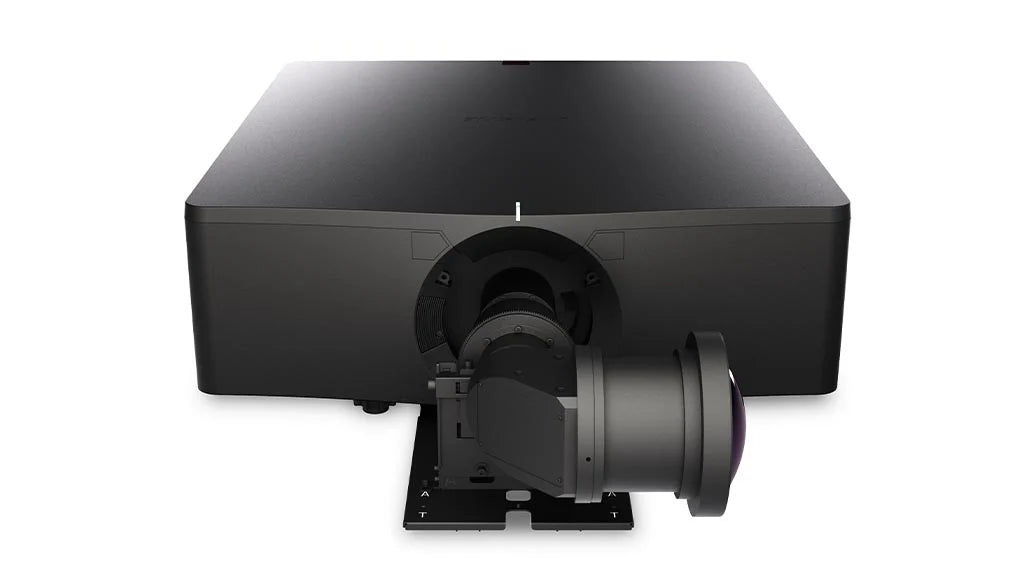

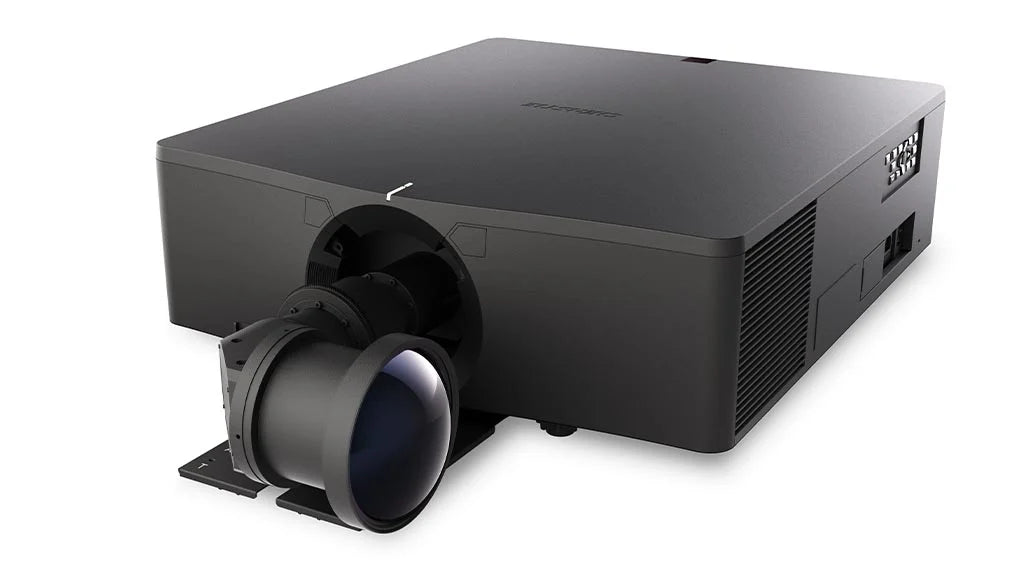

| Lens | Interchangeable lens system; lens sold separately |
| Lens Control | Motorized zoom, focus, and horizontal/vertical offset |

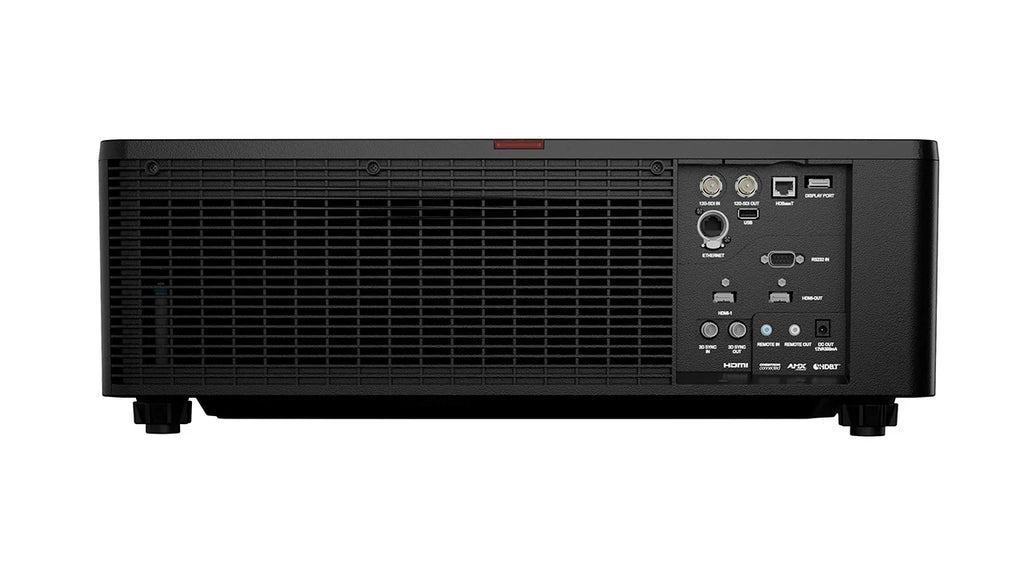

| Inputs | 2 × HDMI 2.0b, 12G-SDI, DisplayPort, HDBaseT, USB-A |
| Outputs | HDMI, 12G-SDI loop-through |
| Control | Ethernet, RS-232, HDBaseT, wired remote in/out |
| 3D Support | Active-shutter and passive-polarized stereoscopic 3D |
| Image Processing | Christie Twist warping and blending; Mystique compatible |
| Power Consumption | 1,030 W normal; 854 W Eco 1; 545 W Eco 2 |
| Dimensions (W × H × D) | 23.46 × 7.99 × 26.65 in. (without feet) |
| Weight | 95.9 lb |
| Compliance | TAA compliant |
| Ideal Applications | Live events, hospitality, corporate, museums, worship, rental/staging |
