Description

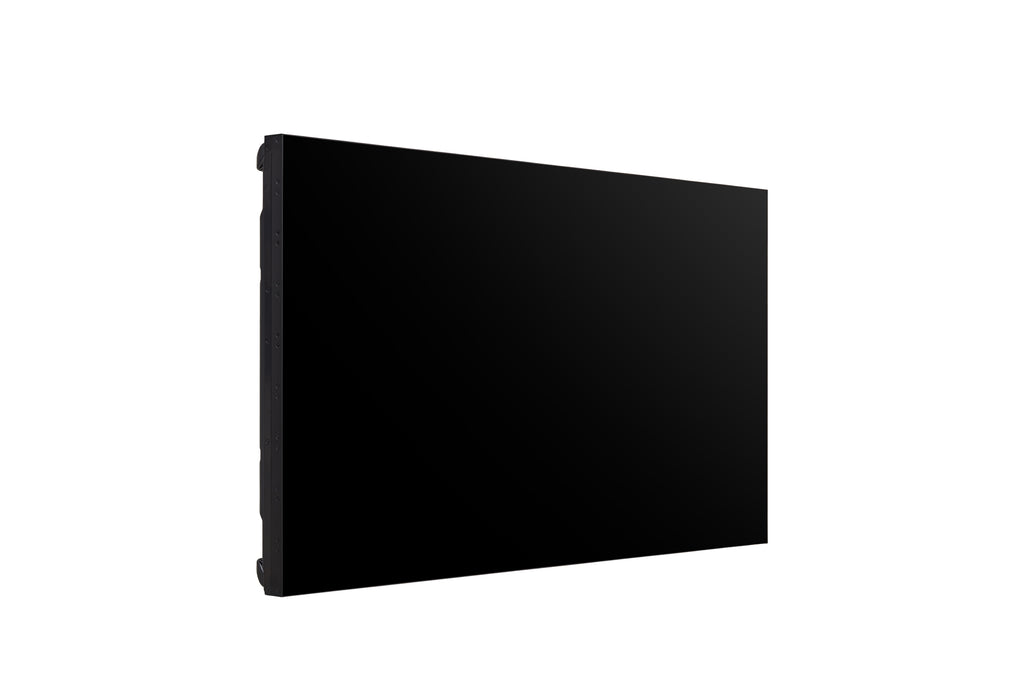

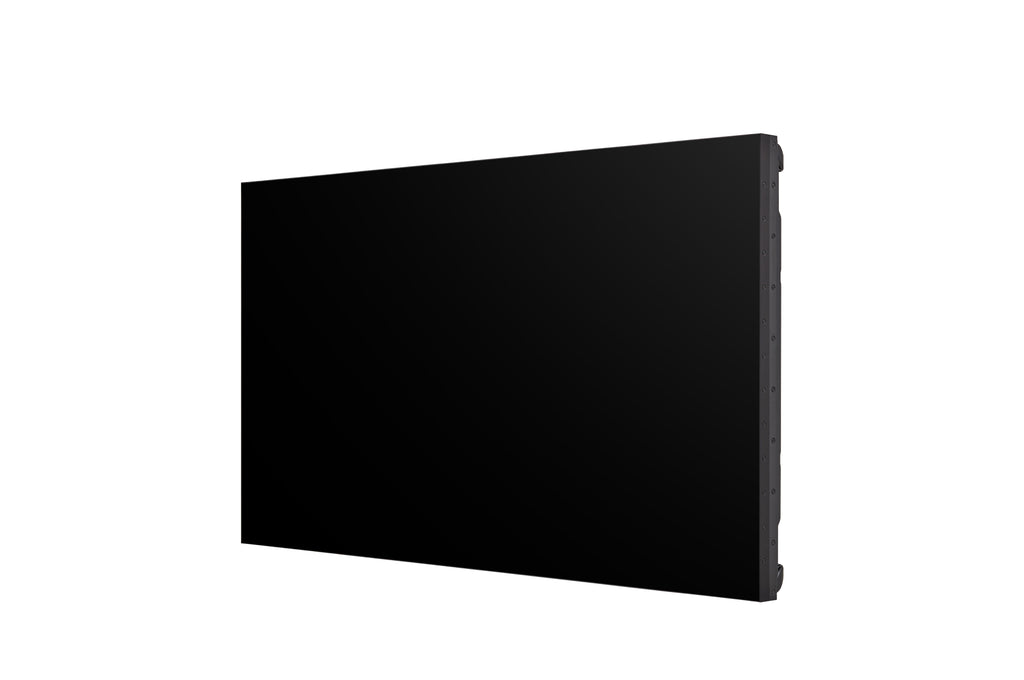

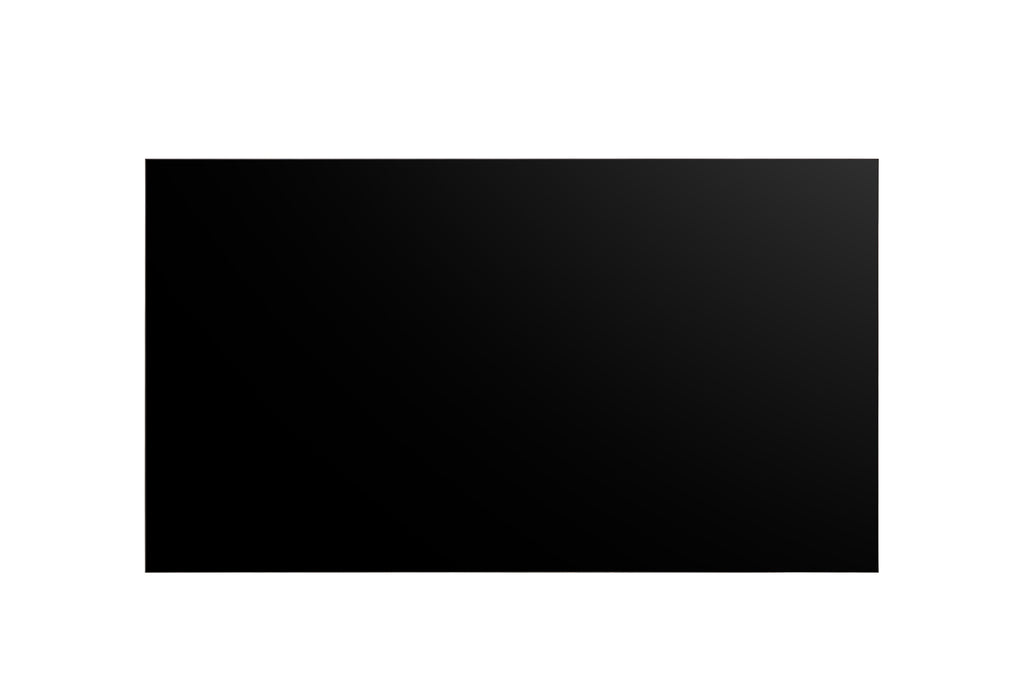

The LG 55VM5R-H is a 55-inch Full HD (1,920 x 1,080) video wall display.
Display:
- An extreme-narrow 1.7 mm bezel-to-bezel gap keeps tiled content seamless.
- 500 nits of brightness, a 1,200:1 contrast ratio and 178Β° viewing angles.
- An image improvement algorithm syncs fast-moving video across tiles.
- Color temperature adjusts in 100K steps, and white balance can be set per R/G/B channel.
Platform:
- Runs LG webOS 6.1, with four simultaneous videos, CSS effects and real-time IP streaming (RTSP, RTP, HLS, UDP multicast).
Durability and certifications:
- The conformal-coated power board resists salt, dust, iron powder and humidity.
- Shock monitoring, IP5X dust protection and EMC Class B certification.
Daisy chaining:
- Daisy chain over LAN for control and firmware updates, and over HDMI and DisplayPort for UHD walls.
Technical Specifications:
| Specification | Details |
|---|---|
| Brand | LG |
| MPN | 55VM5R-H |
| Product Type | Video wall display |
| Screen Size | 55" |
| Aspect Ratio | 16:9 |
| Resolution | 1,920 x 1,080 (FHD) |
| Brightness (Typ.) | 500 nits |
| Contrast Ratio | 1,200:1 |
| Viewing Angle | 178Β° (H) / 178Β° (V) |
| Bezel-to-Bezel (BtoB) | 1.7 mm |
| Bezel Width | 1.2 mm (T/L), 0.5 mm (B/R) |
| Active-to-Active (AtoA) | 3.1 mm |
| Color Temperature Adjustment | 3,200K to 13,000K in 100K steps |
| Platform | LG webOS 6.1 |
| IP Streaming | RTSP, RTP, HLS, UDP multicast |
| Durability | Conformal partial coating on power board, shock monitoring, IP5X |
| EMC | Class B |
| Daisy Chain | LAN, HDMI / DP (UHD) |

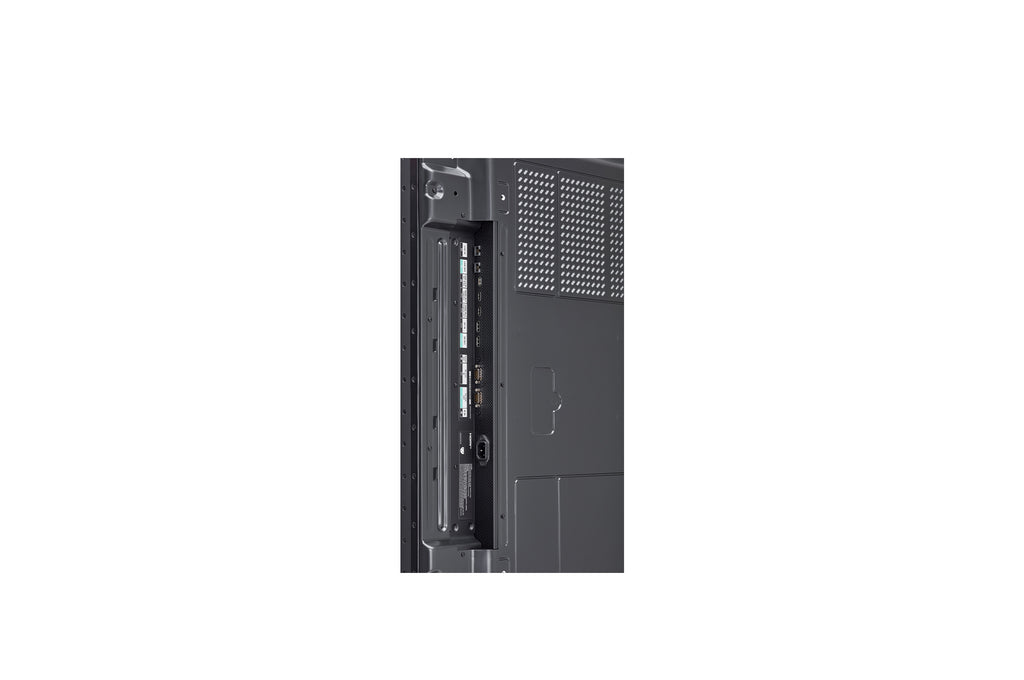

| Connections | LAN in, LAN out, USB 2.0 in, HDMI in x2, DP in, DP out, audio out, RS-232C in, RS-232C out, IR in |
| Software | LG ConnectedCare (optional, sold separately) |
