Description

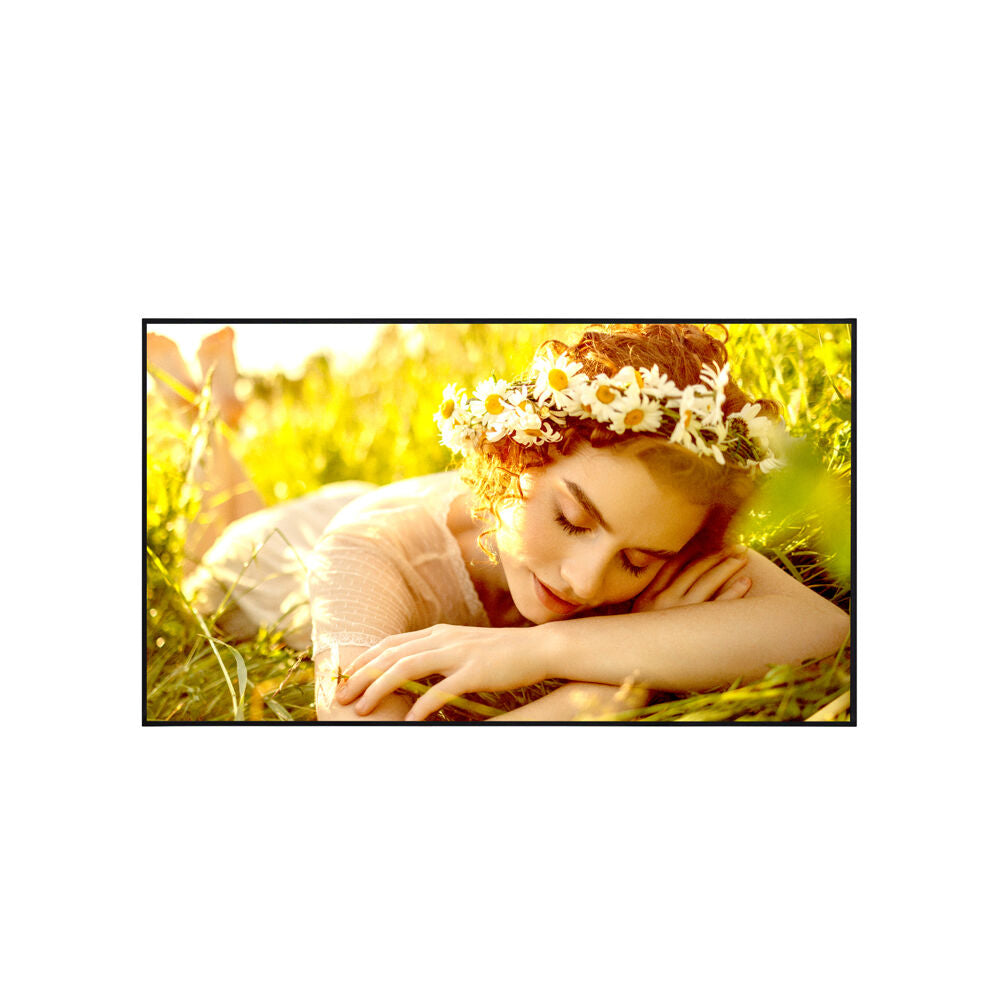

The LG 86UL5Q-M is an 86-inch commercial digital signage display built for professional indoor environments that require large-format 4K visual performance, dependable operation, and flexible content management. With a 3840 x 2160 UHD resolution at 60 Hz, it delivers sharp detail and clear image quality for corporate, retail, education, hospitality, and public-facing display applications.
Designed for signage deployments, the 86UL5Q-M supports multiple HDMI inputs, USB playback, LAN connectivity, RS-232C control, audio output, and webOS-based signage features for content scheduling, display management, screen sharing, and network control. Its large screen size, VESA-compatible mounting, and commercial connectivity make it suitable for meeting rooms, lobbies, classrooms, menu boards, information displays, and multi-display environments.
| Specification | Details |
|---|---|
| Brand | LG |
| Product Series | UL5Q-M Series |
| Display Size | 86-inch |
| Display Type | Commercial digital signage monitor |
| Resolution | 3840 x 2160 UHD |
| Refresh Rate | 60 Hz |
| Recommended Resolution | 3840 x 2160 at 60 Hz via HDMI |
| HDMI PC Supported Resolutions | Up to 3840 x 2160 at 60 Hz |
| HDMI DTV Supported Resolutions | Up to 2160p at 60 Hz |
| Input Ports | HDMI IN 1, HDMI IN 2, HDMI IN 3 |
| USB Ports | USB 2.0 IN 1, USB 2.0 IN 2 |
| Network Connectivity | LAN IN, wireless LAN support |
| Control Connectivity | RS-232C IN, RS-232C OUT |
| Audio Connectivity | Audio Out |
| Wireless Features | Wi-Fi and Bluetooth support through integrated wireless module |
| Operating System | LG webOS Signage platform |
| Content Management | Supports Content Manager, Scheduler, Player, playlists, templates, and USB media playback |
| Signage Management Features | Group Manager, Control Manager, LG ConnectedCare, LG Business Cloud, Play via URL, Fail Over, and status monitoring |
| Screen Orientation | Landscape and portrait installation supported |
| Tilt Installation | Not supported for 75-inch and 86-inch UL5Q-M models |
| Wall Mount Standard | VESA 600 x 400 mm |
| Wall Mount Screw Type | M8 |
| Maximum Screw Length | 20 mm |
| Number of Mounting Screws | 4 |
| Power Requirement | 100-240 V, 50/60 Hz |
| Rated Current | 4.0 A |
| Dimensions | 1926.6 mm x 1098 mm x 60 mm |
| Dimensions in Inches | 75.8 in x 43.2 in x 2.3 in |
| Product Weight | 31.8 kg / 70.1 lbs |
| Operating Temperature | 0°C to 40°C |
| Portrait Operating Temperature | 0°C to 35°C |
| Operating Humidity | 10% to 80%, non-condensing |
| Storage Temperature | -20°C to 60°C |
| Storage Humidity | 5% to 85%, non-condensing |
| Installation Environment | Indoor commercial use |
| Energy Certification | ENERGY STAR qualified |
| Included Platform Functions | Screen Share, LG Presenter, Smart Calibration, Video Wall settings, Office Meeting Mode, and scheduling tools |
| Recommended Use Cases | Corporate meeting rooms, classrooms, retail signage, lobby displays, public information screens, hospitality signage, and commercial presentation spaces |
