Description

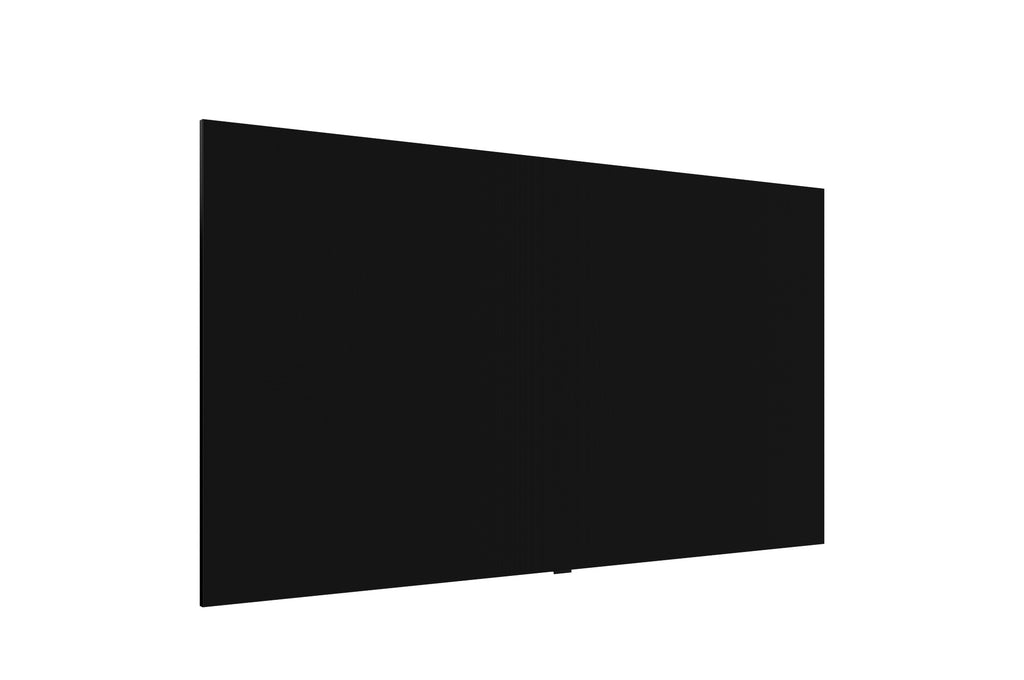

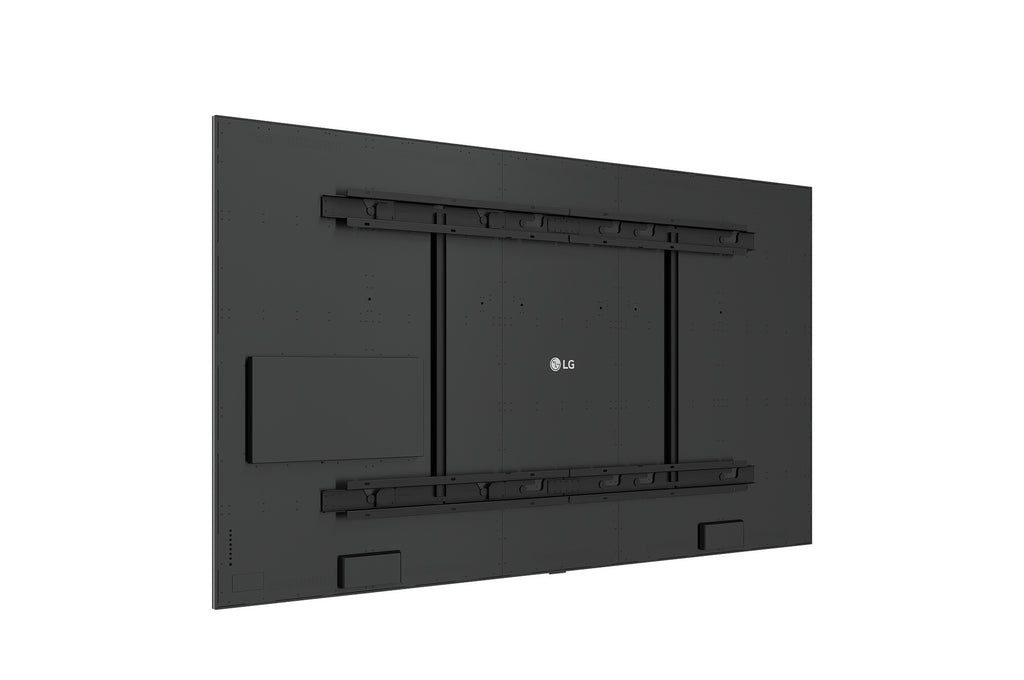

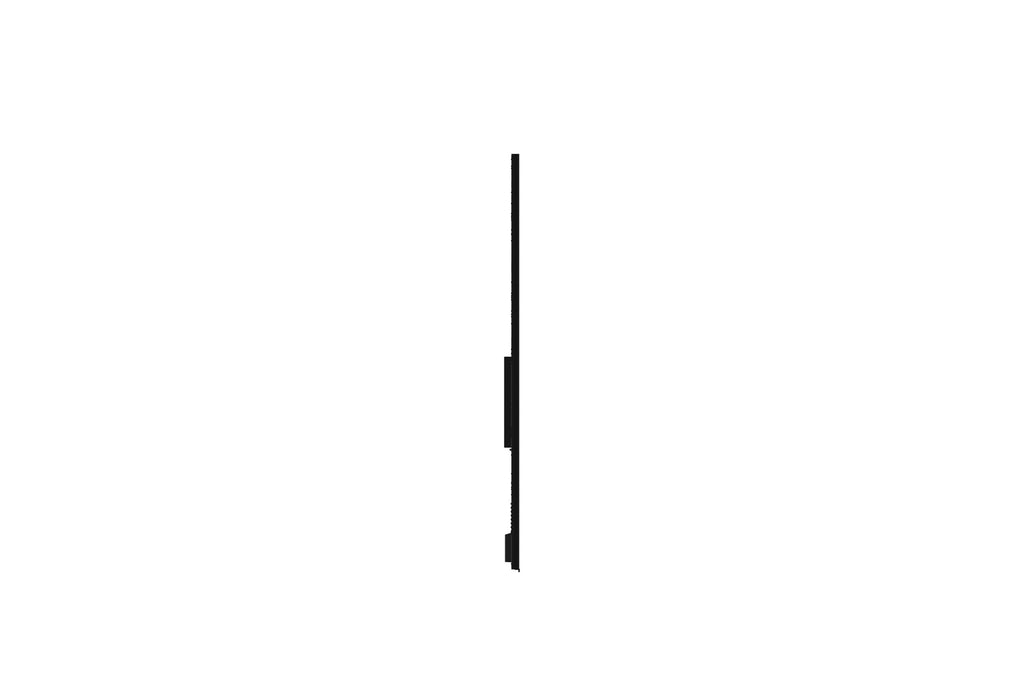

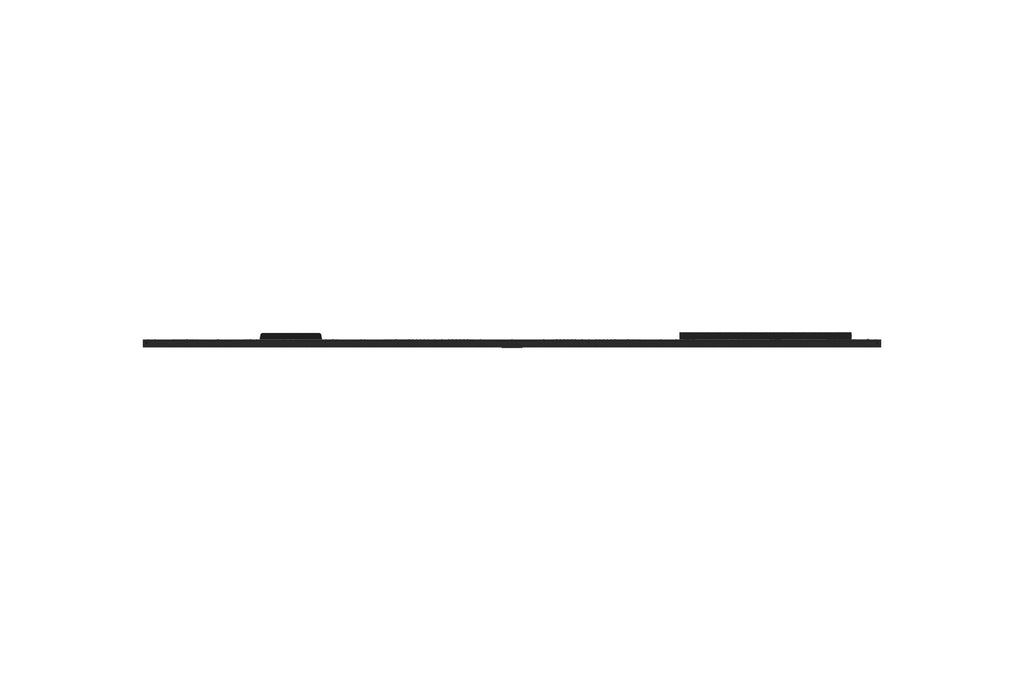

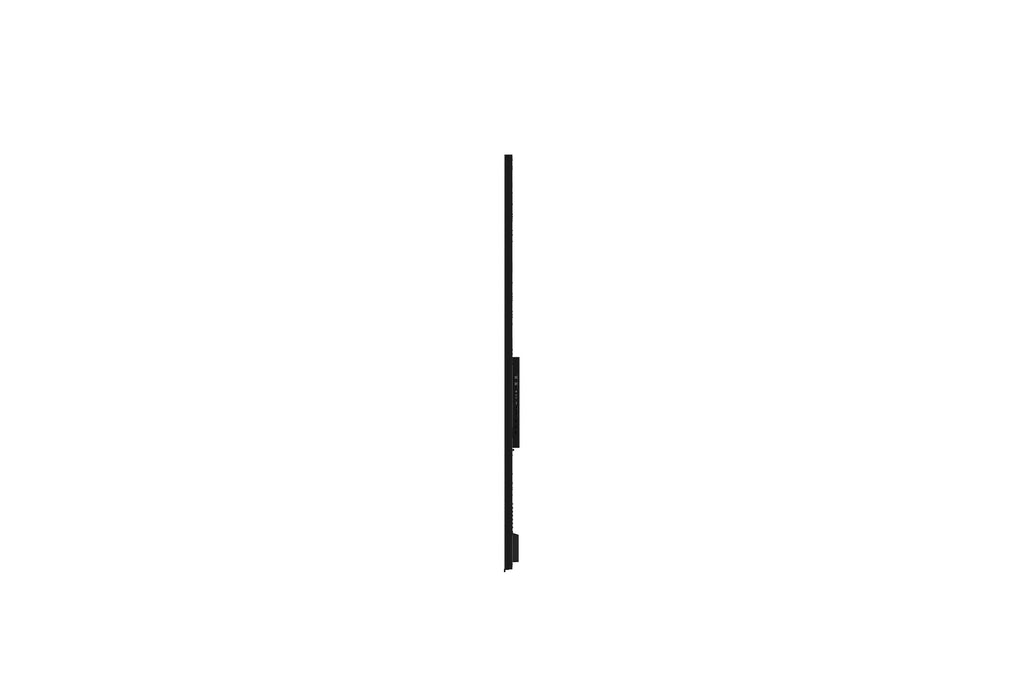

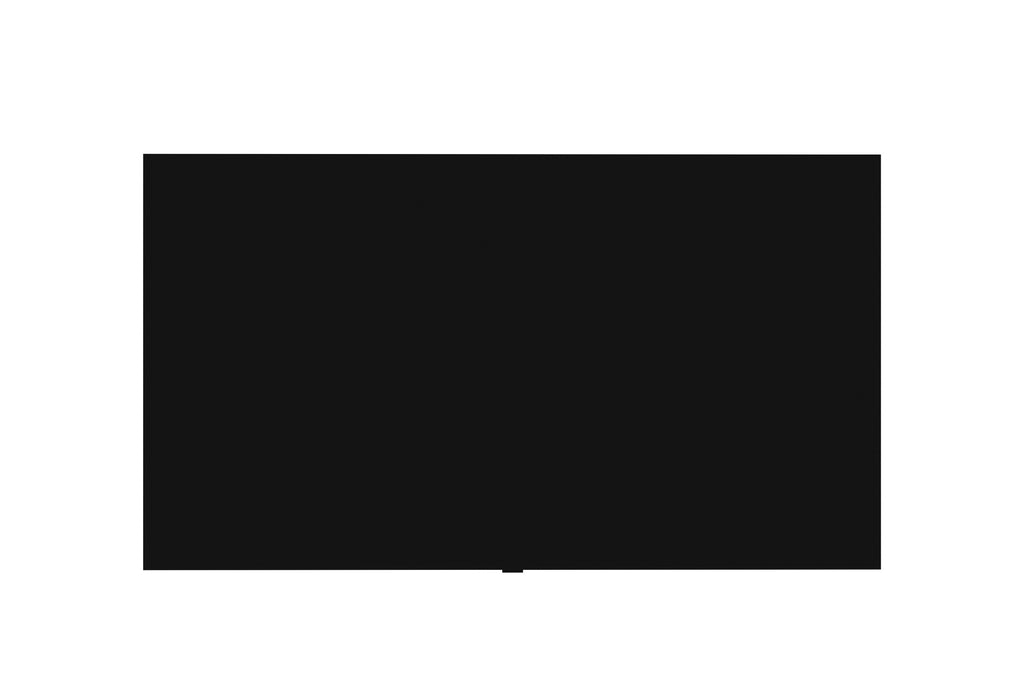

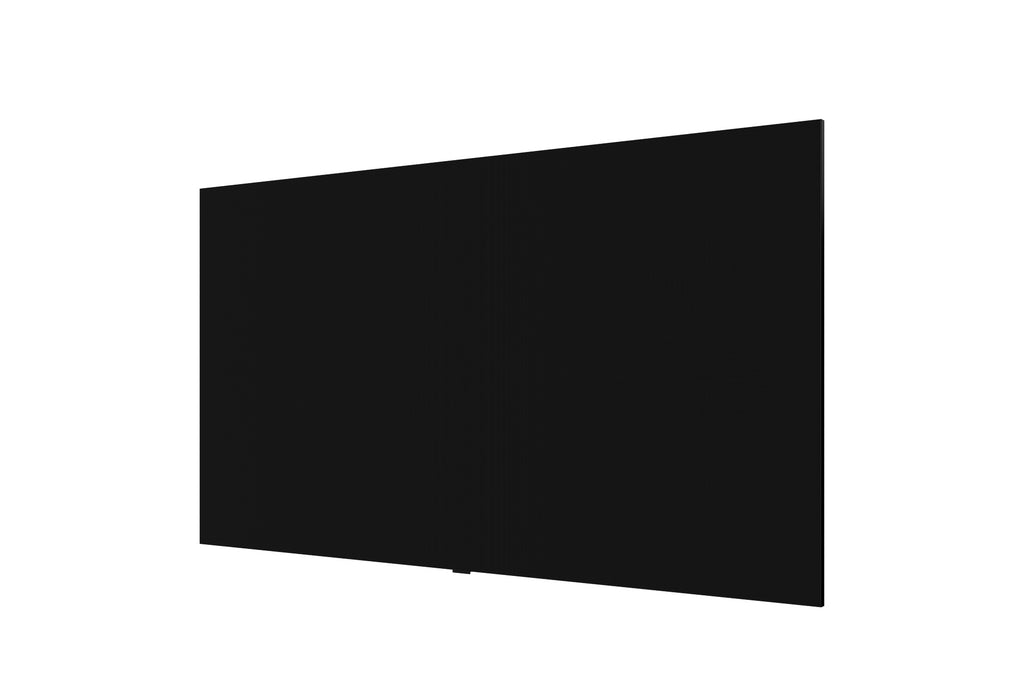

The LG LASA136BPND is a MAGNIT Essential Micro LED all-in-one display.
Display:
- 1.56 mm pixel pitch with COB pixel configuration.
- A 10 x 10 grid of modules (100 total) gives a 1,920 x 1,080 resolution on a 3,005 x 1,692.5 mm screen.
Built in:
- An embedded webOS controller and 9 W + 9 W speakers.
Picture:
- 600 nits typical brightness, a 15,000:1 contrast ratio and 16-bit processing with HDR10 and HDR10 Pro.
- 3,840 Hz refresh rate.
Installation and service:
- Front service access and dedicated accessories for easy installation and quick maintenance.
Technical Specifications:
| Specification | Details |
|---|---|
| Brand | LG |
| MPN | LASA136BPND |
| Product Line | LG MAGNIT Essential |
| Product Type | Micro LED all-in-one display |
| Pixel Configuration | COB |
| Pixel Pitch | 1.56 mm |
| Module Resolution (W x H) | 192 x 108 |
| Module Dimensions (W x H) | 300 x 168.75 mm |
| Modules per Screen (W x H) | 10 x 10 (100 total) |
| Screen Resolution (W x H) | 1,920 x 1,080 |
| Screen Dimensions (W x H x D) | 3,005 x 1,692.5 x 32 mm including bezel (thickest 62.05 mm) |
| Screen Surface Area | 5.06 mΒ² |
| Screen Weight | 111 kg |
| Physical Pixel Density | 410,208 pixels/mΒ² |
| Cabinet Flatness | Β±0.10 mm |
| Cabinet Material | Aluminum |
| Service Access | Front |
| Brightness (After Calibration) | 600 nits (typ.) |
| Color Temperature | 3,200 to 9,300 K |
| Viewing Angle (H / V) | 160Β° / 160Β° |
| Brightness Uniformity | 0.95 |
| Color Uniformity | Β±0.010 Cx, Cy |
| Contrast Ratio | 15,000:1 @ 10 lux |
| Processing Depth | 16-bit (HDR10, HDR10 Pro) |
| Power Consumption (Max. / Avg.) | 1,200 W / 500 W per screen |
| Max Power Consumption per mΒ² | 237 W/mΒ² |
| Heat Dissipation (Max. / Avg.) | 4,092 / 1,706 BTU/h per screen |
| Max Heat Dissipation per mΒ² | 809 BTU/h/mΒ² |
| Power Supply | 100 to 240 V |
| Frame Rate | 50 / 60 Hz |
| Refresh Rate | 3,840 Hz |
| LED Lifetime (Half Brightness) | 150,000 hours |
| Operating Temperature | 0Β°C to 40Β°C |
| Operating Humidity | 10% to 90% RH |
| IP Rating (Front / Rear) | IP30 / IP30 |
| Certifications | CE, FCC, ETL, CB, CE-RED, EMC Class A, BS476 Part 7 Class 1 |
| Environmental | RoHS, REACH |
| Speakers | Built-in, 9 W + 9 W |
| I/O Ports | HDMI in x3, DP in x1, DP out x1, USB, LAN in/out, RS-232C in/out, IR, digital audio out (1, SPDIF optical) |
| Controller | Embedded (webOS) |
