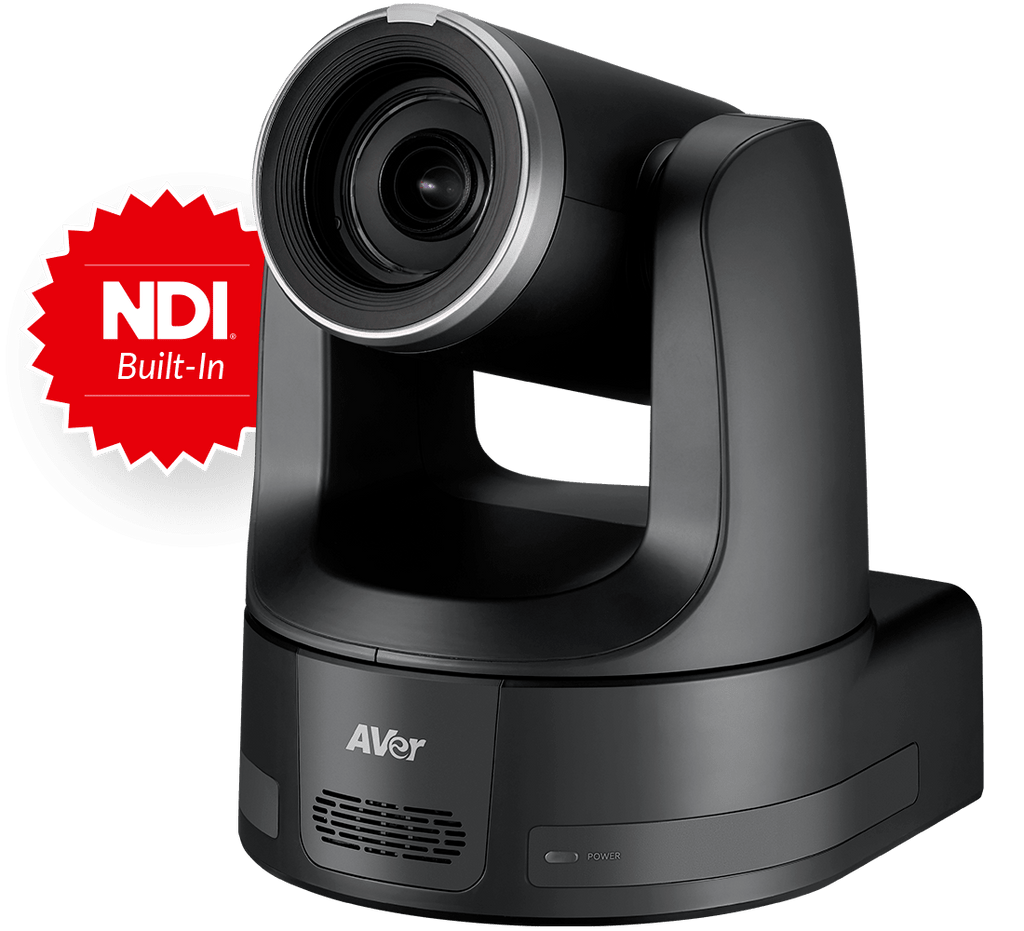

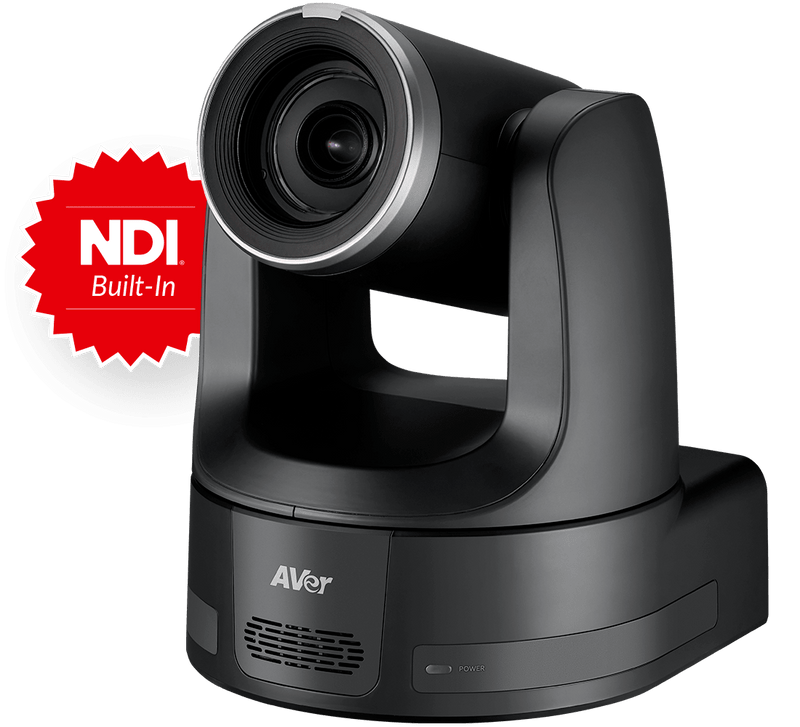

AVer TR615 Broadcast Professional Auto Tracking PTZ Camera
Roll over image to zoom in Click on image to zoom
AVer TR615 Broadcast Professional Auto Tracking PTZ Camera

AVer TR615 Broadcast Professional Auto Tracking PTZ Camera

AVERSKU: PATR615V1
LG Authorized exclamation What makes this a Top Quality Store?

Stores earn Google’s Top Quality Store badge by offering a positive experience for customers. This may include the offer of fast shipping and easy returns, positive user ratings, and other factors. Learn more
Price:
$7,499.00

Shipping calculated at checkout

Stock:
Only 0 units left

Free Standard Shipping

Description

All AVer Pro AV cameras now come with NDI as a standard feature. Minimum firmware version V0.0.0000.47 required. Learn more here.

Engineered for Precision Tracking and Professional Broadcast

The AVer TR615 is a 4K AI Auto Tracking PTZ Camera designed to meet the needs of professional AV environments including live event production, house of worship streaming, corporate communications, higher education, and government broadcasting.

Powered by AI auto tracking technology and a responsive PTZ motor, the TR615 enables accurate, hands-free subject tracking. It features a 1-inch Sony Exmor RS® CMOS sensor, 19X optical zoom, advanced image processing to deliver clear, high-quality video across various room sizes and lighting conditions. With dual 12G-SDI, Genlock, NDI® HX3, Dante AV-H*, Free-D support, the TR615 offers flexible integration with modern AV systems and production workflows.

Camera

Image sensor Total Picture Elements Effective Picture Elements
1” 4K Sony Exmor RS® CMOS 20.92 Megapixels 17.25 Megapixels
Output Resolutions Minimum Illumination S/N Ratio
4K/60, 4K/59.94, 4K/50, 4K/30, 4K/29.97, 4K/25, 1080p/60, 1080p/59.94, 1080p/50, 1080p/30, 1080p/29.97, 1080p/25, 1080i/60, 1080i/59.94, 1080i/50, 720p/60, 720p/59.94, 720p/50 1.4 lux (IRE50, F2.8, 30fps) ≥ 50 dB
Gain TV Line Shutter Speed
Auto, Manual 1600 (Center) 1/4 to 1/10,000 sec
Exposure Control White Balance Optical Zoom
Auto, Manual, Priority AE (Shutter, IRIS), BLC, WDR Auto, Manual, ATW, One Push, Indoor, Outdoor 19X
Digital Zoom Total Zoom Viewing Angles
12X 228X DFOV: 77.8° (Wide) to 4.5° (Tele)
HFOV: 69.5° (Wide) to 3.5° (Tele)
VFOV: 41.5° (Wide) to 2.3° (Tele)
Focal Length Aperture (Iris) Minimum Working Distance
f = 9.79 mm (Wide) to 186.39 mm (Tele) F = 2.8 (Wide) to 4.5 (Tele) 1.5 m (Wide), 5.0 m (Tele)
Pan / Tilt Angles Pan / Tilt Speed (Manual) Preset Speed
Pan: ±170°, Tilt: +90° / -30° Pan: 0.05° to 100° / sec, Tilt: 0.05° to 100° / sec Pan: 200° / sec, Tilt: 200° / sec
Preset Positions Camera Control - Interface Camera Control - Protocols
10 (IR), 256 (RS-232 / RS-422 / IP) RS-232 (DIN8), RS-422 (RJ45), IP, USB VISCA (RS-232 / RS-422 / IP), PELCO-D & PELCO-P (RS-232 / RS-422), CGI (IP), USB, ONVIF;
Image Processing Power Frequencies
Noise Reduction (2D / 3D), Flip, Mirror, WDR, BLC 50 Hz, 60 Hz

AI Technology

Auto Tracking Modes AI Feature
Presenter Mode, Zone Mode, Hybrid Mode Multi-Presenter Detection

Privacy Protection Mechanisms

Protection Mode
Sleep Mode

Audio

Channel Codec Sample Rates
2ch Stereo AAC-LC (48 K) 48 KHz

Interface

Video Outputs Audio Outputs Audio Inputs
12G-SDI x 2, HDMI, IP, USB 12G-SDI x 2, HDMI, IP, USB Mic in, Line in, XLR
Genlock Input
BNC

General

Power Requirement Power Consumption PoE
AC 100 - 240V to DC 12V/5A 32.4W PoE++
Dimensions (W x H x D) Net Weight Application
202.5 x 304.5 x 231.5 mm 4.3 (±0.1) kg Indoor
Tally Lamp Security Remote Control
Yes Kensington Slot Infrared
Operating Conditions Storage Conditions Sustainability
Temperature: 0 °C to +40 °C ; Humidity: 20% to 80% Temperature: -20 °C to +60 °C ; Humidity: 20% to 95% Plastic Material: ABS
Sustainability Method: PCR-PC

IP Streaming

Resolution Network Video Compress Formats Network Audio Compress Formats
4K 60fps H.264, H.265, MJPEG AAC-LC (48 K)
Maximum Frame Rate Bit-Rate Control Modes Range of Bit-Rate Setting
4K 60fps VBR, CBR (selectable) 512 Kbps to 64 Mbps
Network Interface Multi-Stream Capability Network Protocols
10 / 100 / 1000 Base-T 4K 60fp
Standard Mode, Zoom Mode, NDI® Mode: 5 (RTSP, HDMI, USB, 12G-SDI, & NDI®)
Teams Mode: 1 (USB)		 IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, HTTPS, DHCP, RTP / RTCP, RTSP, RTMP, SRT, HLS, NDI, LLDP, VISCA over IP, ONVIF
NDI®HX3 NDI®Embedded Bridge Dante AV-H
Yes (Pre-installed) Yes Yes (Available in 2025Q3)
Camera Tracking Data Output
Supports Free-D Type D0 / D1

USB

Connector Video Format Audio Format
USB 3.2 Gen 1 USB 3.2 Gen 1 PCM
Maximum Video Resolution USB Video Class (UVC) USB Audio Class (UAC)
4K UVC 1.1 UAC 1.0

Web UI

Live Video Preview Camera PTZ Control Camera/Image Adjustment
Yes Pan, Tilt, Zoom, Focus, Preset Control Exposure, White Balance, Picture
Network Configuration Supported Web Browsers
DHCP, IP Address, Gateway, Subnet Mask, DNS Chrome, Edge, Safari

Software Tools

Device Utility Enterprise Management Room Management
Supports Windows®7 or later, macOS® 10.14 or later Supports Windows® 10 or later Supports Windows® 7 or later, macOS® 11.6 or later
Cloud Management PTZ Control Pane PTZ Link
Supports Windows® 7 or later, macOS® 10.14 or later Supports iOS & iPadOS® 11 or later Supports Windows® 7 or later, macOS® 10.14 or later
OBS Plugin for PTZ Cameras CaptureShare
Supports Windows® 8 or later, macOS® High Sierra v10.13 or later Supports Windows® 7 or later, macOS® 10.14 or later

Warranty

Camera Accessories Package Contents
5 Years 1 Year Camera, Remote Control, RS-232 In/Out Cable, Din 8 To D-Sub 9 Cable, Power Adapter, Power Cord, Cable Tie (x7), M2 x 4 mm Screws (x6), M3 x 6 mm Screws (x3), 1/4""-20L 6.5mm Screws (x2), Cable Fixing Plate (x3), Ceiling Mount Brackets (x2), Drilling Paper, Quick Start Guide
Optional Accessories
AVer CL01 PTZ Camera Controller, L-Type Wall Mount

Ordering info

Part number
PATR615V1
