Description

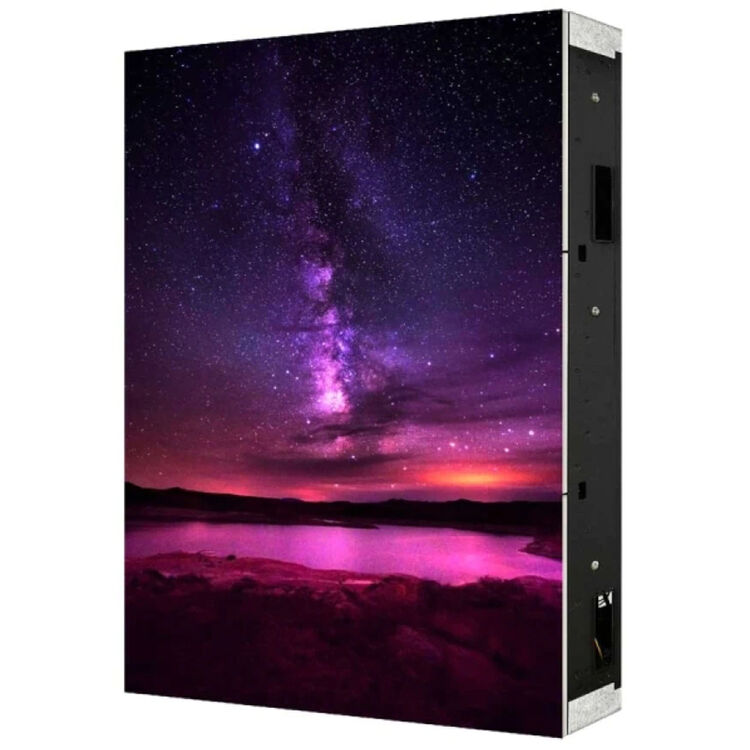

The LG LAD033FB7B5 is a secondary cabinet for the LG LADF Series LED Cinema screen, with a 3.3 mm SMD pixel pitch. A full DCI 4K (4,096 x 2,160) screen uses 176 cabinets and measures 14 x 7 m (623-inch diagonal). Each 640 x 900 mm aluminum cabinet holds six 320 x 300 mm modules (2 x 3) for a resolution of 192 x 270 per cabinet. It delivers DCI-compliant performance: 48 nits of brightness, a minimum 4,000:1 contrast ratio, the DCI-P3 color gamut and 12-bit color depth. Because each LED emits light individually, brightness stays uniform across the screen without the dimming or fading of projector-based systems, and no projection room is needed. It is compatible with the Dolby IMS3000 media server, rated for 100,000 hours to half brightness, and designed for 16 hours a day, 7 days a week operation.
Technical Specifications:
| Specification | Details |
|---|---|
| Brand | LG |
| MPN | LAD033FB7B5 |
| Series | LADF Series (LG LED Cinema) |
| Cabinet Type | Secondary cabinet |
| EAN | 8806091042354 |
| Pixel Pitch | 3.3 mm |
| LED Type | SMD |
| Pixels per LED Module | 8,640 |
| Aspect Ratio (per Cabinet) | 64:90 |
| Resolution (per Cabinet) | 192 x 270 |
| Pixels (per Cabinet) | 51,840 |
| Pixel Density | 90,000 pixels/m² |
| Frame Rate | 24, 25, 30, 48, 50, 60 Hz |
| Brightness (After Calibration) | 48 nits (DCI-compliant) |
| Contrast Ratio | 4,000:1 (minimum) |
| Color Gamut | DCI-P3 (DCI-compliant) |
| Viewing Angle (H, V) | 120°, 120° |
| Color Depth | 12-bit (DCI-compliant) |
| Chromaticity Uniformity (White) | Within ±0.015 x, ±0.015 y |
| White Point | (x, y) = (0.314, 0.351), DCI-P3 theater |
| Primaries (R / G / B) | R (0.68, 0.32) / G (0.265, 0.690) / B (0.15, 0.06) |
| Lifetime | 100,000 hours (to half brightness) |
| Operation Hours | 16 hours per day, 7 days per week |
| Modules per Cabinet | 6 (2 x 3) |
| Module Dimensions | 320 x 300 mm |

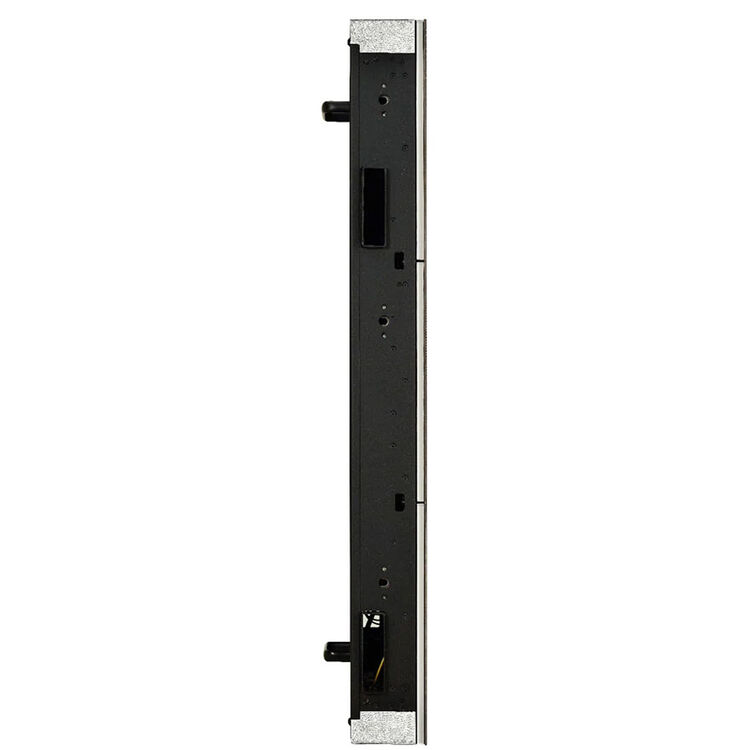

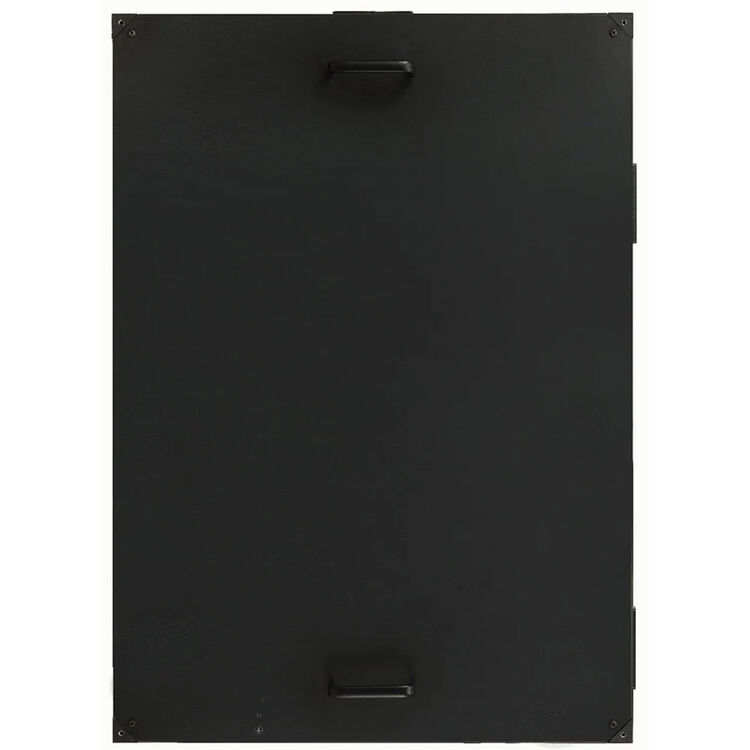

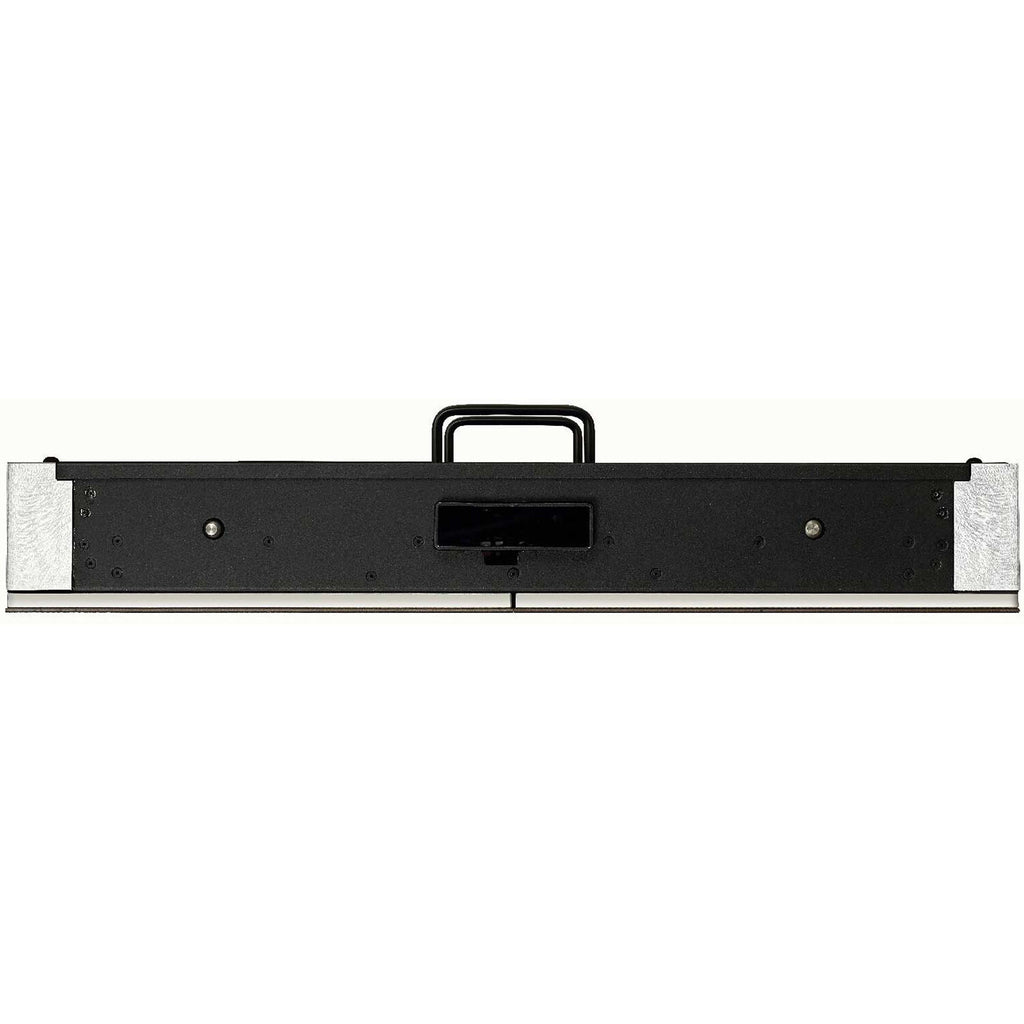

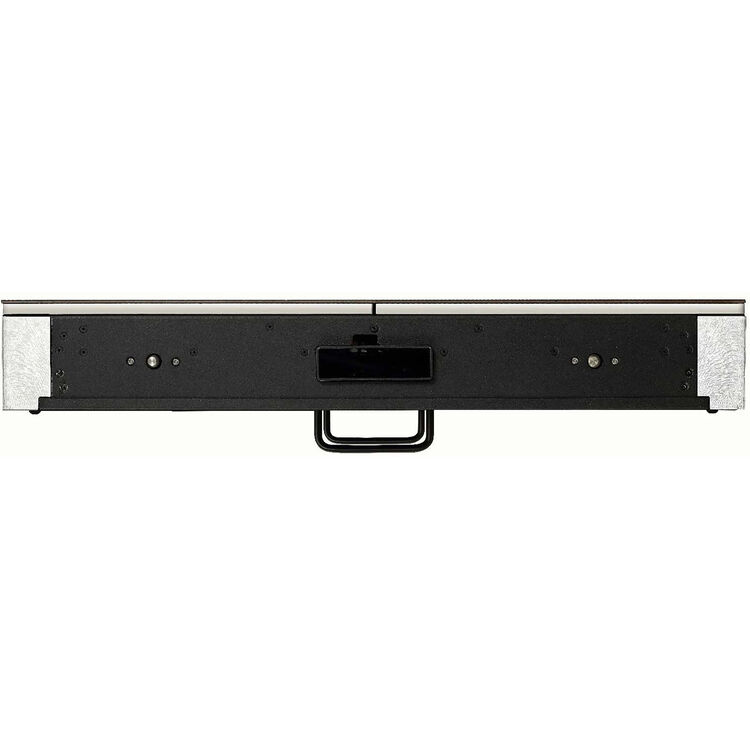

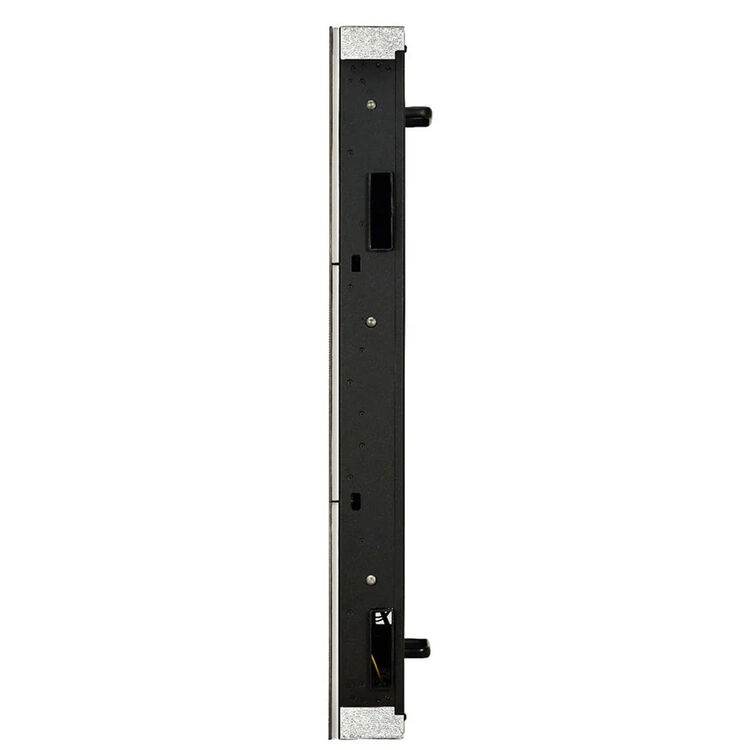

| Cabinet Dimensions (W x H x D) | 640 x 900 x 124 mm (including handle) |
| Weight per Cabinet | 15 kg |
| Cabinet Material | Aluminum |
| Heat Generation (per Cabinet) | 221 BTU (max.) / 73 BTU (typ.) |
| Serviceability | Rear only |
| Power Supply | AC 100 to 240 V, 50/60 Hz, built-in power |
| Max Power Consumption | 52 W (secondary cabinet) |
| Interface | RJ45 |
| Supported Media Server | Dolby IMS3000 |
| Certifications | DCI, CB, CE-LVD/EMC, FCC, ETL/UL, RoHS, REACH |
| Operating Temperature | 0°C to 40°C |
| Operating Humidity | 10% to 80% |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
| Storage Humidity | 5% to 85% |
| Reference 4K Screen | 176 cabinets, 4,096 x 2,160, 14 x 7 m (623") |
