Description

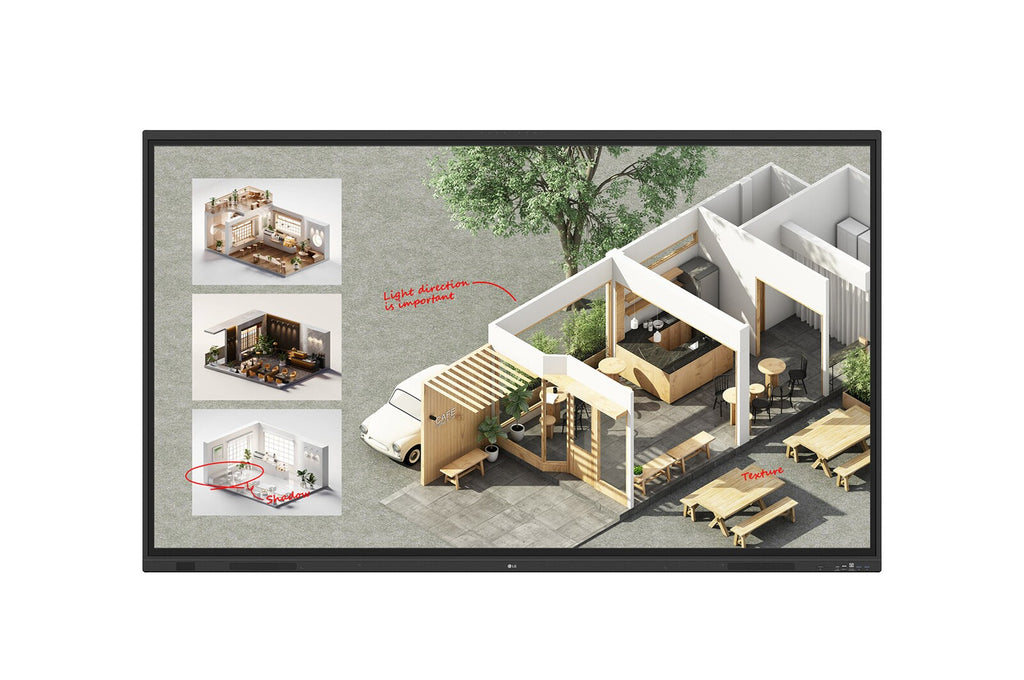

The LG CreateBoard Standard 86TR3DQ-B is an 86-inch 4K UHD interactive whiteboard built for classrooms, meeting rooms, training spaces, and collaborative work environments. With a large IPS touchscreen, 3840 x 2160 resolution, 400-nit brightness, anti-glare glass, and up to 50 simultaneous touchpoints, it delivers a smooth, responsive writing and presentation experience for group collaboration.
Powered by Android 14 with 8GB RAM and 64GB internal memory, this CreateBoard supports modern teaching, conferencing, and digital content workflows. Its wide connectivity options include HDMI, DisplayPort, USB-C, USB-A, VGA, LAN, RS-232C, Wi-Fi 6E, and Bluetooth 5.3, making it easy to connect laptops, peripherals, network systems, and room control devices.
| Attribute | Details |
|---|---|
| Brand | LG |
| Product Line | CreateBoard Standard |
| Display Size | 86 inches |
| Display Resolution | 3840 x 2160 UHD |
| Display Type | IPS Direct-LED Panel |
| Brightness | 400 cd/m² |
| Aspect Ratio | 16:9 |
| Contrast Ratio | 1200:1 typical, 5000:1 dynamic |
| Refresh Rate | 60 Hz |
| Response Time | 8 ms |
| Touch Technology | Multi-touch |
| Simultaneous Touch Points | Up to 50 points |
| Touch Response Time | 5 ms |
| Minimum Touch Object Size | 2 mm |
| Glass Thickness | 3.2 mm |
| Anti-Glare Screen | Included for improved visibility |
| Viewing Angle | 178° horizontal, 178° vertical |
| Operating System | Android 14 |
| Processor | ARM Cortex A73 + ARM Cortex A53 |
| Memory | 8GB RAM |
| Internal Storage | 64GB |
| Graphics | Mali-G52 MP8 |
| Built-In Speakers | 40W speaker output |
| Built-In Subwoofer | 20W RMS subwoofer |
| Wireless Connectivity | Wi-Fi 6E and Bluetooth 5.3 |
| Network Features | Ethernet LAN and Wake-on-LAN support |
| Video Inputs | 3 HDMI, 1 DisplayPort, 1 VGA |
| USB Connectivity | 5 USB 3.2 Gen 1 Type-A, 1 USB 2.0, 2 USB Type-C |
| Video Output | HDMI output |
| Audio Connectivity | Audio input, audio output, S/PDIF output |
| Control Connectivity | RS-232C and RJ-45 LAN |
| OPS Slot | Included |
| VESA Mounting | 800 x 600 mm |
| Wall Mountable | Supported |
| Product Color | Black |
| Power Consumption | 235W typical, 400W maximum, 0.5W standby |
| Input Voltage | 100-240V, 50/60Hz |
| Operating Temperature | 0°C to 40°C |
| Operating Humidity | 10% to 90% |
| Dimensions | 1957 mm W x 99.7 mm D x 1170 mm H |
| Weight | 54.1 kg |
| Included Accessories | HDMI cable, power cable, USB cable, remote control, stylus, manual, quick start guide |
| Sustainability Certifications | ENERGY STAR, EPEAT, ErP |
| Compliance | FCC, IEC 62368-1, UL 62368-1 |
| Recommended Use | Interactive classrooms, corporate collaboration, training rooms, conference spaces, and digital whiteboarding |
