Description

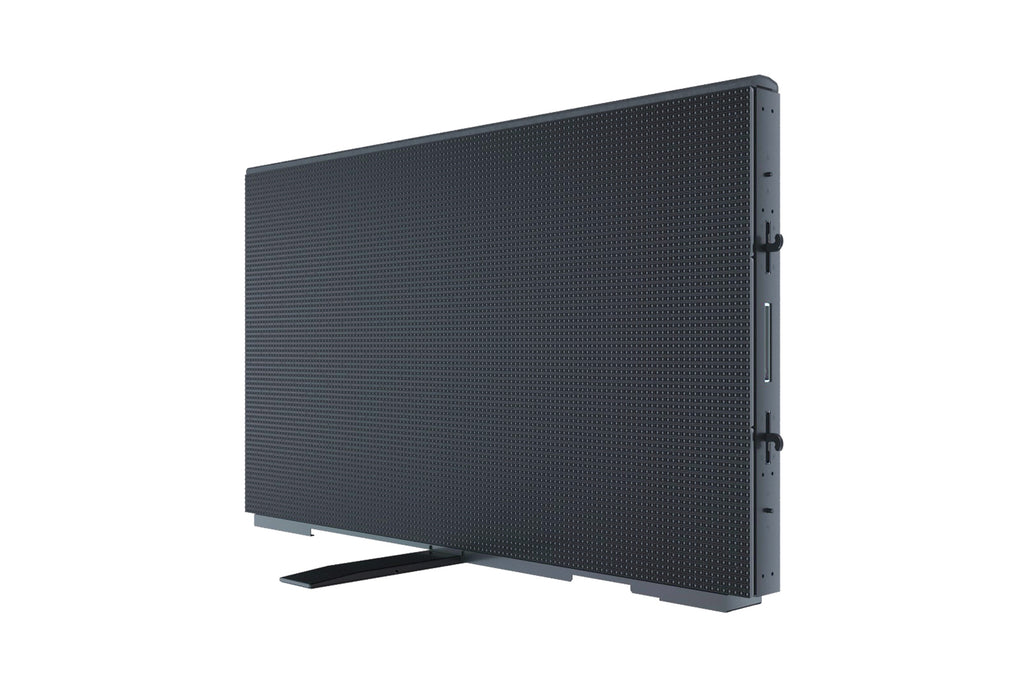

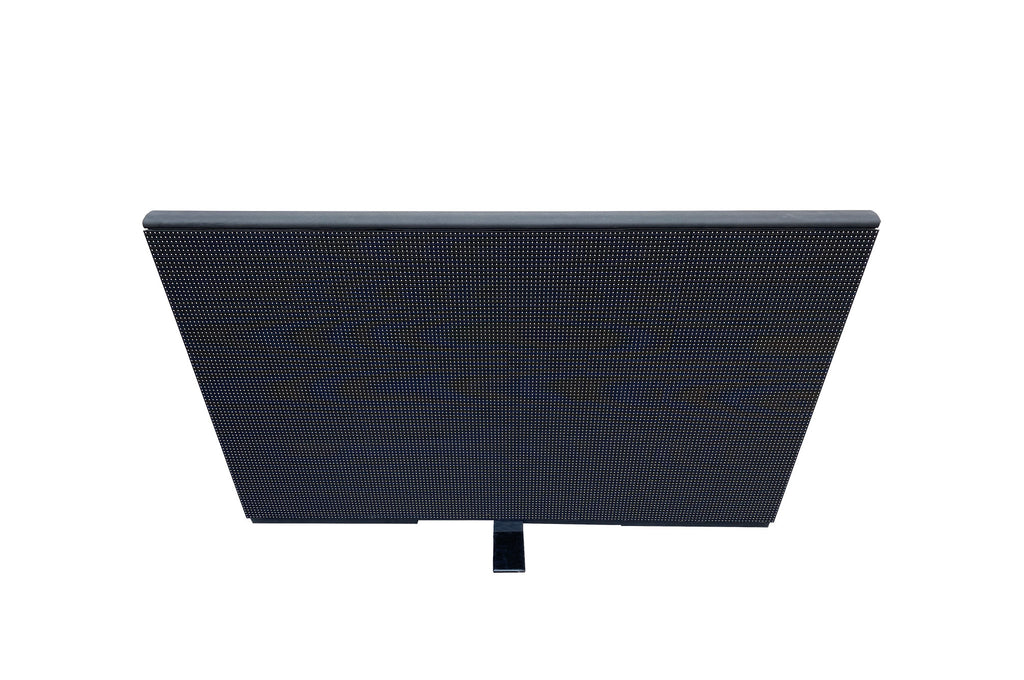

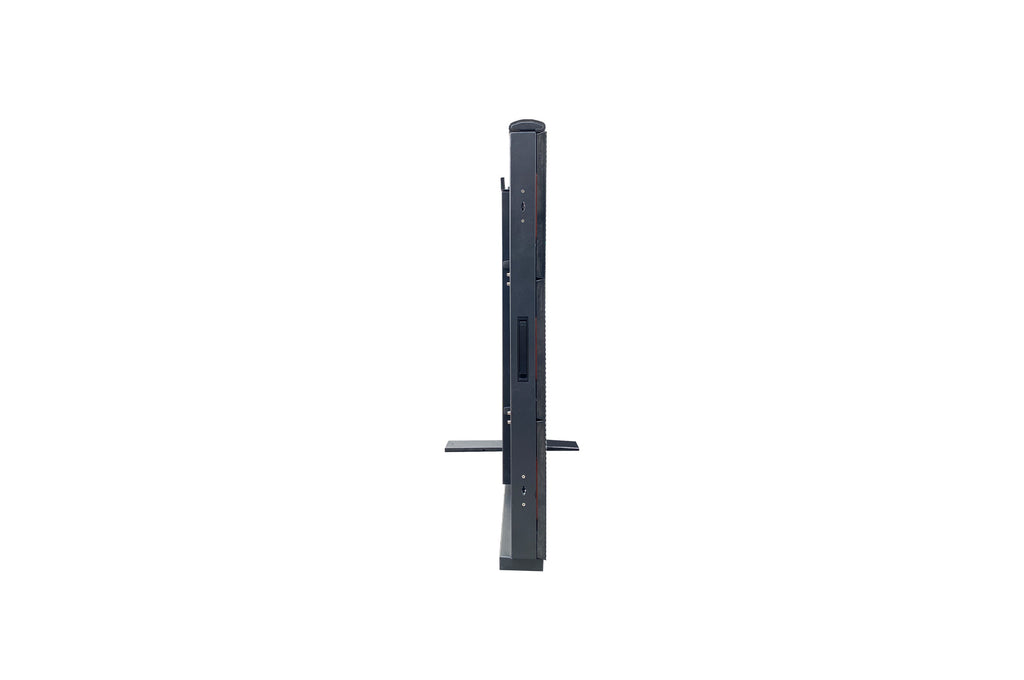

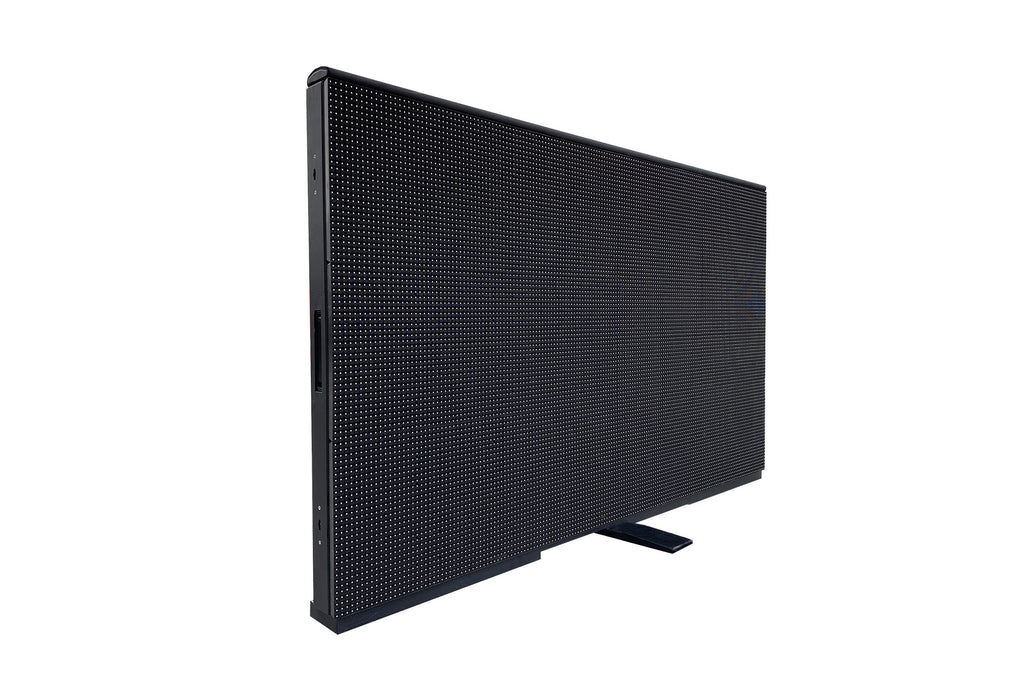

The LG GPPA062-GB is an outdoor stadium perimeter DVLED cabinet from the GPPA Series, with a 6.25 mm pixel pitch and single SMD pixels.
Display:

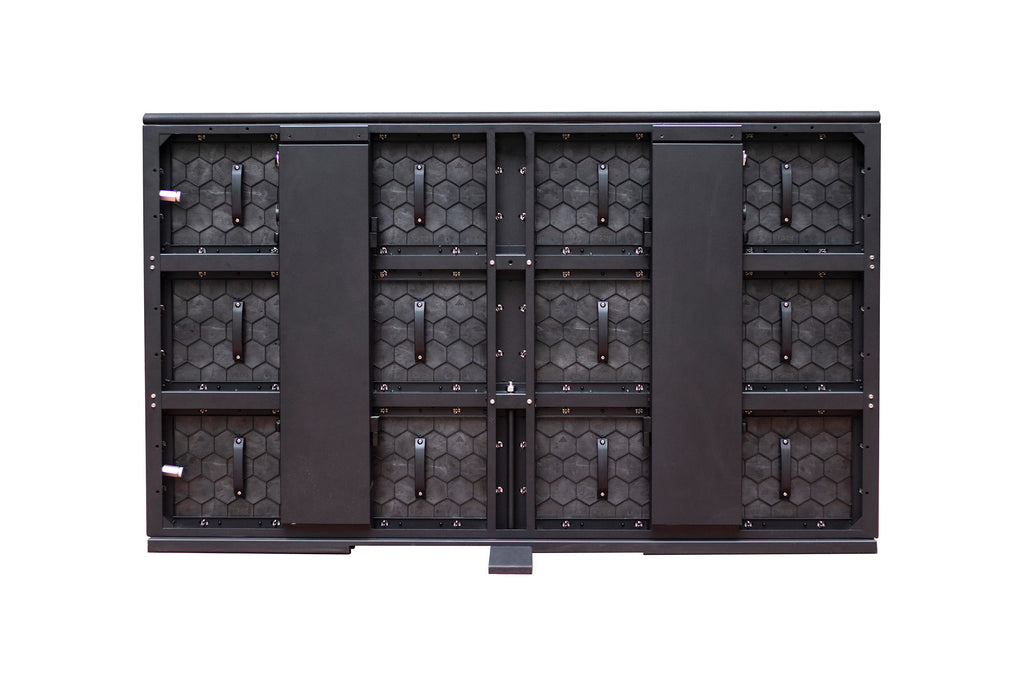

- The 1,600 x 660 x 120 mm aluminum cabinet holds eight 400 x 300 mm modules (4 x 2).
- It has a 1,600 x 600 mm screen area, a 256 x 96 resolution, and weighs 69.7 lbs.
- Up to 6,000 nits of brightness keeps content visible in direct sunlight.
- A 7,680 Hz refresh rate reduces black bars, blurring and flicker during video playback.
- 16-bit processing with HDR10 and HDR10 Pro, and a 6,000:1 contrast ratio.
Stadium design:
- Built to meet the LED technical specification requirements UEFA announced as of July 2024.
- Protective elements, including an EVA top, a rubber louver and cushioning, help protect players.
Durability, service and control:
- Rated IP65 front and IP54 rear, with front and rear service access.
- Works with the LG CVGA system controller.
Technical Specifications:
| Specification | Details |
|---|---|
| Brand | LG |
| MPN | GPPA062-GB |
| Series | GPPA Series (Outdoor Perimeter) |
| Pitch Name | P6.2 |
| Pixel Configuration | Single SMD |
| Pixel Pitch | 6.25 mm |
| Module Resolution (W x H) | 64 x 48 |
| Module Dimensions (W x H) | 400 x 300 mm (15.7 x 11.8 in) |
| Weight per Module | 1.46 kg (3.2 lbs) |
| Modules per Cabinet (W x H) | 4 x 2 |
| Cabinet Resolution (W x H) | 256 x 96 |
| Cabinet Dimensions (W x H x D) | 1,600 x 660 x 120 mm (62.9 x 25.9 x 4.7 in) |
| Screen Area (W x H) | 1,600 x 600 mm |
| Cabinet Surface Area | 0.96 mΒ² (10.3 ftΒ²) |
| Weight per Cabinet | 31.6 kg (69.7 lbs) |
| Weight per Unit Area | 29.95 kg/mΒ² (6.1 lb/ftΒ²) |
| Physical Pixel Density | 25,600 pixels/mΒ² |
| Cabinet Flatness | Β±0.5 mm |
| Cabinet Material | Aluminum |
| Service Access | Front and rear |
| Max Brightness (After Calibration) | Up to 6,000 nits |
| Color Temperature | 3,200 to 9,300 K (default 6,000 K) |
| Viewing Angle (H x V) | 160Β° x 120Β° |
| Brightness Uniformity | 97% |
| Color Uniformity | Β±0.003 Cx, Cy |
| Contrast Ratio | 6,000:1 |
| Processing Depth | 16-bit (HDR10, HDR10 Pro) |
| Max Power Consumption | 720 W |
| Avg. Power Consumption | 240 W |
| Max Power Consumption per mΒ² | 750 W/mΒ² |
| Power Supply | 100 to 240 VAC |
| Frame Rate | 50 / 60 Hz |
| Refresh Rate | 7,680 Hz |
| Lifetime (Half Brightness) | 100,000 hours |
| Operating Temperature | -20Β°C to 50Β°C (-4Β°F to 122Β°F) |
| Operating Humidity | 10% to 90% RH |
| IP Rating (Front / Rear) | IP65 / IP54 |
| Certifications | CE, CB, BS476 Part 7 Class 1, EN 13501-1 Class B |
| Environmental | RoHS, REACH |
| Controller | CVGA |
| 90Β° Corner Cut | No |
| Warranty | 3-year limited |
