Description

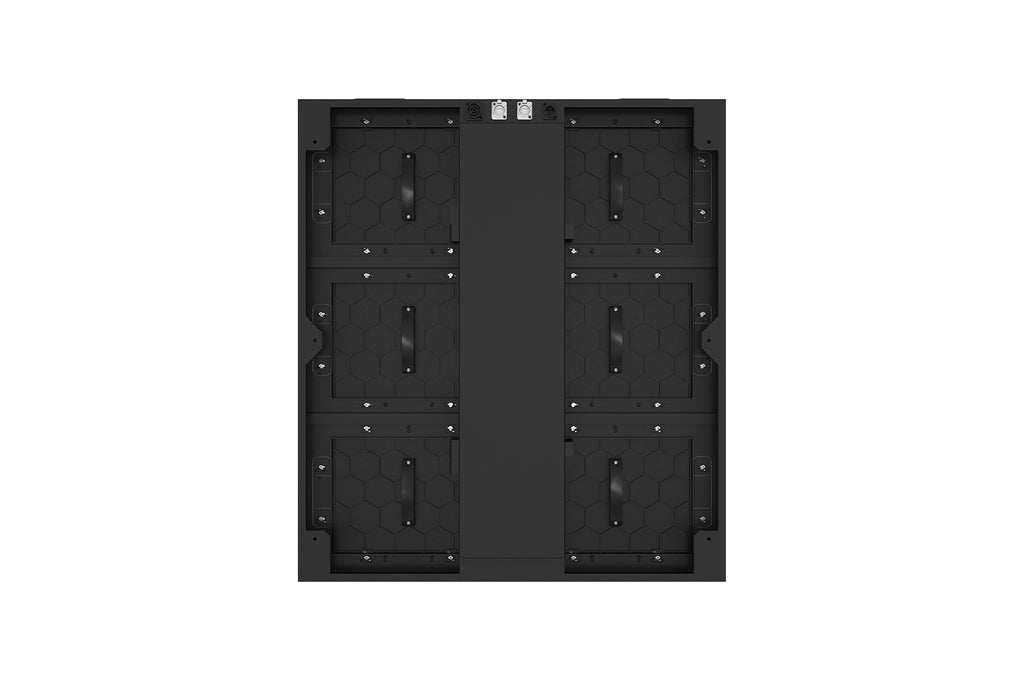

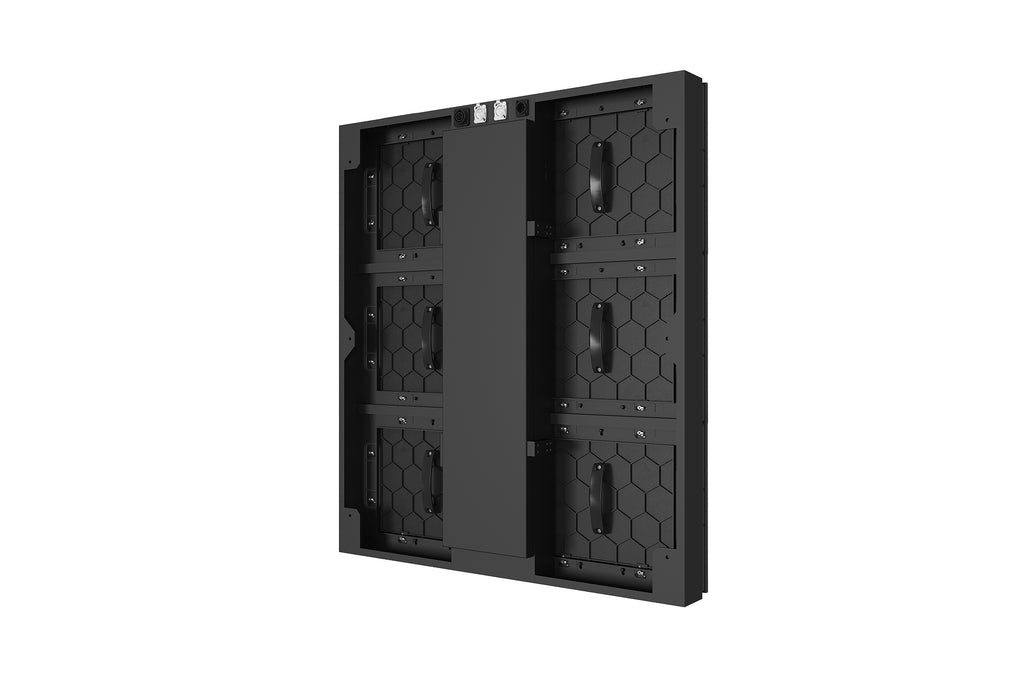

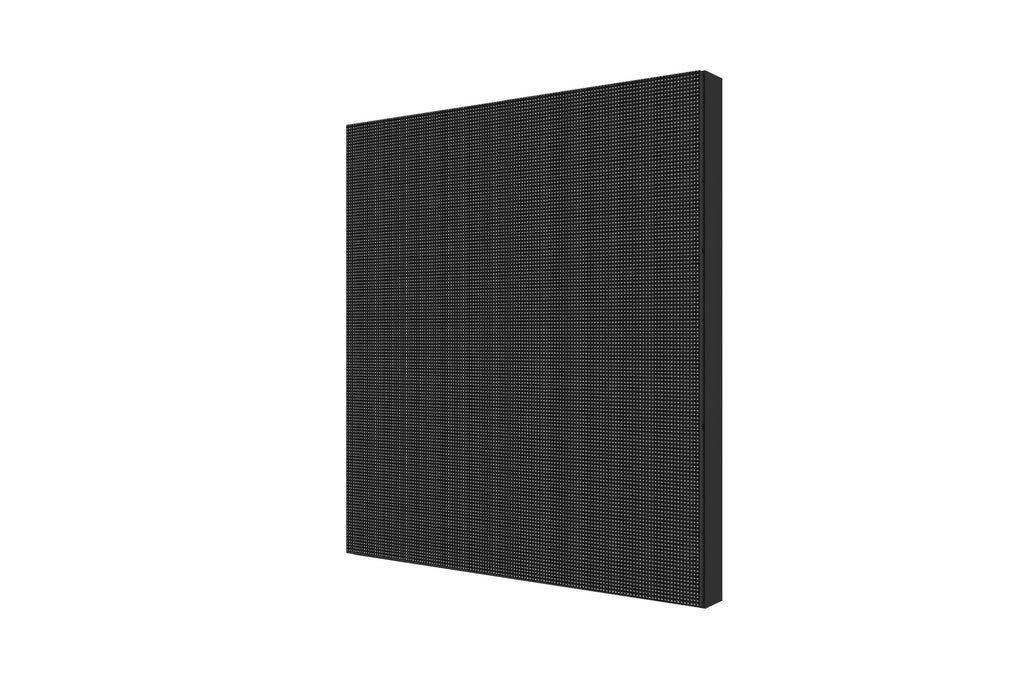

The LG GRPA062-GA is an outdoor stadium ribbon LED cabinet from the GRPA series, with a 6.25 mm pixel pitch and single SMD pixels. Its brightness of up to 6,000 nits keeps content visible even in direct sunlight, and its 7,680 Hz refresh rate minimizes black bars, blurring and flicker during video playback. Each 800 x 900 mm aluminum cabinet holds six 400 x 300 mm modules (2 x 3) for a resolution of 128 x 144 and weighs 20 kg. Its top-down service access streamlines installation and maintenance in stadium environments. It delivers a 6,000:1 contrast ratio and 16-bit processing with HDR10 and HDR10 Pro, is IP65 / IP54 rated, and operates from -20Β°C to +50Β°C. It works with the LG CVGA controller.
Technical Specifications:
| Specification | Details |
|---|---|
| Brand | LG |
| MPN | GRPA062-GA |
| Series | GRPA Series (Outdoor Stadium Ribbon) |
| Pitch Name | P6.2 |
| Pixel Configuration | Single SMD |
| Pixel Pitch | 6.25 mm |
| Module Resolution (W x H) | 64 x 48 |
| Module Dimensions (W x H) | 400 x 300 mm (15.7 x 11.8 in) |
| Weight per Module | 1.46 kg (3.2 lbs) |
| Modules per Cabinet (W x H) | 2 x 3 |
| Cabinet Resolution (W x H) | 128 x 144 |
| Cabinet Dimensions (W x H) | 800 x 900 mm (31.5 x 35.4 in) |
| Cabinet Surface Area | 0.72 mΒ² (7.8 ftΒ²) |
| Weight per Cabinet | 20 kg (44.1 lbs) |
| Weight per Unit Area | 22.5 kg/mΒ² (4.6 lbs/ftΒ²) |
| Physical Pixel Density | 25,600 pixels/mΒ² |
| Cabinet Flatness | Β±0.5 mm |
| Cabinet Material | Aluminum |
| Service Access | Top |
| Max Brightness (After Calibration) | Up to 6,000 nits |
| Color Temperature | 3,200 to 9,300 K (default 6,000 K) |
| Viewing Angle (H x V) | 160Β° x 120Β° |
| Brightness Uniformity | 97% |
| Color Uniformity | Β±0.003 Cx, Cy |
| Contrast Ratio | 6,000:1 |
| Processing Depth | 16-bit (HDR10, HDR10 Pro) |
| Max Power Consumption | Up to 720 W |
| Avg. Power Consumption | 280 W |
| Max Power Consumption per mΒ² | 750 W/mΒ² |
| Max Heat Dissipation | 1,966 BTU/h |
| Avg. Heat Dissipation | 765 BTU/h |
| Max Heat Dissipation per mΒ² | 2,048 BTU/h/mΒ² |
| Power Supply | 100 to 240 VAC |
| Frame Rate | 50 / 60 Hz |
| Refresh Rate | 7,680 Hz |
| Lifetime (Half Brightness) | Up to 100,000 hours |
| Operating Temperature | -20Β°C to +50Β°C (-4Β°F to +122Β°F) |
| Operating Humidity | 10% to 90% RH |
| IP Rating (Front / Rear) | IP65 / IP54 |
| Regulatory | CE, CB, ETL, FCC, BS476 Part 7 Class 1, EN 13501-1 Class B |
| Environmental | RoHS, REACH |
| Controller | CVGA |
| 90Β° Corner Cut | No |
| Warranty | 3-year limited |
