Description

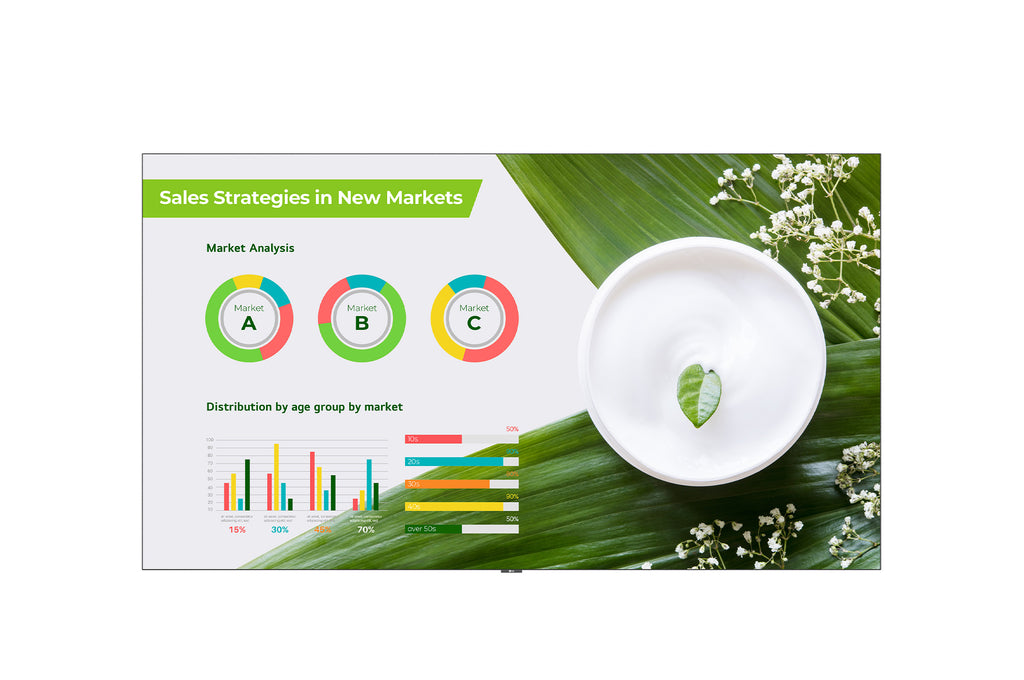

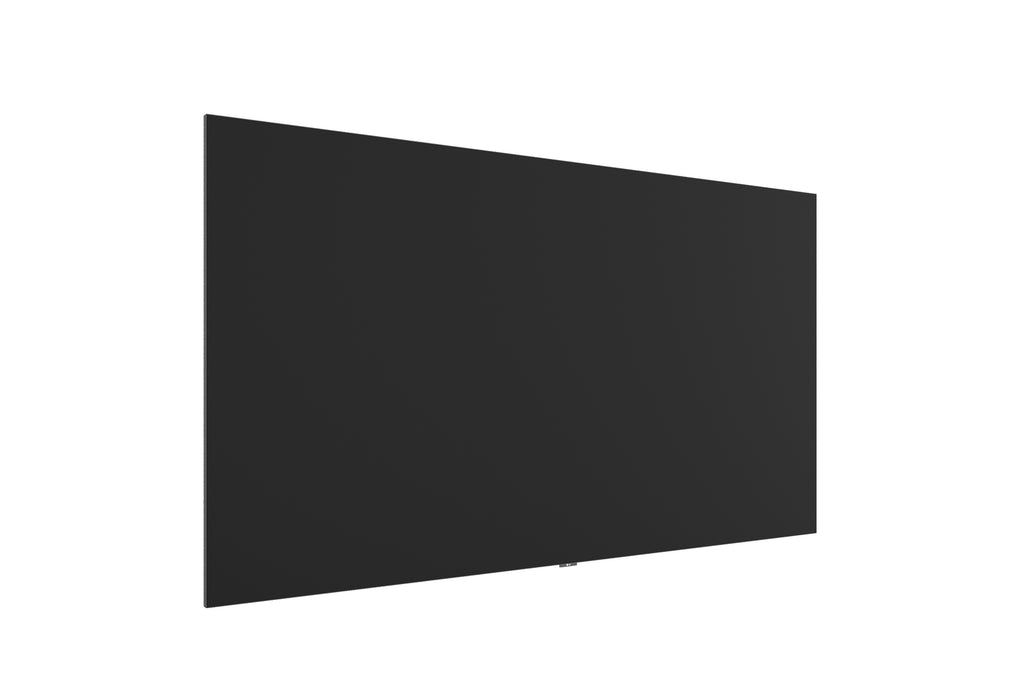

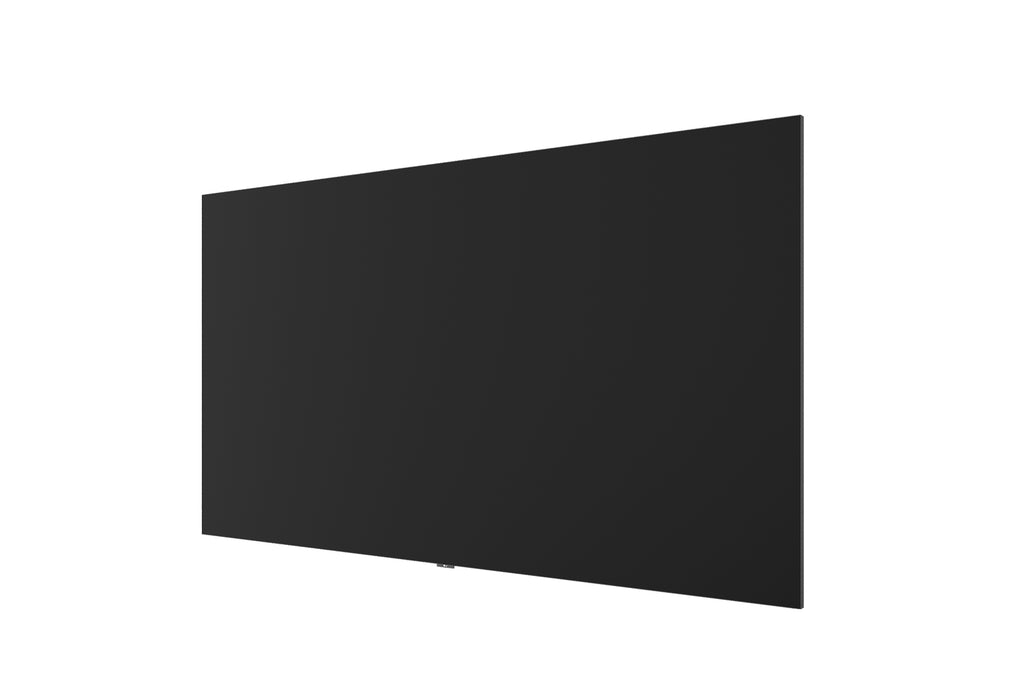

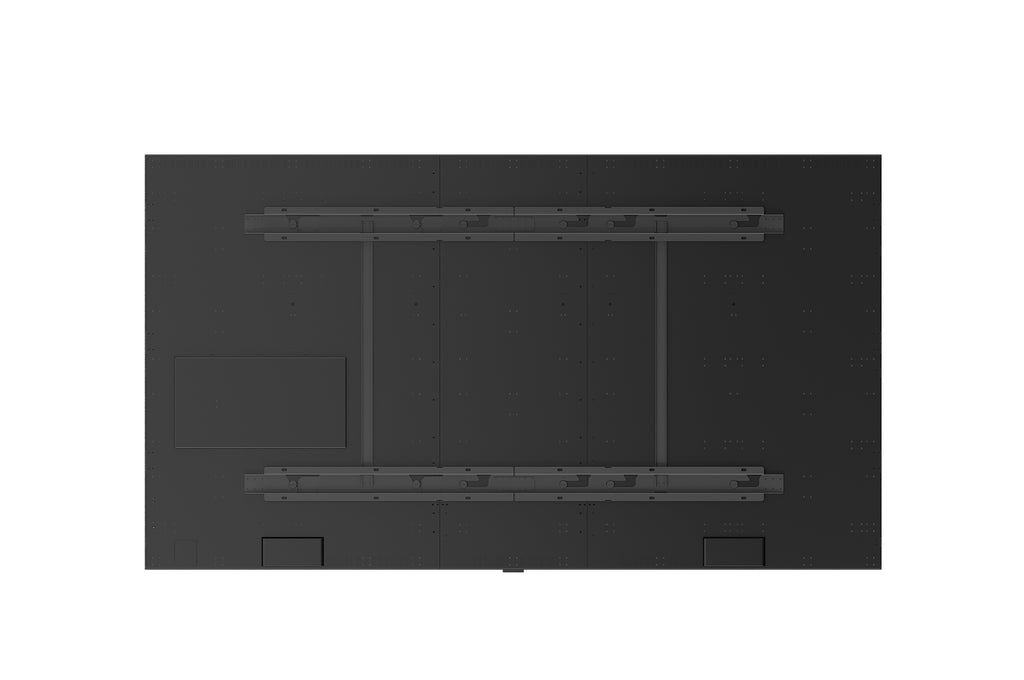

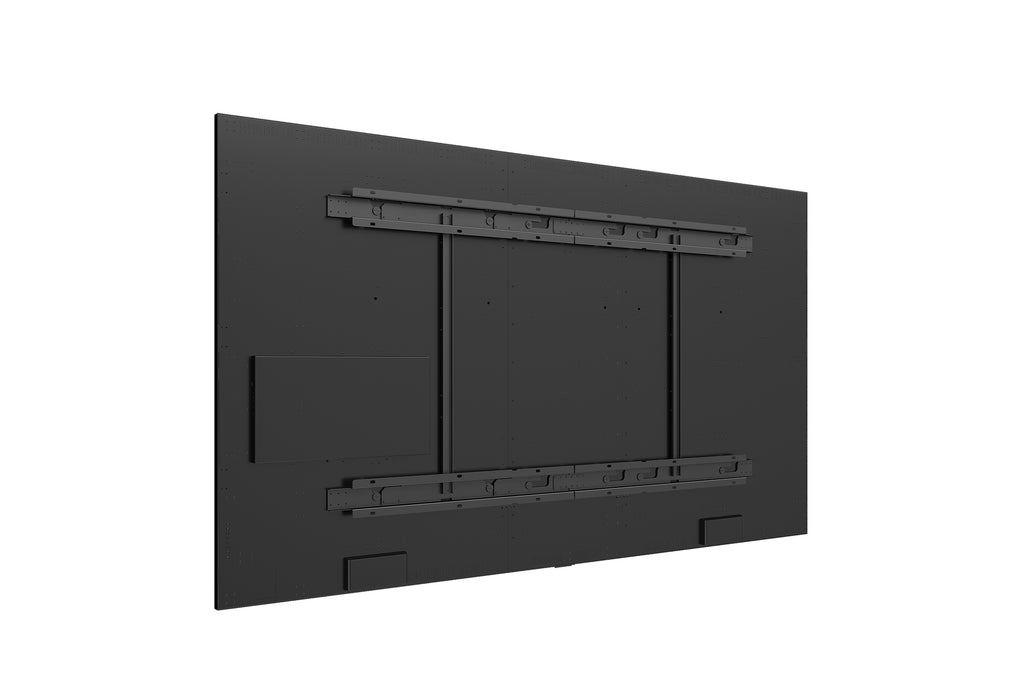

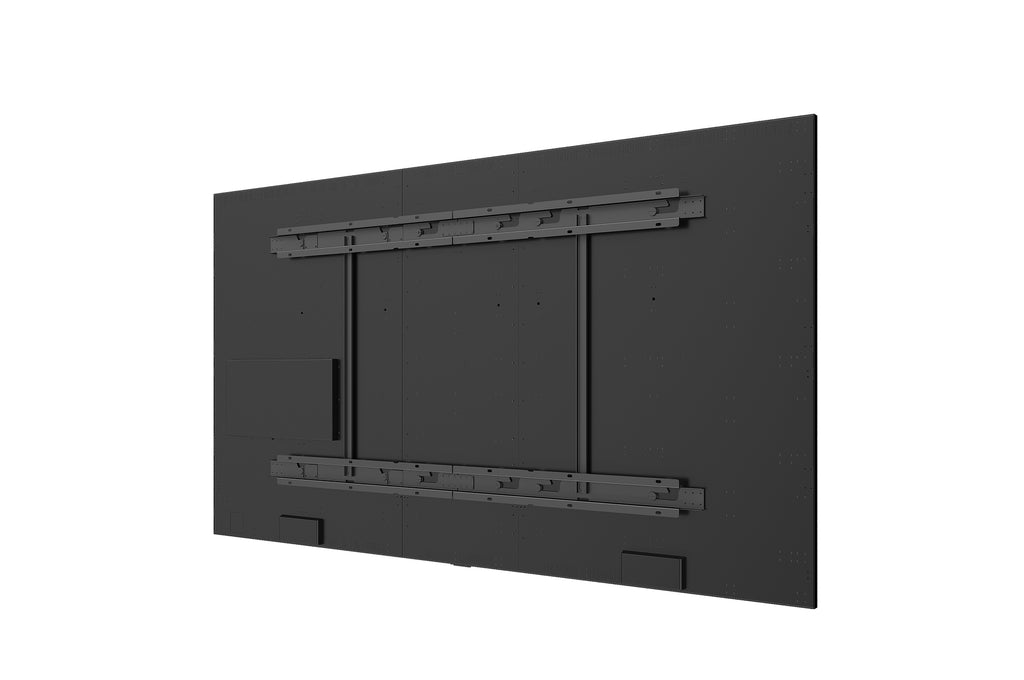

The LG LAPA163-GF is a 163-inch All-in-One LED display with a 1.88 mm pixel pitch, single SMD pixels and a 1,920 x 1,080 resolution. It comes with an embedded webOS controller and built-in speakers, so it needs no controller connections or module configuration. Installation takes three steps: secure the three cabinets, attach the LED modules, then plug in the power cable. A double AC cable keeps the power connections simple. The product is supplied with a landscape wall mount and installation tools. A dedicated stand is available separately, and up to 10 screens can be arranged side by side in a 1 x N configuration. The LED modules and system board can be serviced from the front, and modules detach with the supplied magnetic tool. A built-in quad-core SoC plays content without a separate media player.
Other features:
- Crestron Connected support (purchased separately).
- LG One:Quick Share wireless screen sharing (sold separately) over embedded Wi-Fi.
- Office Meeting Mode.
- Optional LG ConnectedCare remote management.
- BS476 Part 7 Class 1 flame-spread rating.
- Operation at altitudes up to 5,000 meters.
Technical Specifications:
| Specification | Details |
|---|---|
| Brand | LG |
| MPN | LAPA163-GF |
| Series | LAPA All-in-One LED Display |
| Screen Size | 163" |
| Pixel Configuration | Single SMD |
| Pixel Pitch | 1.88 mm |
| Module Resolution (W x H) | 160 x 90 |
| Module Dimensions (W x H) | 300 x 168.75 mm |
| Modules per Screen (W x H) | 12 x 12 (144 total) |
| Screen Resolution (W x H) | 1,920 x 1,080 |

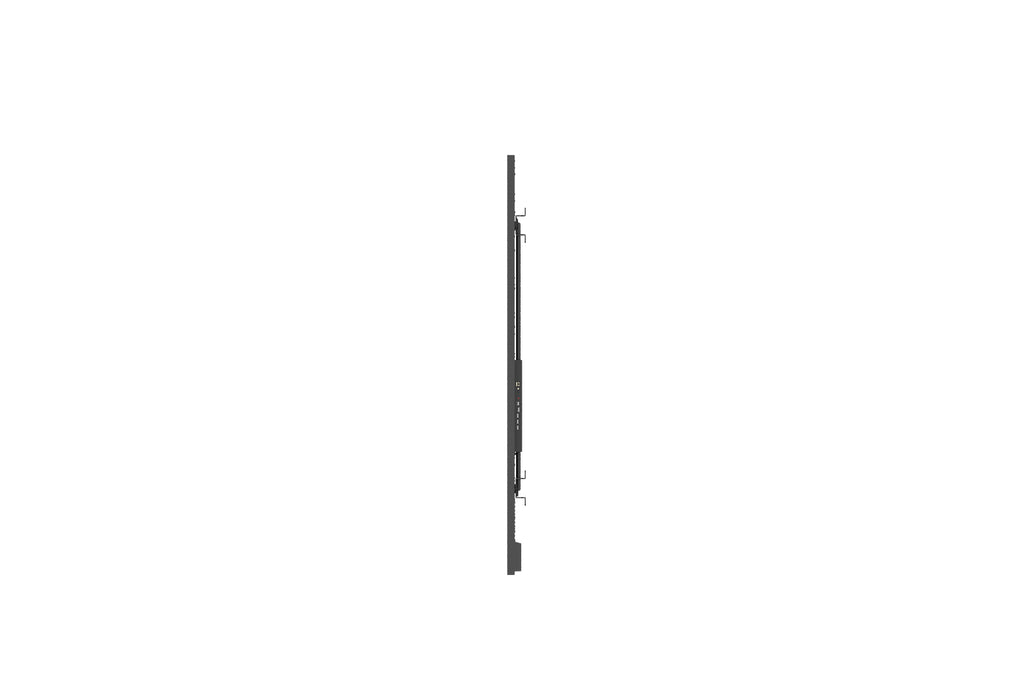

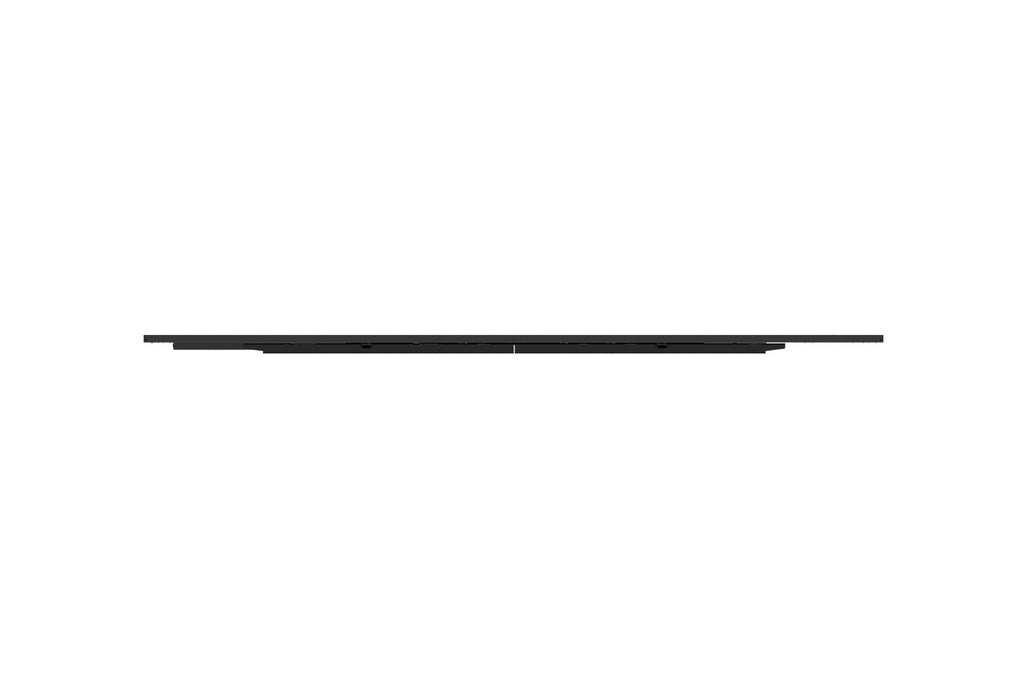

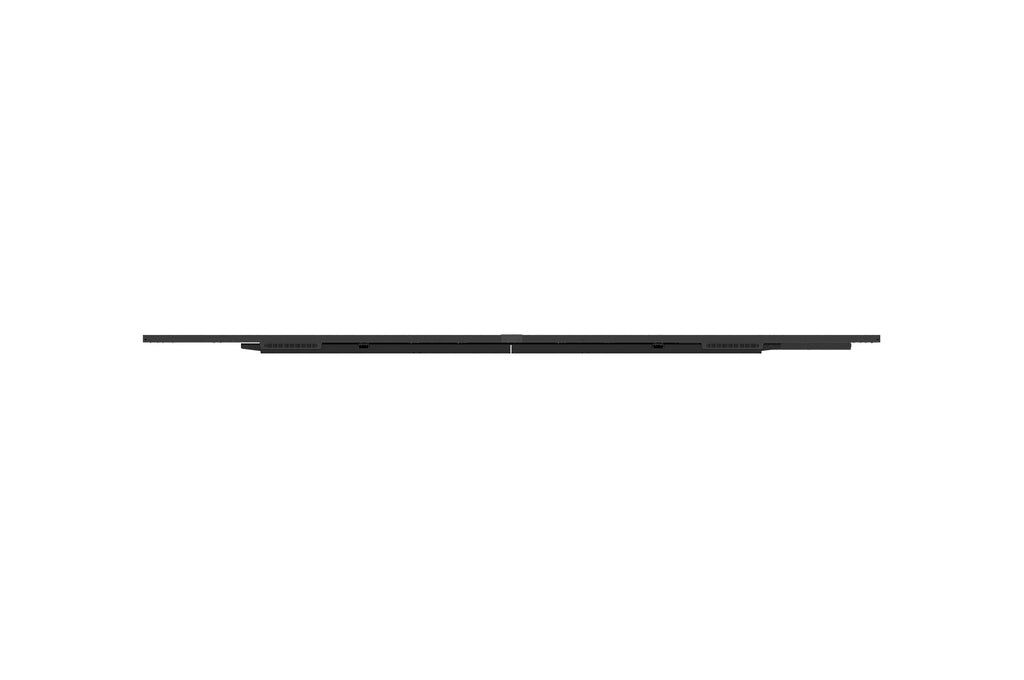

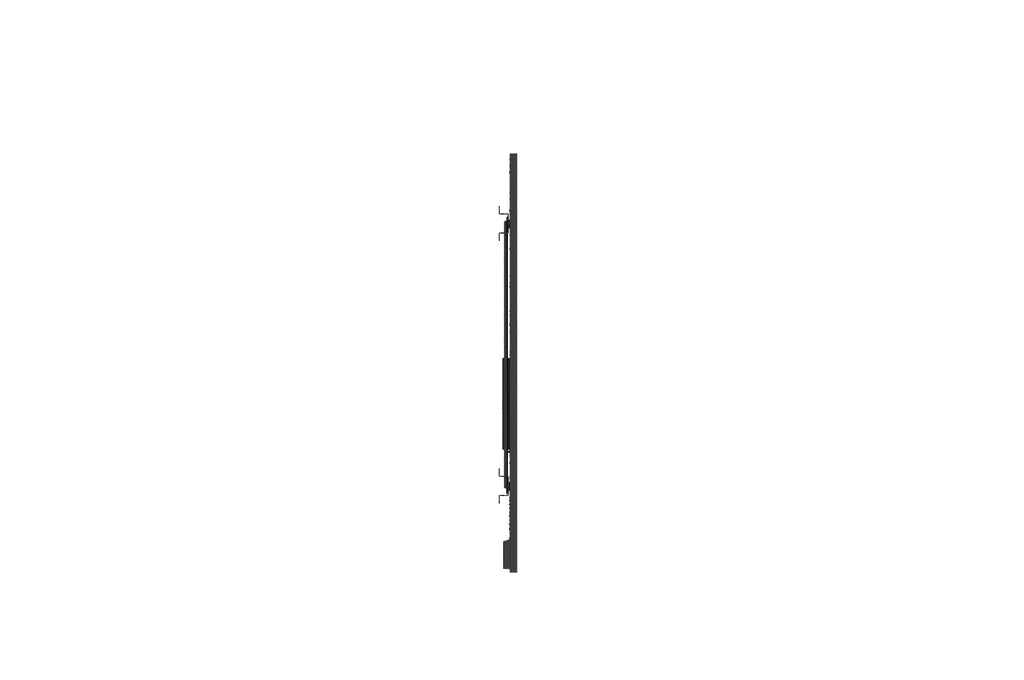

| Screen Dimensions (W x H x D) | 3,605 x 2,030 x 29.95 mm (thickest 59.5 mm) |
| Screen Surface Area | 7.29 mΒ² |
| Screen Weight | 155 kg |
| Physical Pixel Density | 284,444 pixels/mΒ² |
| Cabinet Material | Aluminum |
| Service Access | Front |
| Brightness (After Calibration) | 500 nits (typical) |
| Color Temperature | 3,200 to 9,300 K |
| Viewing Angle (H x V) | 150Β° x 150Β° |
| Brightness Uniformity | 98% |
| Color Uniformity | Β±0.015 Cx, Cy |
| Contrast Ratio | 3,000:1 |
| Processing Depth | 16-bit |
| Max Power Consumption per Screen | 2,000 W |
| Avg. Power Consumption per Screen | 750 W |
| Max Power Consumption per mΒ² | 275 W/mΒ² |
| Max Heat Dissipation per Screen | 6,825 BTU/h |
| Avg. Heat Dissipation per Screen | 2,560 BTU/h |
| Max Heat Dissipation per mΒ² | 939 BTU/h/mΒ² |
| Power Supply | 100 to 240 V |
| Frame Rate | 50 / 60 Hz |
| Refresh Rate | 3,840 Hz |
| Lifetime (Half Brightness) | 100,000 hours |
| Operating Temperature | 0Β°C to 40Β°C |
| Operating Humidity | 10% to 90% RH |
| IP Rating (Front / Rear) | IP30 / IP30 |
| Certifications | CE, FCC, ETL, CB, CE-RED, EMC Class A |
| Fire Protection | BS476 Part 7 Class 1, EN13501-1 (Class B-s1, d0) |
| Environmental | RoHS, REACH |
| Speakers | Built-in, 9 W + 9 W |
| Controller | Embedded (webOS) |
| I/O Ports | HDMI x3, DP x1, USB 2.0, LAN, RS-232C in/out, IR and light sensor, optical digital audio out (SPDIF) x1 |
| Wi-Fi / Bluetooth | Yes / No |
| Other | IR remote (in box), side by side 1 x N, HDCP 2.2, Crestron Connected |
