Description
KEY FEATURES
- Brightness(Typ.) : 4,000 cd/m²
- Bezel : 38.4 mm (T/B), 26.0 mm (L/R)
- Interface : HDMI/ DP/HDBaseT/USB/ Audio/ RS232C/ RJ45
- Anti-Reflection Coating
- IP56 Design, IK10 Protective Glass

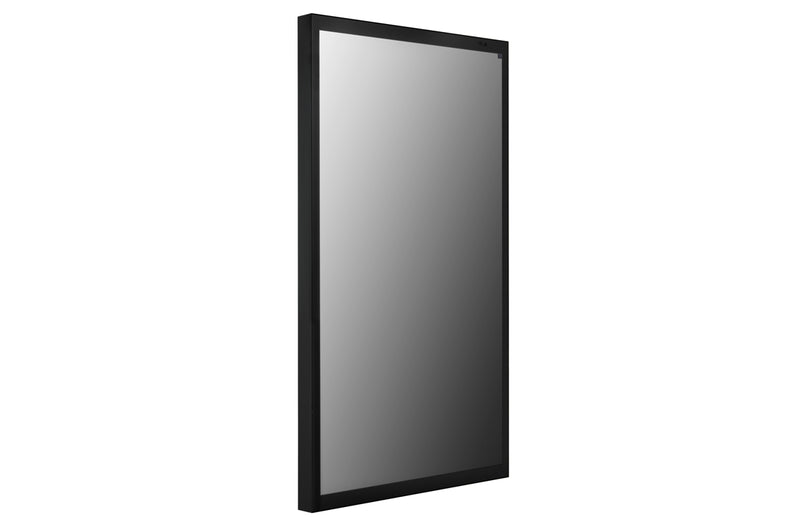

Slim & Robust Design with Outstanding Visibility
The slim & robust design of the XE4F-M series signage makes it easy to install, meeting the customer’s needs. This outdoor display can handle most environments and its high brightness will capture your customer’s attention, even under strong and direct sunlight.

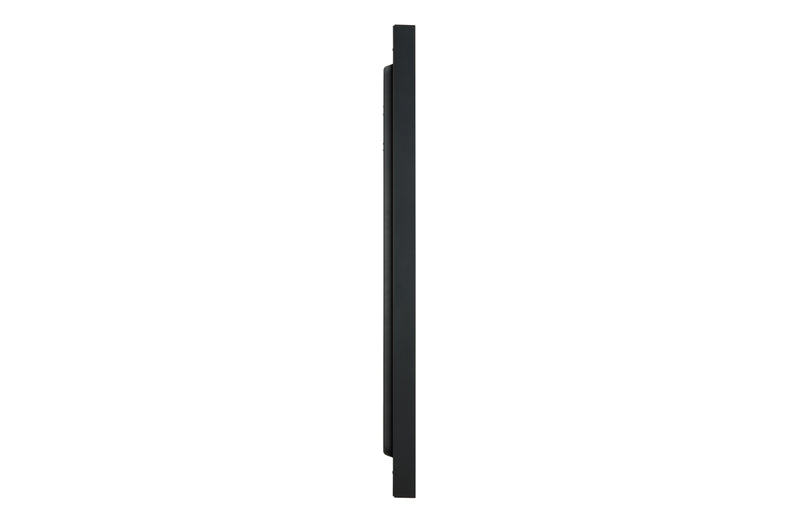

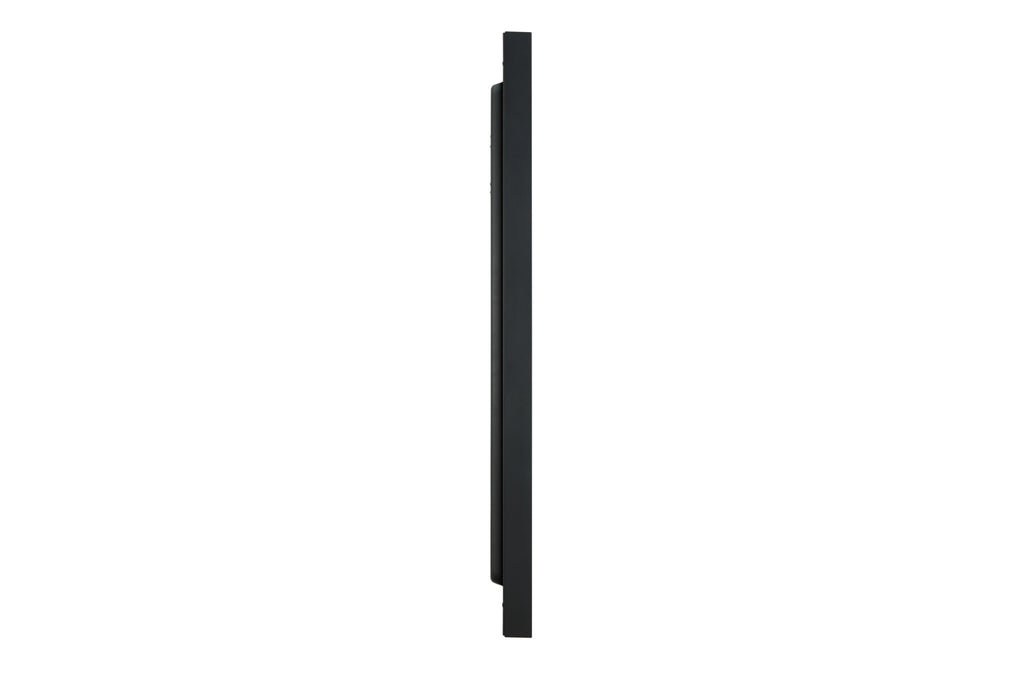

Slim & Light Design
The XE4F-M series is composed of a single display that has a light and slim design. It can be easily customized to suit various external environments with no need for separate casing.
Easy Integration & Customizable
The XE4F-M series outdoor displays are ready to be customized to meet your business needs. From outdoor menu boards to kiosks, the XE4F-M series signage are mount ready and optimized for customers, based on your industry and use.
OUTSTANDING VISIBILITY

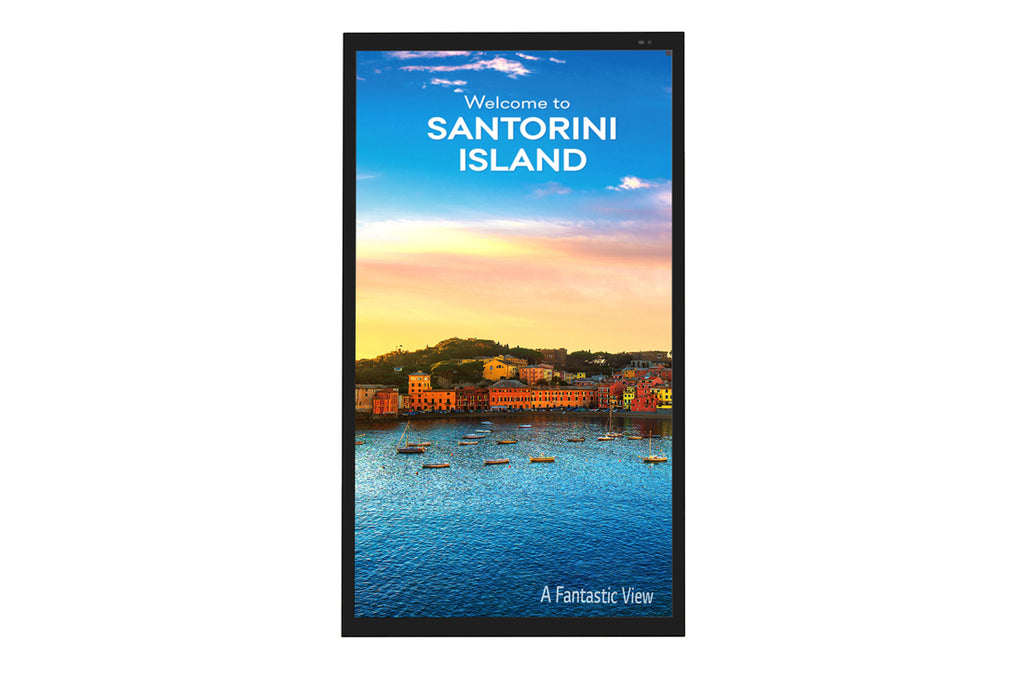

Bright & Brilliant
The XE4F-M series possess powerful brightness of 4,000nits, providing clear and vivid picture quality even under direct sunlight.
OUTSTANDING VISIBILITY
Wide Viewing Angle
IPS technology provides better control of the liquid crystals, which in turn allows the screen to be viewed at virtually any angle.
OUTSTANDING VISIBILITY
Long Lasting Brightness
By adding more LED units, XE4F operates brighter at a lower temperature, thereby lasting longer than conventional products.
OUTSTANDING VISIBILITY
Visible with Polarized Sunglasses
QWP* enables clear visibility even when the viewer is wearing polarized sunglasses.
* Quarter Wave Plate
RELIABILITY FOR OUTDOOR USAGE
Secured Protection with IP56 Design
The XE4F-M Series is IP56 protected. This means it is designed to withstand water and other weather like damaging effects of the sun, rain, snow, dust and wind. This is an essential feature for outdoor displays.
RELIABILITY FOR OUTDOOR USAGE
Protective Glass (IK10 Certified)
The tempered and laminated front glass ensures optimum protection from outdoor extremities, resulting in minimal to no damage from external impacts.
* The image is for illustrative purposes only,
* IK rating refers to the deqree of resistance against external impacts on a scale of 0 to 10. (10 indicates the highest level of protection.)
* IK rating refers to the deqree of resistance against external impacts on a scale of 0 to 10. (10 indicates the highest level of protection.)
EASY MAINTENANCE
Support HDBaseT ™
XE4F Series support HDBaseT ™, the global standard for the transmission of ultra-high definition video & audio, Ethernet, controls, USB and IR over a single, long-distance cable, for easier control of the display and saving installation and maintenance costs.
* XE4F Series don't support the power supply
EASY MAINTENANCE
Web Monitoring
This web-based monitoring solution is user-friendly and allows the user to be at ease. It enables the user to have full access anywhere at anytime from their mobile phone while having access to both current and past data. It allows the user to monitor the unit, make adjustments, and control the unit remotely in real time.
* The image is for illustrative purposes only
PANEL
-
- Screen Size
- 55
- Panel Technology
- IPS, M+(WRGB)
-
- Backlight Type
- Direct
- Aspect Ratio
-
- Native Resolution
- 1,920 x 1,080 (FHD, WRGB)
- Brightness (Typ., cd/m²)
- 4000
-
- Brightness (Min., cd/m²)
- 3200
- Contrast Ratio
- 1,000:1
-
- Dynamic CR
- 500,000:1
- Viewing Angle (H x V)
- 178 x 178
-
- Response Time
- Typ. 9ms (G to G BW)
- Surface Treatment (Haze, Quarter Wave Plate)
- Haze 3%, QWP
-
- Local dimming
- 48 Blocks
- Life Time (Typ.)
- 50,000 Hrs
-
- Operation Hours
- 24 Hrs
- Orientation
- Portrait & Landscape
CONNECTIVITY
-
- Input
- HDMI(2), DP, HDBaseT, USB(2)
- Output
- External Speaker Out(L/R)
-
- External Control
- RS232C In/Out, RJ45(LAN) In/Out
PHYSICAL SPECIFICATION
-
- Protection Glass
- 5mm(IK 10, Degree of Protection, Chemical Strengthening, Anti-Reflective)
- Bezel Color
- Black
-
- Bezel Width
- 38.4mm(T/B), 26.0mm(L/R)
- Monitor Dimension (W x H x D)
- 1,292.5 x 737.4 x 88.0 mm
-
- Weight (Head)
- 40kg
- Packing Dimensions (W x H x D)
- 1,446 x 890 x 207 mm
-
- Packed Weight
- 45kg
- Handle
- X
ENVIRONMENT CONDITIONS
-
- Operation Temperature
- -30°C to 50 °C
- Operation Humidity
- 5 % to 100 %
POWER
-
- Power Supply
- 100-240V~, 50/60Hz
- Power Type
- Built-In Power
POWER CONSUMPTION
-
- Typ./Max
- 310/390W
- Smart Energy Saving
- 170W
STANDARD(CERTIFICATION)
-
- Safety
- CB / NRTL
- EMC
- FCC Class "A" / CE / KCC
-
- ErP / Energy Star
- No / N/A
SOFTWARE COMPATIBILITY
-
- SuperSign
- Yes(CMS, Control)
- Signage365Care
- Yes
ACCESSORY
-
- Basic
- Remote Controller, Manual(EIG, IG , OM), Regulation Book, Phone to RS232C Gender, HDMI Cable , POWER CABLE
