Description

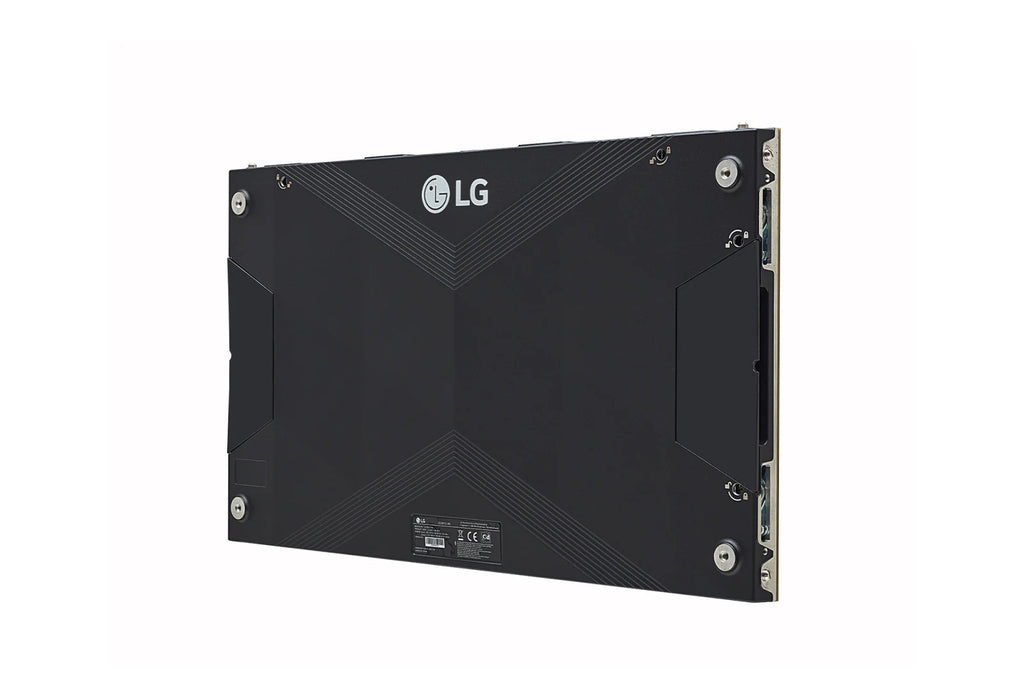

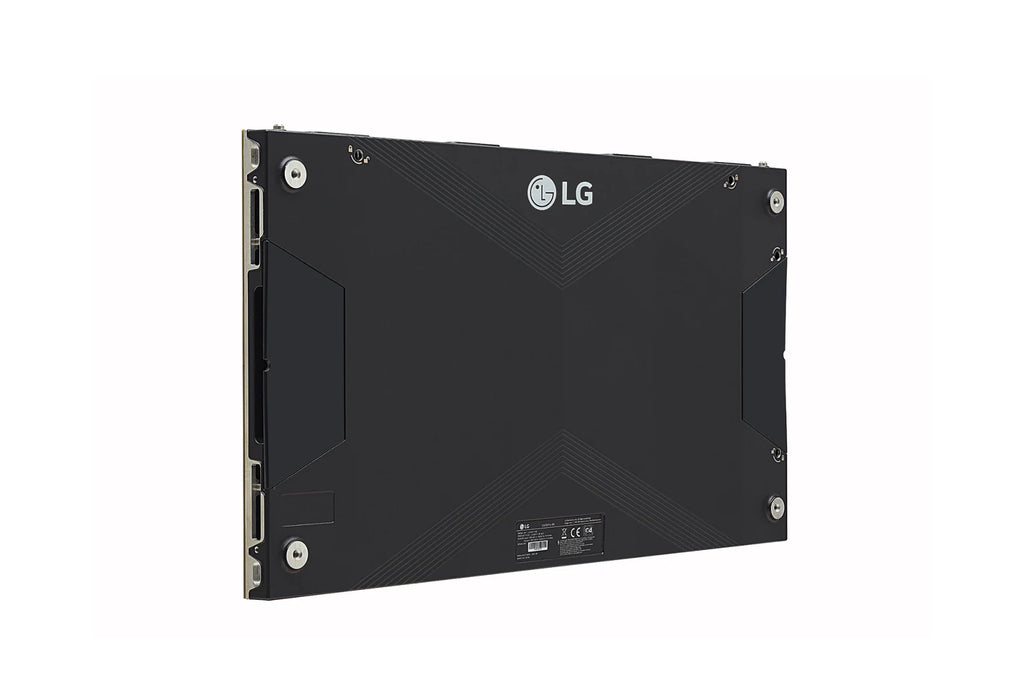

The LG LSCB018-GK is an indoor direct-view LED display cabinet from the Ultra Slim LSCB Series, with a 1.88 mm pixel pitch and 3-in-1 SMD pixels. Each 600 x 337.5 mm cabinet has a 16:9 aspect ratio and holds four 300 x 168.75 mm modules (2 x 2) for a cabinet resolution of 320 x 180, so standard FHD and UHD content can be used without re-editing. The die-cast aluminum alloy cabinet is 35 mm deep and weighs 11.6 lbs (5.2 kg). Installation and maintenance are done from the front: a magnetic tool attaches and removes modules, so no space is needed behind the wall. It delivers 800 nits of brightness after calibration, a 5,000:1 contrast ratio, a 160° x 160° viewing angle and a 3,840 Hz refresh rate. It is EMC Class B certified for residential as well as commercial environments, and a 90° corner design is available.
Technical Specifications:
| Specification | Details |
|---|---|
| Brand | LG |
| MPN | LSCB018-GK |
| Series | Ultra Slim LSCB Series (Indoor) |
| Pixel Configuration | 3-in-1 SMD |
| Pixel Pitch | 1.88 mm |
| Module Resolution (W x H) | 160 x 90 |
| Module Dimensions (W x H) | 300 x 168.75 mm |
| Modules per Cabinet (W x H) | 2 x 2 |
| Cabinet Resolution (W x H) | 320 x 180 |
| Cabinet Dimensions (W x H x D) | 600 x 337.5 x 35 mm (23.6 x 13.3 x 1.4 in) |
| Aspect Ratio | 16:9 |
| Cabinet Surface Area | 0.203 m² (2.2 ft²) |
| Weight per Cabinet | 5.2 kg (11.6 lbs) |
| Weight per Square Meter | 25.7 kg/m² |
| Physical Pixel Density | 284,444 pixels/m² |
| Cabinet Flatness | ±0.1 mm |
| Cabinet Material | Die-cast aluminum alloy |
| Service Access | Front |
| Max Brightness (After Calibration) | 800 nits |
| Color Temperature | 6,500 K |
| Viewing Angle (H x V) | 160° x 160° |
| Brightness Uniformity | 97% |
| Color Uniformity | ±0.003 Cx, Cy |
| Contrast Ratio | 5,000:1 |
| Processing Depth | 14-bit |
| Max Power Consumption per Cabinet | 150 W (512 BTU) |
| Avg. Power Consumption per Cabinet | 50 W (171 BTU) |
| Max Power Consumption per m² | 890 W/m² (3,037 BTU/m²) |
| Power Supply | 100 to 240 V |
| Frame Rate | 50 / 60 Hz |
| Refresh Rate | 3,840 Hz |
| Lifetime (Half Brightness) | 100,000 hours |
| Operating Temperature | -10°C to 45°C (14°F to 113°F) |
| Operating Humidity | 0% to 80% RH |
| IP Rating (Front / Rear) | IP30 / IP30 |
| Certifications | CE, FCC, ETL, EMC Class B |
| Fire Rating | BS 476 Part 7 Class 1 (in progress) |
| Environmental | RoHS (REACH in progress) |
| Compatible Controllers | LCIN006 (FHD), LCIN008 (4K) |
| 90° Corner Design | Available |
