Description

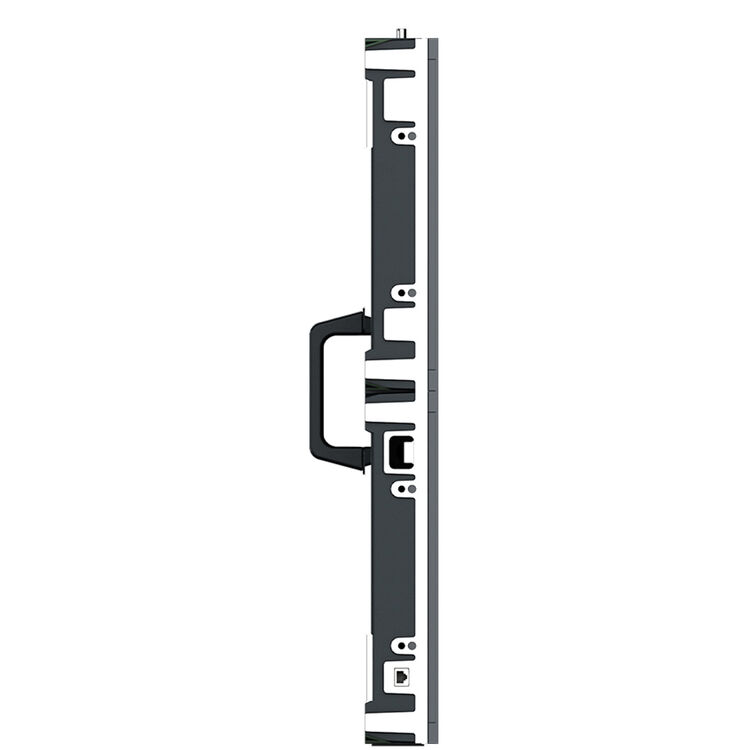

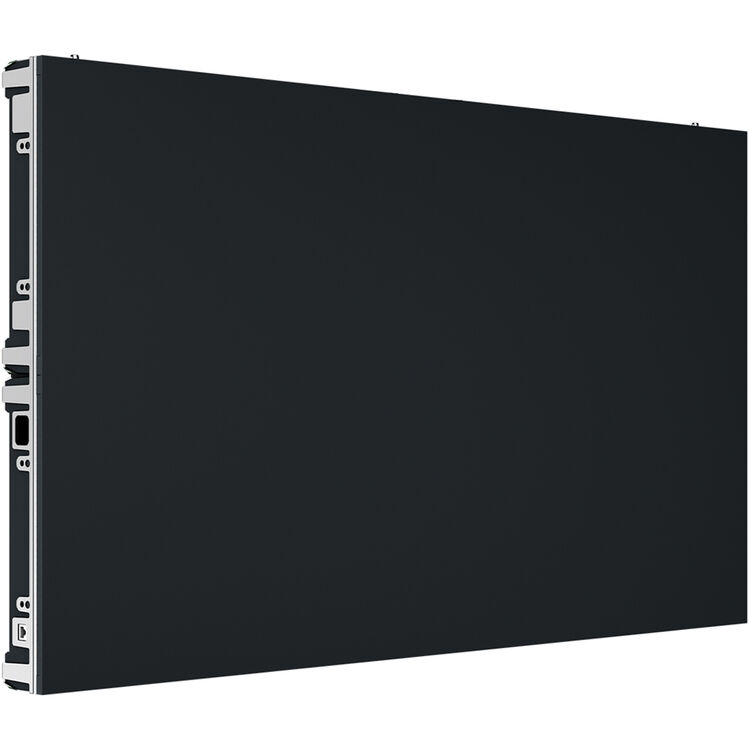

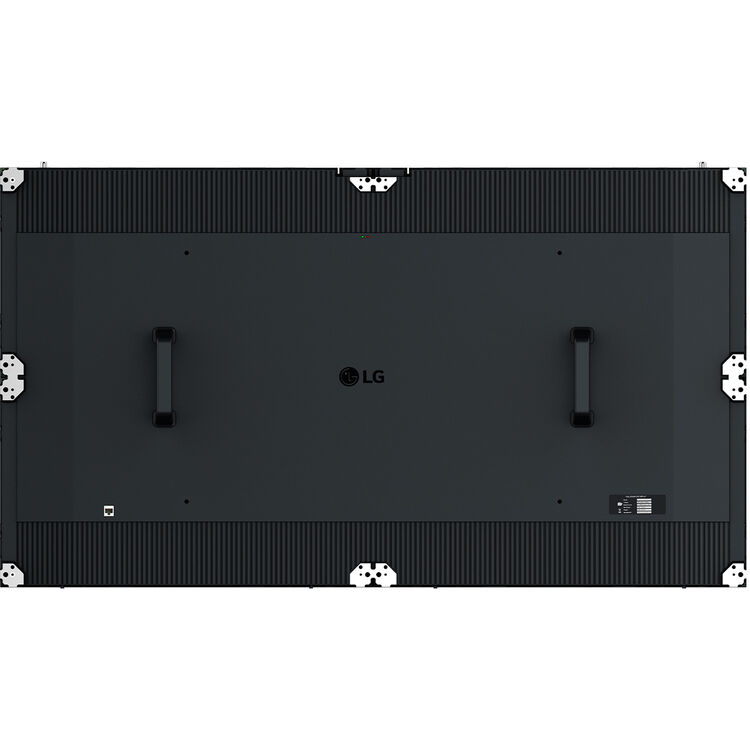

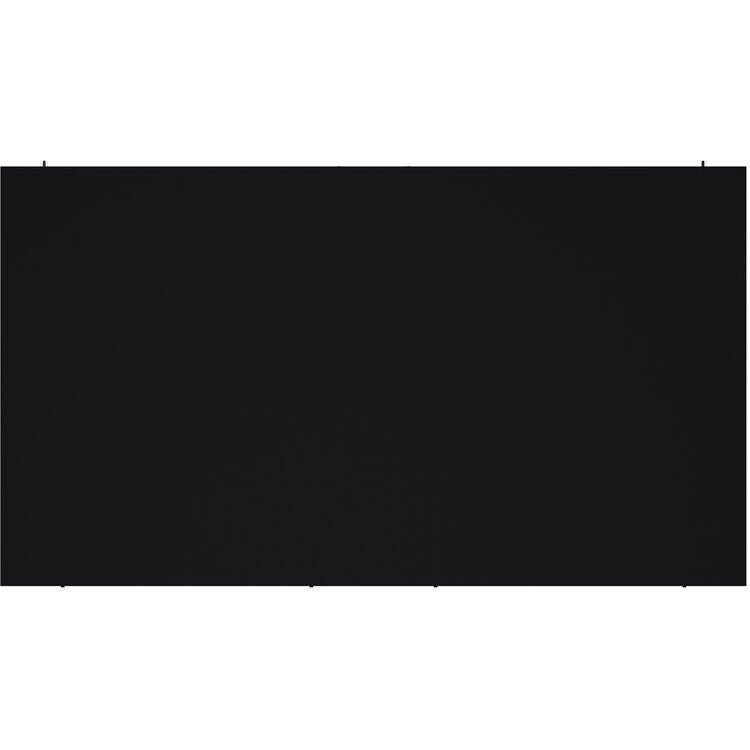

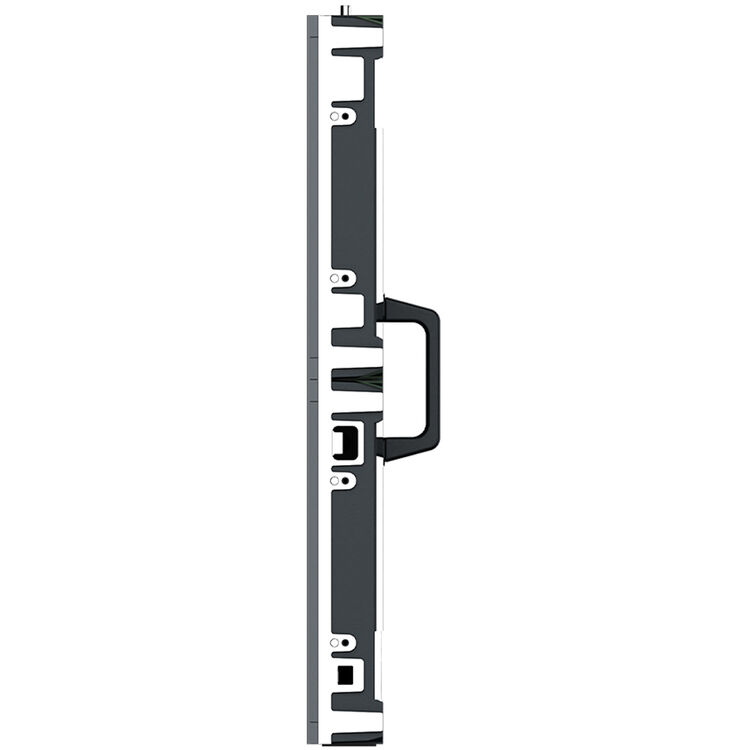

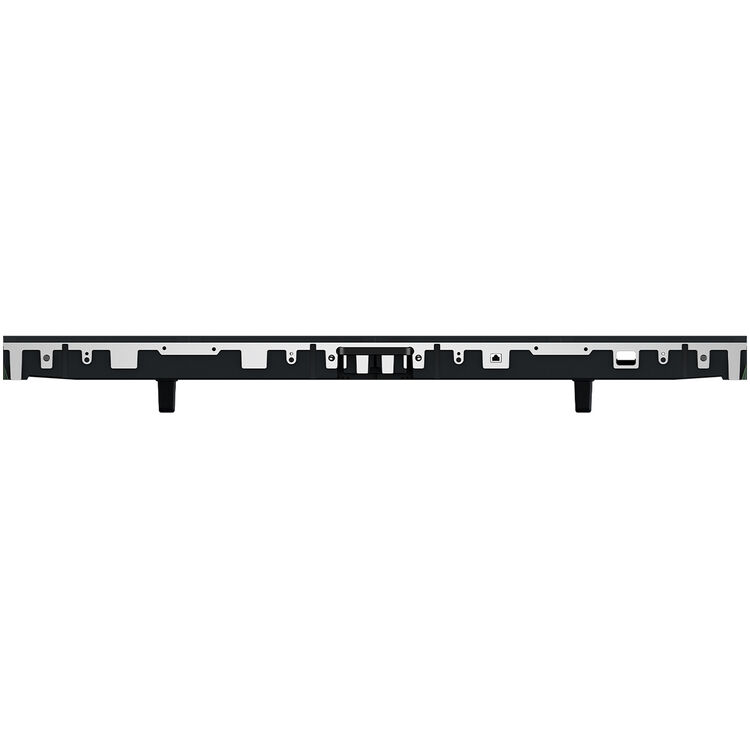

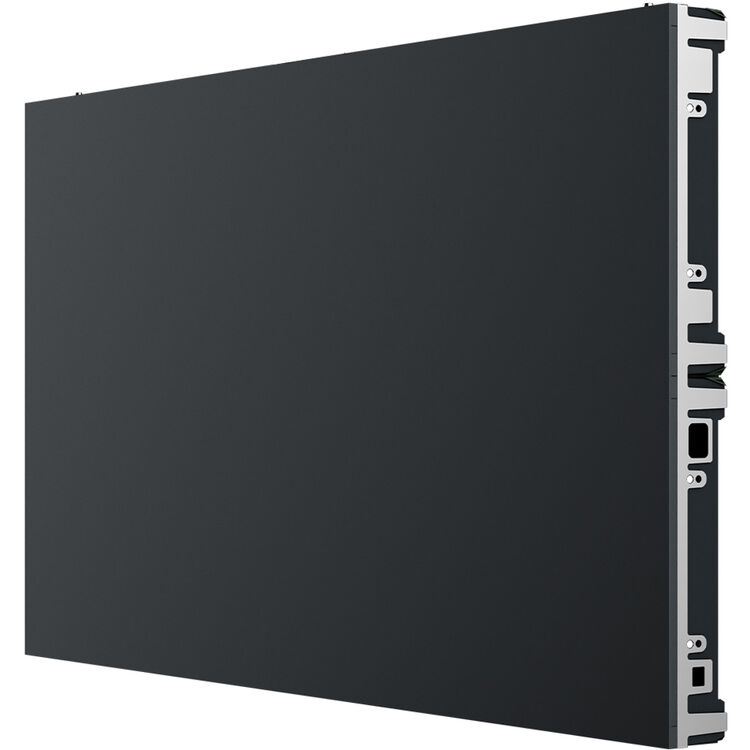

The LG LSBF018-GDR is an indoor direct view LED cabinet from the LSBF Value Series, with a 1.88 mm pixel pitch and single SMD pixels. It is a right mitre cut version. Each 1,200 x 675 x 72 mm die-cast aluminum cabinet holds eight 300 x 337.5 mm modules (4 x 2) for a cabinet resolution of 640 x 360. Its front-access design forms a seamless cabinet with improved flatness that is easy to maintain. It delivers 600 nits of brightness, a 5,000:1 contrast ratio, 14-bit processing and a 3,840 Hz refresh rate. The LSBF (54") shares a platform with the LSBE (27") series, so the two can be combined to fit a range of wall sizes, and it can replace an existing LCD video wall using a 600 x 400 VESA wall mount (sold separately). Paired with the LG CVBA controller, it works with SuperSign CMS, LED Assistant and ConnectedCare. It is TAA compliant.
Technical Specifications:
| Specification | Details |
|---|---|
| Brand | LG |
| MPN | LSBF018-GDR |
| Series | LSBF Value Series (Indoor) |
| Edge Configuration | Right mitre cut |
| Pitch Name | P1.8 |
| Pixel Configuration | Single SMD |
| Pixel Pitch | 1.88 mm |
| Module Resolution (W x H) | 160 x 180 |
| Module Dimensions (W x H x D) | 300 x 337.5 x 13 mm (11.8 x 13.3 x 0.5 in) |
| Weight per Module | 0.95 kg (2.1 lbs) |
| Modules per Cabinet (W x H) | 4 x 2 |
| Cabinet Resolution (W x H) | 640 x 360 |
| Cabinet Dimensions (W x H x D) | 1,200 x 675 x 72 mm (47.2 x 26.6 x 2.8 in) |
| Cabinet Surface Area | 0.81 mΒ² |
| Weight per Cabinet | 23 kg |
| Weight per Square Meter | 28 kg/mΒ² |
| Physical Pixel Density | 284,089 pixels/mΒ² |
| Cabinet Flatness | Β±0.3 mm |
| Cabinet Material | Die-cast aluminum |
| Service Access | Front |
| Max Brightness (After Calibration) | 600 nits |
| Color Temperature | 3,200 to 9,300 K |
| Viewing Angle (H x V) | 160Β° x 150Β° |
| Brightness Uniformity | 97% |
| Color Uniformity | Β±0.003 Cx, Cy |
| Contrast Ratio | 5,000:1 |
| Processing Depth | 14-bit |
| Max Power Consumption per Cabinet | 413 W |
| Avg. Power Consumption per Cabinet | 166 W |
| Max Power Consumption per mΒ² | 510 W/mΒ² |
| Max Heat Dissipation per Cabinet | 1,410 BTU/h |
| Avg. Heat Dissipation per Cabinet | 566 BTU/h |
| Max Heat Dissipation per mΒ² | 1,740 BTU/h/mΒ² |
| Power Supply | 100 to 240 VAC |
| Frame Rate | 50 / 60 Hz |
| Refresh Rate | 3,840 Hz |
| Operating Temperature | -20Β°C to +40Β°C (-4Β°F to +104Β°F) |
| Operating Humidity | 10% to 80% RH |
| IP Rating (Front / Rear) | IP50 / IP50 |
| Certifications | CE, FCC, cTUVus, CB, KC, CCC, Class C |
| Fire Protection | EN 13501-1 |
| Environmental | RoHS, REACH |
| Controller | CVBA |
| TAA Compliance | Yes |
| Warranty | 3-year limited |
| UPC | 195174076224 |
