Description

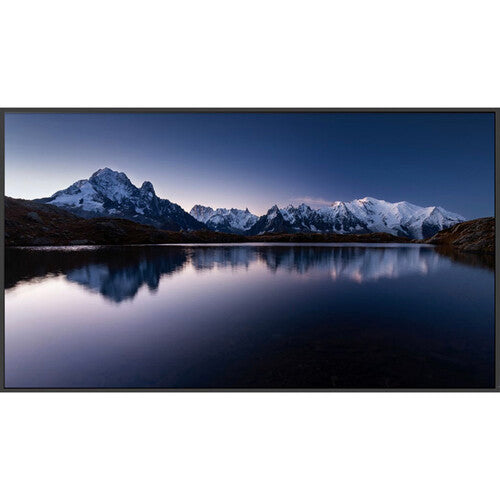

The Clevertouch Mimio Boxlight DS 430 is a 43-inch Android 11 UHD digital signage display designed for classrooms, collaboration spaces, hallways, and campus communication areas. With 4K Ultra HD resolution, 450-nit brightness, anti-glare viewing, and flicker-free DC dimming, it delivers clear and comfortable visuals for daily content sharing.
Built-in Android 11 technology supports smooth content playback without requiring an external media player, while the quad-core ARM Cortex A55 processor, 4GB RAM, and Mali G52MP2 graphics controller provide reliable performance for signage and classroom display applications. AI PQ Scene Recognition helps optimize picture quality automatically for more accurate color, detail, and contrast.
The DS 430 supports portrait and landscape orientation with built-in gravity sensing for auto-rotation, making it flexible for different installation needs. A multifunctional USB Type-C port allows 4K audio/video transmission, network connectivity, external device charging, and access to compatible microphone and camera accessories. Multiple HDMI, USB, Ethernet, serial, and audio connections make it easy to integrate into classroom and campus AV systems.
With enhanced color calibration, 72% NTSC color gamut, Direct LED backlighting, 5000:1 dynamic contrast ratio, and a backlight life of at least 50,000 hours, the Mimio DS 430 is built for dependable visual communication in education and collaboration environments.
| Category | Specification |
|---|---|
| SKU | CLV-MIMIO DS 430 |
| Brand | Clevertouch |
| Manufacturer | Boxlight |
| Model | DS 430 |
| Series | DS |
| Product Type | Digital Signage Display |
| Screen Size | 43" |
| Screen Size Class | 43" |
| Display Resolution | 3840 x 2160 |
| Resolution | 4K UHD |
| Aspect Ratio | 16:9 |
| Panel Technology | Vertical Alignment (VA) |
| Backlight Technology | Direct LED |
| Brightness | 450 nits |
| Dynamic Contrast Ratio | 5000:1 |
| Response Time | 6.5 ms |
| Color Gamut | 72% NTSC |
| Pixel Pitch | 9.6 milli-inch |
| Touchscreen | No |
| Operating System | Android 11 |
| Processor | ARM Cortex A55 |
| Processor Cores | Quad-Core |
| Graphics Controller | Mali G52MP2 |
| RAM | 4GB |
| HDMI Inputs | 2 |
| HDMI Outputs | 1 |
| USB 2.0 Ports | 1 |
| USB 3.0 Ports | 1 |
| USB Type-C | Yes |
| Ethernet | Yes |
| RJ-45 Network Ports | 2 |
| Audio Line Out | 1 |
| Serial Port | Yes |
| OPS Slot | Yes |
| Orientation Support | Portrait and Landscape |
| Auto-Rotation | Built-in Gravity Sensor |
| Anti-Glare | Yes |
| Flicker-Free | Yes |
| Color Calibration | Enhanced Color Calibration, Delta E <1.5 |
| Playback Features | USB Auto Play, Auto Play After Start-Up, Playlist Scheduling |
| Screen Tilt Support | Up to 15° Tilt Adjustment |
| Usage | Classroom, Collaboration, Campus Display, Digital Signage |
| Mounting | Stand Mount, Wall Mountable |
| VESA Mount Standard | 200 x 200 |
| Input Voltage | 120V AC, 230V AC |
| Minimum Operating Temperature | 32°F |
| Maximum Operating Temperature | 104°F |
| Minimum Storage Temperature | -4°F |
| Maximum Storage Temperature | 140°F |
| ENERGY STAR Certified | No |
| EPEAT Compliant | No |
| TCO Certified | No |
| Limited Warranty | 3 Years |
| Dimensions | 21.8" W x 2.8" H x 38" D |
