Description

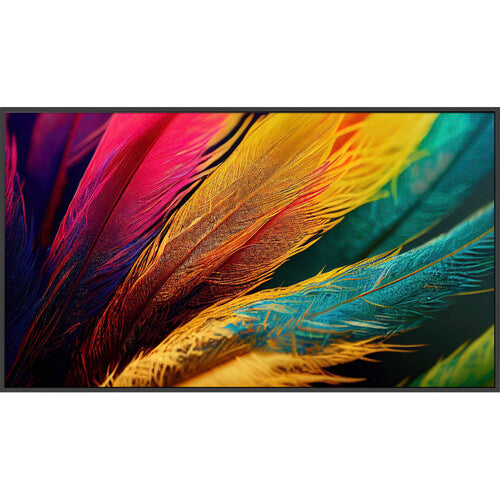

The Clevertouch Mimio DS 860 is an 86-inch 4K UHD digital signage display designed for classrooms, collaboration spaces, hallways, and campus communication areas. Built with Android 11 technology, this display delivers smooth content playback, vivid picture quality, and flexible signage management for modern learning environments.
With 450-nit brightness, anti-glare glass, flicker-free DC dimming, and enhanced color calibration, the DS 860 provides clear, accurate visuals for daily instruction, announcements, presentations, and digital signage. AI picture quality scene recognition automatically adjusts image detail and color for a more natural viewing experience.
The display supports both portrait and landscape orientation with a built-in gravity sensor for automatic content rotation. Its multifunctional USB Type-C port supports 4K audio/video transmission, network connectivity, external device charging, and access to compatible microphone and camera accessories.
With USB auto play, scheduled playlists, auto play after startup, HDMI connectivity, RJ-45 networking, and VESA mounting support, the Mimio DS 860 is a powerful and practical display solution for schools and campus-wide communication.
| Specification | Details |
|---|---|
| SKU | CLV-MIMIO DS 860 |
| Brand | Clevertouch |
| Manufacturer | Boxlight |
| Model | DS 860 |
| Series | DS |
| Product Type | Digital Signage Display |
| Usage | Classroom, Collaboration, Digital Signage |
| Screen Size | 86" |
| Screen Size Class | 86" |
| Resolution | 3840 x 2160 |
| Display Type | 4K UHD |
| Aspect Ratio | 16:9 |
| Panel Technology | Vertical Alignment (VA) |
| Backlight Technology | Direct LED |
| Brightness | 450 nits |
| Native Contrast Ratio | 1,200:1 |
| Response Time | 8 ms |
| Refresh Rate | 60 Hz |
| Color Gamut | 72% NTSC |
| Enhanced Color Calibration | Yes |
| Anti-Glare | Yes |
| Flicker-Free | Yes |
| Built-In Operating System | Android 11 |
| Processor | ARM Cortex A55 |
| Processor Cores | Quad-Core |
| Graphics Controller | Mali G52MP2 |
| RAM | 4 GB |
| Ethernet | Yes |
| HDMI Inputs | 2 |
| HDMI Outputs | 1 |
| Network Ports | 2 x RJ-45 |
| USB 2.0 Ports | 1 |
| USB 3.0 Ports | 1 |
| USB Type-C | Yes |
| Serial Port | Yes |
| Orientation Support | Portrait and Landscape |
| Auto-Rotation | Yes, Built-In Gravity Sensor |
| Multi-Mode Playback | USB Auto Play, Startup Auto Play, Playlist Scheduling |
| Tilt Support | Up to 15° |
| OPS Slot | Yes |
| Input Voltage | 120 V AC, 230 V AC |
| VESA Mount Standard | 800 x 600 |
| Mounting Options | Stand Mount, Wall Mountable |
| Width | 76" |
| Height | 43.4" |
| Depth | 3.2" |
| Minimum Operating Temperature | 32°F |
| Maximum Operating Temperature | 104°F |
| Minimum Storage Temperature | -4°F |
| Maximum Storage Temperature | 140°F |
| ENERGY STAR Certified | No |
| EPEAT Compliant | No |
| TCO Certified | No |
| Limited Warranty | 3 Years |
