Description

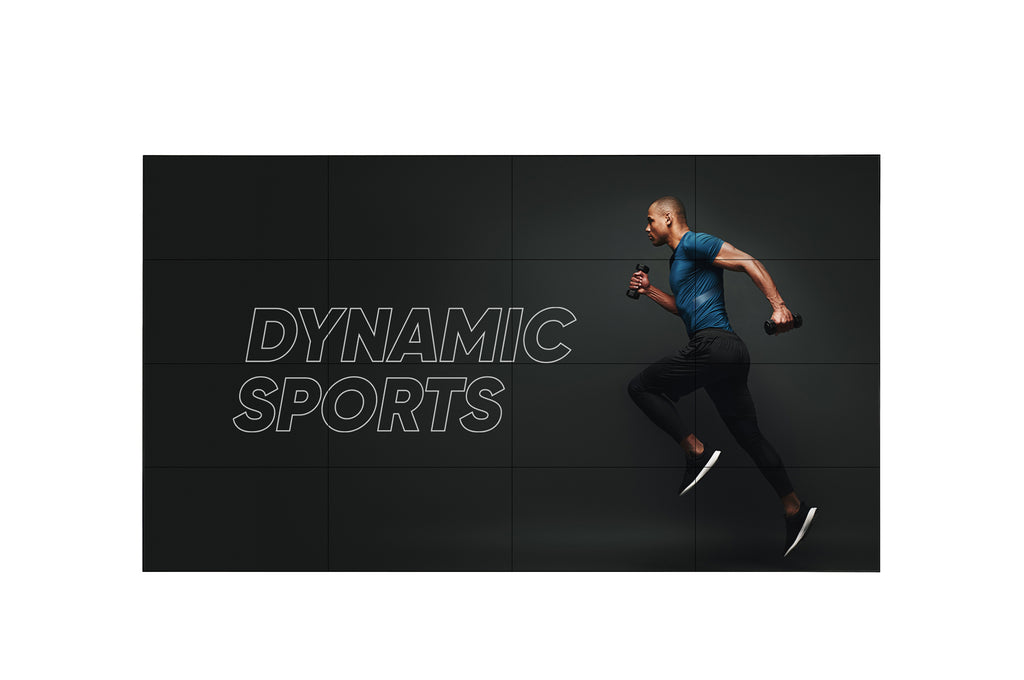

The LG 55VL5PJ 3×3 Video Wall Bundle delivers a professional-grade large-format visual solution designed for control rooms, retail environments, corporate lobbies, and mission-critical command centers. Featuring nine 55-inch Full HD IPS panels arranged in a 3×3 configuration, this video wall achieves seamless visual continuity with ultra-slim bezels measuring just 2.25 mm (top/left) and 1.25 mm (bottom/right).
Each panel provides 500 nits of brightness, wide 178° viewing angles, and accurate color reproduction, ensuring consistent image quality across the entire wall. Built-in daisy-chain networking enables centralized control, monitoring, and firmware updates, while internal 8 GB memory and onboard sensors—temperature, BLU, and gyro—support stable, long-term operation.
This bundle includes the Peerless-AV DS-VW775 Supreme Full-Service Video Wall Mount, engineered for fast installation and precise alignment. Tool-less micro-adjustments on the X, Y, and Z axes, single-hand pop-out service access, reusable spacers, and enhanced cable management simplify both initial setup and ongoing maintenance.
Together, the LG 55VL5PJ displays and Peerless mounting system deliver a scalable, service-friendly video wall solution built for continuous commercial use.
| Category | Specification |
|---|---|
| Model | 55VL5PJ |
| Configuration | 3×3 Video Wall (9 Displays) |
| Screen Size | 55 Inch (Each Panel) |
| Display Technology | IPS LCD |
| Resolution | 1920 × 1080 (FHD) |
| Aspect Ratio | 16:9 |
| Brightness | 500 nits |
| Contrast Ratio | 1,200:1 (Typ.), 500,000:1 (Dynamic) |
| Response Time | 8 ms |
| Refresh Rate | 60 Hz |
| Viewing Angle | 178° / 178° |
| Color Support | 1.07 Billion Colors |
| Color Gamut | NTSC 72% |
| Bezel Width | 2.25 mm (Top/Left), 1.25 mm (Bottom/Right) |
| Depth | 93.1 mm |
| Internal Memory | 8 GB |
| Integrated Sensors | Temperature, BLU, Acceleration (Gyro) |
| Inputs | HDMI ×2, DisplayPort, DVI-D, USB 2.0, Audio In, RS-232C In, RJ45, IR In |
| Outputs | DisplayPort Out, Audio Out, RS-232C Out |
| VESA Mount | 600 × 400 mm |
| Mount Included | Peerless-AV DS-VW775 Supreme Full-Service Mount |
| Power Requirement | AC 100–240V, 50/60Hz |
| Power Consumption (Per Display) | 135 W (Operational), 0.5 W (Off Mode) |
| Operating Temperature | 0°C to 40°C |
| Operating Humidity | 10% to 80% |
| Dimensions (W × H × D) | 1,213.4 × 684.2 × 93.1 mm |
| Weight (Per Display) | 23.5 kg |
| Color | Black |
| UNSPSC Code | 43211902 |
